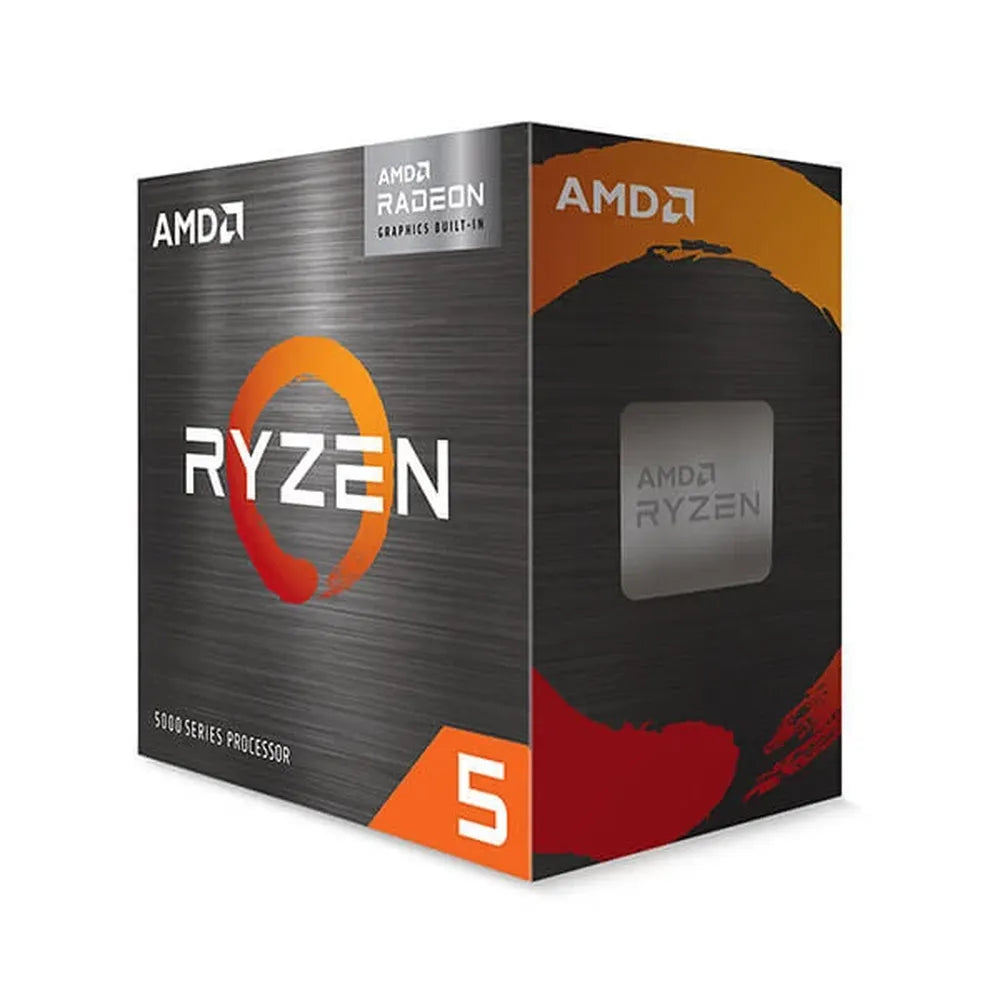

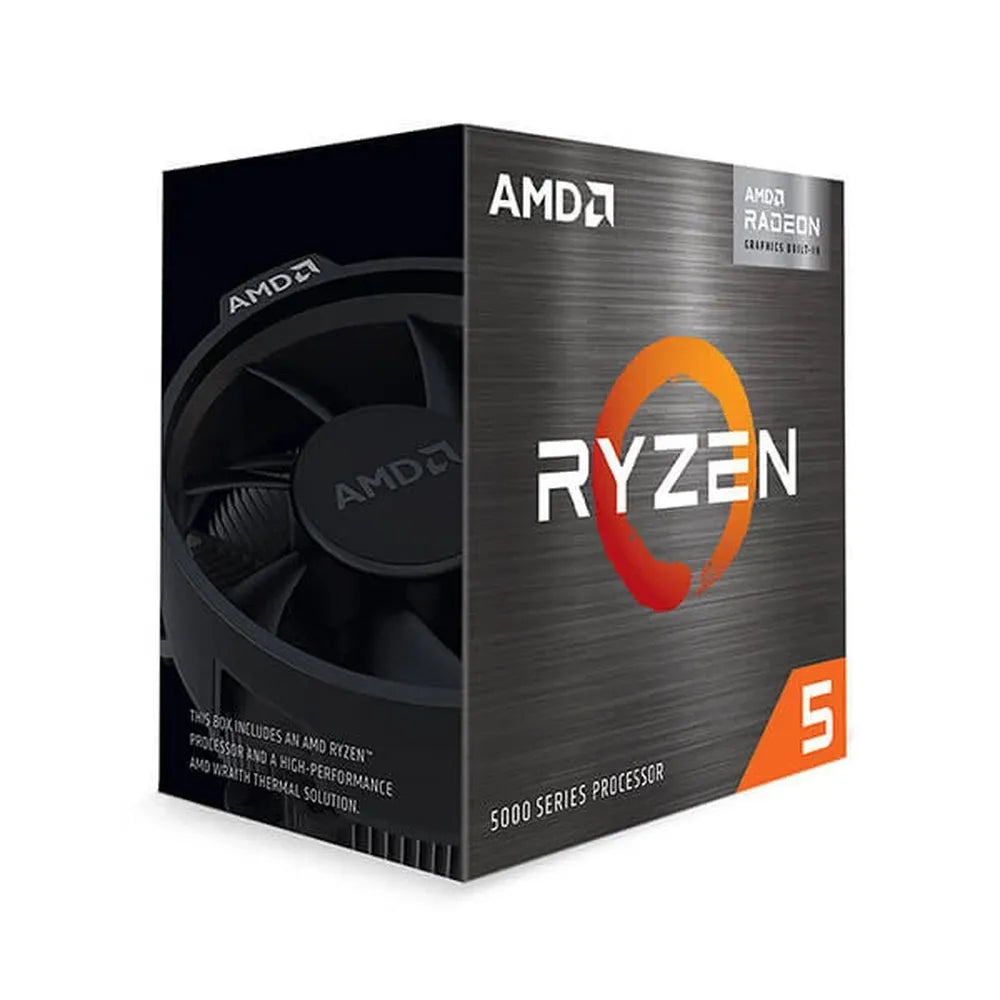

AMD Ryzen 5 5600GT 5th Generation (4.6 GHz / 6 Cores / 12 Threads )

The AMD Ryzen 5 5600GT is a mainstream desktop APU (Accelerated Processing Unit) built on AMD’s Zen 3 architecture, formerly codenamed “Cezanne”. It belongs to the AMD Ryzen 5 5000 G-Series of processors and is designed for the AM4 platform, making it compatible with a wide range of existing AM4 motherboards. At the heart of the 5600GT are 6 CPU cores with Simultaneous Multi-Threading (SMT) delivering 12 threads, with a base clock of 3.6 GHz that can boost up to 4.6 GHz under load. The processor is manufactured using TSMC’s 7nm FinFET process on a single compute die measuring 180mm², keeping power consumption efficient at a default TDP of 65W, with AMD’s configurable TDP (cTDP) allowing adjustment between 45W and 65W to suit different chassis and thermal requirements. One of the standout features of the 5600GT is its integrated Radeon Graphics, comprising 7 Compute Units clocked at up to 1900 MHz. This makes the processor a practical choice for budget or compact builds where a discrete graphics card is either not required or not yet installed — capable of handling everyday desktop tasks and light graphical workloads without additional GPU expenditure. The processor supports dual-channel DDR4 memory via UDIMM modules, with a maximum capacity of 128 GB and support for speeds up to DDR4-3200 (2x1R or 2x2R configuration). For storage, it supports NVMe with RAID modes including RAID 0, RAID 1, and RAID 10. Connectivity is handled via PCIe 3.0. Unlocked for overclocking, the 5600GT gives enthusiasts flexibility to push performance beyond stock settings. The retail box (product code: 100-100001488BOX) includes the AMD Wraith Stealth thermal solution, so no separate CPU cooler purchase is necessary for standard operation. The maximum operating temperature (Tjmax) is rated at 95°C. Verified Specifications: • Architecture: Zen 3 (“Cezanne”) • CPU Cores / Threads: 6 / 12 • Base Clock: 3.6 GHz | Max Boost Clock: Up to 4.6 GHz • L1 Cache: 384 KB | L2 Cache: 3 MB | L3 Cache: 16 MB • TDP: 65 W (cTDP: 45–65 W) • Process Node: TSMC 7nm FinFET • CPU Socket: AM4 • Integrated Graphics: Radeon Graphics, 7 Compute Units @ 1900 MHz • Memory: Dual-channel DDR4 UDIMM, up to 128 GB, up to 3200 MT/s • PCIe Version: PCIe 3.0 • Included Cooler: AMD Wraith Stealth • Tjmax: 95°C • OS Support: Windows 11 (64-bit), Windows 10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit • Warranty: 3 Years • Product Code: 100-100001488BOX
