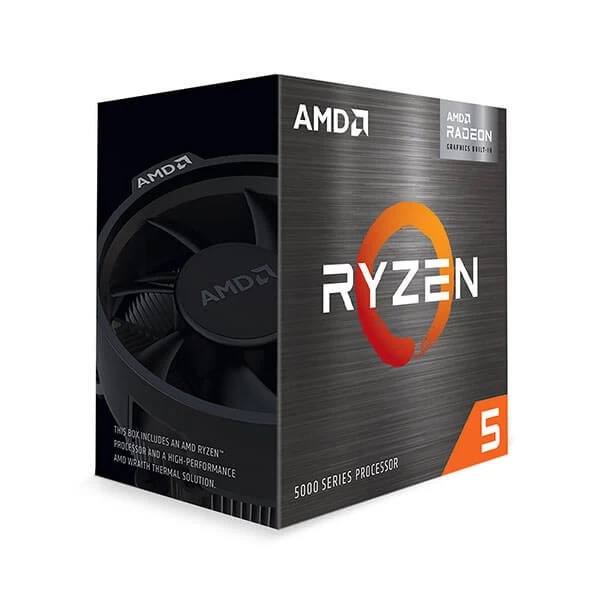

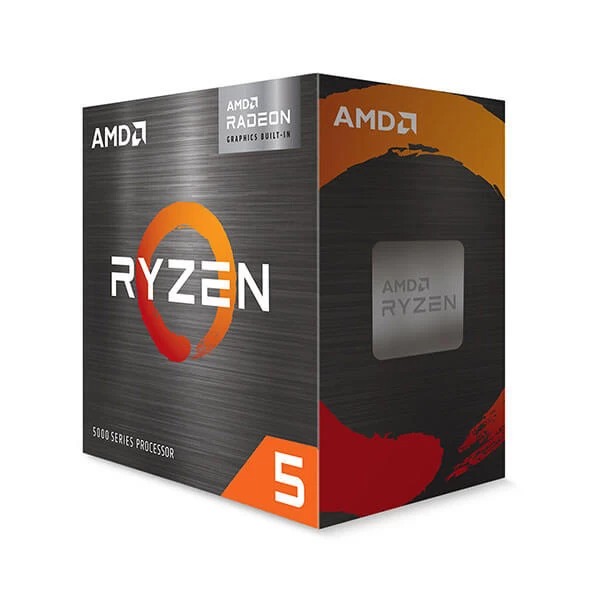

AMD Ryzen 5 5600GT AM4 Desktop Processor (4.6 GHz / 6 Cores / 12 Threads)
MPN 100-100001488BOX · Brand AMD
7nm 65W 16MB L3 Cache 3MB L2 Cache Integrated AMD Radeon Graphics
Inclusive of GST · GST invoice available
Overview
- 7nm 65W
- 16MB L3 Cache
- 3MB L2 Cache
- Integrated AMD Radeon Graphics

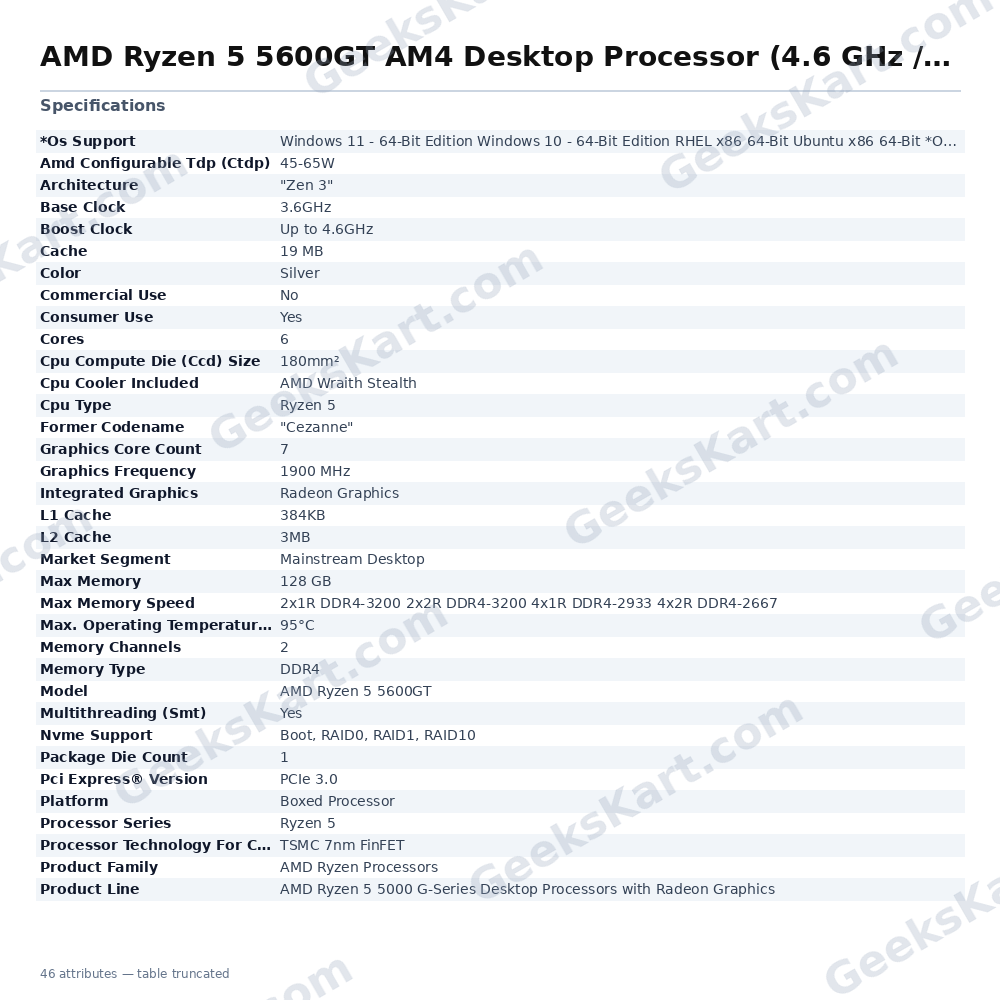

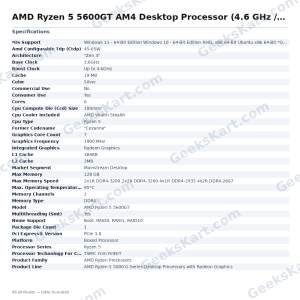

Datasheet
| Processor Series | Ryzen 5 |
|---|---|
| Model | AMD Ryzen 5 5600GT |
| Speed | 3.6 GHz |
| Series | 5000 Series |
| L1 Cache | 384KB |
| L2 Cache | 3MB |
| Platform | Boxed Processor |
| Unlocked | Yes |
| Base Clock | 3.6GHz |
| *Os Support | Windows 11 – 64-Bit Edition Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer |
| Architecture | "Zen 3" |
| Consumer Use | Yes |
| Nvme Support | Boot, RAID0, RAID1, RAID10 |
| Product Line | AMD Ryzen 5 5000 G-Series Desktop Processors with Radeon Graphics |
| Boost Clock | Up to 4.6GHz |
| Commercial Use | No |
| Integrated Graphics | Radeon Graphics |
| Market Segment | Mainstream Desktop |
| Product Family | AMD Ryzen Processors |
| Former Codename | "Cezanne" |
| Memory Channels | 2 |
| Max Memory Speed | 2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
| Package Die Count | 1 |
| Graphics Frequency | 1900 MHz |
| Graphics Core Count | 7 |
| Cpu Cooler Included | AMD Wraith Stealth |
| Multithreading (Smt) | Yes |
| Pci Express® Version | PCIe 3.0 |
| System Memory Subtype | UDIMM |
| Thermal Solution (Mpk) | AMD Wraith Stealth |
| Unlocked For Overclocking | Yes |
| Cpu Compute Die (Ccd) Size | 180mm² |
| Amd Configurable Tdp (Ctdp) | 45-65W |
| System Memory Specification | Up to 3200MT/s |
| Max. Operating Temperature (Tjmax) | 95°C |
| Processor Technology For Cpu Cores | TSMC 7nm FinFET |
| Memory Type | DDR4 |
| Warranty | 3 Years |
| color | Silver |
| Socket | AM4 |
| Cores | 6 |
| Threads | 12 |
| TDP | 65W |
| Cache | 19 MB |
| CPU Type | Ryzen 5 |
| Max Memory | 128 GB |
