Features of AMD Ryzen 5 8400F 8th Generation Processor ( 4.2 GHz / 6 Cores / 12 Threads )
The AMD 8000 Series Processor features 6 cores and 12 threads, with a base clock of 3.0 GHz and a max boost of 3.8 GHz. Designed for efficient multitasking and gaming, AMD Ryzen 5 8400F Processor offers solid performance and supports PCIe 4.0.
An Impressive Desktop Processor optimized for high-performing gaming, video editing, and other heavy-duty workloads. It can deliver immense performance at tiny power usage and can achieve a speed up to 4.2GHz
A new competitor has entered the game. Enter AMD Ryzen 5, an impressive desktop processor that advances your gaming, in a platform that grows with you, and delivers immense performance at tiny power usage.
With its 6 cores and 12 processing threads, this processor is optimized for high-performance gaming, video editing, and other demanding workloads. Whether you’re playing the latest AAA titles or streaming your gameplay, the Ryzen™ 5 8400F processor has the power to keep up. Push your limits and achieve speeds up to 4.2 GHz Max Boost4, plus it’s unlocked for overclocking
1. amd ryzen Master easily personalizes your performance
2. Future Ready AMD Socket AM5 platform
3. AMD EXPO™ technology can unlock improved memory performance for faster gaming
4. 5nm “Zen 4” architecture5 enables leadership energy efficiency than the previous generation

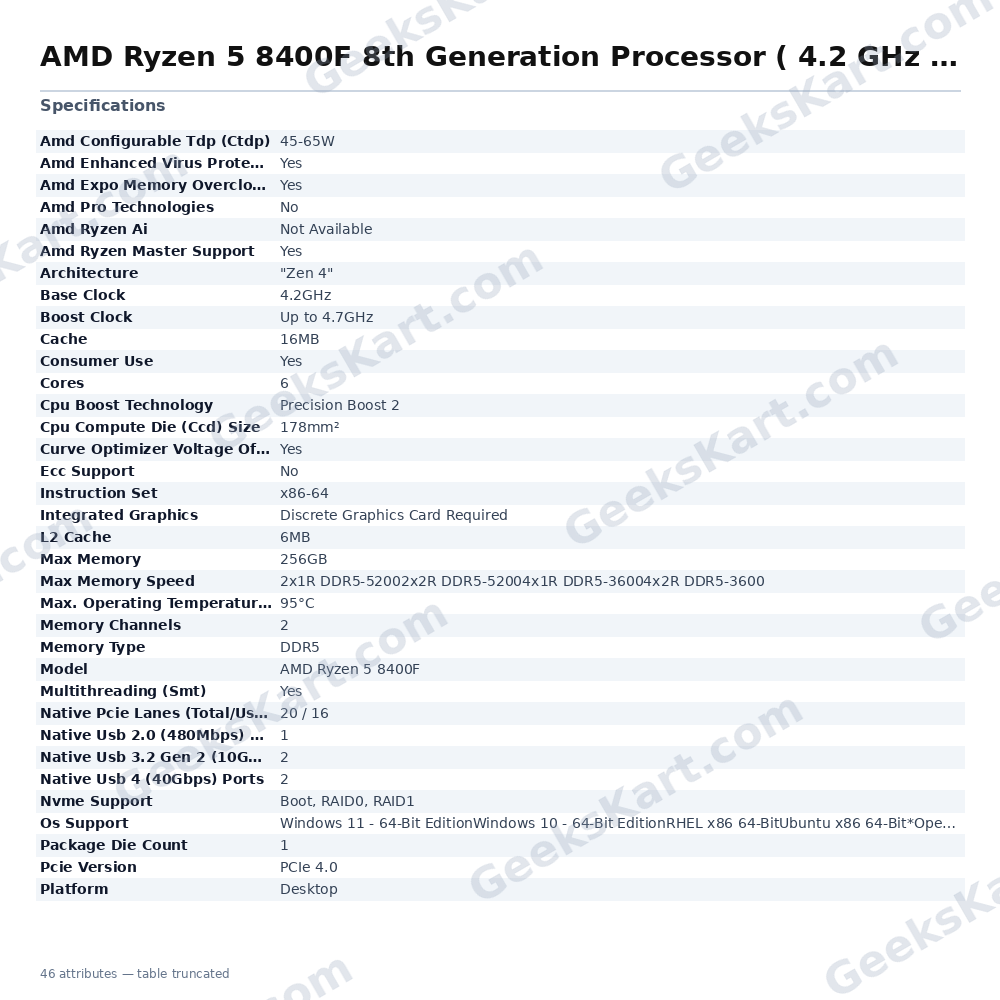

Specifications of AMD Ryzen 5 8400F 8th Generation Processor ( 4.2 GHz / 6 Cores / 12 Threads )
| Model | AMD Ryzen 5 8400F |
| Platform | Desktop |
| Product Code | 100-100001591BOX |
| Product Line | AMD Ryzen 5 Desktop Processors |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Architecture | “Zen 4” |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 4.7GHz |
| Base Clock | 4.2GHz |
| L2 Cache | 6MB |
| L3 Cache | 16MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| CPU Compute Die (CCD) Size | 178mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen Master Support | Yes |
| CPU Socket | AM5 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
|
| Max. Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 – 64-Bit Edition Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| Connectivity | |
| Native USB 4 (40Gbps) Ports | 2 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 2 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| PCI Express Version | PCIe 4.0 |
| Native PCIe Lanes (Total/Usable) | 20 / 16 |
| NVMe Support | Boot, RAID0, RAID1 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 256GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 |
| ECC Support | No |
| Graphics Capabilities | |
| Integrated Graphics | No |
| Graphics Model | Discrete Graphics Card Required |
| AI Engine Capabilities | |
| AMD Ryzen AI | Not Available |
|
Security, Virtualization, and Manageability
|
|
| AMD Enhanced Virus Protection (NX bit) | Yes |
| Warranty | 3 years |
| Note | *** Image use for reference only *** Features, Price, Specifications are subject to change without notice. |
