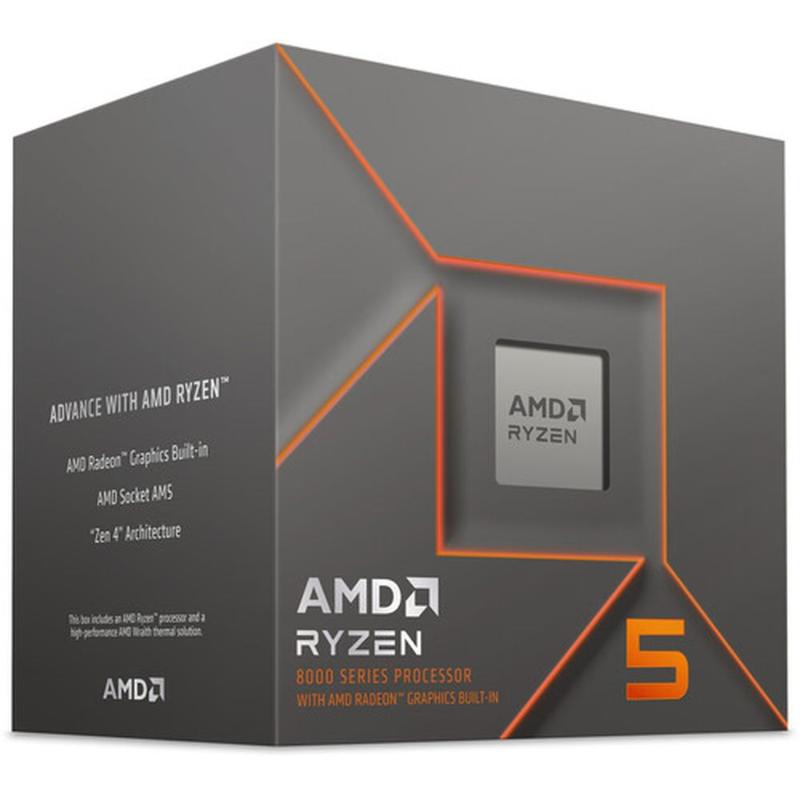

AMD Ryzen 5 8500G 8th Generation Processor ( 5 GHz / 6 Cores / 12 Threads )

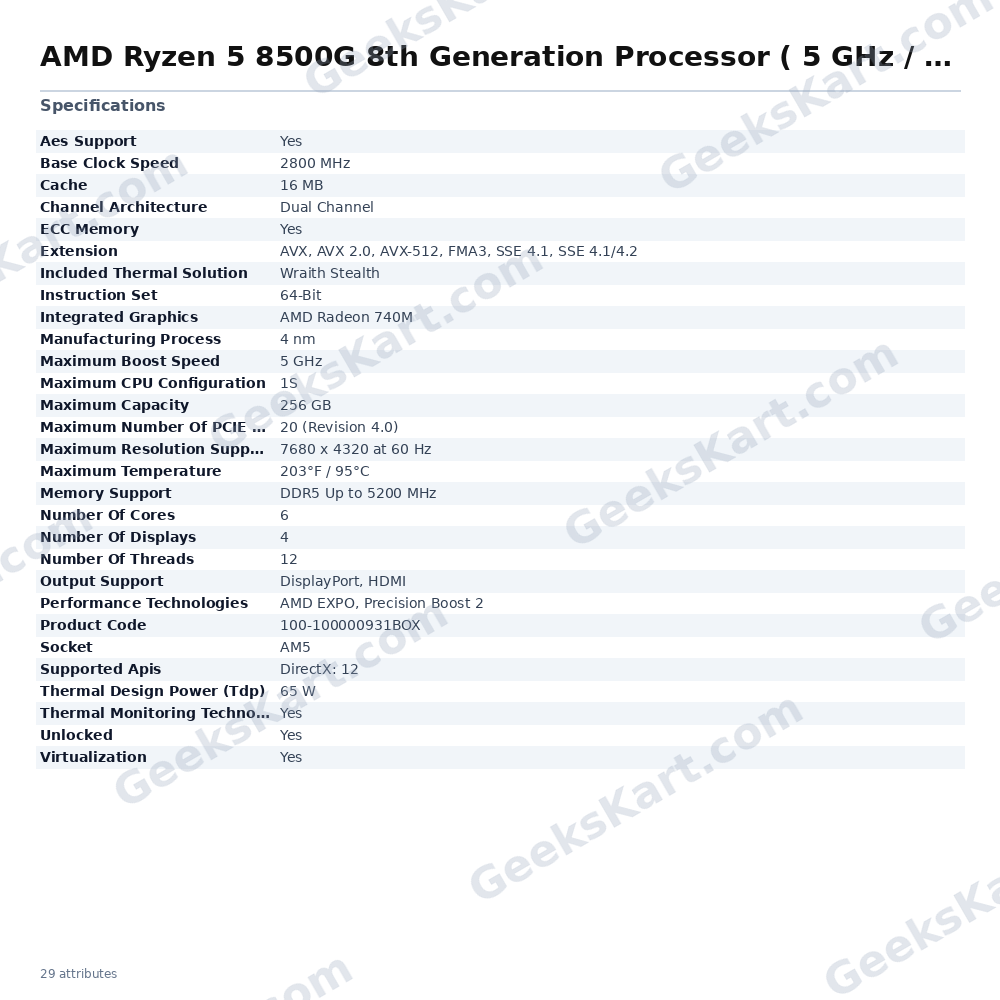

The AMD Ryzen 5 8500G is a desktop APU (Accelerated Processing Unit) built on AMD's AM5 platform, combining a capable 6-core, 12-thread CPU with integrated Radeon 740M graphics on a single chip. Manufactured on a 4 nm process node, it delivers a base clock of 3.5 GHz and a maximum boost frequency of up to 5 GHz via AMD's Precision Boost 2 technology, which dynamically adjusts clock speeds based on real-time monitoring of thermals, power draw, and workload demands. The integrated AMD Radeon 740M GPU supports up to four simultaneous displays via DisplayPort and HDMI outputs, with a maximum resolution of 7680 x 4320 at 60 Hz and DirectX 12 support, making it well-suited for everyday computing, light creative work, and compact or budget-friendly builds that do not require a discrete graphics card. The GPU base clock is 2800 MHz. With a 65W TDP and an included Wraith Stealth cooler, the Ryzen 5 8500G is designed for efficient, accessible builds. It supports DDR5 memory up to 5200 MHz in dual-channel configuration with a maximum capacity of 256 GB, and also supports ECC memory — a feature useful in workstation or data-integrity-sensitive environments. AMD EXPO (Extended Profiles for Overclocking) technology enables straightforward memory overclocking with compatible modules. The processor supports PCIe 4.0 with up to 20 lanes, enabling fast NVMe SSD storage and peripheral connectivity. It features hardware AES encryption, instruction set extensions including AVX, AVX 2.0, AVX-512, FMA3, and SSE 4.1/4.2, and full 64-bit and virtualisation support. The unlocked multiplier allows further tuning via AMD Ryzen Master, which provides per-core clock configuration, memory timing adjustment, and real-time system monitoring with histogram views of clock rates and temperatures. Verified Specifications: - Socket: AM5 - Cores / Threads: 6 / 12 - Base Clock: 3.5 GHz - Boost Clock: up to 5 GHz - L3 Cache: 16 MB - Manufacturing Process: 4 nm - TDP: 65 W - Included Cooler: Wraith Stealth - Max Temperature: 95°C - Integrated GPU: AMD Radeon 740M (2800 MHz base) - Max iGPU Resolution: 7680 x 4320 @ 60 Hz - Display Outputs: DisplayPort, HDMI (up to 4 displays) - Memory: DDR5 up to 5200 MHz, Dual Channel, max 256 GB, ECC supported - PCIe: 4.0, up to 20 lanes - Product Code: 100-100000931BOX - Unlocked: Yes
