AMD Ryzen 5 9600X Processor with Radeon Graphics

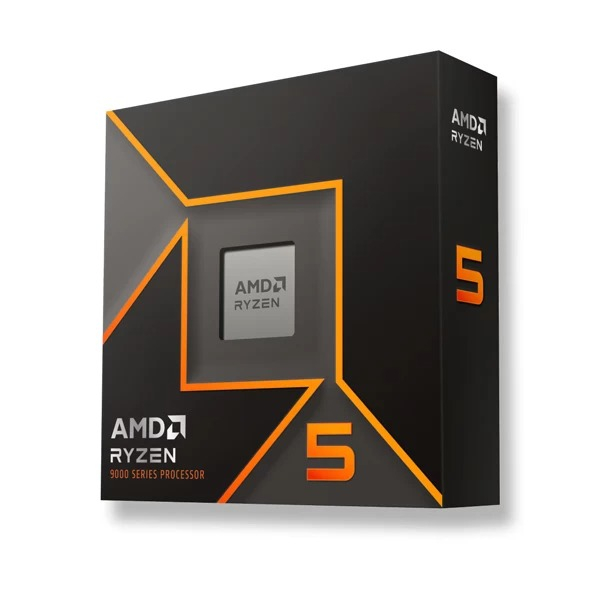

The AMD Ryzen 5 9600X is a sixth-generation Zen 5 desktop processor built on the AM5 platform, designed for users who want capable gaming and multitasking performance in a power-efficient package. It ships as a boxed processor (OPN: 100-100001405WOF) under the Ryzen 9000 Series family, codenamed Granite Ridge. At its core the 9600X offers 6 physical cores with Simultaneous Multi-Threading (SMT) for 12 threads. The base clock runs at 3.9 GHz, and AMD’s Precision Boost 2 technology can push individual cores up to 5.4 GHz automatically by monitoring system thermals and power draw in real time. The default Thermal Design Power (TDP) is rated at 65W, making it compatible with a wide range of cooling solutions, though AMD recommends a premium air cooler for sustained workloads. Note that no cooler is included in the box. The CPU die is manufactured on TSMC’s 4nm FinFET process node, while the I/O die uses TSMC 6nm FinFET. The two-die package delivers a hierarchical cache structure: 480 KB L1, 6 MB L2, and 32 MB L3, totalling 38 MB of chip cache to reduce memory latency in gaming and compute tasks. Memory support is exclusively DDR5 via a dual-channel UDIMM controller, with validated speeds up to DDR5-5600 in two-DIMM configurations and up to 192 GB maximum capacity. ECC memory is supported when the motherboard also supports it. The processor provides 28 total PCIe lanes (24 usable) over PCIe 5.0, plus four native USB 3.2 Gen 2 (10 Gbps) ports and one USB 2.0 port. NVMe storage configurations including RAID 0, 1, 5, and 10 are natively supported. Overclocking enthusiasts will appreciate that the 9600X is fully unlocked and compatible with AMD Ryzen Master, Precision Boost Overdrive, Curve Optimizer voltage offsets, and AMD EXPO one-touch DDR5 memory overclocking. Supported chipsets span A620, B650, B650E, X670, X670E, X870, and X870E boards. Integrated graphics are provided by AMD Radeon Graphics (2 compute units at up to 2200 MHz), suitable for display output and basic tasks. USB Type-C DisplayPort Alternate Mode is also supported. Key Specifications: – Architecture: Zen 5 (Granite Ridge) – Cores / Threads: 6 / 12 – Base Clock: 3.9 GHz | Max Boost Clock: Up to 5.4 GHz – L1 / L2 / L3 Cache: 480 KB / 6 MB / 32 MB – TDP: 65W – Socket: AM5 – Process Node: TSMC 4nm FinFET (CPU cores), TSMC 6nm FinFET (I/O die) – Memory: DDR5, Dual-Channel, up to DDR5-5600, max 192 GB – PCIe: 5.0, 28 total / 24 usable lanes – Integrated Graphics: AMD Radeon Graphics, 2 CUs, 2200 MHz – Max Operating Temperature (Tjmax): 95°C – OS Support: Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit – Warranty: 3 Years – Cooler Included: No
