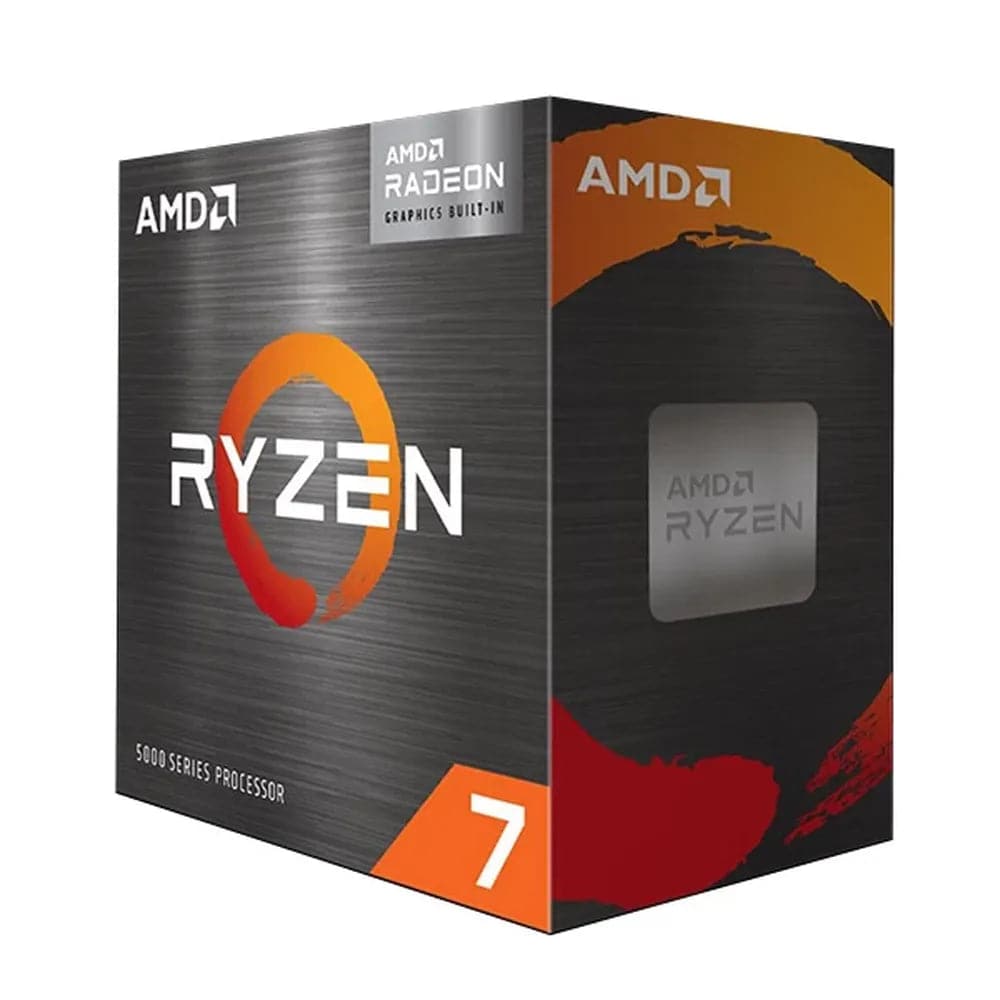

AMD Ryzen 7 5700G 5th Generation Processor (4.6 GHz / 8 Cores / 16 Threads )

The AMD Ryzen 7 5700G is a boxed AM4 desktop processor from AMD’s Ryzen 5000 G-series (codename Cezanne) built on the Zen 3 architecture and TSMC’s 7nm FinFET process. It pairs eight Zen 3 CPU cores and sixteen threads with an integrated Radeon Graphics block, making it a complete compute and display solution for AM4 builds that do not include a discrete GPU. Clock speeds are quoted by AMD at a 3.8GHz base with a Max Boost Clock of up to 4.6GHz, supported by Precision Boost 2 behaviour on compatible AM4 motherboards. The chip carries 4MB of L2 cache and 16MB of L3 cache – 20MB combined – to keep heavily threaded workloads, multitasking and modern game engines fed with data. The multiplier is unlocked, so tuners on B550 or X570 boards can experiment with manual overclocking within the 95C Tjmax limit. On the graphics side, the integrated Radeon engine uses eight graphics cores running at 2000MHz, sharing system memory through the dual-channel DDR4 controller rated up to 3200MT/s. That makes the 5700G a sensible pick for compact builds, office systems, HTPCs and entry-level 1080p gaming where a discrete card is not yet in the budget. Platform I/O is provided over PCIe 3.0. Thermals and power are managed at a 65W default TDP, with an AMD-configurable TDP range of 45-65W for quieter or more constrained chassis. The retail box ships with the Wraith Stealth cooler, so no separate heatsink is required for stock operation. Officially supported operating systems include Windows 10 64-bit, RHEL x86 64-bit and Ubuntu x86 64-bit (final OS support varies by system builder). Verifiable specifications: Product code 100-100000263BOX; Family AMD Ryzen 7 5000 G-Series Desktop Processors with Radeon Graphics; Architecture Zen 3; 8 cores / 16 threads; 3.8GHz base, up to 4.6GHz Max Boost; 4MB L2 + 16MB L3 cache; Socket AM4; 65W TDP (cTDP 45-65W); Tjmax 95C; PCIe 3.0; DDR4 dual-channel up to 3200MT/s; integrated Radeon Graphics with 8 cores at 2000MHz; Wraith Stealth cooler in box; 3-year AMD warranty
