AMD Ryzen 7 5800X3D Processor 10th Anniversary Edition With Carbice Ice Pad

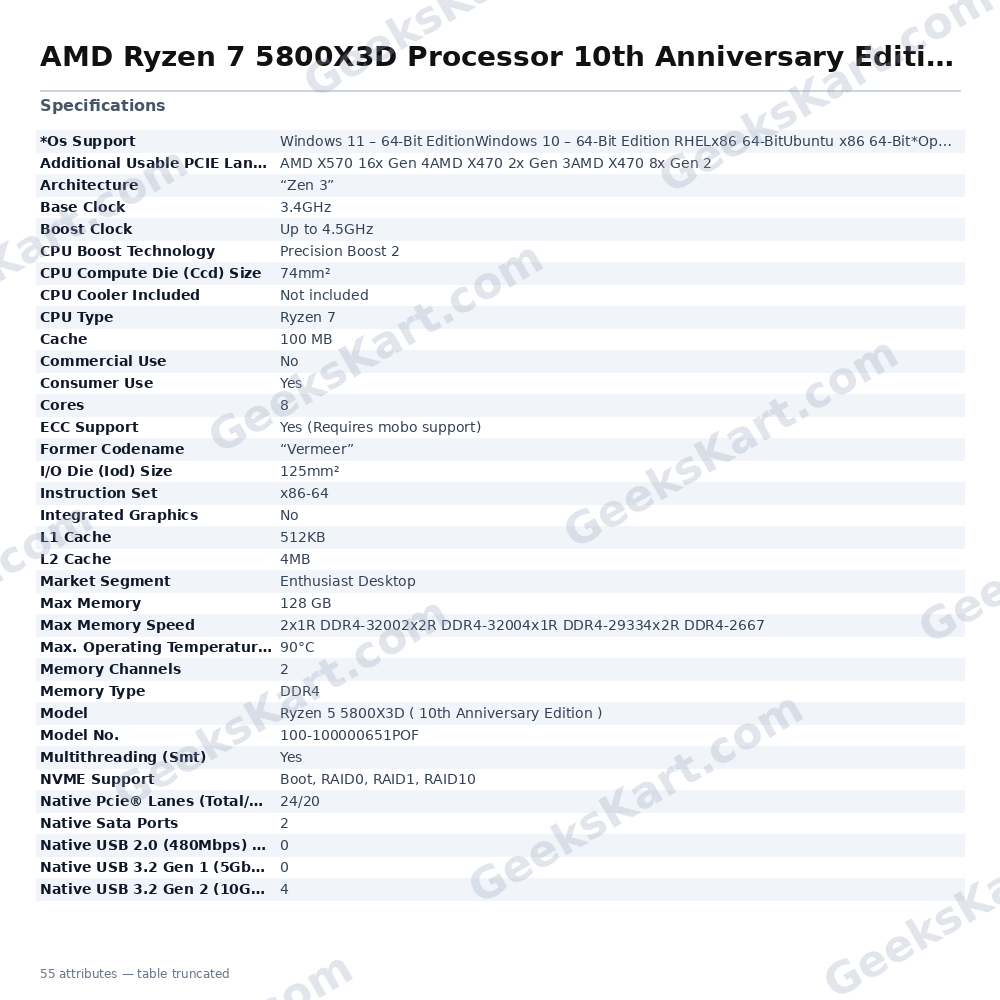

The AMD Ryzen 7 5800X3D 10th Anniversary Edition is a desktop processor built for the AM4 platform, featuring AMD's 3D V-Cache technology — a stacked cache architecture that dramatically expands the total L3 cache available to the CPU cores. This special 10th Anniversary Edition includes a Carbice Ice Pad, a carbon-nanotube-based thermal interface material designed to improve heat transfer between the processor and cooler, an accessory not found in the standard retail box. At its core, the Ryzen 7 5800X3D pairs eight Zen 3 CPU cores with simultaneous multi-threading (SMT) to deliver 16 processing threads. The base clock runs at 3.4 GHz, with Precision Boost 2 technology able to push individual cores up to 4.5 GHz under favourable conditions. With a combined cache of 512 KB L1, 4 MB L2, and 96 MB L3, the processor maintains an unusually large working dataset in chip memory, which is particularly beneficial in games and latency-sensitive workloads. The chip requires no integrated graphics, so a discrete GPU is mandatory. It slots into any AM4 motherboard and is compatible with X570, X470, B550, B450, and A520 chipsets. PCIe 4.0 lanes are available on X570 and B550 boards. The processor supports up to 128 GB of DDR4 UDIMM memory across two channels, with peak validated speeds of DDR4-3200 in a two-DIMM configuration. ECC memory is supported when the motherboard also provides that capability. No CPU cooler is included in the box, so a high-performance aftermarket cooler is necessary given the 105 W TDP. Maximum junction temperature (Tjmax) is rated at 90 °C. The CPU cores are manufactured on TSMC's 7 nm FinFET process, while the I/O die uses a 12 nm GlobalFoundries process node. Warranty coverage is three years from AMD. Verified Specifications: - Cores / Threads: 8 / 16 - Base Clock: 3.4 GHz | Max Boost Clock: up to 4.5 GHz - L1 Cache: 512 KB | L2 Cache: 4 MB | L3 Cache: 96 MB (total) - Architecture: Zen 3 (codename Vermeer) - Process Node: TSMC 7 nm FinFET (CCD) / 12 nm GlobalFoundries (IOD) - TDP: 105 W | Tjmax: 90 °C - Socket: AM4 | Compatible Chipsets: X570, X470, B550, B450, A520 - Memory: DDR4, dual-channel, up to 128 GB, DDR4-3200 (2-DIMM 1R/2R) - PCIe Version: 4.0 (on X570 / B550) - Integrated Graphics: None - CPU Cooler: Not included | Carbice Ice Pad: Included (10th Anniversary Edition) - Warranty: 3 Years - SKU / Model No.: 100-100000651POF
