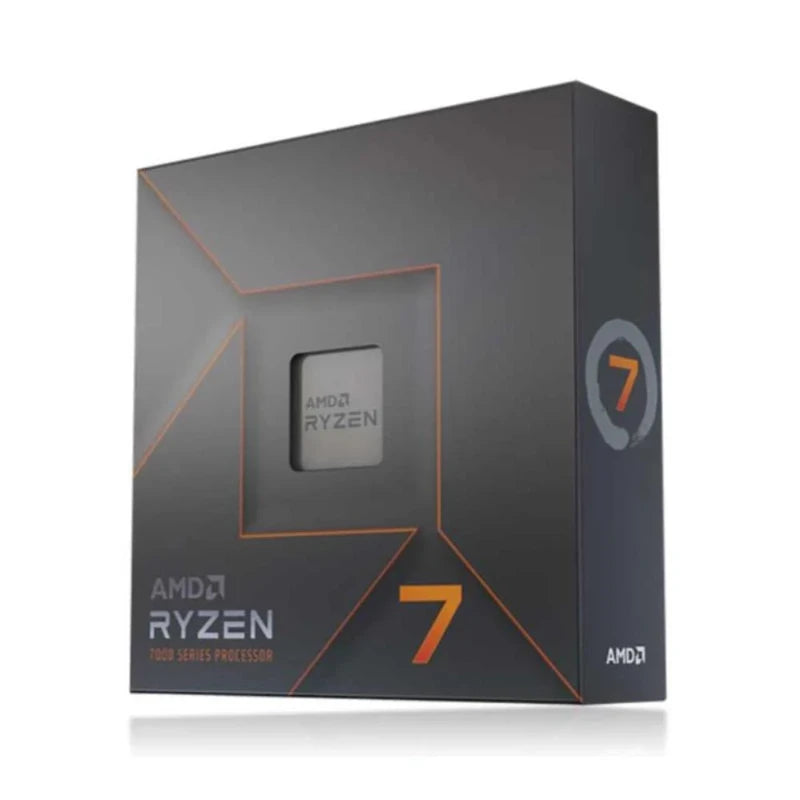

AMD Ryzen 7 7700X 7th Generation Processor ( 5.4 GHz / 8 Cores / 16 Threads )

The AMD Ryzen 7 7700X is a high-performance desktop processor built on AMD’s Zen 4 architecture, fabricated on TSMC’s 5nm process node for the compute die and a 6nm FinFET I/O die. Designed for the AM5 socket platform, it is compatible with X670E, X670, B650E, and B650 series motherboards, giving builders a range of platform options. With 8 physical cores and 16 threads enabled by Simultaneous Multi-Threading (SMT), the Ryzen 7 7700X delivers a base clock of 4.5 GHz and a maximum boost clock of up to 5.4 GHz via Precision Boost 2 technology. The processor carries a total of 40 MB of cache across its hierarchy: 512 KB L1, 8 MB L2, and 32 MB L3. Its default Thermal Design Power (TDP) is 105 W, and it supports a maximum operating temperature (Tjmax) of 95°C. No CPU cooler is included in the box, so a compatible AM5 cooler is required. Memory support extends to DDR5 via a dual-channel interface (2 memory channels), with a maximum capacity of 128 GB using UDIMM modules. Supported speeds reach up to DDR5-5200 MT/s in single-DIMM-per-channel configurations. AMD EXPO Memory Overclocking Technology is supported for straightforward memory performance tuning, and ECC memory is also supported when the motherboard provides the necessary circuitry. Connectivity is handled through 28 total PCIe lanes (24 usable), conforming to PCIe Gen 5.0, alongside 4 native USB 3.2 Gen 2 (10 Gbps) ports and 1 native USB 2.0 port. NVMe storage configurations supported include Boot, RAID 0, RAID 1, and RAID 10. The Ryzen 7 7700X features integrated AMD Radeon Graphics with 2 compute units running at up to 2200 MHz, primarily intended for display output during builds or troubleshooting. The processor is fully unlocked for overclocking and supports AMD Ryzen Master, Precision Boost Overdrive, and Curve Optimizer Voltage Offsets for advanced tuning. OS support covers Windows 11 (64-bit), Windows 10 (64-bit), RHEL x86 64-bit, and Ubuntu x86 64-bit. The product carries a 3-year manufacturer warranty. Verified Specifications: – Architecture: Zen 4 (TSMC 5nm CCD, 6nm IOD) – Cores / Threads: 8 / 16 – Base Clock: 4.5 GHz | Max Boost: up to 5.4 GHz – Cache: 512 KB L1 / 8 MB L2 / 32 MB L3 (40 MB total) – TDP: 105 W | Tjmax: 95°C – Socket: AM5 | Chipsets: X670E, X670, B650E, B650 – Memory: DDR5, dual-channel, up to 128 GB, up to 5200 MT/s – PCIe: Gen 5.0, 28 total / 24 usable lanes – Integrated Graphics: AMD Radeon (2 CUs, up to 2200 MHz) – Cooler: Not included – Warranty: 3 Years – Product Code: 100-100000591WOF
