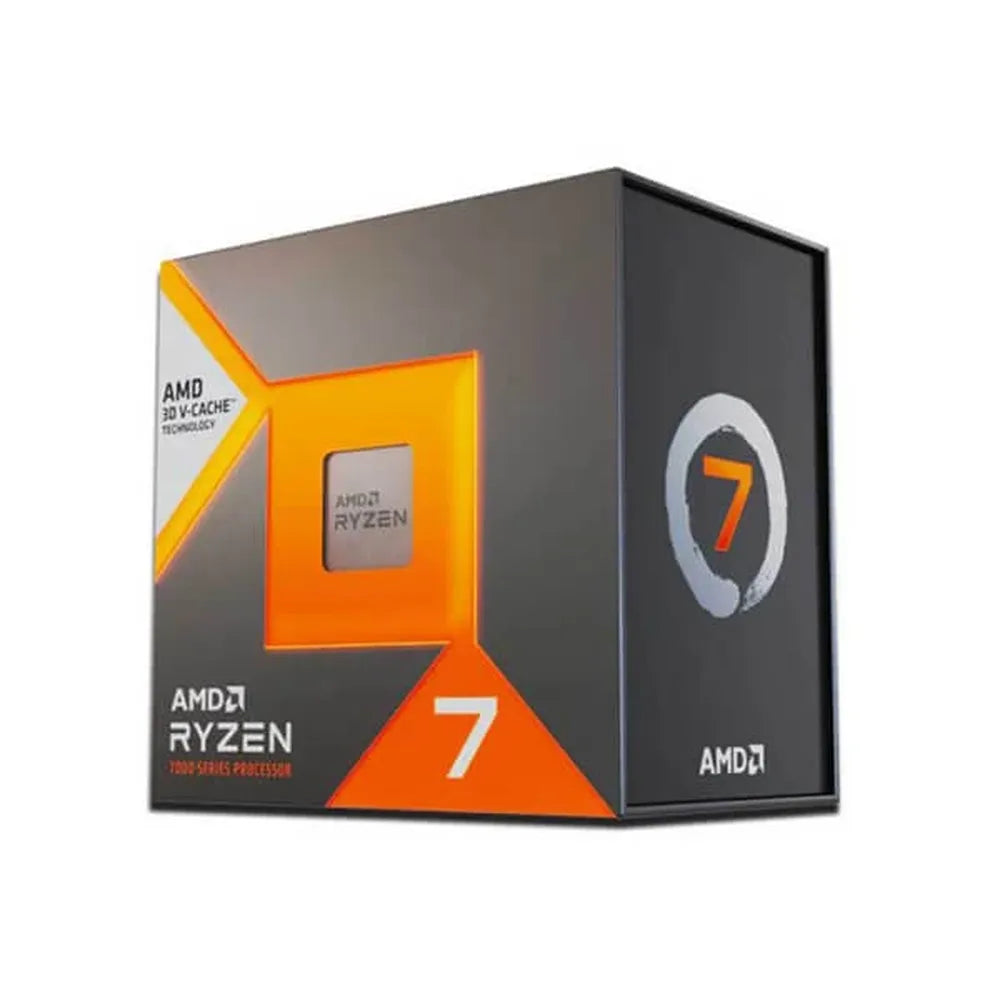

AMD Ryzen 7 7800X3D 7th Generation Processor ( 5 GHz / 8 Cores / 16 Threads )

The AMD Ryzen 7 7800X3D is a desktop processor built on AMD's Zen 4 architecture, designed specifically for gaming and enthusiast desktop workloads. It features 8 cores and 16 threads, with a base clock of 4.2GHz and a maximum boost clock of up to 5.0GHz. At the heart of its gaming performance advantage is AMD's 3D V-Cache technology, which stacks additional cache directly onto the CPU die to reduce memory latency during game workloads. The combined cache pool reaches 100MB total (512KB L1, 8MB L2, and 96MB L3), giving the processor fast access to frequently used game data. The 7800X3D uses the AM5 (LGA1718) socket and is compatible with A620, B650, B650E, X670, and X670E motherboards. It supports DDR5 memory in dual-channel configuration, with a maximum capacity of 128GB and rated speeds up to DDR5-5200 in two-DIMM configurations. AMD EXPO memory overclocking technology is supported, enabling easy DDR5 tuning on compatible kits. The processor also supports PCIe 5.0 with 28 total native lanes (24 usable), giving it headroom for next-generation graphics cards and NVMe storage. The CPU compute die is manufactured on TSMC's 5nm FinFET process, while the I/O die uses TSMC's 6nm FinFET process. Default TDP is rated at 120W, and a third-party CPU cooler is required — no cooler is included in the box. Maximum operating temperature (Tjmax) is 89°C. The processor includes integrated AMD Radeon Graphics (2 compute units at up to 2200MHz), which can be used for basic display output when a discrete GPU is unavailable. Advanced tuning options include Precision Boost Overdrive, Curve Optimizer voltage offsets, and AMD Ryzen Master software support. Connectivity includes 4 native USB 3.2 Gen 2 (10Gbps) ports, 1 native USB 2.0 port, and USB Type-C with DisplayPort Alternate Mode support. NVMe storage configurations supported include Boot, RAID 0, RAID 1, and RAID 10. ECC memory is supported with a compatible motherboard. Verified Specifications: - Architecture: Zen 4 (Raphael AM5) - CPU Cores / Threads: 8 / 16 - Base Clock: 4.2GHz | Max Boost Clock: Up to 5.0GHz - L1 Cache: 512KB | L2 Cache: 8MB | L3 Cache: 96MB | Total Cache: 100MB - Socket: AM5 | TDP: 120W | Tjmax: 89°C - Memory: DDR5 UDIMM, Dual-Channel, Max 128GB, up to DDR5-5200 (2-DIMM) - PCIe Version: 5.0 | Native PCIe Lanes: 28 total / 24 usable - CPU Process Node: TSMC 5nm FinFET | I/O Die: TSMC 6nm FinFET - Integrated Graphics: AMD Radeon Graphics (2 CUs, 2200MHz) - Product Code: 100-100000910WOF - Warranty: 3 Years - Cooler: Not included
