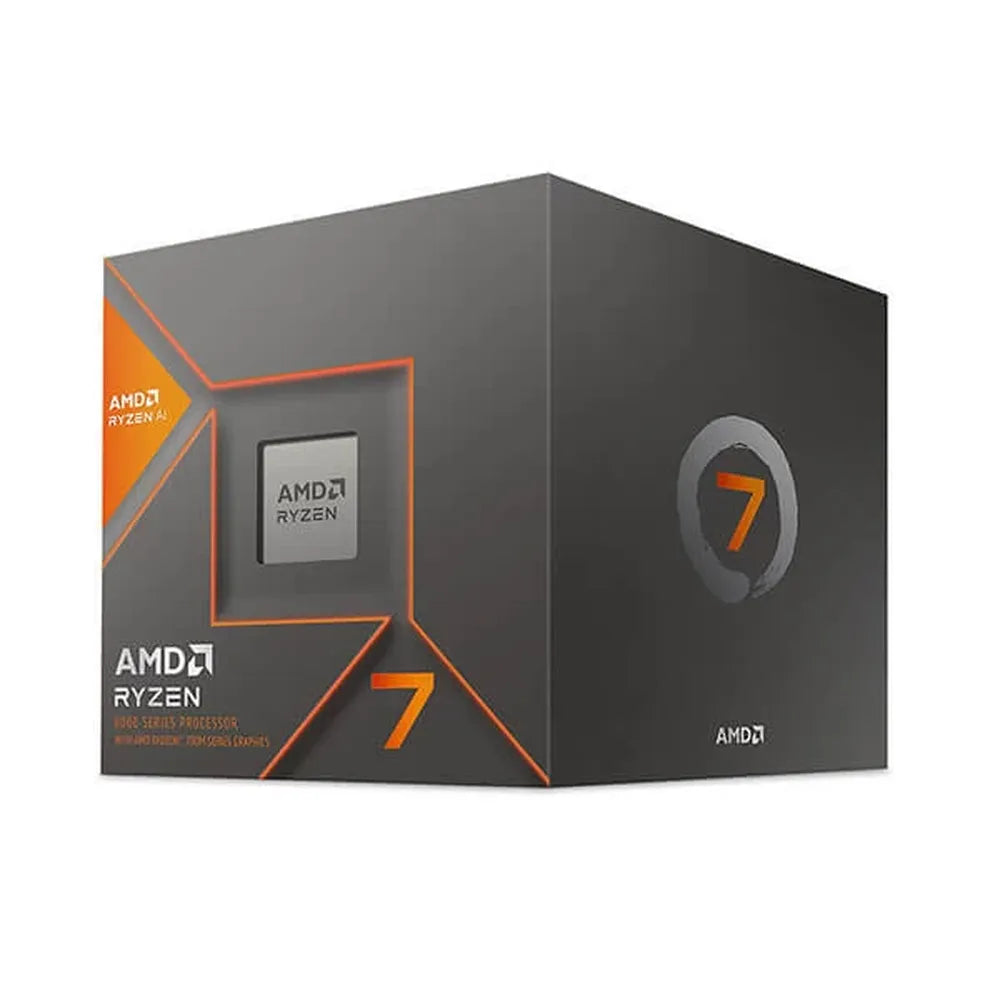

AMD Ryzen 7 8700G Processor With Radeon Graphics ( 5.1 GHz/ 8 Cores / 16 Threads )

The AMD Ryzen 7 8700G is a desktop APU (Accelerated Processing Unit) from AMD’s Ryzen 8000 G-Series, designed for the AM5 platform. Built on TSMC’s 4nm FinFET process node and based on the Zen 4 architecture (codenamed Phoenix), it combines a capable CPU with a powerful integrated GPU in a single monolithic die measuring 178mm², making it an efficient solution for GPU-free desktop builds, compact systems, and AI-accelerated workloads. On the CPU side, the Ryzen 7 8700G delivers 8 cores and 16 threads with a base clock of 4.2 GHz and a maximum boost clock of up to 5.1 GHz via Precision Boost 2. The processor is fully unlocked for overclocking, supports Precision Boost Overdrive and Curve Optimizer Voltage Offsets for fine-grained tuning, and is compatible with the AMD Ryzen Master Utility for real-time monitoring and profile management. AMD EXPO memory overclocking technology enables easy DDR5 memory tuning with supported modules. The integrated AMD Radeon 780M GPU features 12 compute units running at up to 2900 MHz, with support for DirectX 12 Ultimate (reported as version 2.1 in source data), HDMI 2.1, DisplayPort with Adaptive-Sync and UHBR10, HDR Metadata, AMD FreeSync, and up to four simultaneous displays. The iGPU is capable of driving resolutions up to 8K at 60 Hz over DisplayPort and supports hardware AV1 encode and decode, H.264, H.265, and VP9 codecs. AMD SmartAccess Memory is also supported. The Ryzen 7 8700G includes a dedicated AMD Ryzen AI engine — an integrated neural processing unit (NPU) — rated at up to 16 TOPS, enabling AI acceleration for compatible productivity and communication applications alongside the CPU cores and iGPU. Memory support is DDR5 only (UDIMM), with a dual-channel controller supporting up to 256 GB and speeds up to DDR5-5200 in a 2-DIMM configuration. Connectivity includes 2x USB4 (40 Gbps), 2x USB 3.2 Gen 2 (10 Gbps), 1x USB 2.0, PCIe 4.0 with 20 total / 16 usable lanes, and NVMe RAID support (Boot, RAID0, RAID1). The default TDP is 65W with a configurable range of 45–65W, and the maximum operating temperature (Tjmax) is 95°C. Verified Specifications: – Architecture: Zen 4 (Phoenix) – Process: TSMC 4nm FinFET – Cores / Threads: 8 / 16 – Base Clock: 4.2 GHz | Boost Clock: Up to 5.1 GHz – L2 Cache: 8 MB | L3 Cache: 16 MB – Integrated GPU: AMD Radeon 780M (12 CUs, 2900 MHz) – NPU: AMD Ryzen AI (up to 16 TOPS) – Socket: AM5 | TDP: 65W (cTDP: 45–65W) – Memory: DDR5 UDIMM, dual-channel, up to 256 GB, DDR5-5200 – Connectivity: USB4 40 Gbps x2, PCIe 4.0, NVMe – OS Support: Windows 11/10 64-bit, RHEL, Ubuntu – Product Code: 100-100001236SBX | Warranty: 3 Years
