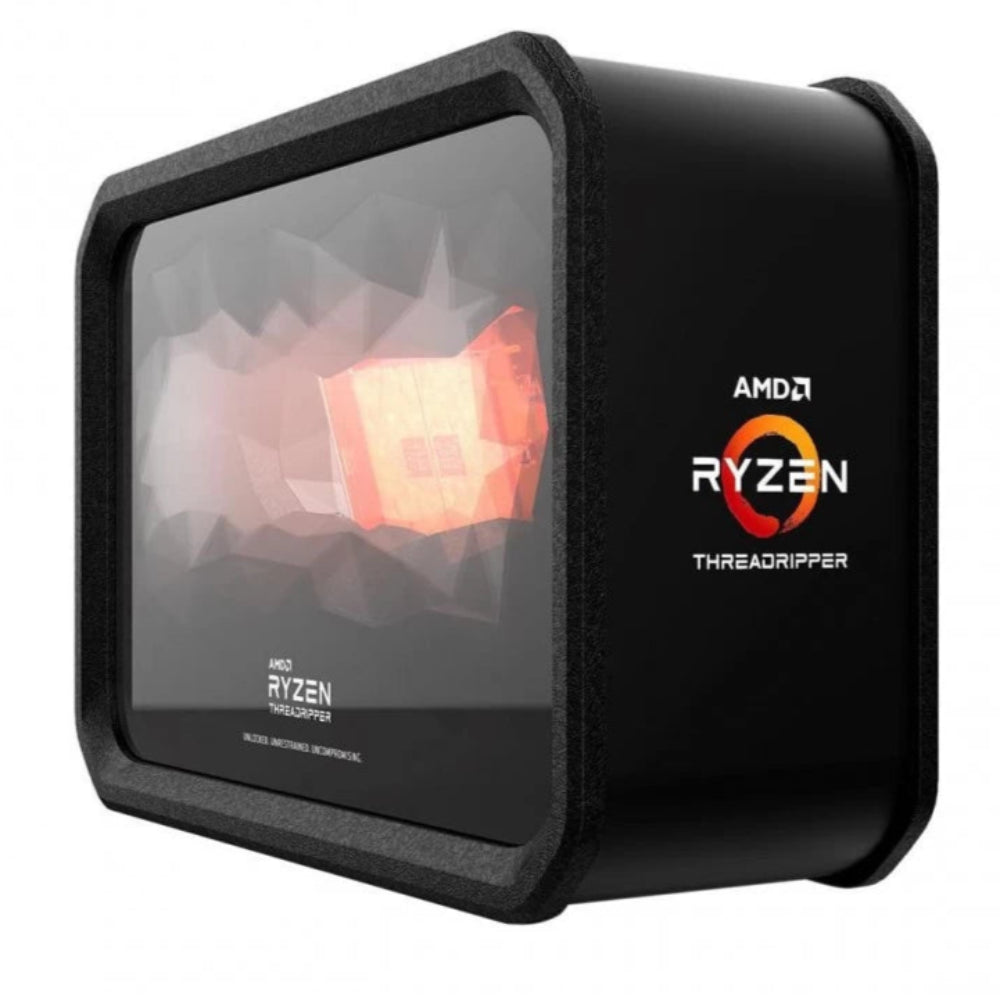

Feature of AMD Ryzen Threadripper 2970WX 2nd Generation Processor
The AMD Ryzen Threadripper 2970WX is a desktop processor with 24 cores, launched in October 2018, at an MSRP of $1299. It is part of the Ryzen Threadripper lineup, using the Zen+ (Colfax) architecture with Socket SP3r2. Thanks to AMD Simultaneous Multithreading (SMT) the core-count is effectively doubled, to 48 threads. Ryzen Threadripper 2970WX has 64 MB of L3 cache and operates at 3 GHz by default, but can boost up to 4.2 GHz, depending on the workload. AMD is making the Ryzen Threadripper 2970WX on a 12 nm production node using 19,200 million transistors. The silicon die of the chip is not fabricated at AMD Processor, but at the foundry of GlobalFoundries.
You may freely adjust the unlocked multiplier on Ryzen Threadripper 2970WX, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.
With a TDP of 250 W, the Ryzen Threadripper 2970WX is extremely power hungry, which means you need top-notch cooling. AMD’s processor supports DDR4 memory with a quad-channel interface. The highest officially supported memory speed is 2933 MT/s, but with overclocking (and the right memory modules) you can go even higher. For communication with other components in the system, Ryzen Threadripper 2970WX uses a PCI-Express Gen 3 connection. This processor does not have integrated graphics, you will need a separate graphics card.
Hardware virtualization is available on the Ryzen Threadripper 2970WX, which greatly improves virtual machine performance. Programs using Advanced Vector Extensions (AVX) can run on this processor, boosting performance for calculation-heavy applications. Besides AVX, AMD is including the newer AVX2 standard, too, but not AVX-512.
- Design, Compose, Render, and Play
- Dynamic Local Mode
- AMD Ryzen Threadripper 2970WX SenseMI Technology
- The “Zen” Core Architecture
- AMD Ryzen™ Master Utility

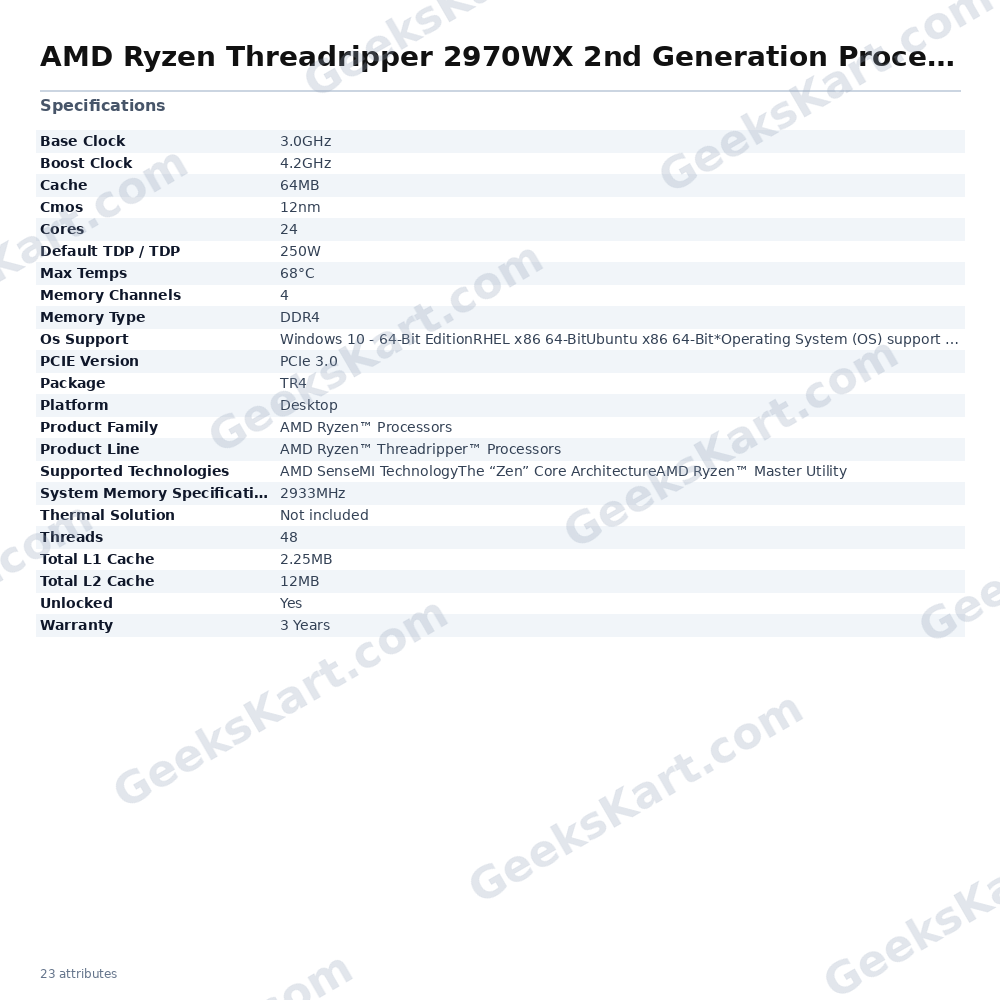

Specifications of AMD Ryzen Threadripper 2970WX 2nd Generation Processor
| CPU Cores | 24 |
| Threads | 48 |
| Base Clock | 3.0GHz |
| Max Boost Clock | 4.2GHz |
| Total L1 Cache | 2.25MB |
| Total L2 Cache | 12MB |
| Total L3 Cache | 64MB |
| Unlocked | Yes |
| CMOS | 12nm |
| Package | TR4 |
| PCI Express Version | PCIe 3.0 |
| Thermal Solution | Not included |
| Default TDP / TDP | 250W |
| Max Temps | 68°C |
| OS Support | Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| System Memory Specification | 2933MHz |
| System Memory Type | DDR4 |
| Memory Channels | 4 |
| Supported Technologies | AMD SenseMI Technology The “Zen” Core Architecture AMD Ryzen™ Master Utility |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ Threadripper™ Processors |
| Platform | Desktop |
| Warranty | 3 Years |
| Note | ***Features,Threadripper 2970wx Price and Specifications are subject to change without notice |
