ANT Esports Crystal X7 ARGB ATX Mid Tower Case
MPN CRYSTAL-X7-BLACK · Brand ANT ESPORTS · ATX, mATX, Mini-ITX
The ANT Esports Crystal X7 ARGB ATX Mid Tower Case features 7 pre-installed ARGB fans, 270° screwless tempered glass panels, and radiator support up to 360mm — built for visibility and airflow in one package
Inclusive of GST · GST invoice available
Overview
The ANT Esports Crystal X7 ARGB ATX Mid Tower Case is a fishtank-style gaming cabinet designed to put your build on full display. Its signature 270-degree panoramic view is made possible by screwless, quick-detachable tempered glass panels across the front and side, allowing you to admire every component without obstructing airflow or adding unnecessary bulk to the assembly process. The columnless chassis construction further removes visual barriers, giving the interior a clean, open aesthetic that complements the synchronized ARGB lighting running through each of the seven pre-installed fans. Airflow is a deliberate priority in the Crystal X7's design. Six of the seven pre-installed ARGB fans are positioned as intake units — mounted in the side and bottom positions — while the remaining fan sits at the rear in exhaust orientation. This configuration promotes positive airflow, keeping cooler air cycling through the case continuously. If your build demands even more cooling headroom, the top panel supports up to three additional 120mm fans or an AIO liquid cooler radiator up to 360mm, mountable in exhaust mode to complement the positive-pressure setup below. Motherboard compatibility spans ATX, Micro-ATX, and Mini-ITX form factors, making the Crystal X7 a versatile choice for a wide range of builds. A dedicated PSU shroud keeps power supply cables hidden from view, and the steel and tempered glass construction uses 6mm SPCC panels for rigidity. Seven expansion slots accommodate multi-GPU or multi-card configurations, while the front I/O panel provides convenient access to USB Type-C, USB 3.0, a standard USB port, HD audio, and a microphone jack, alongside power, reset, and LED control buttons with two LED indicators. Verified Specifications: - Form Factor: ATX / Micro-ATX / Mini-ITX - Dimensions: 434 × 218 × 454 mm - Material: Steel (SPCC) + Tempered Glass - Pre-Installed Fans: 7 × ARGB - Max Fan Support: 10 total - Fan Positions: 3×120mm or 2×140mm (top), 2×120mm (PSU shroud), 1×120mm (bottom), 1×120mm (rear), 3×120mm (motherboard plate) - Radiator Support: Up to 360mm (top), 240mm, 120mm - Max GPU Length: 420mm - Max CPU Cooler Height: 160mm - Expansion Slots: 7 - Storage: 1× HDD (3.5") + 3× SSD (2.5") or 2× HDD (3.5") + 2× SSD (2.5") - Front I/O: 1× USB Type-C, 1× USB 3.0, 1× USB, 1× HD Audio, 1× Mic - Warranty: 1 Year

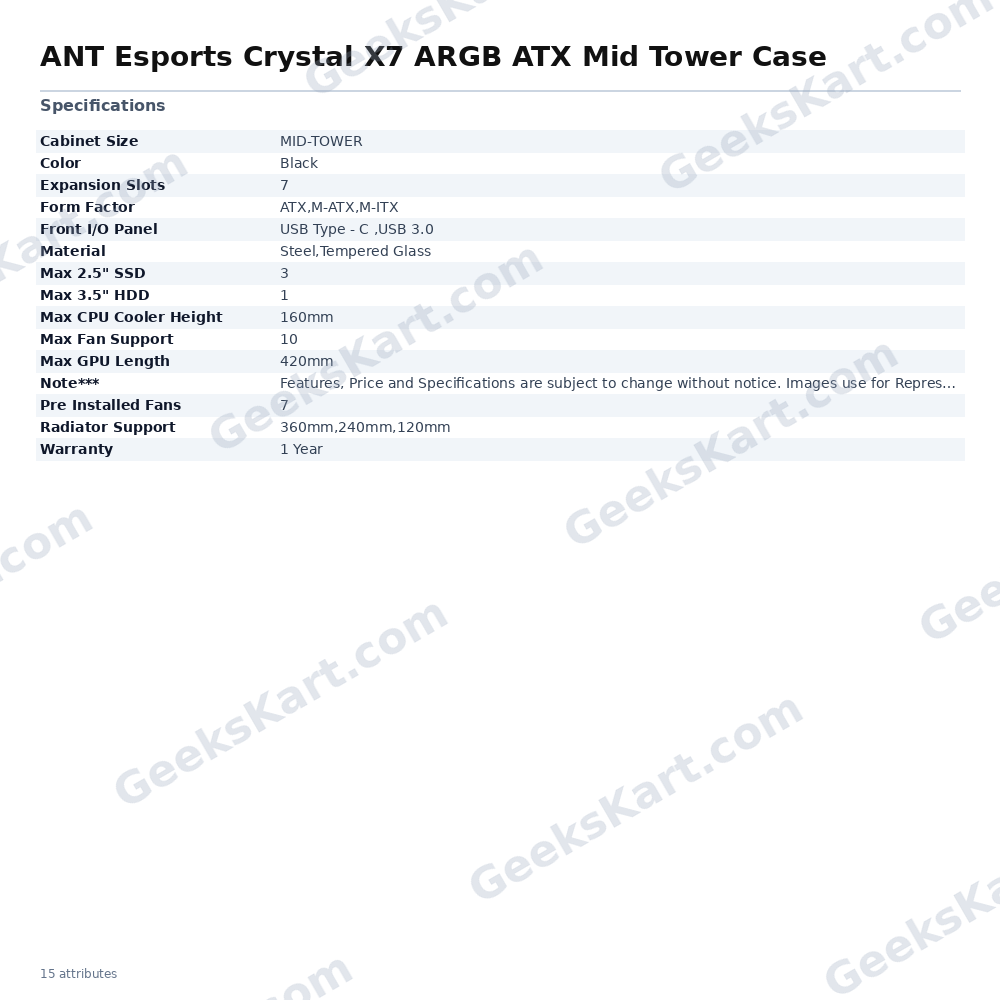

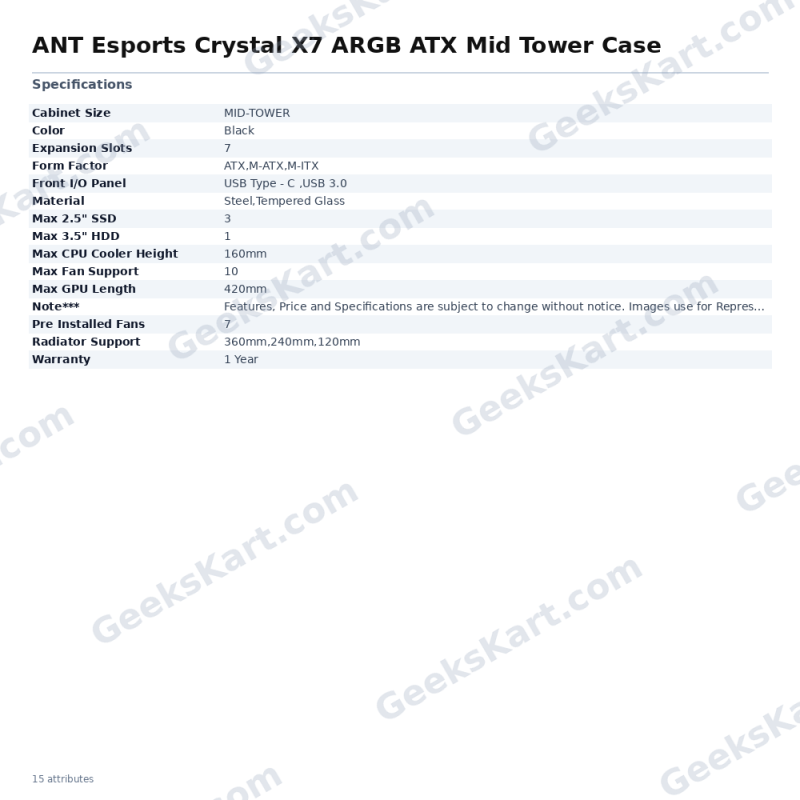

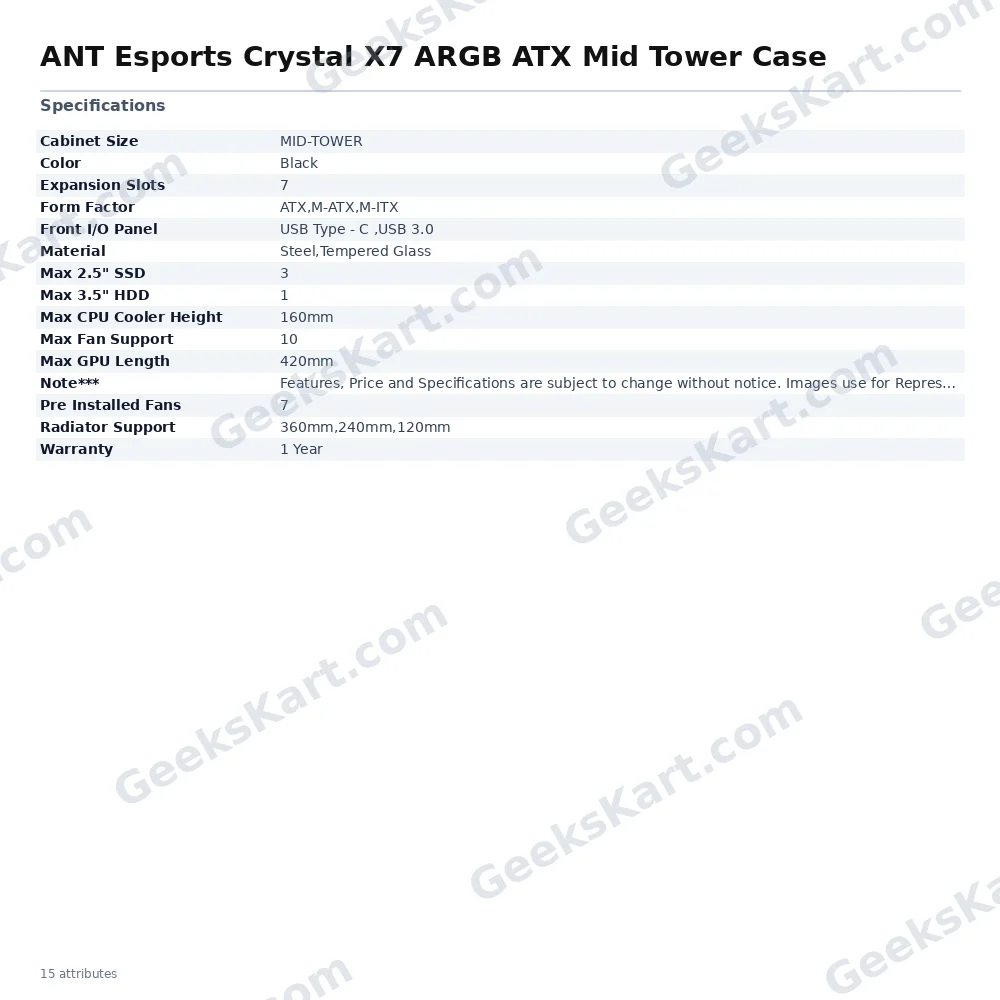

Datasheet
| Warranty | 1 Year |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| color | Black |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Material | Steel,Tempered Glass |
| Cabinet Size | MID-TOWER |
| Max 2.5" SSD | 3 |
| Max 3.5" HDD | 1 |
| Max GPU Length | 420mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB Type – C ,USB 3.0 |
| Max Fan Support | 10 |
| Radiator Support | 360mm,240mm,120mm |
| Pre Installed Fans | 7 |
| Max CPU Cooler Height | 160mm |
