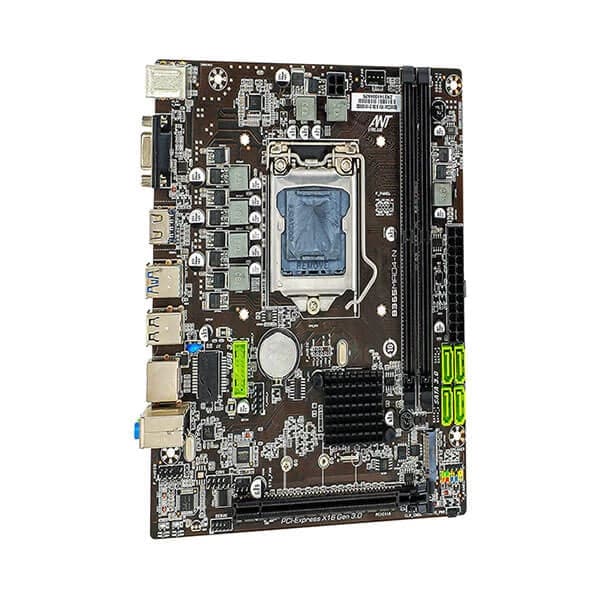

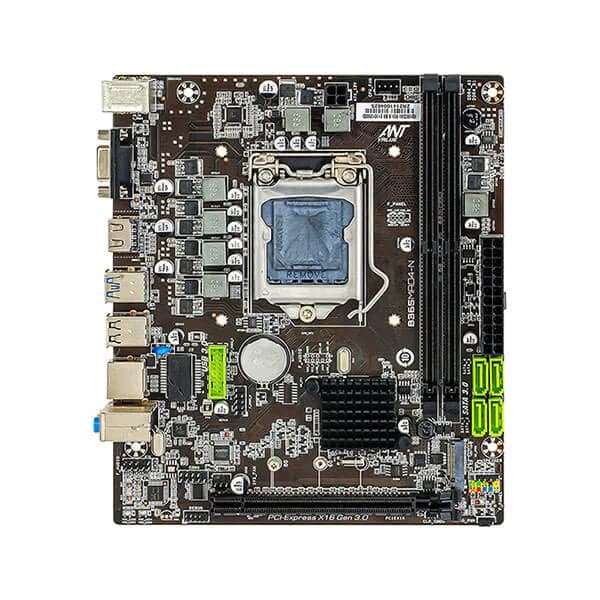

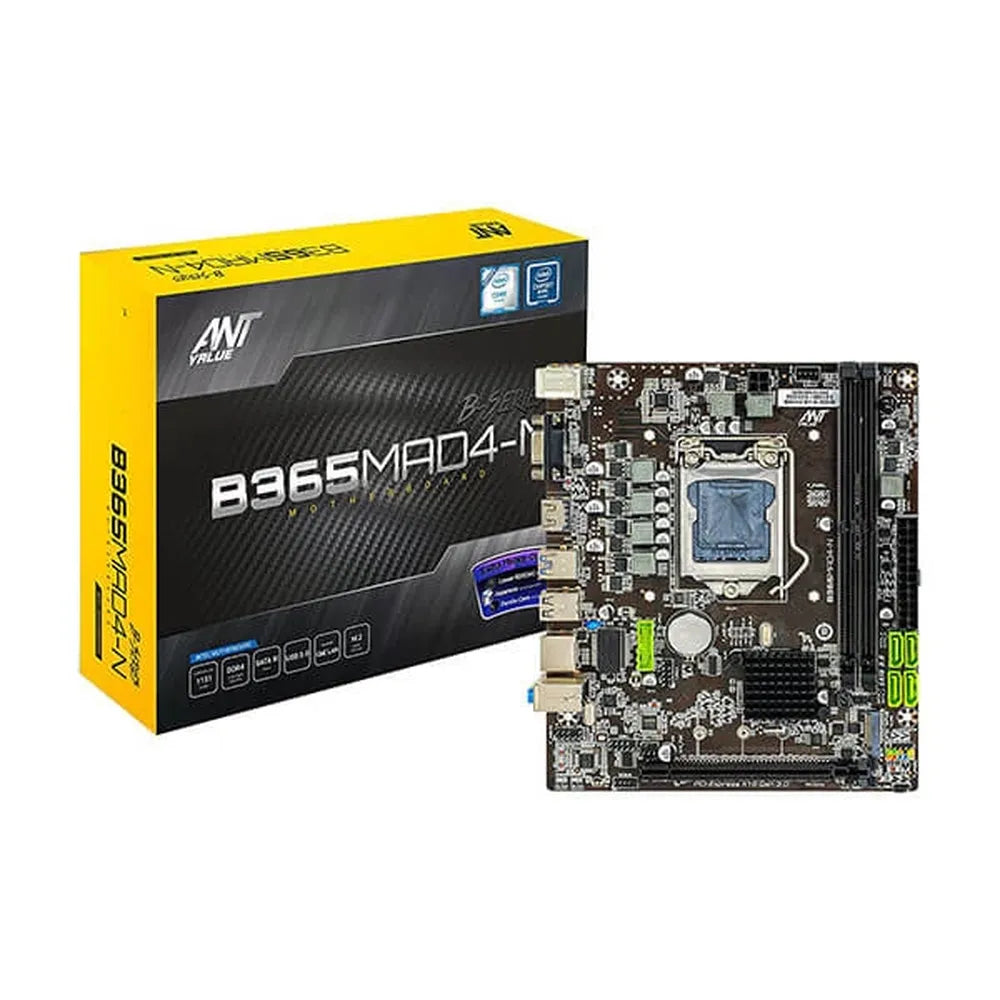

ANT VALUE B365MAD4-N DDR4 Intel Motherboard

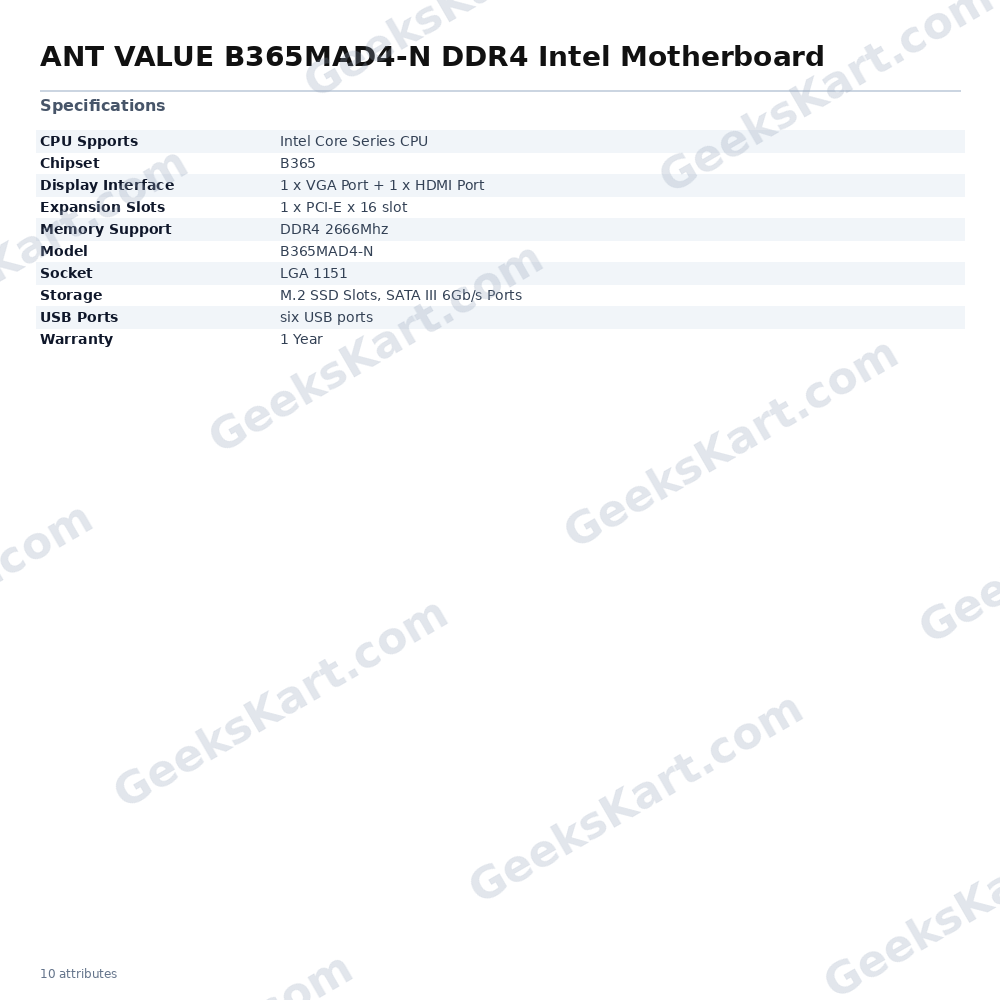

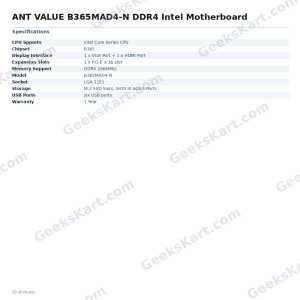

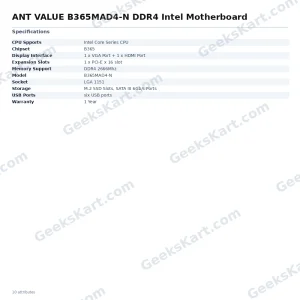

The ANT Value B365MAD4-N is a Micro-ATX form-factor motherboard built around Intel's B365 chipset, designed to support Intel Core series processors in the LGA 1151 socket — covering 8th and 9th generation Intel CPUs. It targets budget-conscious builders and entry-level system integrators who need a stable, feature-complete platform without overclocking requirements, as the B365 chipset does not support CPU overclocking. Memory support is handled via DDR4 at up to 2666 MHz, giving users a modern, energy-efficient RAM platform compared to older DDR3 systems. Display output options include both a VGA port and an HDMI port, making it versatile for users connecting to older monitors or modern HDMI-capable displays simultaneously. Expansion is provided through a single PCIe x16 slot for a discrete graphics card. Storage connectivity includes an M.2 slot operating at PCIe 3.0 x4 for NVMe SSDs, enabling fast system boot drives and application storage, alongside SATA III (6 Gb/s) ports for traditional hard drives or SATA SSDs. Networking is handled via an RJ-45 Ethernet port rated at 100 Mbps. USB connectivity covers six ports in total, with two of those being the faster USB 3.0 standard and the remainder USB 2.0. Power delivery quality is a stated focus, with ferrite chokes and Japanese capacitors specified in the source to help maintain stable, ripple-free power to the CPU — a meaningful detail for long-term system stability under sustained workloads. The board carries a 1-year manufacturer warranty from ANT Value. Verifiable Specifications: - Model: B365MAD4-N - Chipset: Intel B365 - CPU Socket: LGA 1151 (Intel Core series) - Memory: DDR4 2666 MHz - Expansion Slots: 1 x PCIe x16 - Storage: M.2 (PCIe 3.0 x4, NVMe), SATA III 6 Gb/s ports - Display: 1 x VGA, 1 x HDMI - USB: 6 ports total (2 x USB 3.0, remainder USB 2.0) - Network: RJ-45, 100 Mbps - Warranty: 1 Year Note: Exact SATA port count, total RAM slots, and maximum supported RAM capacity are not confirmed in available sources and have been omitted from this listing
