ANT VALUE H110MAD4-N DDR4 Intel Motherboard

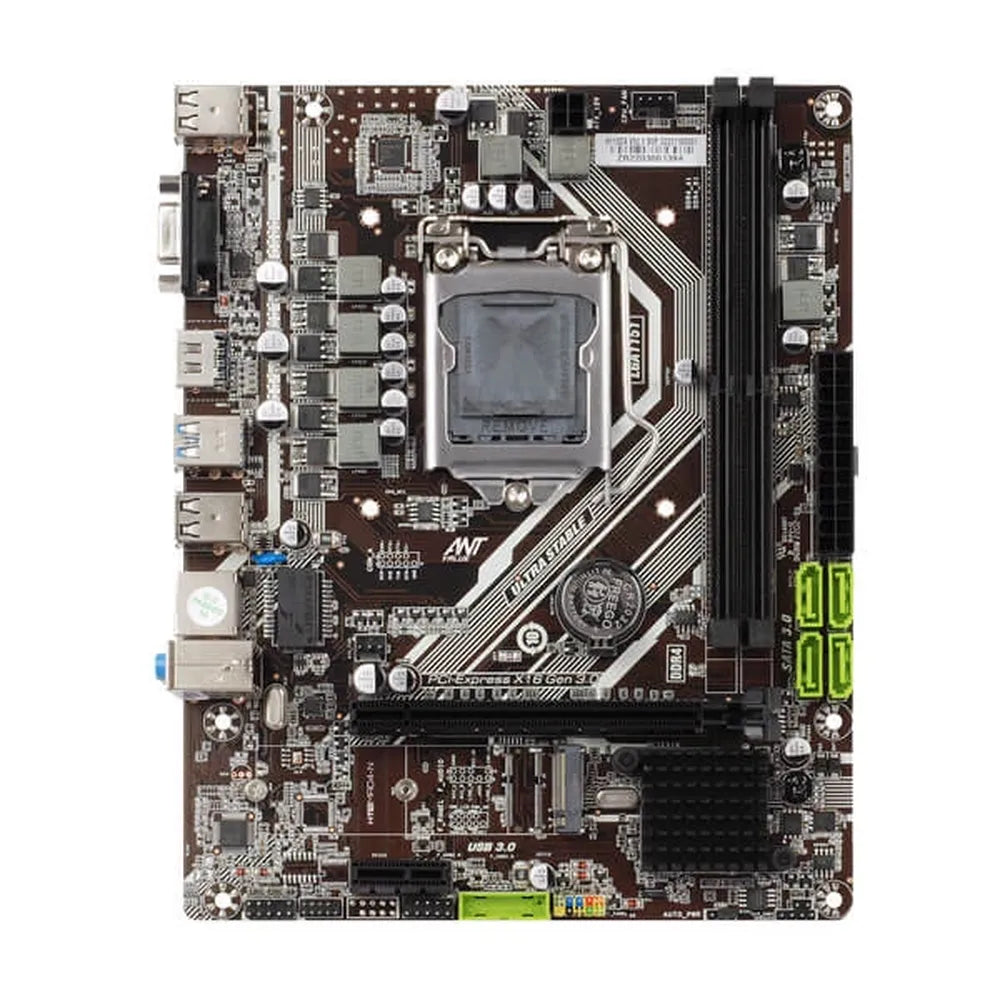

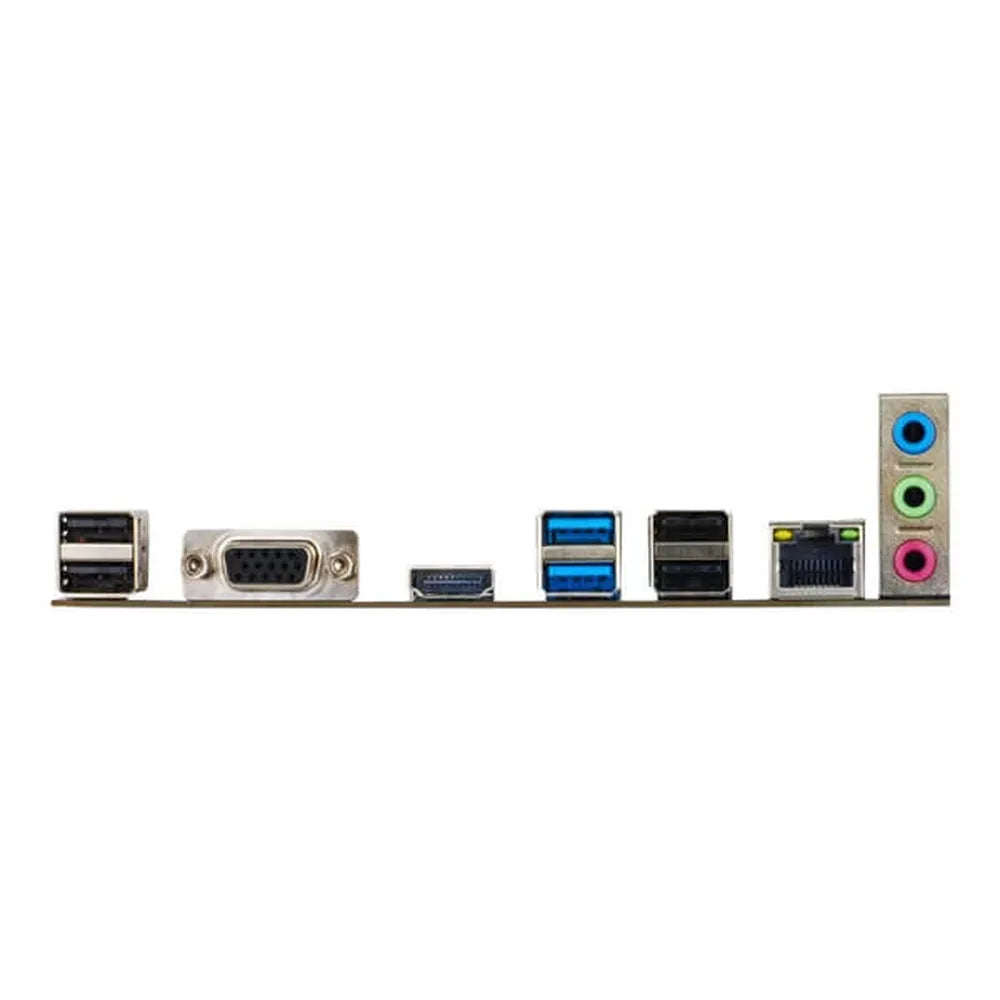

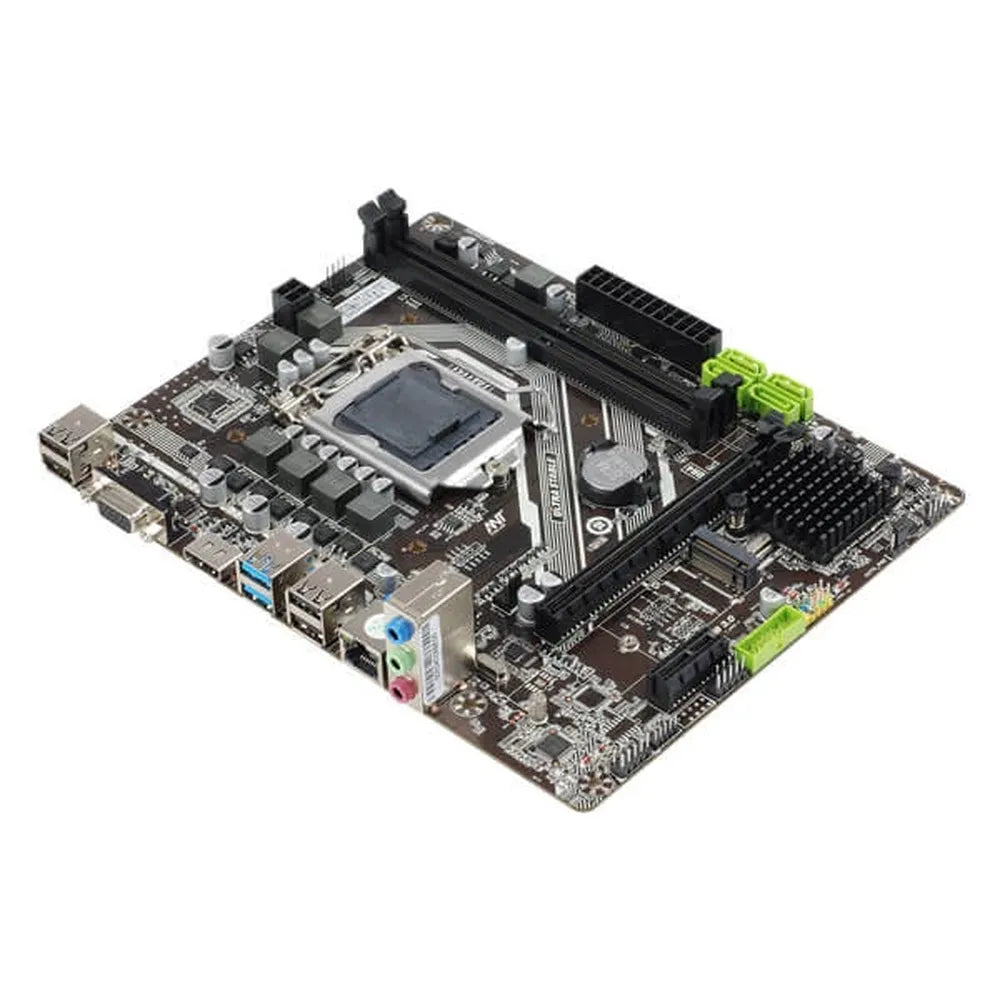

The ANT Value H110MAD4-N is a Micro-ATX form-factor motherboard built on the Intel H110 chipset, designed to support 6th and 7th Generation Intel Core i7, Core i5, Core i3, Pentium, and Celeron processors via the LGA 1151 socket. It is a compact, budget-oriented board suited for entry-level desktop builds, budget office systems, and home media PCs where space and cost efficiency are priorities. Memory support extends to two DDR4 DIMM slots running at 2133 MHz, with a maximum capacity of 32 GB — enough headroom for everyday multitasking and light productivity workloads. Storage connectivity is handled by four SATA III 6 Gb/s ports alongside a single M.2 slot, which accepts NVMe SSDs via a PCIe x4 interface, enabling fast boot and application load times without relying solely on traditional hard drives. Connectivity on this board is well-rounded for its class. The USB setup comprises four USB 3.0 ports (two at the back panel, two via an internal pinheader) and six USB 2.0 ports (four at the back panel, two via an internal pinheader), giving ample room for peripherals and storage devices. Display output is handled through both a VGA port and an HDMI port on the rear I/O, supporting dual-display configurations when paired with a compatible Intel processor featuring integrated graphics. Networking is provided by a Realtek 8105E controller offering 10/100 Mbps Ethernet connectivity via the rear RJ-45 jack. Audio is managed by a Realtek ALC662 codec delivering 6-channel HD audio through three flexible audio jacks on the back panel. The board uses ferrite chokes and solid-state capacitors in its power delivery section, contributing to stable voltage regulation under sustained loads. Expansion is provided by a single PCIe x16 slot for a dedicated graphics card. The Micro-ATX layout with six mounting holes fits standard mATX and many ATX cases. Verified Specifications: – Chipset: Intel H110 – Socket: LGA 1151 (6th/7th Gen Intel Core, Pentium, Celeron) – Memory: 2× DDR4 2133 MHz DIMM, up to 32 GB – Storage: 4× SATA III 6 Gb/s, 1× M.2 slot (PCIe x4, NVMe) – USB: 4× USB 3.0, 6× USB 2.0 (rear panel + internal headers) – Display: 1× VGA, 1× HDMI – LAN: Realtek 8105E, 10/100 Mbps – Audio: Realtek ALC662, 6-channel HD – Expansion: 1× PCIe x16 slot – Form Factor: Micro-ATX, 6 mounting holes – In the Box: Motherboard, 1× SATA Cable (optional), 1× I/O Plate, 1× User Manual, 1× Driver CD
