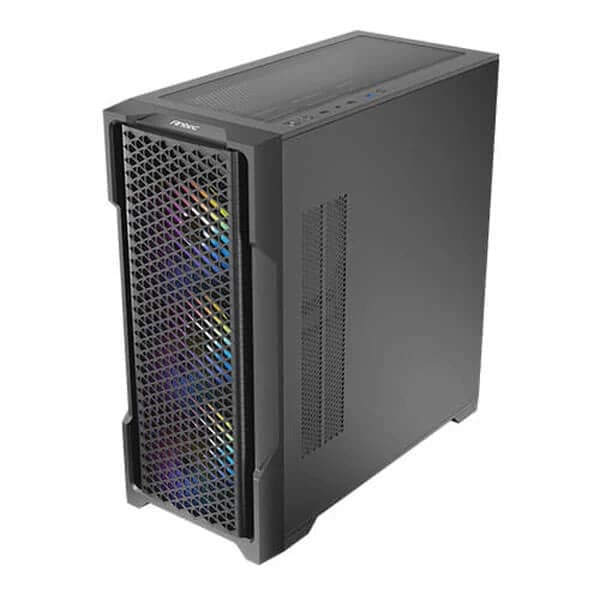

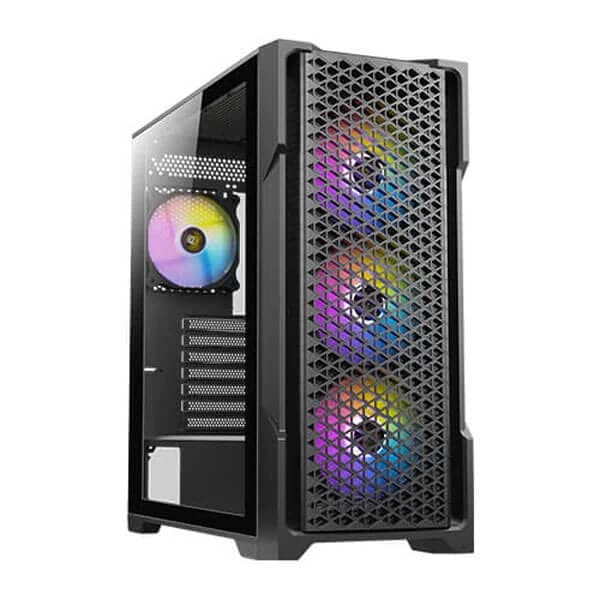

Features of ANTEC AX90 ARGB ATX Mid Tower Cabinet (Black)
Unique Design & Powerful Heat Dissipation

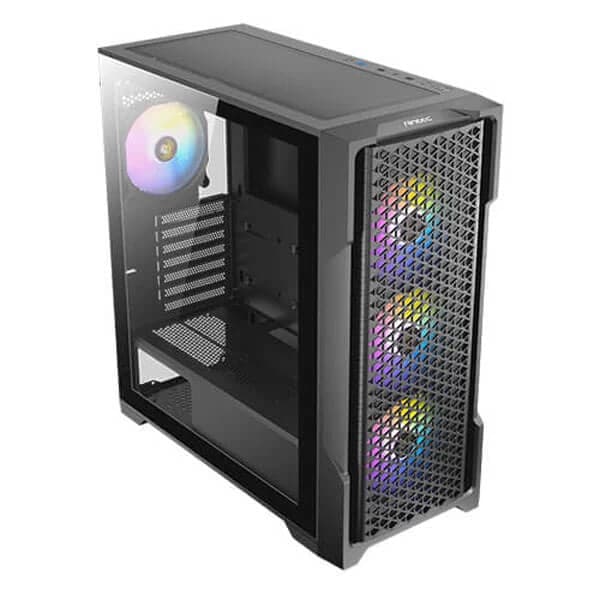

The Antec Cabinet features a unique mesh front panel design and excellent cooling performance. The full-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 11 x 120mm fans can be installed simultaneously.

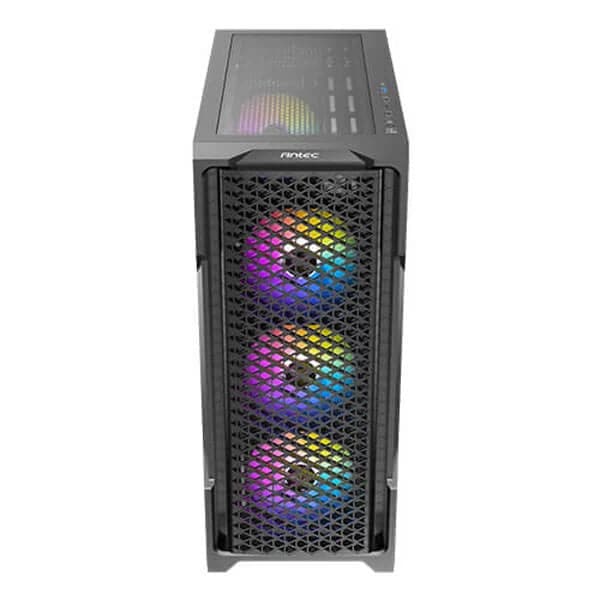

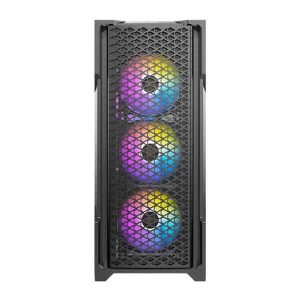

Diamond-Shaped Mesh Front Panel
The diamond-shaped mesh front panel is ready to provide massive airflow for your system and the dust filtering function.
MAXIMUM COOLING POTENTIAL

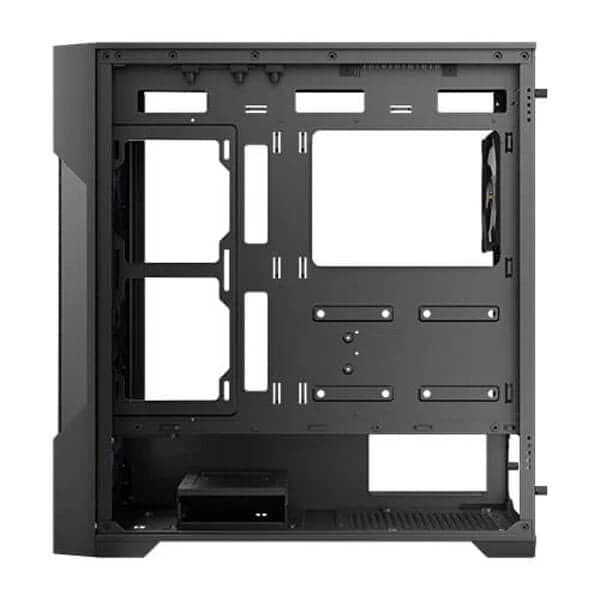

The spacious interior can accommodate both front and upper radiators up to 360mm.
Powerful Cooling
This pc cabinet case Supporting 1 x 240mm radiator or 2 x 120mm fans side-mounted.

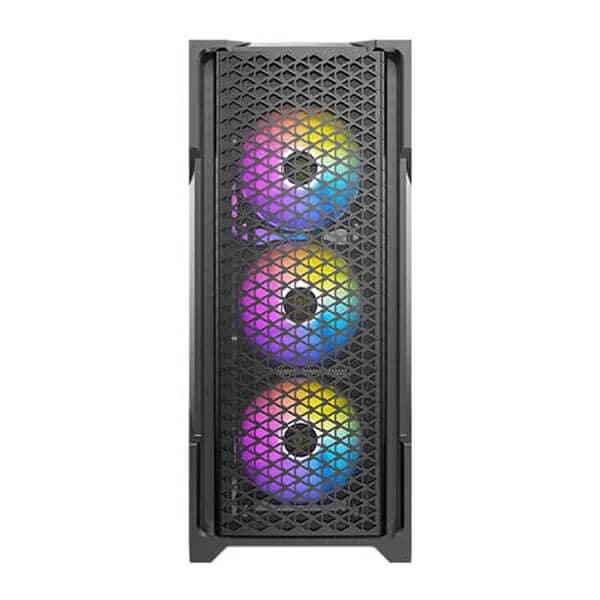

High-Airflow Mesh Front Panel
Enlarged mesh front panel provides massive airflow.
Pre-Installed 4 x 120mm Fans
Pull in massive air for cooling.
In Sync with Motherboard for ARGB Lighting
Antec AX90 ATX Cabinet has to built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup.

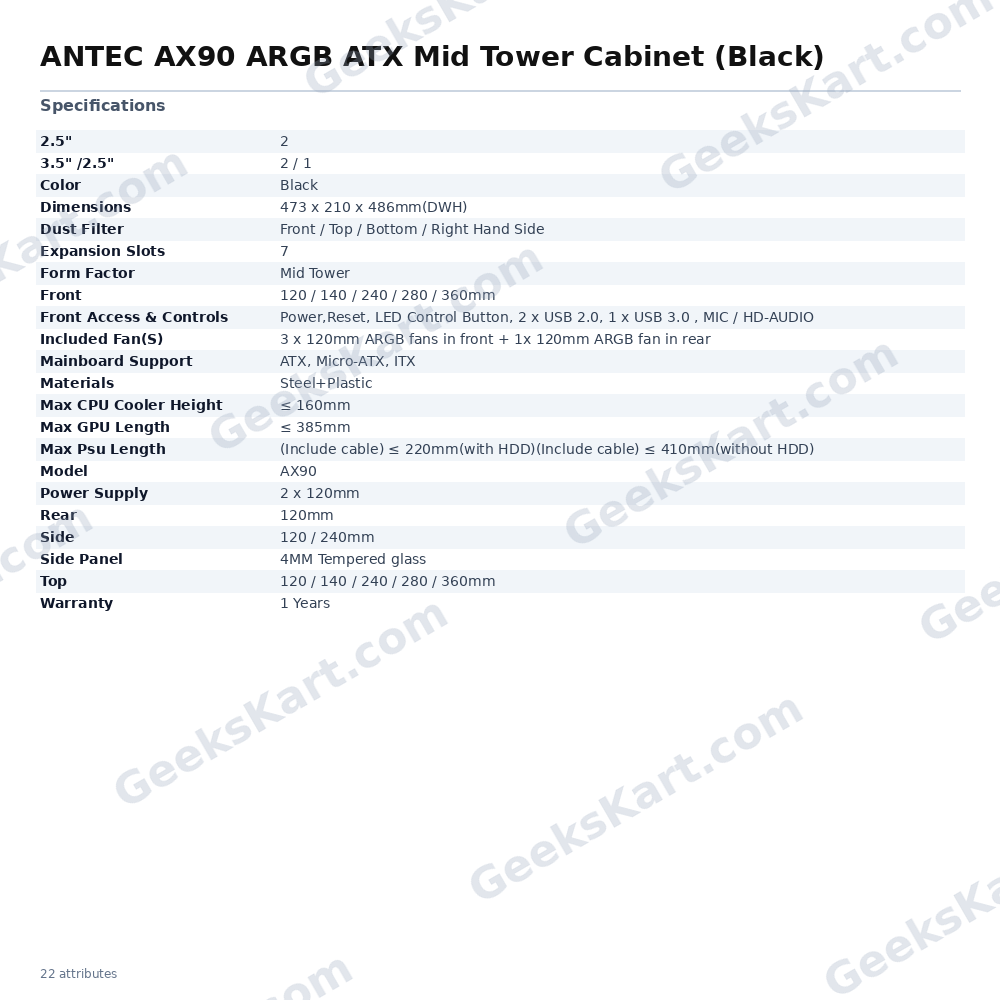

Specifications of ANTEC AX90 ARGB ATX Mid Tower Cabinet (Black)
| Model | AX90 |
| Color | Black |
| Fan | |
| Dimensions | 473 x 210 x 486mm(DWH) |
| Form Factor | Mid Tower |
| Materials | Steel+Plastic |
| Mainboard Support | ATX, Micro-ATX, ITX |
| Front Access & Controls | Power,Reset, LED Control Button, 2 x USB 2.0, 1 x USB 3.0, MIC / HD-AUDIO |
| Side Panel | 4MM Tempered glass |
| Drive Bays | |
| Expansion Slots | 7 |
| 3.5″ /2.5″ | 2 / 1 |
| 2.5″ | 2 |
| Fan | |
| Front | 3 x 120mm / 3 x 140mm |
| Top | 3 x 120mm / 2 x 140mm |
| Power supply | 2 x 120mm |
| Side | 2 x 120mm |

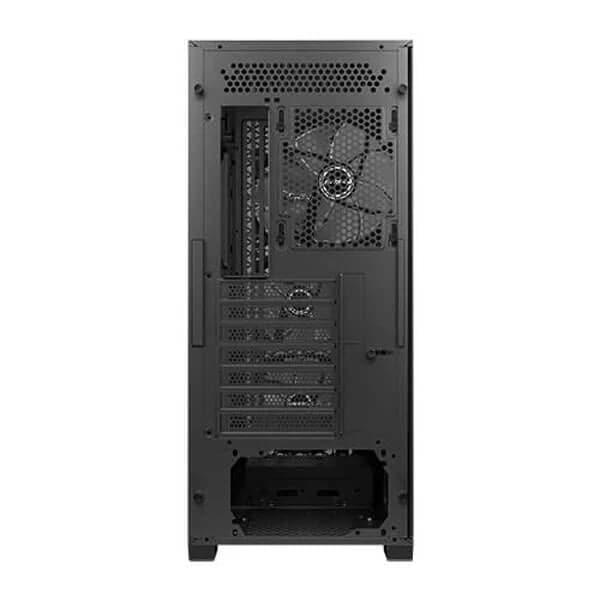

| Rear | 1 x 120mm |
| Included Fan(s) | 3 x 120mm ARGB fans in front + 1x 120mm ARGB fan in rear |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280 / 360mm |
| Top | 120 / 140 / 240 / 280 / 360mm |
| Side | 120 / 240mm |
| Rear | 120mm |
| Clearance | |
| Max GPU Length | ≤ 385mm |
| Max CPU Cooler Height | ≤ 160mm |
| Max PSU Length | (Include cable) ≤ 220mm(with HDD) (Include cable) ≤ 410mm(without HDD) |
| Miscellaneous | |
| Dust Filter | Front / Top / Bottom / Right Hand Side |
| Warranty | 1 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
