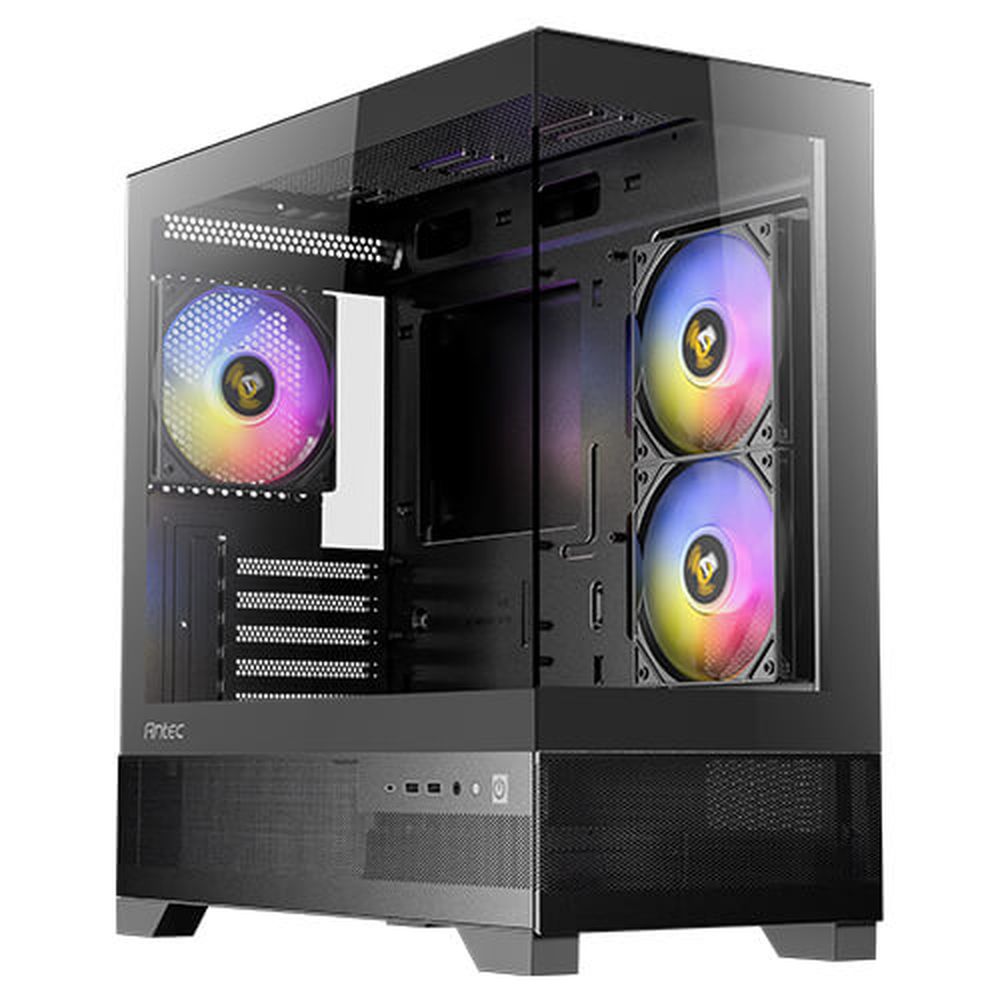

ANTEC CX500M RGB MATX Mini Tower Cabinet (Black)
MPN ANTEC-CX500M-RGB-BLACK · Brand ANTEC · Mini Tower
Features Of ANTEC CX500 RGB M-ATX Mini Tower Cabinet ( Black) Panoramic 270° View Standing out with full-view design on the seamless steel-tempered glass, Antec Cabinet left and front panel offer an unobstructed view of your build, creating a stunning showcase for your components. Vertical Cooling with Massive Air Intake Bottom-up vertical airflow via mesh on lower front, lower left, and right side accelerates the heat dissipation. With EVA anti-vibration foams on the power supply mount positi
Inclusive of GST · GST invoice available
Overview
Features Of ANTEC CX500 RGB M-ATX Mini Tower Cabinet ( Black)
Panoramic 270° View
Standing out with full-view design on the seamless steel-tempered glass, Antec Cabinet left and front panel offer an unobstructed view of your build, creating a stunning showcase for your components.
Vertical Cooling with Massive Air Intake
Bottom-up vertical airflow via mesh on lower front, lower left, and right side accelerates the heat dissipation.
With EVA anti-vibration foams on the power supply mount position, your lovely PC hardware is well protected against any jar or resonance caused by PSU operation.
More Space Than You Think
Still plenty of room for heat dissipation between the thick RTX 40 graphics card and PSU shroud fans.
Ample Cable Management Space
Antec gaming pc cabinet 23mm of cable management space ensures your PC build looks neat.
Antec CX500M Specs
Tool-Free Panels
Front and side panel adopt fixing stud design, which makes assembly and disassembly easier and helps avoid possible glass breakage.
Full Reusable PCI Slot Covers
Reusable PCI slot covers fulfil an optimal build experience.
EVA PSU Cushion Pads
With EVA anti-vibration foams on the power supply mount position, your lovely PC hardware is well protected against any jar or resonance caused by PSU operation.
More Space Than You Think
Still plenty of room for heat dissipation between the thick RTX 40 graphics card and PSU shroud fans.
Ample Cable Management Space
23mm of cable management space ensures your PC build looks neat.
Specifications Of ANTEC CX500M RGB M-ATX Mini Tower Cabinet (Black)
| Dimensions | 436 x 210 x 446mm (DWH) |
| Form Factor | Mini Tower |
| Materials | Steel + Glass |
| Mainboard Support | Micro-ATX, ITX |
| Front Access & Controls | Power, LED On/Off, USB3.0 x 2, Type-C 3.2 Gen 2 x 1, Headphone/Mic Combo Jack |
| Side Panel | 4mm Tempered Glass |
| Expansion Slots | 5 |
| 3.5" /2.5" | 45293 |
| 2.5" | 1 |
| Top | 3 x 120mm / 2 x 140mm |
| Side | 2 x 120mm |
| Power Supply Shroud | 3 x 120mm |
| Rear | 120mm |
| Included Fan(s) | 2 x 120mm fixed mode RGB reverse fans on right side + 1 x 120mm fixed mode RGB fan in rear |
| Top | 120 / 140 / 240 / 280 / 360mm |
| Max GPU Length | ≤415mm |
| Max CPU Cooler Height | ≤165mm |
| Max PSU Length | (Include cable) ≤210mm (With HDD) (Not Include cable) ≤270mm (Without HDD) |
| Dust Filter | Top / Bottom |
| Net Weight | 6.34Kg |
| Gross Weight | 8.2Kg |
| Warranty | 1Year |
| UPC# | Black: 0-761345-10099-1 Whte: 0-761345-10110-3 |
Datasheet
| Warranty | 1 Year |
|---|---|
| Form Factor | Mini Tower |
| Top | 120 / 140 / 240 / 280 / 360mm |
| 2.5" | 1 |
| Rear | 120mm |
| Side | 2 x 120mm |
| Materials | Steel + Glass |
| 3.5" /2.5" | 45293 |
| Dimensions | 436 x 210 x 446mm (DWH) |
| Net Weight | 6.34Kg |
| Side Panel | 4mm Tempered Glass |
| Dust Filter | Top / Bottom |
| Gross Weight | 8.2Kg |
| Max GPU Length | ≤415mm |
| Max Psu Length | (Include cable) ≤210mm (With HDD)(Not Include cable) ≤270mm (Without HDD) |
| Expansion Slots | 5 |
| Included Fan(S) | 2 x 120mm fixed mode RGB reverse fans on right side+ 1 x 120mm fixed mode RGB fan in rear |
| Mainboard Support | Micro-ATX , ITX |
| Power Supply Shroud | 3 x 120mm |
| Max CPU Cooler Height | ≤165mm |
| Front Access & Controls | Power, LED On/Off , USB3.0 x 2 , Type-C 3.2 Gen 2 x 1, Headphone/Mic Combo Jack |
