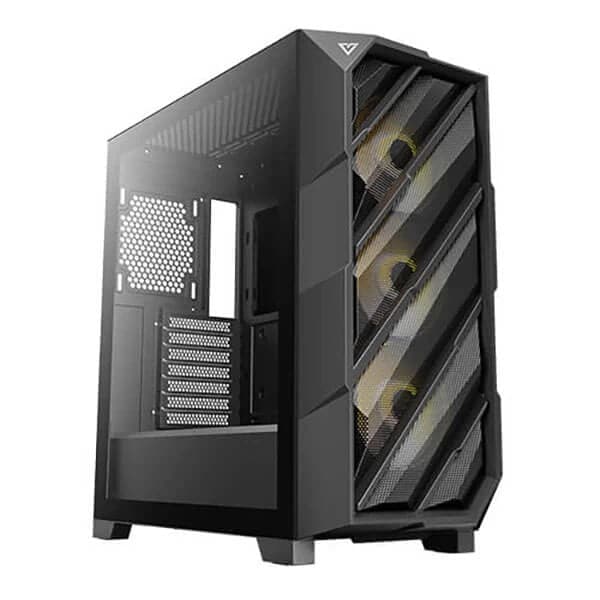

Features of ANTEC DP503 Mesh ARGB EATX Mid Tower Cabinet (Black)
UNLIMITED CONFIGURATION OPTIONS
Maximum Expansion Potential
The ANTEC DP503 gaming pc cabinet features an extensive interior and powerful compatibility. 2 x 360mm can be installed in the front & on the top simultaneously.

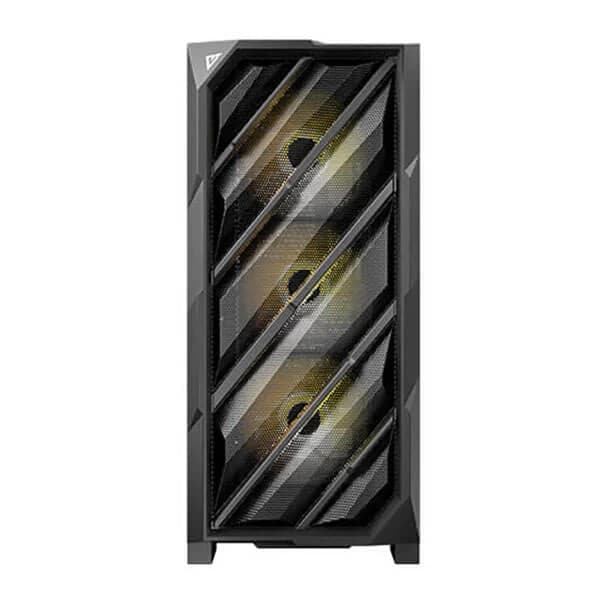

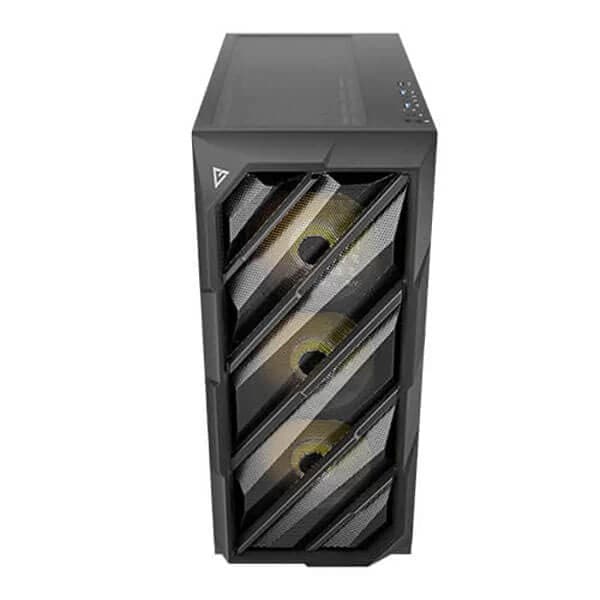

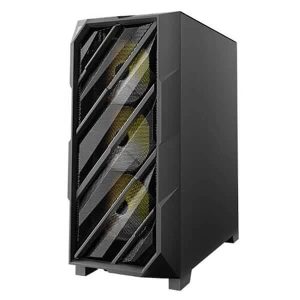

HIGH-AIRFLOW Mesh Front Panel
Comes with a mesh front panel, along with ventilation on the top, at the bottom and in the PSU chamber, which will accelerate the airflow circulation and enhance the cooling performance.
- Massive Mesh Front Panel with Slanted Bar Design.
- The Magnetic Dust Filter on the Top.
- Pull-Out Dust Filter at the Bottom.

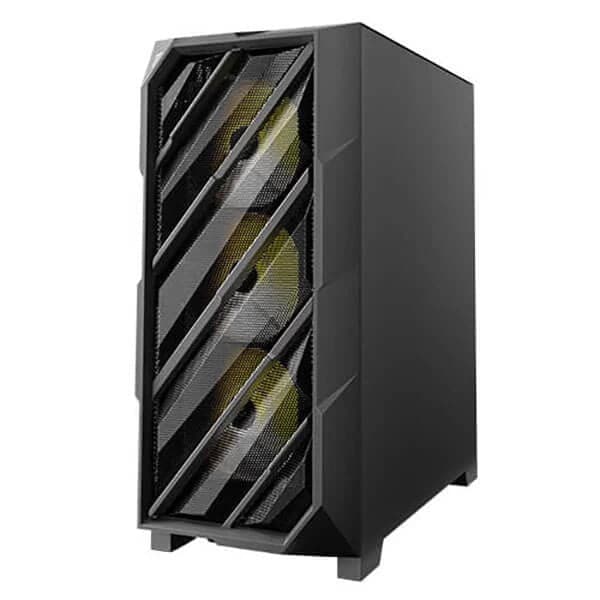

Three addressable RGB fans Included
ANTEC DP503 Mid Tower EATX Cabinet has Pre-installed at the front for efficient airflow and customizable RGB lighting.
ARGB & PWM CONTROL HUB
The control hub supports up to 6 fans and 6 LED device. Connect it to your motherboard for 16.8 million possible colors.

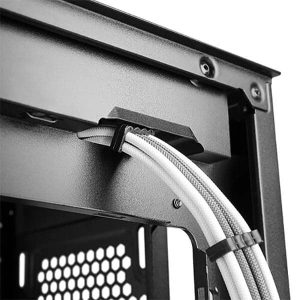

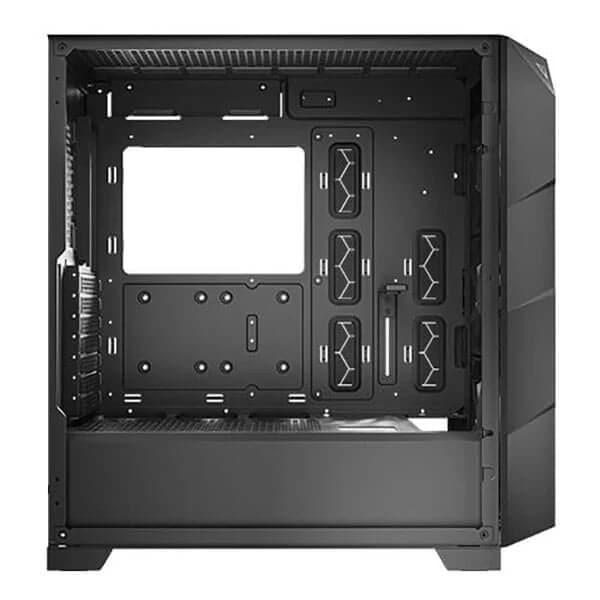

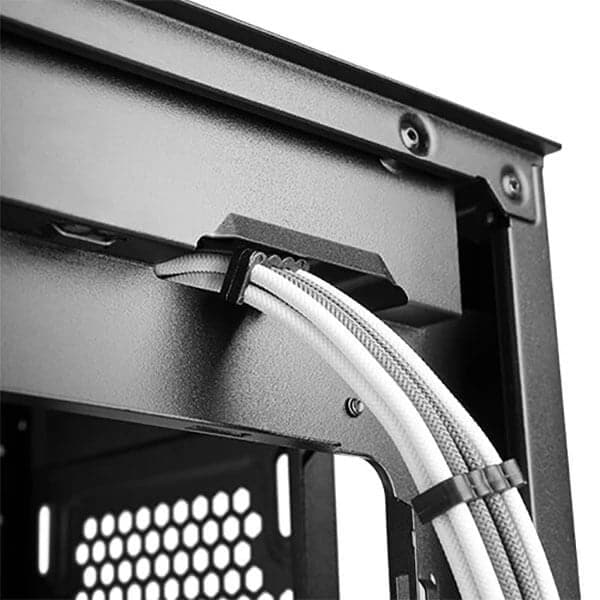

Building a clean PC is Within easy Reach
Well-designed cable routing makes wiring easy and simple, with a spacious 23mm of space for cables.

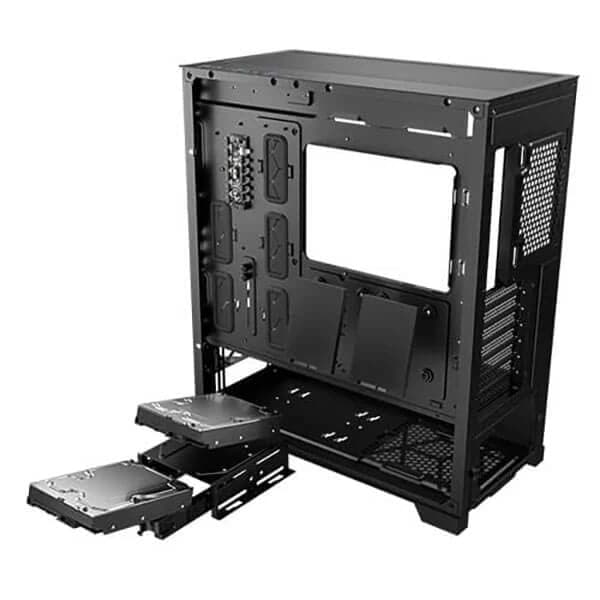

Easy installation Fits Up To 4 Drive Devices
- Snap-in 2.5″ drive device for easy mounting.
- Removable hard drive cage.
- Tool-free 3.5″ drive tray
9 fans simultaneously
Antec Cabinet has 3 x 120mm ARGB fans and a 360 mm radiator can be installed simultaneously in the front interior for better cooling performance.

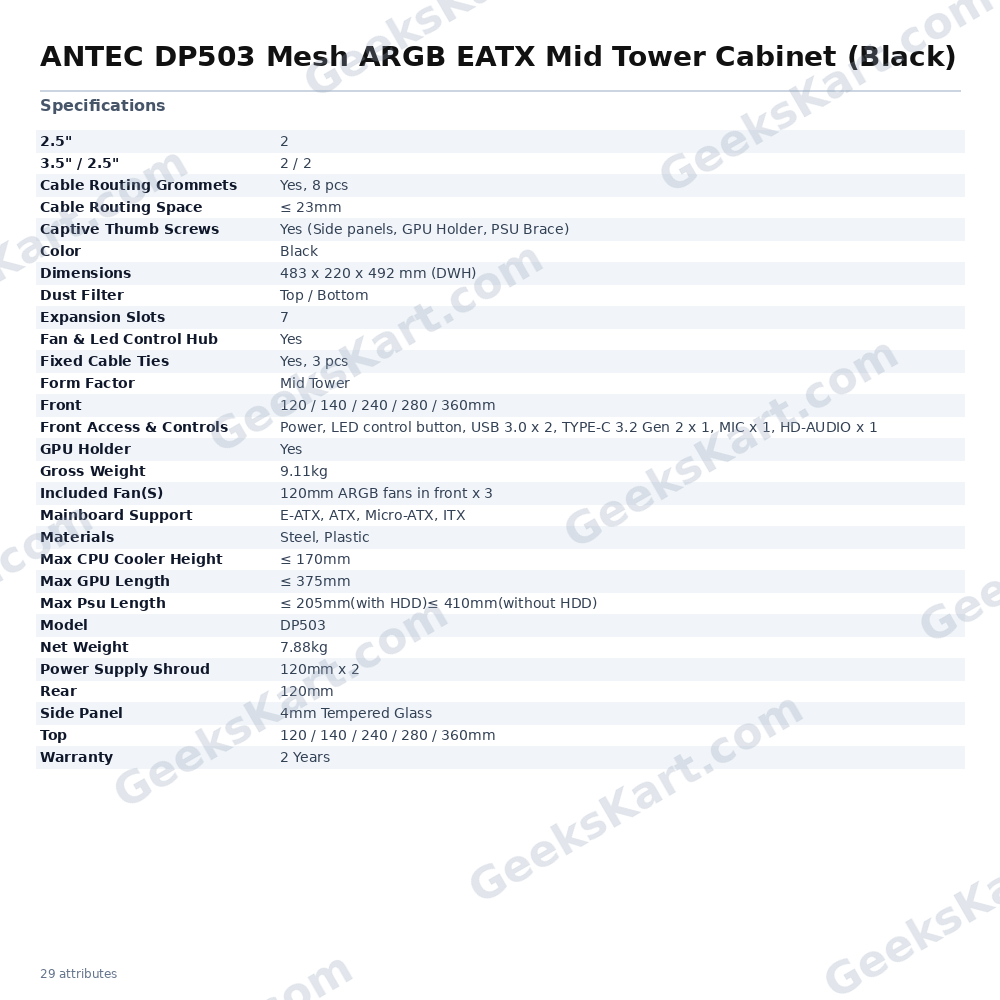

Specifications of ANTEC DP503 Mesh ARGB EATX Mid Tower Cabinet (Black)
| Model | DP503 |
| Color | Black |
| Dimensions | 483 x 220 x 492 mm (DWH) |
| Form Factor | Mid Tower |
| Materials | Steel, Plastic |
| Mainboard Support | E-ATX, ATX, Micro-ATX, ITX |
| Front Access & Controls | Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1 |
| Side Panel | 4mm Tempered Glass |
| Drive Bays | |
| Expansion Slots | 7 |
| 3.5″ / 2.5″ | 2 / 2 |
| 2.5″ | 2 |
| Fan | |
| Front | 120mm x 3 / 140mm x 3 / 185mm x 2 |
| Top | 120mm x 3 / 140mm x 2 |
| Power Supply Shroud | 120mm x 2 |
| Rear | 120mm x 1 |
| Included Fan(s) | 120mm ARGB fans in front x 3 |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280 / 360mm |
| Top | 120 / 140 / 240 / 280 / 360mm |
| Rear | 120mm |
| Clearance | |
| Max GPU Length | ≤ 375mm |
| Max CPU Cooler Height | ≤ 170mm |
| Max PSU Length | ≤ 205mm(with HDD) ≤ 410mm(without HDD) |
| Cable Routing Space | ≤ 23mm |
| Accessories | |
| Fan & LED Control Hub | Yes |
| GPU Holder | Yes |
| Cable Routing Grommets | Yes, 8 pcs |
| Fixed Cable Ties | Yes, 3 pcs |
| Captive Thumb Screws | Yes (Side panels, GPU Holder, PSU Brace) |
| Miscellaneous | |
| Dust Filter | Top / Bottom |
| Net Weight | 7.88kg |
| Gross Weight | 9.11kg |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
