ANTEC NE600G ZEN 600W 80+ Gold Non Modular ATX 2.0 Power Supply
MPN ANTEC-NE600G-ZEN-SMPS · Brand ANTEC
Features of ANTEC NE600G ZEN The new ANTEC NeoECO Gold ZEN series features high performance with an 80 PLUS Gold rating, achieving up to 92% efficiency and gives you savings unheard of from other power supplies.Featuring a 120mm whisper-quiet high-quality fan and CircuitShield™ Industrial Grade Protection-all backed up by our 5-year Antec Quality Warranty, NeoECO Gold ZEN series offers a highly efficient, affordable power solution. Antec 5-Year Warranty We stand by the quality and safety of the
Inclusive of GST · GST invoice available
Overview
Features of ANTEC NE600G ZEN
The new ANTEC NeoECO Gold ZEN series features high performance with an 80 PLUS Gold rating, achieving up to 92% efficiency and gives you savings unheard of from other power supplies.Featuring a 120mm whisper-quiet high-quality fan and CircuitShield™ Industrial Grade Protection-all backed up by our 5-year Antec Quality Warranty, NeoECO Gold ZEN series offers a highly efficient, affordable power solution.
Antec 5-Year Warranty
We stand by the quality and safety of the NeoECO Gold ZEN Supplies, Antec Power Supply 5-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.
Japanese Heavy-Duty Caps
Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count
LLC DC to DC Design
A server-class Half-Bridge LLC design with a synchronous rectification based on a DC-DC topology.
120 mm Silent Fan
Features a Thermal Manager, an advanced low voltage fan control for optimal heat & noise management and will allow your 600W Power Supply to stay at an optimal temperature.
99% 12V Output
Engineered with high-quality capacitors and low-noise transformers, the NeoECO Gold ZEN series provide clean, stable power with maximum CPU & GPU support
Get the best 80 Plus Gold pc power supply price from us today!

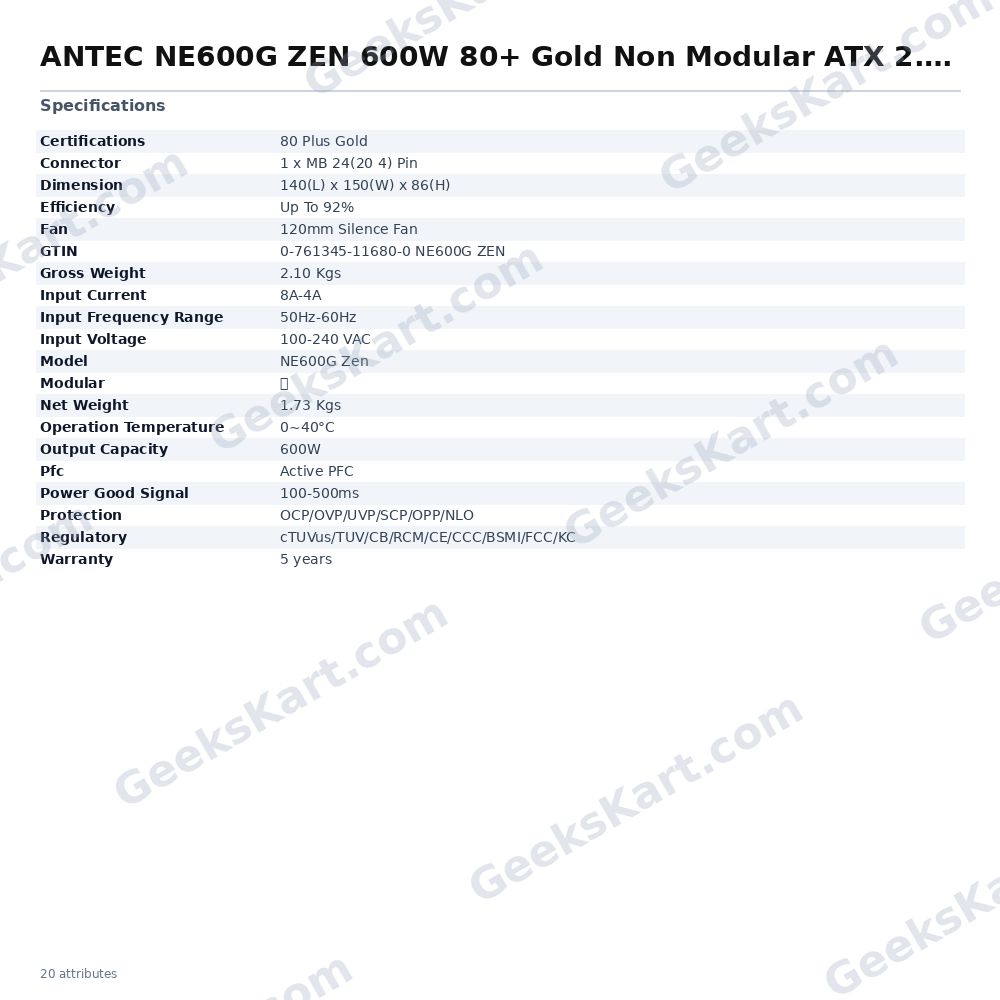

Specifications of ANTEC NE600G ZEN
| Model | NE600G Zen |
| Type | ATX 12V 2.4 |
| Modular | － |
| Dimension | 140(L) x 150(W) x 86(H) |
| Warranty | 5 years |
| Input Voltage | 100-240 VAC |
| Input Current | 8A-4A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | Up To 92% |
| Protection | OCP/OVP/UVP/SCP/OPP/NLO |
| Output Capacity | 600W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus/TUV/CB/RCM/CE/CCC/BSMI/FCC/KC |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Gold |
|
Connector
|
1 x MB 24(20 4) Pin |
| 1 x 8(4 4) Pin EPS 12V | |
| 4 x 8(6 2) Pin PCI-E | |
| 6 x SATA | |
| 2 x Molex | |
| Net Weight | 1.73 Kgs |
| Gross Weight | 2.10 Kgs |
|
UPC#
|
0-761345-11680-0 NE600G ZEN |
| 0-761345-11681-7 NE600G ZEN AU | |
| 0-761345-11682-4 NE600G ZEN EC | |
| 0-761345-11683-1 NE600G ZEN GB | |
| 0-761345-11684-8 NE600G ZEN JP |
Datasheet
| Warranty | 5 Years |
|---|---|
| Fan | 120mm Silence Fan |
| Pfc | Active PFC |
| Model | NE600G Zen |
| Modular | － |
| Connector | 1 x MB 24(20 4) Pin |
| Dimension | 140(L) x 150(W) x 86(H) |
| Efficiency | Up To 92% |
| Net Weight | 1.73 Kgs |
| Protection | OCP/OVP/UVP/SCP/OPP/NLO |
| Regulatory | cTUVus/TUV/CB/RCM/CE/CCC/BSMI/FCC/KC |
| Gross Weight | 2.10 Kgs |
| Input Current | 8A-4A |
| Input Voltage | 100-240 VAC |
| Certifications | 80 Plus Gold |
| Output Capacity | 600W |
| Power Good Signal | 100-500ms |
| Input Frequency Range | 50Hz-60Hz |
| Operation Temperature | 0~40°C |
