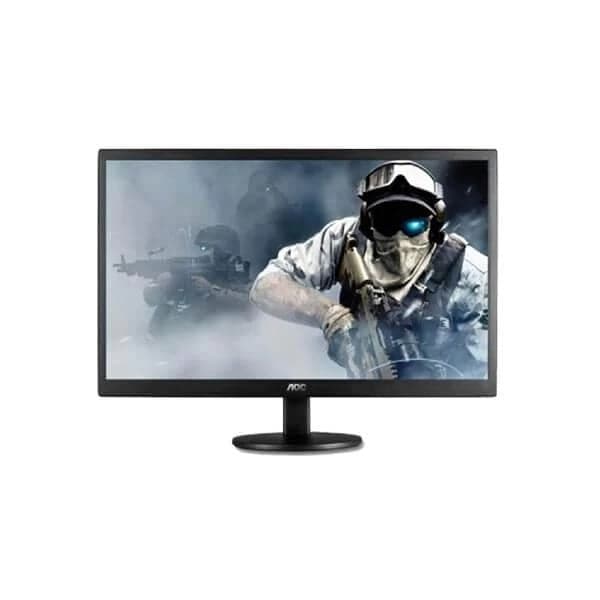

AOC E2070SWNE 20 Inch 60Hz TN Panel 5MS Gaming Monitor
MPN AOC-E2070SWNE · Brand AOC
Features of AOC E2070SWNE 20 Inch LED Panel: Hg Free aoc monitor Mercury (Hg) is poisonous, producing toxic environmental waste. Unlike the CCFL backlight in traditional monitors, the LED backlight panel contains no Hg. Dynamic Contrast Ratio (DCR) Ultra-high Dynamic Contrast Ratio of 20,000,000:1 displays darker images with more depth and detail. e-Saver Software enables the user to set a low power configuration of the 20 inch monitor when the PC is in screen saving, PC off, and user absence. U
Inclusive of GST · GST invoice available
Overview
Features of AOC E2070SWNE 20 Inch
LED Panel: Hg Free
aoc monitor Mercury (Hg) is poisonous, producing toxic environmental waste. Unlike the CCFL backlight in traditional monitors, the LED backlight panel contains no Hg.
Dynamic Contrast Ratio (DCR)
Ultra-high Dynamic Contrast Ratio of 20,000,000:1 displays darker images with more depth and detail.
e-Saver
Software enables the user to set a low power configuration of the 20 inch monitor when the PC is in screen saving, PC off, and user absence. User can choose the time to turn the monitor off, to save power consumption.
Screen+ Software
The bundled Screen+ software splits the PC workspace into four self-contained panes to group application windows for easier viewing. Screen+ also supports multiple moniter.
Hair-Line Texture
Brushed surface textures provide a luxury look and feel.
16.7 Million Colors
FRC 8-bit panel can display 0.5 million more colors than the typical TN 6-bit panel.
i-Menu
Included PC software allows the user to change the OSD settings using their mouse.
Ultra Low Power Consumption
The LED backlight panel requires 50% less energy than typical 4CCFL monitors.
Get the Best aoc monitor price from us today!
Specifications of AOC E2070SWNE 20 Inch
| Model Name | E2070SWNE |
| Panel size | 19.45" W |
| Screen Ratio | 16:9 |
| Response Time (Typical) | 5ms |
| Recommended Resolution | 1366×768@60Hz |
| Contrast Ratio | 600:1 (Typical) 20,000,000:1 (DCR) |
| Brightness (Typical) | 200 cd/m² |
| Display Color | 16.7M |
| Viewing Angel (H/V) | 90/65 |
| Viewable Image Size (mm) | 493.92 |
| Display Area | 433.7894(H)×235.776 (V)mm |
| Pixel Pitch (mm) | 0.27 |
| Scan Frequency (H/V) | 30-60KHz/ 50-76Hz |
| Input Signal | Analog |
| Input Connector | 15-pin D-Sub |
| Built-in Speaker | N/A |
| HDCP Compatible | N/A |
| Input Power | 100-240VAC, 50/60Hz |
| Power Supply | Built-in |
| Operation Mode (W) | 15W |
| Stand by Mode (W) | <0.5W |
| Wall- Mount | VESA 100x100mm |
| Cabinet Color | Black |
| Phys. (W×H×D) mm | 464.5×344×176 |
| Package Box (W×H×D) mm | 525×372×114 |
| Weight (Net/ Gross)(Kg) | 2.08/3.01 |
| Plug & Play | VESA DDC2B™ & DDC2B/CI |
| User Control | Power/Auto |
| USB Plug | N/A |
| OSD Languages | 16languages |
| Safety Regulation | CE, CCC, FCC, cTUVus, ROHS |
| Warranty | 3 Years |
| Note | ***Features, Price, and specifications are subject to change without notice. |
Datasheet
| Warranty | 3 Years |
|---|---|
| Model | E2070SWNE |
| Panel Size | 19.45" W |
| Input Power | 100-240VAC, 50/60Hz |
| Plug & Play | VESA DDC2B™ & DDC2B/CI |
| Wall- Mount | VESA 100x100mm |
| Display Area | 433.7894(H)×235.776 (V)mm |
| Input Signal | Analog |
| Power Supply | Built-in |
| Screen Ratio | 16:9 |
| User Control | Power/Auto |
| Cabinet Color | Black |
| Display Color | 16.7M |
| Osd Languages | 16languages |
| Contrast Ratio | 600:1 (Typical) 20,000,000:1 (DCR) |
| Input Connector | 15-pin D-Sub |
| Pixel Pitch (Mm) | 0.27 |
| Safety Regulation | CE, CCC, FCC, cTUVus, ROHS |
| Stand By Mode (W) | <0.5W |
| Operation Mode (W) | 15W |
| Phys. (W×H×D) Mm | 464.5×344×176 |
| Viewing Angel (H/V) | 90/65 |
| Brightness (Typical) | 200 cd/m² |
| Scan Frequency (H/V) | 30-60KHz/ 50-76Hz |
| Recommended Resolution | 1366×768@60Hz |
| Response Time (Typical) | 5ms |
| Weight (Net/ Gross)(Kg) | 2.08/3.01 |
| Package Box (W×H×D) Mm | 525×372×114 |
| Viewable Image Size (Mm) | 493.92 |
