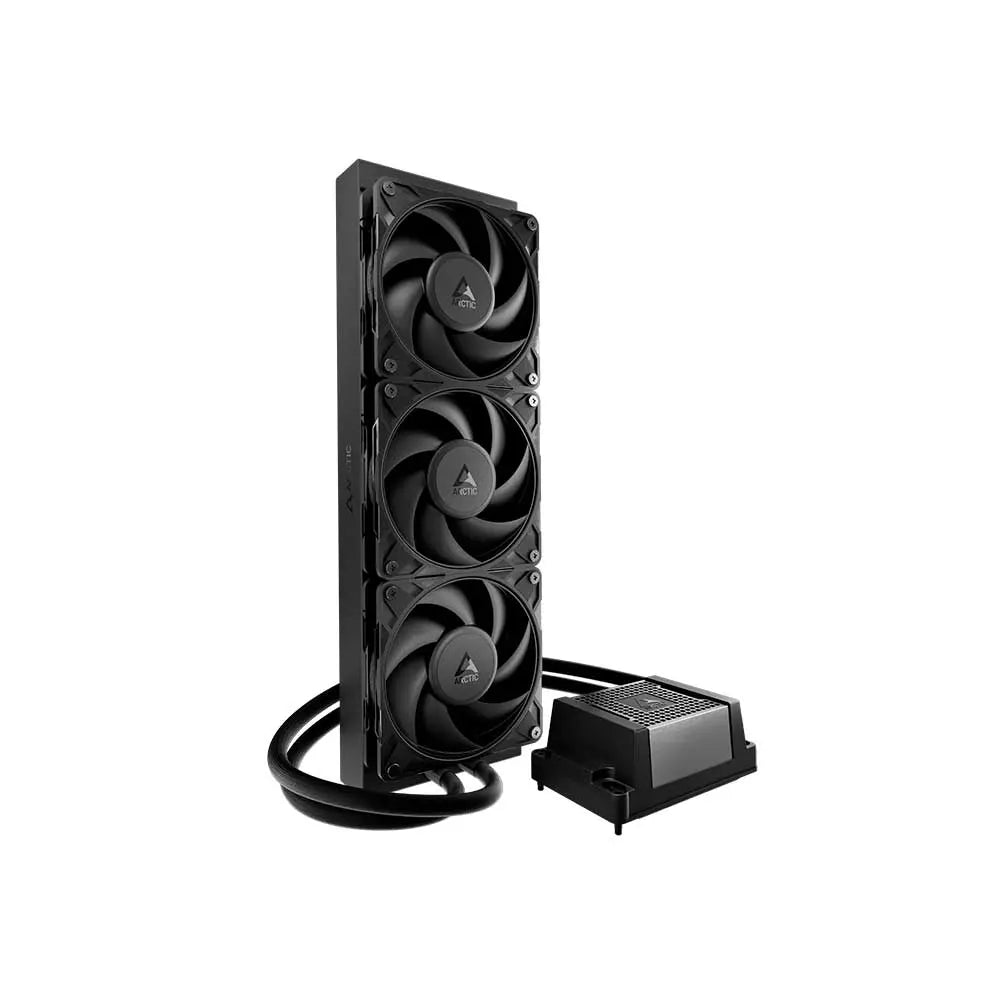

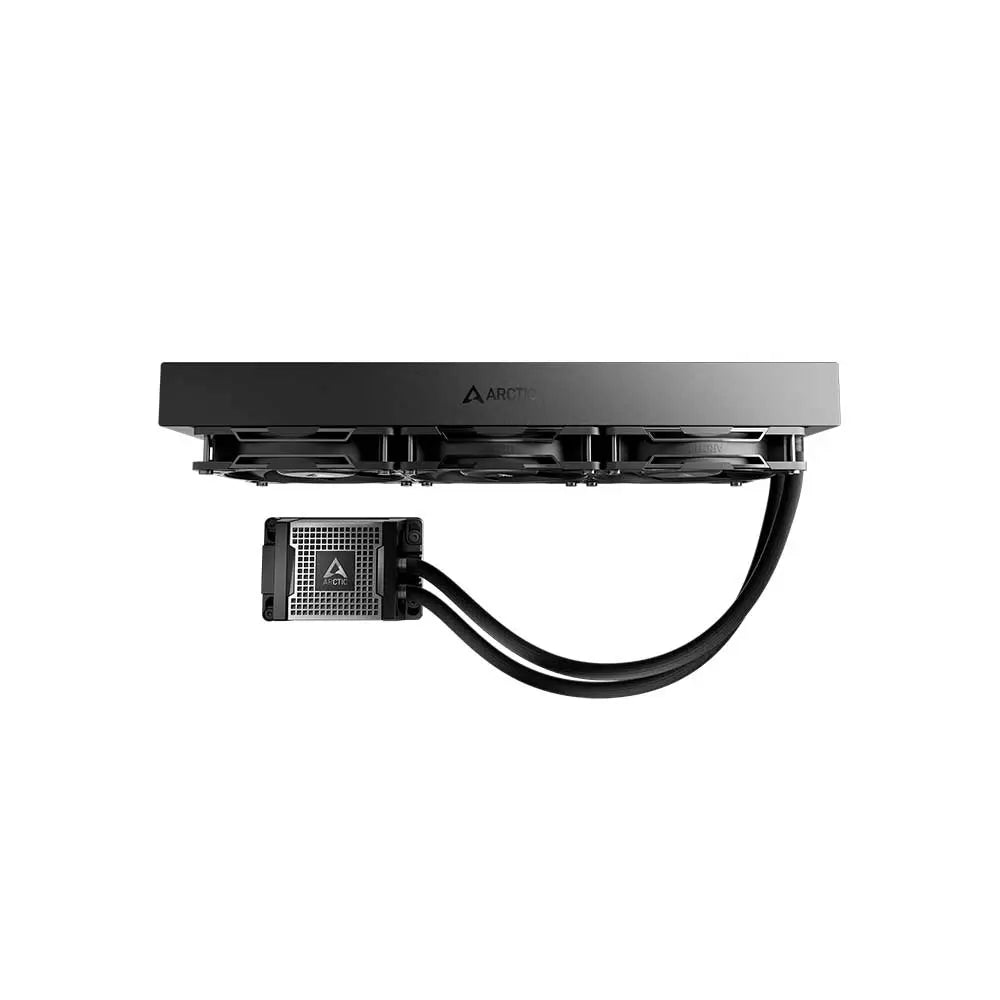

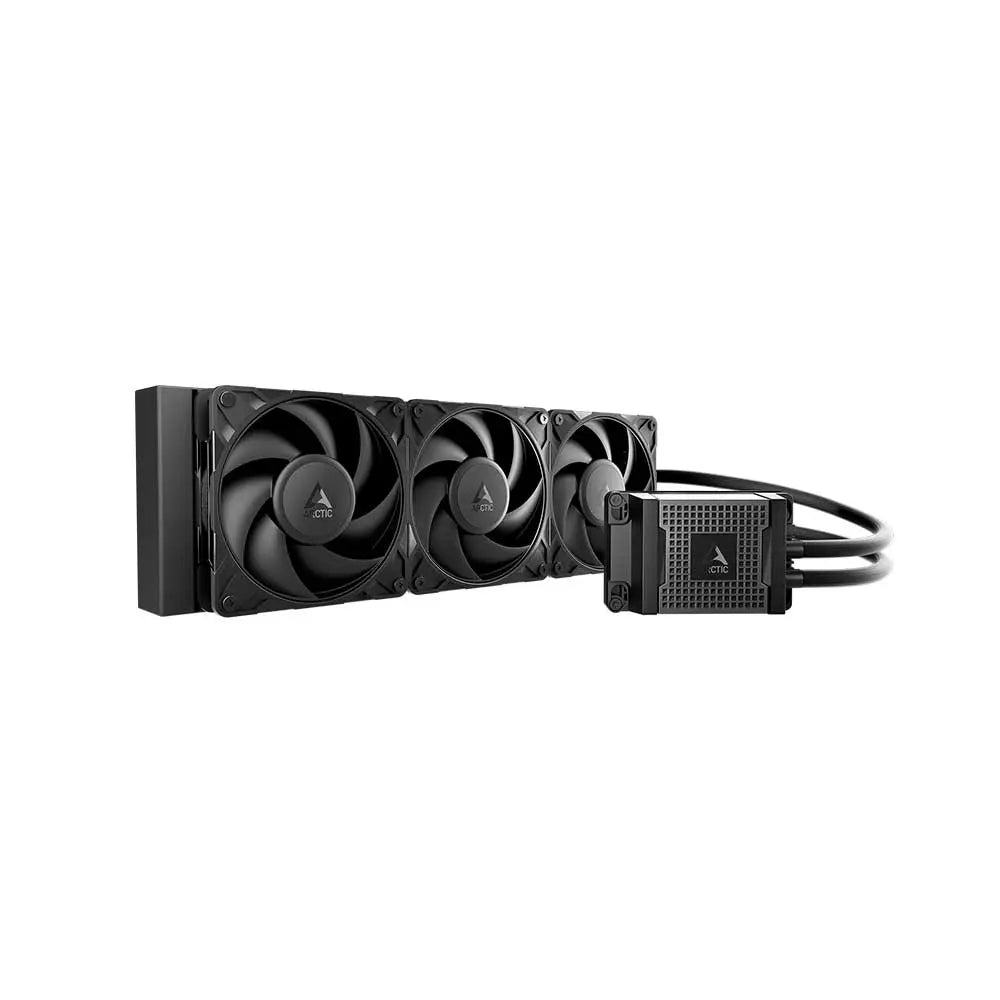

ARCTIC Liquid Freezer WS360 SP6 360mm CPU Liquid Cooler ( Black )

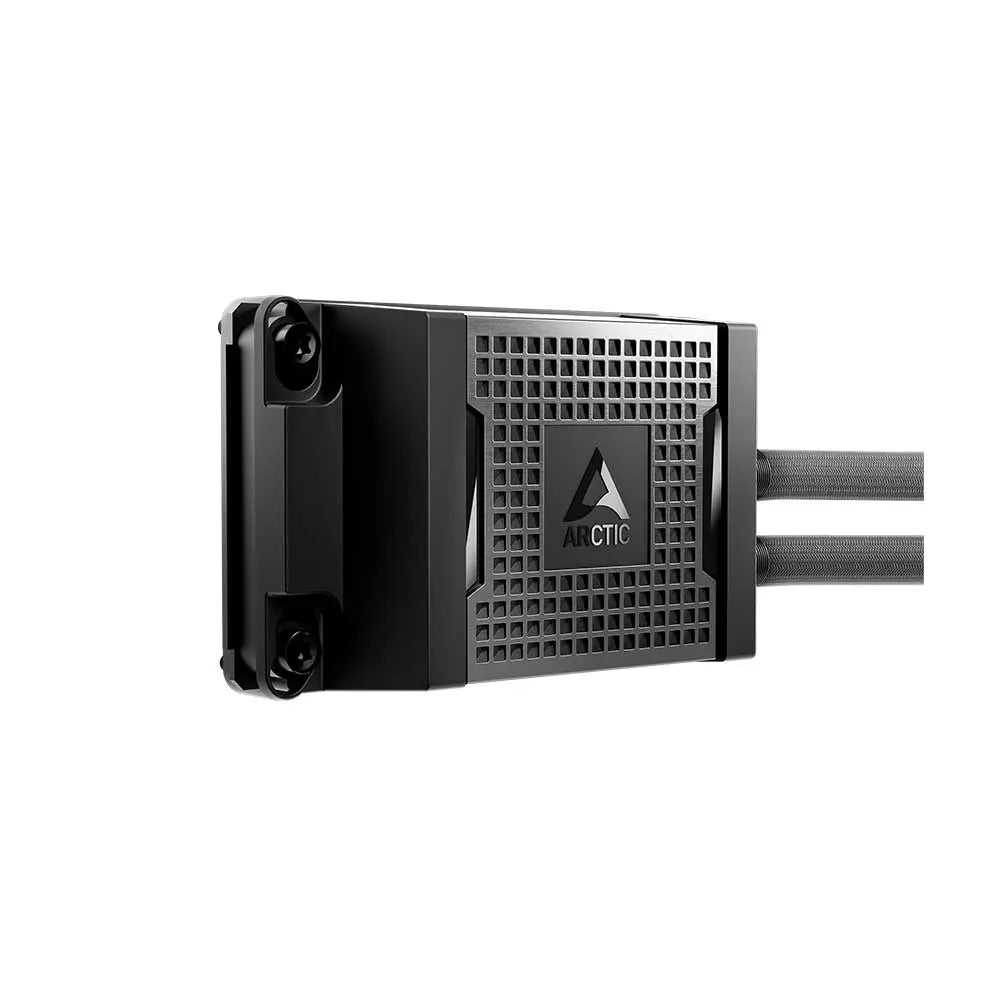

The ARCTIC Liquid Freezer WS360 SP6 (model ACFRE00201A) is an all-in-one 360mm liquid CPU cooler built specifically for AMD workstation platforms, with native support for AMD SP6, SP3, TR4, sWRX8, sTRX4, and sTR5 sockets. It is purpose-designed to handle the sustained thermal demands of high-performance workstation CPUs, with a verified dissipation capacity of up to 800W of CPU heat while drawing only 14.8W — delivering a Power Efficiency Ratio suited to environments where energy costs matter. At the heart of the cooling loop is a newly designed water block featuring high-density micro-fins, an efficient chamber flow design, and a built-in pump with a speed range of 800 to 3000 RPM (0.36 A at 12 V DC). The 38mm thick radiator increases thermal surface area compared to standard 25mm radiators, improving heat dissipation under sustained workstation loads. Flexible EPDM tubing with braided sheathing — 450mm in length and 12.4mm outer diameter — connects the block to the radiator, offering resistance to leakage and long-term durability. Cooling is handled by three ARCTIC P12 Pro PST CO fans, each equipped with dual ball bearings rated for continuous 24/7 operation. The fans spin between 600 and 3000 RPM, deliver up to 77 CFM (131 m³/h) of airflow, and generate 6.9 mm H₂O of static pressure. They connect via a 4-pin PWM connector with a 4-pin PST (PWM Sharing Technology) passthrough, with 400mm cable lengths for routing flexibility. Operating ambient temperature is rated at 0–40 °C. Installation uses a fixed mounting bracket tailored for AMD SP6, ensuring precise contact pressure on the CPU die without requiring adapter hardware. ARCTIC MX-7 thermal compound is included in the box, applied in a three parallel line pattern for consistent CPU surface coverage. The unit carries a 6-year manufacturer warranty, reflecting ARCTIC's stated commitment to long-term workstation reliability. Verified Specifications: - Model: ACFRE00201A - Radiator Size: 360mm (3 × 120mm fans) - Radiator Thickness: 38mm - Compatible Sockets: AMD SP6, SP3, TR4, sWRX8, sTRX4, sTR5 - Fan Speed: 600–3000 RPM - Fan Airflow: 77 CFM / 131 m³/h - Fan Static Pressure: 6.9 mm H₂O - Fan Bearing: Dual Ball Bearing - Fan Connector: 4-Pin PWM + 4-Pin PST Passthrough - Fan Cable Length: 400mm - Fan Power: 0.33 A at 12 V DC - Pump Speed: 800–3000 RPM - Pump Power: 0.36 A at 12 V DC - Tube Length: 450mm - Tube Outer Diameter: 12.4mm - Thermal Compound: ARCTIC MX-7 (included) - Max CPU TDP: 800W - System Power Draw: 14.8W - Operating Temperature: 0–40 °C - Package Dimensions: 431mm (L) × 156mm (W) × 154mm (H) - Package Weight: 2.6 kg - Warranty: 6 Years - Color: Black
