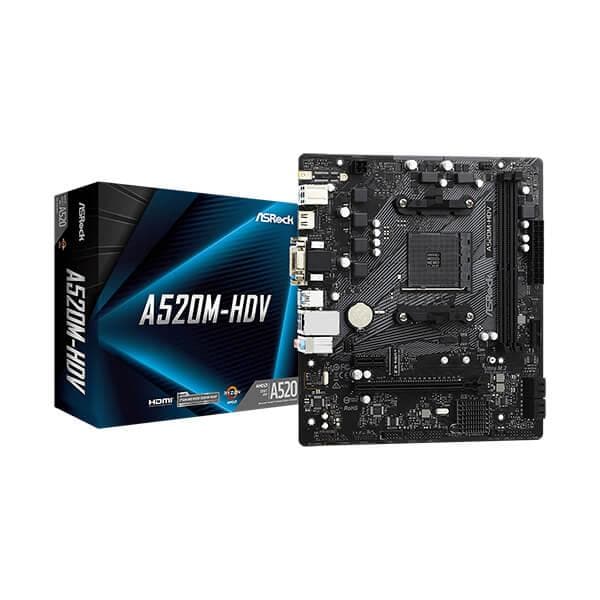

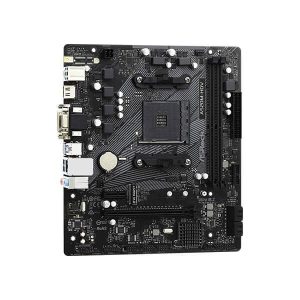

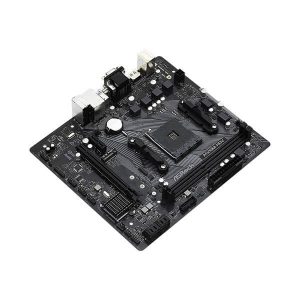

ASROCK A520M-HDV DDR4 AMD Motherboard
MPN ASROCK-A520M-HDV · Brand ASROCK · mATX
The ASRock A520M-HDV is a Micro ATX DDR4 motherboard for AMD AM4 Ryzen 3000/4000 series CPUs, featuring triple display outputs (D-Sub, DVI-D, HDMI 2.1 4K@60Hz), an Ultra M.2 PCIe Gen3 x4 slot, and 7.1 CH HD audio in a compact 23.0 cm × 20.1 cm form factor
Inclusive of GST · GST invoice available
Overview
The ASRock A520M-HDV is a Micro ATX motherboard built on the AMD A520 chipset, designed for AMD AM4 socket processors from the Ryzen 3000 and Ryzen 4000 series (Matisse and Renoir families). Note that it is not compatible with the AMD Ryzen 5 3400G or Ryzen 3 3200G. Measuring 9.0 in x 7.9 in (23.0 cm x 20.1 cm), its compact footprint suits small-to-mid-size builds without compromising on connectivity. For memory, the board provides two DDR4 DIMM slots in dual-channel configuration, supporting up to 64 GB of DDR4 RAM. Matisse-based Ryzen CPUs can run memory up to DDR4 4600+ (OC), while Renoir APUs push that ceiling to DDR4 4733+ (OC), with native speeds including 3200, 2933, 2667, 2400, and 2133 MHz. XMP profiles are supported alongside ECC and non-ECC unbuffered modules. Display flexibility is a notable strength: three rear-panel video outputs — D-Sub (up to 1920×1200 @ 60 Hz), DVI-D (up to 1920×1200 @ 60 Hz), and HDMI 2.1 (up to 4096×2160 @ 60 Hz with HDR, HDCP 2.3, Deep Color, and HBR Audio) — allow triple-monitor configurations when used with a Renoir APU featuring integrated AMD Radeon Vega graphics. Storage is handled by four SATA3 6.0 Gb/s connectors with support for RAID 0, RAID 1, and RAID 10, plus one Ultra M.2 socket accepting M Key modules in 2242/2260/2280 form factors at up to PCIe Gen3 x4 (32 Gb/s) or SATA3 speeds, with NVMe boot support. Connectivity includes a PCIe 3.0 x16 slot and a PCIe 3.0 x1 slot for expansion cards, along with Realtek RTL8111H Gigabit LAN (10/100/1000 Mb/s) with Wake- LAN and Energy Efficient Ethernet 802.3az. Audio is delivered through a Realtek ALC887 codec offering 7.1-channel HD audio with surge protection. USB ports total 12: six USB 3.2 Gen1 (four rear, two front via header) and six USB 2.0 (two rear, four front via headers). A PS/2 mouse/keyboard port rounds out rear-panel I/O. The 6-phase power design is built on the ASRock Super Alloy platform, which incorporates a premium 50 A power choke, solid capacitors, and a High Density Glass Fabric PCB on a Sapphire Black substrate. ASRock Full Spike Protection guards all USB, audio, and LAN ports. The 128 Mb AMI UEFI BIOS supports Plug and Play, ACPI 5.1, jumperfree operation, and multi-voltage adjustment for CPU, VDDCR_SOC, DRAM, and VDDP rails. Software utilities include ASRock A-Tuning and XFast LAN, downloadable via ASRock Live Update & APP Shop. Verified Specifications: - Chipset: AMD A520 - Socket: AM4 - Form Factor: Micro ATX (9.0 in × 7.9 in / 23.0 cm × 20.1 cm) - Memory: 2 × DDR4 DIMM, Dual Channel, max 64 GB, up to DDR4 4733+ (OC, Renoir APU) - Expansion Slots: 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x1 - Storage: 4 × SATA3 6.0 Gb/s (RAID 0/1/10), 1 × Ultra M.2 (PCIe Gen3 x4 / SATA3) - Display Outputs: D-Sub, DVI-D, HDMI 2.1 (4K @ 60 Hz) - Audio: Realtek ALC887, 7.1 CH HD - LAN: Realtek RTL8111H, Gigabit - USB: 4 × USB 3.2 Gen1 + 2 × USB 2.0 (rear); 2 × USB 3.2 Gen1 + 4 × USB 2.0 (front headers) - BIOS: 128 Mb AMI UEFI - Certifications: FCC, CE, ErP/EuP ready - Warranty: 3 Years

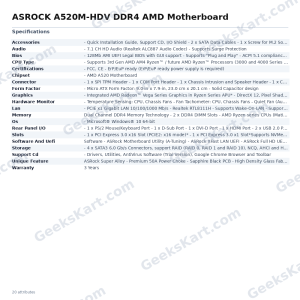

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | – AMD A520 Motherboard |
| CPU Type | – Supports 3rd Gen AMD AM4 RyzenTM / future AMD RyzenTM Processors (3000 and 4000 Series Processors)* – 6 Power Phase design*Not compatible with AMD RyzenTM 5 3400G and RyzenTM 3 3200G |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111H – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with GUI support – Supports "Plug and Play" – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio (Realtek ALC887 Audio Codec) – Supports Surge Protection |
| Slots | – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* – 1 x PCI Express 3.0 x1 Slot*Supports NVMe SSD as boot disks |
| Memory | Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – Max. capacity of system memory: 64GB* – Supports Extreme Memory Profile (XMP) memory modules – 15μ Gold Contact in DIMM Slots |
| Storage | – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| Graphics | – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB.** – Three graphics output options: D-Sub, DVI-D and HDMI – Supports Triple Monitor – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) – Supports HDR (High Dynamic Range) with HDMI 2.1 – Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port – Supports Microsoft® PlayReady*Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed |
| Connector | – 1 x SPI TPM Header – 1 x COM Port Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** – 1 x 24 pin ATX Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power. CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 1 x Screw for M.2 Socket |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super Alloy – Premium 50A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, Chassis Fans – Fan Tachometer: CPU, Chassis Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans – Fan Multi-Speed Control: CPU, Chassis Fans – CASE OPEN detection – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Software And Uefi | Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI – ASRock Full HD UEFI – ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop |
