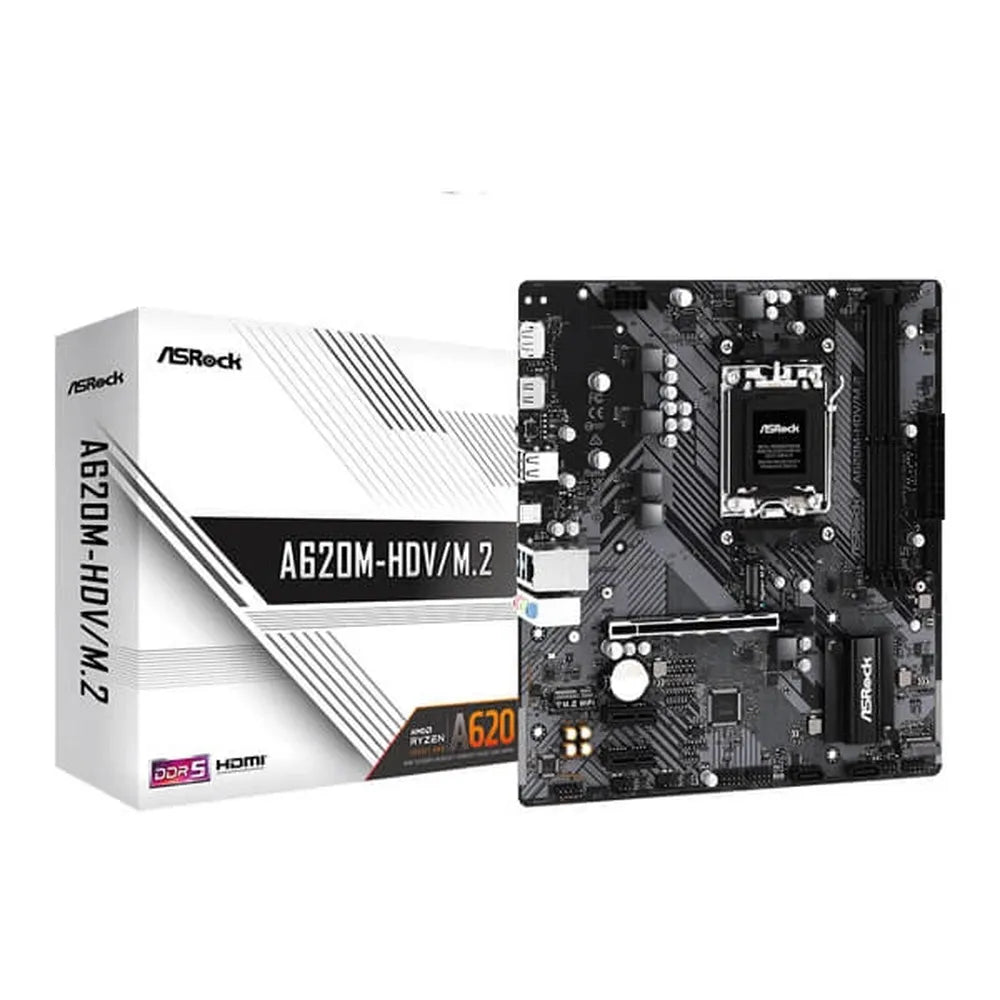

ASROCK A620M-HDV/M.2 DDR5 AMD Motherboard
MPN ASROCK-A620M-HDV-M.2-DDR5 · Brand ASROCK · mATX
The ASRock A620M-HDV/M.2 DDR5 is a Micro ATX motherboard for AMD AM5 Ryzen 7000 processors, featuring PCIe 4.0 x16, dual M.2 slots, DDR5-5600+ support up to 96 GB, and 4K-capable HDMI 2.1 and DisplayPort 1.4 outputs
Inclusive of GST · GST invoice available
Overview

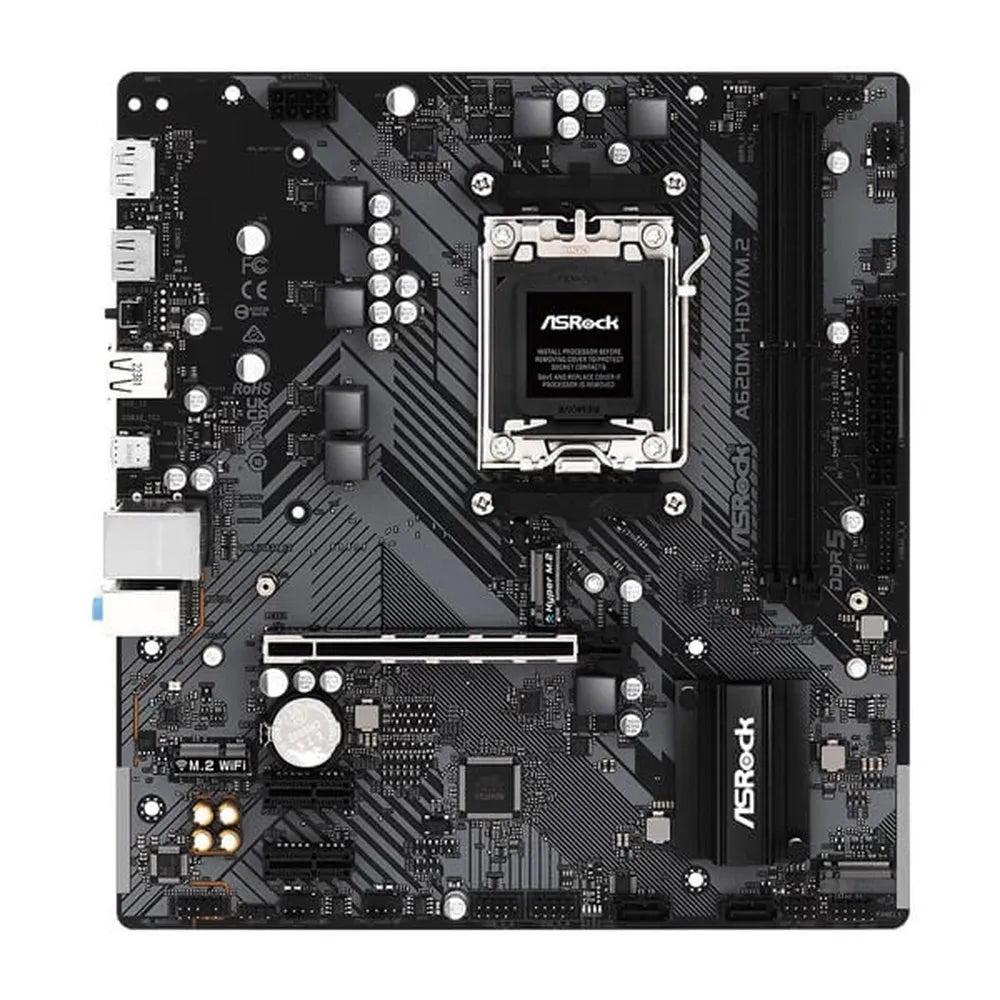

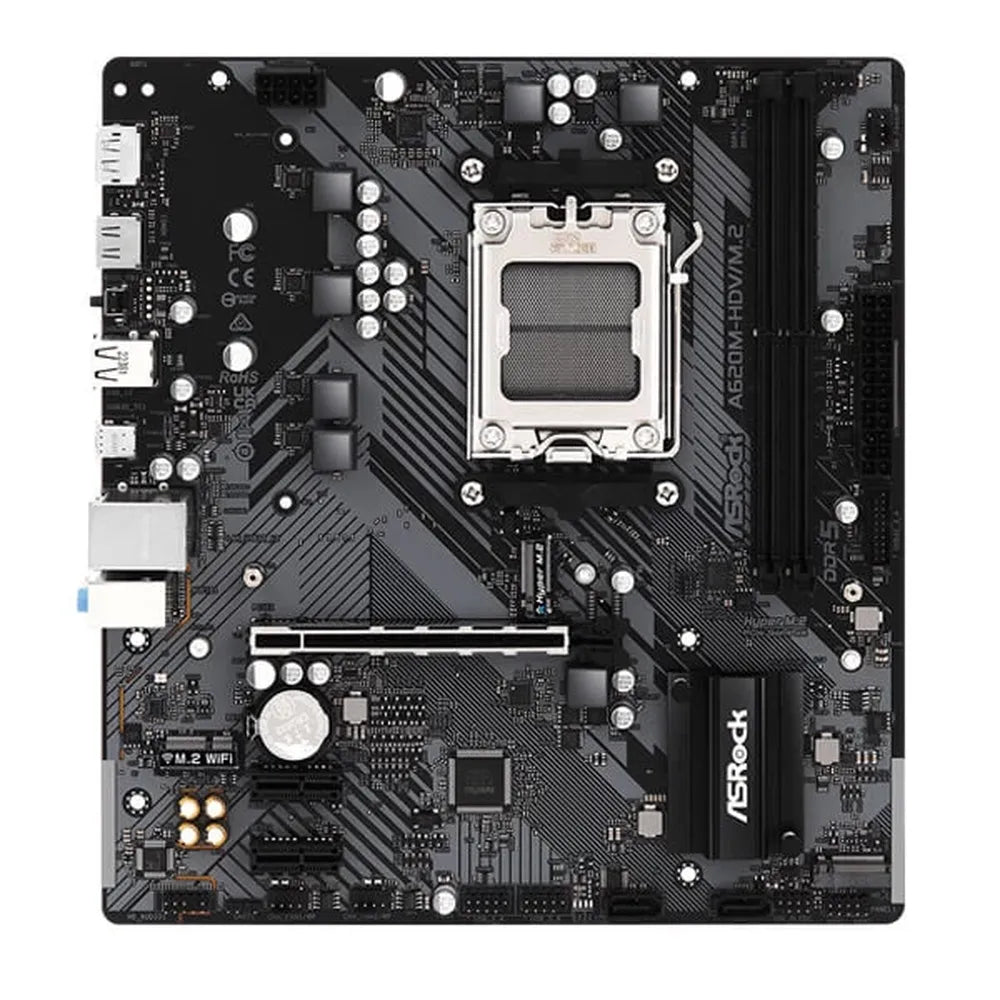

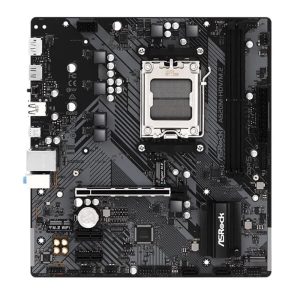

The ASRock A620M-HDV/M.2 is a Micro ATX motherboard built on the AMD A620 chipset, designed to support AMD Socket AM5 Ryzen 7000 Series processors. At 9.6 x 8.9 inches (24.4 x 22.6 cm), it fits standard Micro ATX chassis while delivering a practical feature set for budget-conscious AM5 builds. For memory, the board provides two DDR5 DIMM slots in a dual-channel configuration, supporting non-ECC unbuffered DDR5 at up to 5600+ MHz with overclocking, a maximum system capacity of 96 GB, and compatibility with both XMP and EXPO profiles. Storage flexibility is a key strength. A CPU-connected Hyper M.2 slot (M2_1, Key M) supports PCIe Gen4 x4 SSDs at up to 64 Gb/s, while a chipset-connected M.2 slot (M2_2, Key M) supports PCIe Gen3 x2 (16 Gb/s) or SATA3 6.0 Gb/s. Two additional SATA3 connectors round out the storage options. RAID 0 and RAID 1 are supported for SATA devices; RAID 0, RAID 1, and RAID 10 for M.2 NVMe devices. Expansion slots include one PCIe 4.0 x16 slot with a reinforced steel housing and 15-micron gold contacts, two PCIe 3.0 x1 slots, and an M.2 Key E slot for an optional type-2230 Wi-Fi/Bluetooth module (module not included; two antenna mounting points are provided on the rear panel). Display output is handled by the integrated AMD RDNA 2 graphics engine present in compatible Ryzen 7000 APUs, with one HDMI 2.1 port (HDR, HDCP 2.3, up to 4K 120Hz) and one DisplayPort 1.4 with DSC (HDCP 2.3, up to 4K 120Hz compressed). Connectivity includes a Realtek RTL8111H Gigabit LAN (10/100/1000 Mb/s), 7.1-channel HD audio via Realtek ALC897 with Nahimic Audio software, and a total of eleven USB ports: one USB 3.2 Gen1 Type-C (rear), four USB 3.2 Gen1 Type-A (two rear, two front), and six USB 2.0 (two rear, four front). The power delivery section uses a 4+1+1 phase design with 50A Dr.MOS for VCore, fed by a standard 8-pin 12V CPU connector. The PCB uses 2-ounce copper inner layers for improved signal integrity and thermal management. Fan headers include one 4-pin CPU connector and three 4-pin chassis/water-pump headers with Smart Fan Speed Control. BIOS is a 256 Mb AMI UEFI with GUI support, and ASRock utilities include BIOS Flashback (USB-based flashing without a CPU or RAM installed), Auto Driver Installer, Full HD UEFI, Instant Flash, A-Tuning, and XFast LAN. A Post Status Checker aids troubleshooting. Verified Specifications: - Model: A620M-HDV/M.2 | Form Factor: Micro ATX (9.6 x 8.9 in) - Chipset: AMD A620 | Socket: AM5 (Ryzen 7000 Series) - Memory: 2x DDR5 DIMM, dual-channel, up to 96 GB, DDR5-5600+ (OC), XMP/EXPO - Storage: 1x PCIe Gen4 x4 M.2 (CPU), 1x PCIe Gen3 x2/SATA3 M.2 (chipset), 2x SATA3 - GPU Output: HDMI 2.1 (4K 120Hz) + DisplayPort 1.4 DSC (4K 120Hz) - LAN: Realtek RTL8111H Gigabit | Audio: Realtek ALC897 7.1 CH - USB: 1x USB 3.2 Gen1 Type-C, 4x USB 3.2 Gen1 Type-A, 6x USB 2.0 - OS Support: Windows 10 64-bit / Windows 11 64-bit - Certifications: FCC, CE, ErP/EuP ready | Warranty: 3 Years

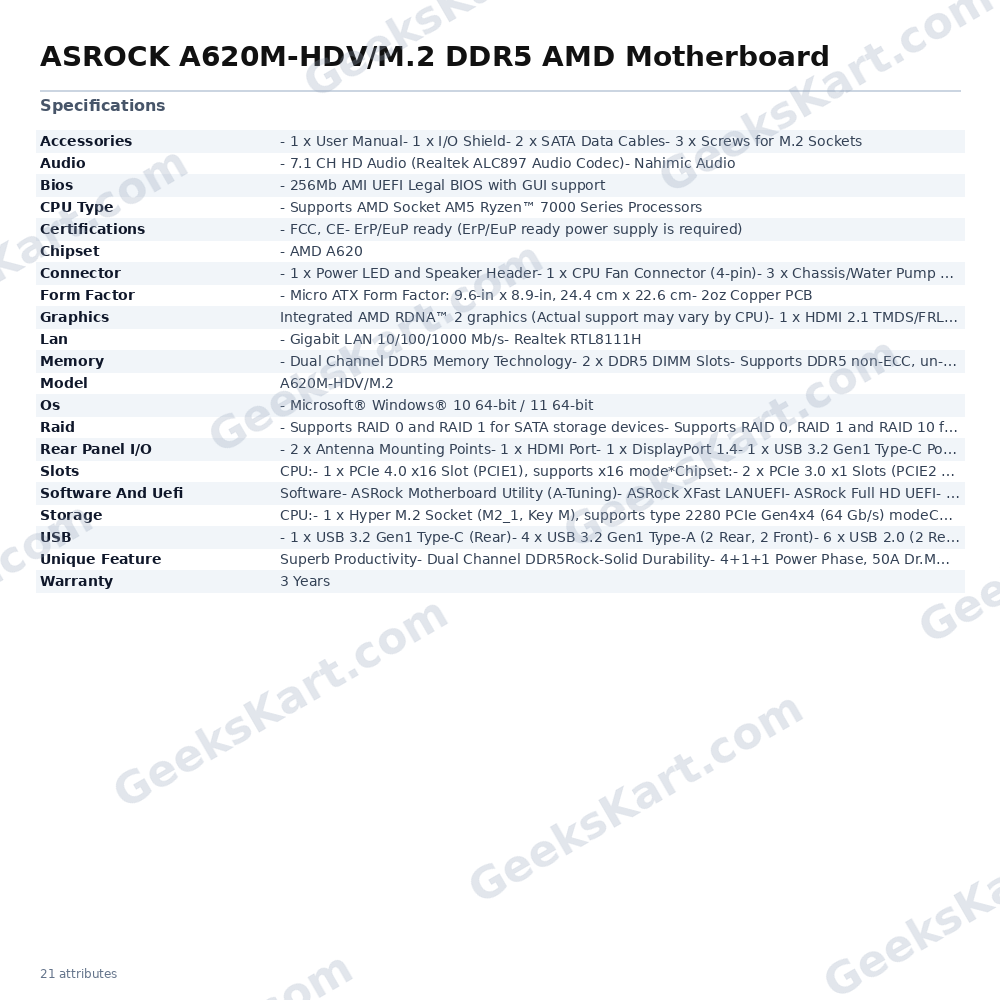

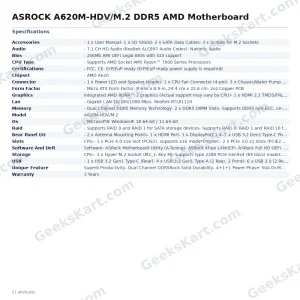

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | – AMD A620 |
| CPU Type | – Supports AMD Socket AM5 RyzenTM 7000 Series Processors |
| Os | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | – Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111H |
| USB | – 1 x USB 3.2 Gen1 Type-C (Rear)- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)- 6 x USB 2.0 (2 Rear, 4 Front) |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0 and RAID 1 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio |
| Slots | CPU:- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Memory | – Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 5600+(OC)- Max. capacity of system memory: 96GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Storage | CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modeChipset:- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*- 2 x SATA3 6.0 Gb/s Connectors |
| Graphics | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Connector | – 1 x Power LED and Speaker Header- 1 x CPU Fan Connector (4-pin)- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Accessories | – 1 x User Manual- 1 x I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets |
| Model | A620M-HDV/M.2 |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |

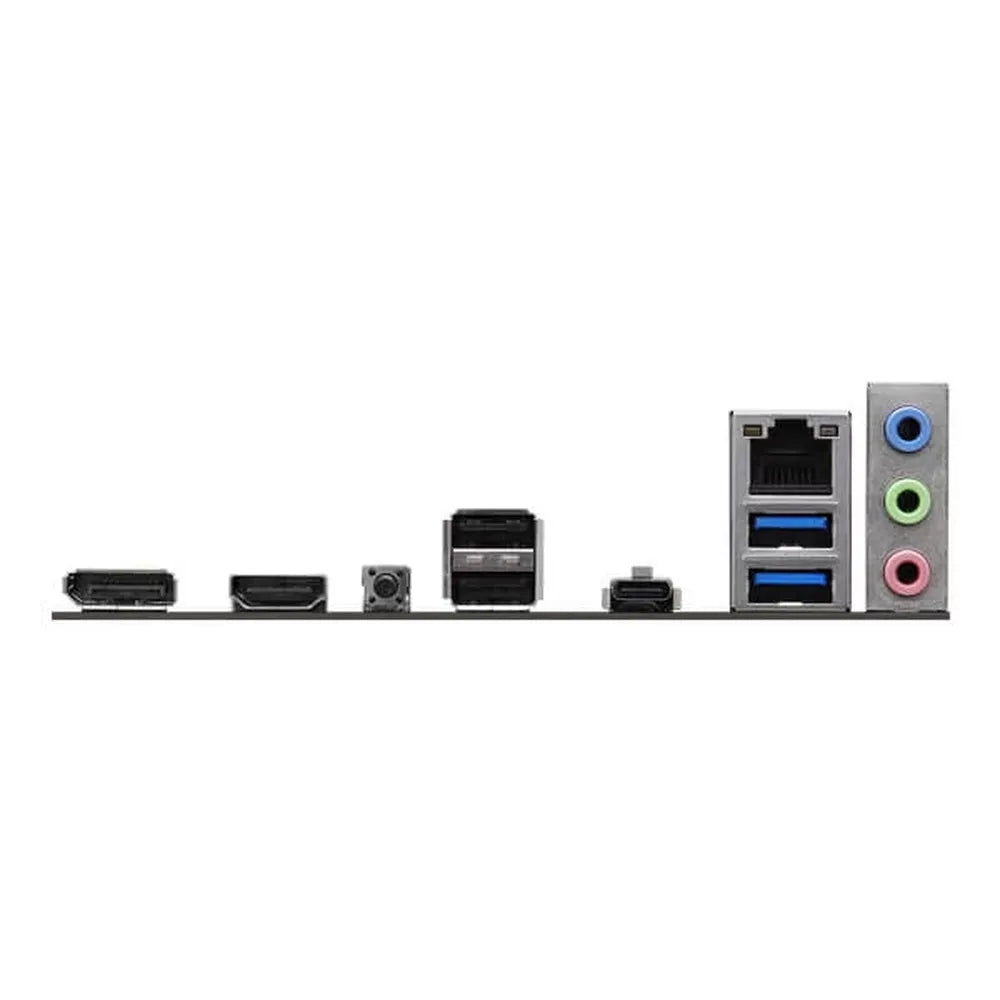

| Rear Panel I/O | – 2 x Antenna Mounting Points- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen1 Type-C Port- 2 x USB 3.2 Gen1 Type-A Ports- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | Superb Productivity- Dual Channel DDR5Rock-Solid Durability- 4+1+1 Power Phase, 50A Dr.MOS for VCoreEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter- ASRock Post Status Checker |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash |
