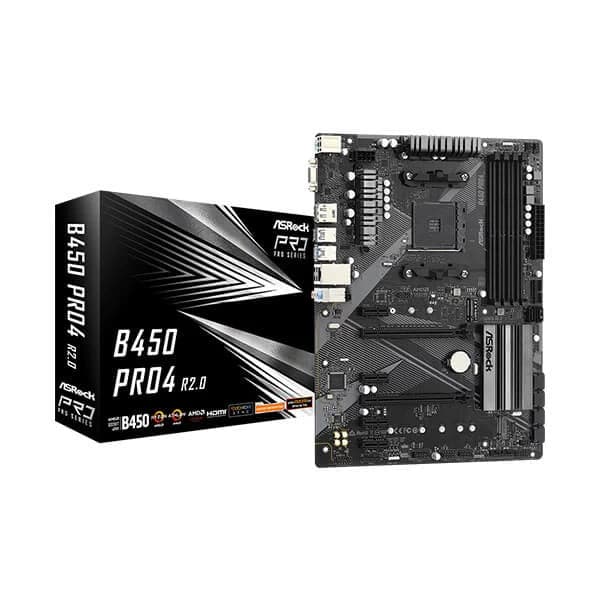

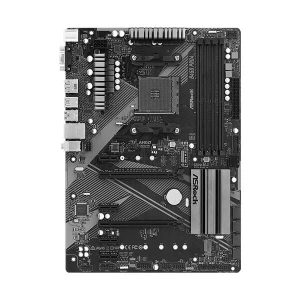

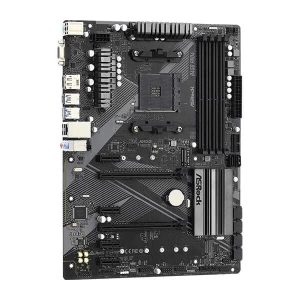

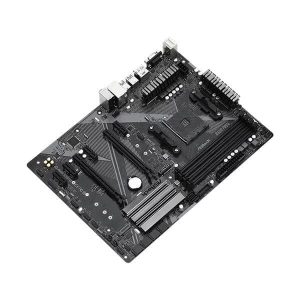

ASROCK B450 Pro4 R2.0 DDR4 AMD Motherboard
MPN ASROCK-B450-PRO4-R2 · Brand ASROCK · ATX
The ASRock B450 Pro4 R2.0 is an AM4 ATX motherboard supporting AMD Ryzen 2000/3000/5000 Series processors, with dual M.2 slots, DDR4 up to 128 GB, USB 3.2 Gen2 Type-A and Type-C, and Polychrome RGB lighting
Inclusive of GST · GST invoice available
Overview
The ASRock B450 Pro4 R2.0 is an ATX-form-factor motherboard built on the AMD Promontory B450 chipset and designed for the AM4 socket. It supports AMD Ryzen 2000, 3000, and 5000 Series desktop processors, making it a versatile foundation for system builds ranging from everyday workstations to capable gaming rigs. Memory support spans four DDR4 DIMM slots in dual-channel configuration, with a maximum system capacity of 128 GB. Depending on the installed CPU, native and overclocked frequencies up to DDR4 3200 (and beyond via XMP) are available, with ECC and non-ECC unbuffered modules supported on select Ryzen generations. Storage connectivity is a highlight: six SATA3 6.0 Gb/s ports (four natively supporting RAID 0, 1, and 10; two via ASMedia ASM1061), plus two M.2 sockets. The primary Ultra M.2 slot (M2_1) operates at up to PCIe Gen3 x4 (32 Gb/s) for NVMe SSDs, while the secondary M.2 slot (M2_2) accepts both SATA3 and PCIe Gen3 x2 modules in sizes from 2230 to 22110. Expansion slots include two PCIe 3.0 x16 slots and four PCIe 2.0 x1 slots, with AMD Quad CrossFireX support available on compatible Ryzen CPUs. The rear I/O delivers a USB 3.2 Gen2 Type-A port and a USB 3.2 Gen2 Type-C port (both at 10 Gb/s), four USB 3.2 Gen1 ports, two USB 2.0 ports, and three integrated display outputs — HDMI 1.4 (up to 4K at 30 Hz), DisplayPort 1.2 (up to 4K at 60 Hz), and D-Sub (up to 1920×1200) — for use with APUs featuring integrated Radeon Vega graphics. Audio is handled by a Realtek ALC892/897 codec delivering 7.1-channel HD audio with surge protection. Networking is provided by a Realtek RTL8111H Gigabit LAN controller with Wake- LAN, ESD protection, and 802.3az Energy Efficient Ethernet. The board ships with onboard RGB and addressable RGB headers, managed via ASRock Polychrome SYNC software. Power delivery relies on a 10-phase digital PWM design feeding through premium power chokes. The PCB uses a 2 oz copper construction and High Density Glass Fabric layers. ASRock Full Spike Protection guards all USB, audio, and LAN ports. Verifiable Specifications: - Form Factor: ATX — 30.5 cm × 22.4 cm (12.0 in × 8.8 in) - Chipset: AMD Promontory B450 - Socket: AM4 (Ryzen 2000 / 3000 / 5000 Series) - Memory: 4× DDR4 DIMM, dual-channel, up to 128 GB, DDR4 2133–3200+ (OC), XMP support - Storage: 6× SATA3, 1× Ultra M.2 PCIe Gen3 x4 (32 Gb/s), 1× M.2 PCIe Gen3 x2/SATA3 - Expansion: 2× PCIe 3.0 x16, 4× PCIe 2.0 x1 - USB (Rear): 1× USB 3.2 Gen2 Type-A, 1× USB 3.2 Gen2 Type-C, 4× USB 3.2 Gen1, 2× USB 2.0 - Display: HDMI 1.4, DisplayPort 1.2, D-Sub - Audio: Realtek ALC892/897, 7.1 CH HD - LAN: Realtek RTL8111H, Gigabit - BIOS: 128 Mb AMI UEFI - Certifications: FCC, CE, ErP/EuP ready - Warranty: 3 Years

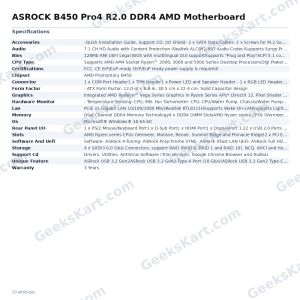

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD Promontory B450 |
| CPU Type | Supports AMD AM4 Socket RyzenTM 2000, 3000 and 5000 Series Desktop ProcessorsDigi Power design10 Power Phase design |
| Os | Microsoft® Windows® 10 64-bit |
| Lan | PCIE x1 Gigabit LAN 10/100/1000 Mb/sRealtek RTL8111HSupports Wake-On-LANSupports Lightning/ESD ProtectionSupports Energy Efficient Ethernet 802.3azSupports PXE |
| Bios | 128Mb AMI UEFI Legal BIOS with multilingual GUI supportSupports "Plug and Play"ACPI 5.1 compliance wake up events Supports jumperfreeSMBIOS 2.3 supportDRAM Voltage multi-adjustment |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec)Supports Surge Protection |
| Slots | AMD Ryzen series CPUs (Vermeer, Matisse, Renoir, Summit Ridge and Pinnacle Ridge)2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)* AMD Ryzen series CPUs (Picasso, Raven Ridge)2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode)*AMD Athlon series CPUs2 x PCI Express 3.0 x16 Slots (PCIE2: x4 mode; PCIE4: x2 mode)* 4 x PCI Express 2.0 x1 SlotsSupports AMD Quad CrossFireX™ and CrossFireX™***Supports NVMe SSD as boot disks If M2_1 is occupied, PCIE4 will be disabled. **This feature is only supported with Ryzen Series CPUs (Vermeer, Matisse, Renoir, Summit Ridge, Pinnacle Ridge, Picasso and Raven Ridge) |
| Memory | Dual Channel DDR4 Memory Technology4 x DDR4 DIMM SlotsAMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memoryMax. capacity of system memory: 128GB*Supports Extreme Memory Profile (XMP) memory modules15μ Gold Contact in DIMM Slots |
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)**1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)***M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be disabled.**If M2_1 is occupied, PCIE4 will be disabled.Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| Graphics | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* DirectX 12, Pixel Shader 5.0Shared memory default 2GB. Max Shared memory supports up to 16GB.Three graphics output options: D-Sub, HDMI and DisplayPort 1.2Supports Triple MonitorSupports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30HzSupports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60HzSupports D-Sub with max. resolution up to 1920×1200 @ 60HzSupports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 PortsSupports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed |
| Connector | 1 x COM Port Header1 x TPM Header1 x Power LED and Speaker Header – 1 x RGB LED Header*1 x Addressable LED Header**1 x AMD Fan LED Header***1 x CPU Fan Connector (4-pin)****1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)*Supports in total up to 12V/3A, 36W LED Strip**Supports in total up to 5V/3A, 15W LED Strip***The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | -Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x Screws for M.2 Sockets |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x HDMI Port1 x DisplayPort 1.22 x USB 2.0 Ports (Supports ESD Protection)1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)4 x USB 3.2 Gen1 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock USB 3.2 Gen2ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super AlloyPremium Power ChokeSapphire Black PCBHigh Density Glass Fabric PCB2oz Copper PCBASRock Ultra M.2 (PCIe Gen3 x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
| Hardware Monitor | – Temperature Sensing: CPU, MB- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, Vcore |
| Software And Uefi | Software- ASRock A-Tuning- ASRock Polychrome SYNC- ASRock XFast LAN UEFI- ASRock Full HD UEFI- ASRock Instant Flash- ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop |
