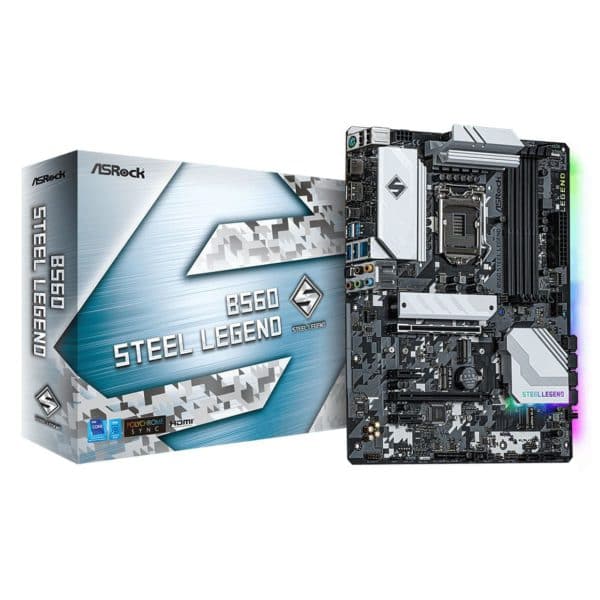

ASROCK B560 Steel Legend DDR4 Intel Motherboard
MPN ASROCK-B560-STEEL-LEGEND · Brand ASROCK · ATX
The ASRock B560 Steel Legend DDR4 ATX motherboard supports 10th and 11th Gen Intel Core CPUs (LGA1200) with PCIe 4.0, a 10-phase Dr.MOS power design, 2.5G Dragon LAN, three M.2 slots, and a front-panel USB 3.2 Gen2x2 Type-C header
Inclusive of GST · GST invoice available
Overview
The ASRock B560 Steel Legend is a full-size ATX motherboard built on the Intel B560 chipset, designed to support both 10th Generation and 11th Generation Intel Core processors using the LGA1200 socket. Measuring 30.5 cm x 24.4 cm (12.0 in x 9.6 in), it fits standard ATX enclosures and is aimed at builders who want a feature-rich platform without moving to a Z-series chipset. Power delivery is handled by a 10-phase Dr.MOS design rated at 50A per phase, backed by a 60A premium power choke and Nichicon 12K Black capacitors sourced from Japan. An XXL aluminium alloy heatsink covers the VRM area to help manage thermals during sustained workloads. Memory support spans four DDR4 DIMM slots capable of holding up to 128 GB total. With an 11th Gen processor installed, XMP-tuned kits can be pushed to DDR4 4800 MHz (OC); with 10th Gen processors the ceiling is DDR4 4666 MHz (OC). The board supports Intel XMP 2.0 profiles and uses 15-micron gold contacts on both DIMM and primary PCIe slots for long-term reliability. Storage connectivity is expansive: six SATA3 6.0 Gb/s ports with AHCI, NCQ, and Hot Plug support sit alongside three M.2 sockets. The primary Hyper M.2 slot (M2_1) runs at PCIe Gen4 x4 (up to 64 Gb/s) but is exclusive to 11th Gen CPUs. The Ultra M.2 slot (M2_3) supports PCIe Gen3 x4 (up to 32 Gb/s) and is compatible with Intel Optane modules. A third M.2 slot (M2_2) accepts PCIe Gen3 x2 or SATA3 drives; note that occupying M2_2 with a SATA device disables the SATA3_1 port. Expansion slots include two PCIe x16 physical slots — the primary slot (PCIE1) runs at Gen4 x16 with 11th Gen CPUs or Gen3 x16 with 10th Gen CPUs — plus two PCIe 3.0 x1 slots. A Key-E M.2 socket accommodates optional 2230-form WiFi/BT modules or Intel CNVi cards; no wireless adapter is included. Networking is provided by a Dragon 2.5 Gigabit LAN controller (Realtek RTL8125BG) supporting 10/100/1000/2500 Mb/s with Wake- LAN, Energy Efficient Ethernet 802.3az, Lightning/ESD protection, and PXE boot. Audio runs through a Realtek ALC897 codec delivering 7.1-channel HD audio with Nahimic Audio software enhancement, gold-plated audio jacks, and surge protection on all audio outputs. An optical S/PDIF output is also available on the rear panel. Display output is handled by one HDMI port and one DisplayPort 1.4 connector driven by the CPU's integrated graphics. With 11th Gen CPUs, HDMI 2.0 enables up to 4K (4096x2160) at 60 Hz; 10th Gen CPUs are limited to HDMI 1.4. DisplayPort 1.4 supports up to 4096x2304 at 60 Hz regardless of CPU generation. RGB personalisation is supported via two standard RGB LED headers (12V/3A) and two addressable ARGB headers (5V/3A), controllable through ASRock Polychrome SYNC software. The rear I/O panel provides one USB 3.2 Gen2 Type-C (10 Gb/s), four USB 3.2 Gen1 Type-A, two USB 2.0, one PS/2 combo port, HDMI, DisplayPort 1.4, optical S/PDIF, RJ-45 LAN, and full 7.1-channel audio jacks. Internally, a front-panel USB 3.2 Gen2x2 Type-C header (20 Gb/s) is included. Full spike protection covers all USB, audio, and LAN ports. The BIOS is a 128 Mb AMI UEFI implementation with a full-HD graphical interface, multilingual support, ASRock EZ Mode, Instant Flash, Internet Flash, and granular voltage adjustment across CPU, memory, and platform rails. The board carries FCC and CE certifications and is ErP/EuP ready. Verified Specifications: - Socket: LGA1200 | Chipset: Intel B560 - Form Factor: ATX, 30.5 cm x 24.4 cm - CPU Support: 10th & 11th Gen Intel Core (LGA1200) - Memory: 4x DDR4 DIMM, max 128 GB, DDR4 4800 MHz OC (11th Gen), XMP 2.0 - PCIe: 1x Gen4 x16 (11th Gen) / Gen3 x16 (10th Gen), 1x Gen3 x16 slot (x2 electrical), 2x PCIe 3.0 x1 - M.2: 1x PCIe Gen4 x4 (11th Gen only), 1x PCIe Gen3 x4 / SATA, 1x PCIe Gen3 x2 / SATA3 - Storage: 6x SATA3 6.0 Gb/s - LAN: Realtek RTL8125BG 2.5 GbE - Audio: Realtek ALC897, 7.1 CH HD - USB (Rear): 1x USB 3.2 Gen2 Type-C, 4x USB 3.2 Gen1, 2x USB 2.0 - USB (Front Header): 1x USB 3.2 Gen2x2 Type-C (20 Gb/s) - Display: HDMI 2.0 (11th Gen) / HDMI 1.4 (10th Gen), DisplayPort 1.4 - Fan Headers: 7 total (1x CPU, 1x CPU/WP, 5x CHA/WP) - RGB: 2x ARGB (5V), 2x RGB (12V) - Warranty: 3 Years

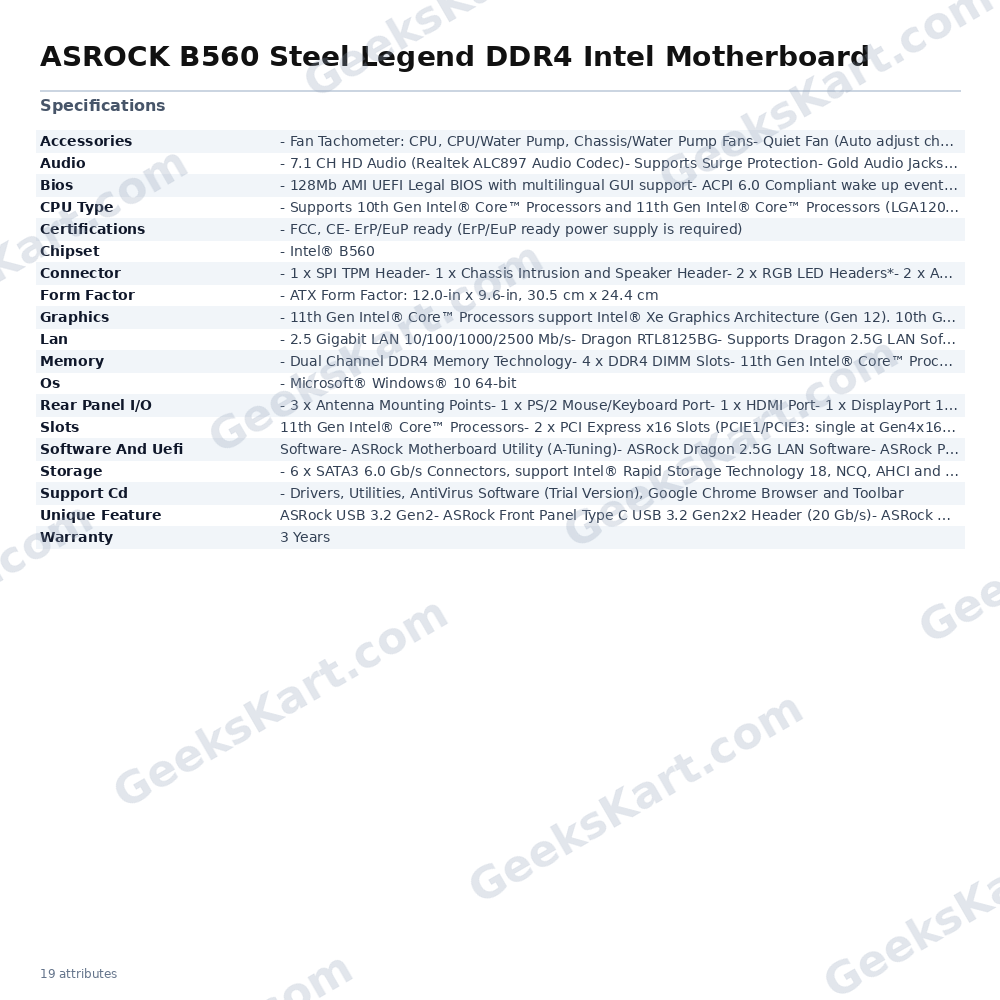

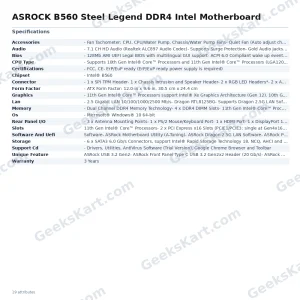

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – Intel® B560 |
| CPU Type | – Supports 10th Gen Intel® CoreTM Processors and 11th Gen Intel® CoreTM Processors (LGA1200)- Digi Power design- 10 Power Phase design- Supports Intel® Turbo Boost Max 3.0 Technology |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Supports Surge Protection- Gold Audio Jacks- 15μ Gold Audio Connector- Nahimic Audio |
| Slots | 11th Gen Intel® Core™ Processors- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3))*10th Gen Intel® Core™ Processors- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3))*- 2 x PCI Express 3.0 x1 Slots- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)- 15μ Gold Contact in VGA PCIe Slot (PCIE1)*Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*- 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 128GB**- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots*11th Gen Intel® Core™ (i9/i7/i5) support DDR4 up to 3200; Core™ (i3), Pentium® and Celeron® support DDR4 up to 2666 natively.10th Gen Intel® Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666 natively.**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 6 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only)**- 1 x M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.**Supports Intel® Optane™ Technology (M2_3)Supports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | – 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Blu-ray Disc- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)- Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.11th Gen Intel® Core™ Processors support HDMI 2.0. 10th Gen Intel® Core™ Processors support HDMI 1.4 |
| Connector | – 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 2 x RGB LED Headers*- 2 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)*Support in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- CASE OPEN detection- Voltage monitoring: CPU Vcore, VCCIN AUX, DRAM, VCCIO, VPPM, VCCSA, CPU PLL, +12V, +5V, +3.3V |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 3 x Antenna Mounting Points- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)- 2 x USB 2.0 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Unique Feature | ASRock USB 3.2 Gen2- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- Matte Black PCB- High Density Glass Fabric PCB2.5G LANASRock Steel SlotASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash*These utilities can be downloaded from ASRock Live Update & APP Shop |
