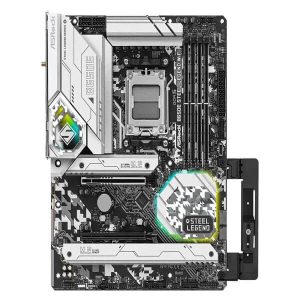

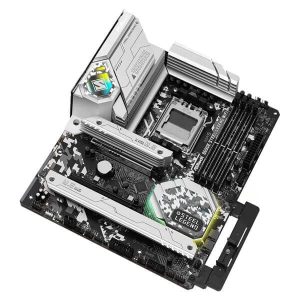

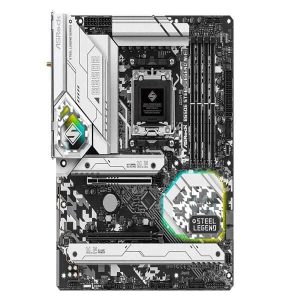

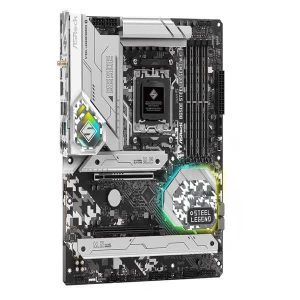

ASROCK B650E Steel Legend Wifi DDR5 AMD Motherboard
MPN ASROCK-B650E-STEEL-LEGEND · Brand ASROCK · ATX
The ASRock B650E Steel Legend WiFi DDR5 is an ATX motherboard for AMD Ryzen 7000 series processors, featuring PCIe 5.0, a PCIe Gen5 M.2 slot, Wi-Fi 6E, 2.5G LAN, and a robust 16+2+1 60A power phase design
Inclusive of GST · GST invoice available
Overview
The ASRock B650E Steel Legend WiFi is an ATX form factor motherboard built on the AMD B650E chipset, designed for AMD Socket AM5 and compatible with Ryzen 7000 series desktop processors. Its 16+2+1 power phase design delivers up to 60A per phase via Smart Power Stages (SPS), ensuring stable and consistent power delivery under sustained workloads. Memory support spans four DDR5 DIMM slots in dual-channel configuration, accommodating non-ECC unbuffered modules up to a maximum capacity of 128 GB and speeds of 6400+ MHz with overclocking. Both XMP and EXPO profiles are supported for straightforward memory tuning. Storage connectivity is a highlight of this board. A single Blazing M.2 slot (M2_1) connects directly to the CPU via PCIe Gen5 x4, delivering up to 128 Gb/s bandwidth — ideal for the latest high-speed NVMe drives. Two additional Hyper M.2 slots (M2_2 and M2_3) operate at PCIe Gen4 x4 (64 Gb/s each), while two SATA3 6.0 Gb/s connectors provide legacy drive support. RAID 0 and RAID 1 are supported for SATA devices; RAID 0, RAID 1, and RAID 10 are available for NVMe devices. Expansion slots include one PCIe 5.0 x16 slot for the primary graphics card and one PCIe 3.0 x16 slot operating at x4 mode. Display output comes via HDMI 2.1 (up to 4K 120Hz) and DisplayPort 1.4 with DSC (up to 4K 120Hz), leveraging integrated AMD RDNA 2 graphics when a compatible CPU is installed. Connectivity is comprehensive: a Realtek Dragon RTL8125BG 2.5 Gigabit LAN port handles wired networking, while an 802.11ax Wi-Fi 6E module with 2x2 MU-MIMO antenna configuration extends into the 6 GHz band for low-latency wireless. Bluetooth is also included via the same module. USB ports span multiple generations: one USB 3.2 Gen2x2 Type-C front header (20 Gb/s), one USB 3.2 Gen2 Type-C rear port (10 Gb/s), one USB 3.2 Gen2 Type-A rear port (10 Gb/s), eight USB 3.2 Gen1 ports (four rear, four front headers), and six USB 2.0 ports (two rear, four front headers). All USB ports carry ESD protection. Audio is handled by the Realtek ALC897 codec delivering 7.1-channel HD audio, complemented by Nahimic Audio software. The rear I/O also includes an optical S/PDIF output and gold-plated audio jacks. Verifiable Specifications: - Chipset: AMD B650E - Socket: AMD AM5 - Form Factor: ATX (12.0 in x 9.6 in / 30.5 cm x 24.4 cm), 8-layer PCB - Memory: 4x DDR5 DIMM, max 128 GB, up to 6400+ MHz (OC), XMP/EXPO support - PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4 mode) - Storage: 1x M.2 PCIe Gen5 x4, 2x M.2 PCIe Gen4 x4, 2x SATA3 - LAN: Realtek RTL8125BG 2.5 Gigabit - Wireless: 802.11ax Wi-Fi 6E, MU-MIMO, Bluetooth - Audio: Realtek ALC897, 7.1 CH HD - Power Phases: 16+2+1, 60A SPS - BIOS: 256 Mb AMI UEFI with Flashback button - OS Support: Windows 10 64-bit / Windows 11 64-bit - Certifications: FCC, CE, ErP/EuP ready - Warranty: 3 Years

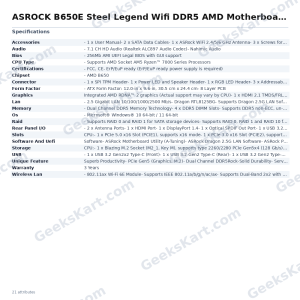

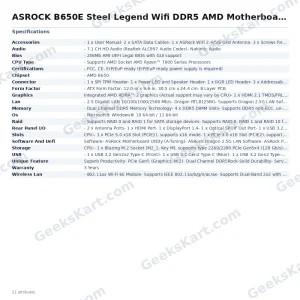

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – AMD B650 |
| CPU Type | – Supports AMD Socket AM5 RyzenTM 7000 Series Processors |
| Os | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control |
| USB | – 1 x USB 3.2 Gen2x2 Type-C (Front)- 1 x USB 3.2 Gen2 Type-C (Rear)- 1 x USB 3.2 Gen2 Type-A (Rear)- 8 x USB 3.2 Gen1 (4 Rear, 4 Front)- 6 x USB 2.0 (2 Rear, 4 Front)All USB ports support ESD Protection |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0 and RAID 1 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devicesRequires additional M.2 NVMe expansion cards to support RAID 10 |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio |
| Slots | CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 modeChipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- Supports AMD CrossFire™- 15μ Gold Contact in VGA PCIe Slot (PCIE1)Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)- Max. capacity of system memory: 128GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modul |
| Storage | CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 2 x SATA3 6.0 Gb/s ConnectorsSupports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Connector | – 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header- 3 x Addressable LED Headers- 1 x CPU Fan Connector (4-pin)- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)Supports in total up to 12V/3A, 36W LED StripSupport in total up to 5V/3A, 15W LED StripCPU_FAN1 supports the fan power up to 1A (12W).CPU_FAN2/WP supports the fan power up to 2A (24W).CHA_FAN1~4/WP support the fan power up to 2A (24W).CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use |
| Accessories | – 1 x User Manual- 2 x SATA Data Cables- 1 x ASRock WiFi 2.4/5/6 GHz Antenna- 3 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket- 1 x Graphics Card Holder |
| Wireless Lan | – 802.11ax Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax- Supports Dual-Band 2×2 with extended 6GHz band support- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth + High speed class II- Supports MU-MIMO |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)- 4 x USB 3.2 Gen1 Ports- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- 1 x Line Out Jack (Gold Audio Jack)- 1 x Microphone Input Jack (Gold Audio Jack) |
| Unique Feature | Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5Rock-Solid Durability- Server-Grade Low-Loss PCB- 16+2+1 Power Phase, 60A SPS- Flexible Integrated I/O Shield- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)Ultrafast Connectivity- 2.5G LAN,802.11ax Wi-Fi 6EModuleEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter- ASRock Post Status Checker |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNCUEFI- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash |
