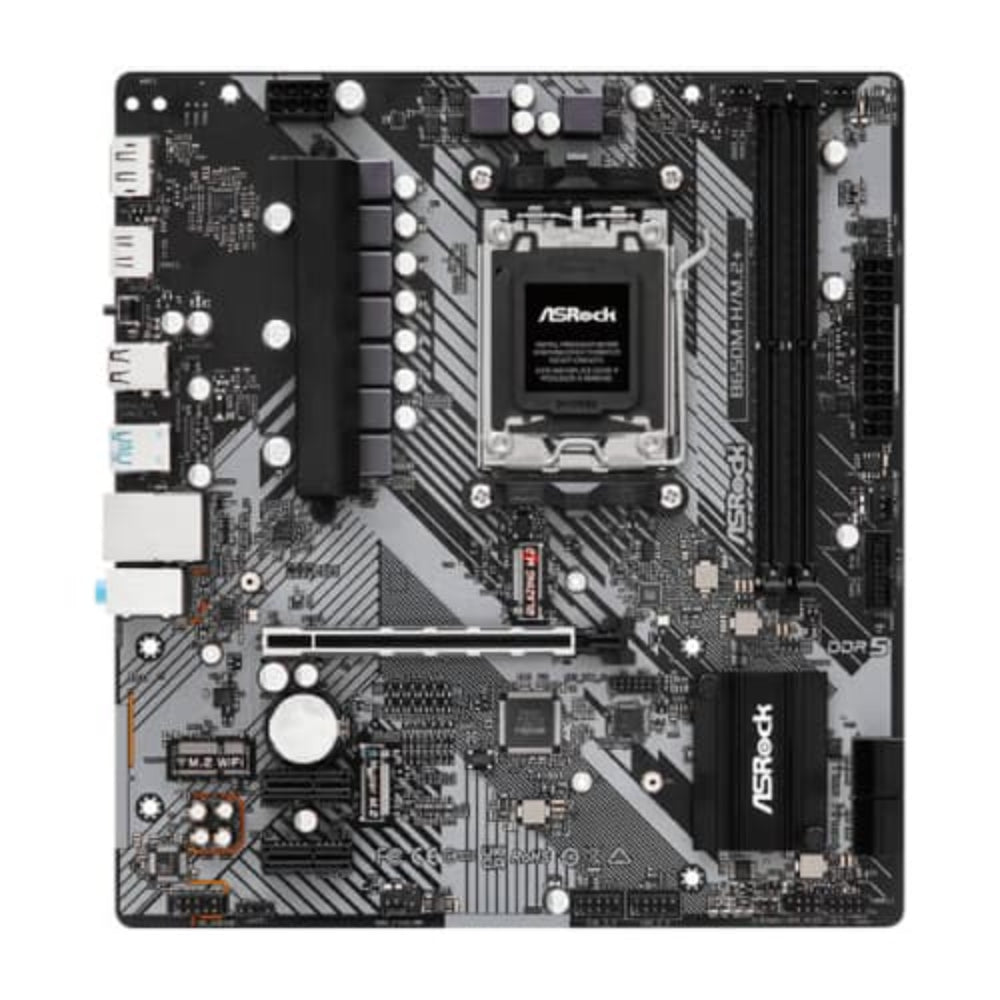

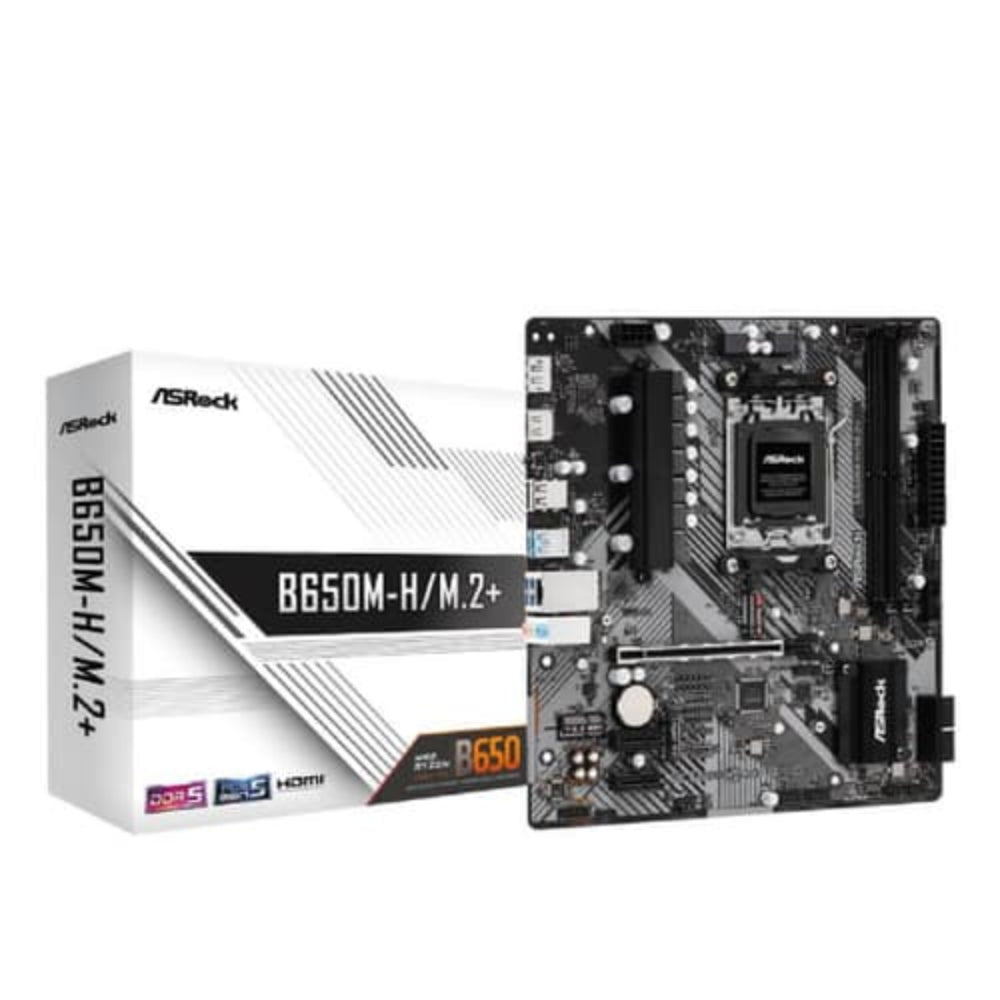

Features of ASROCK B650M-H M.2 Plus DDR5 Motherboard
- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
- 6+1+1 Power Phase, Dr.MOS
- 2 x DDR5 DIMMs
- Supports Dual Channel, up to 6400+ (OC)
- 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Integrated AMD RDNA 2 Graphics
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)
- 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer, BIOS Flashback

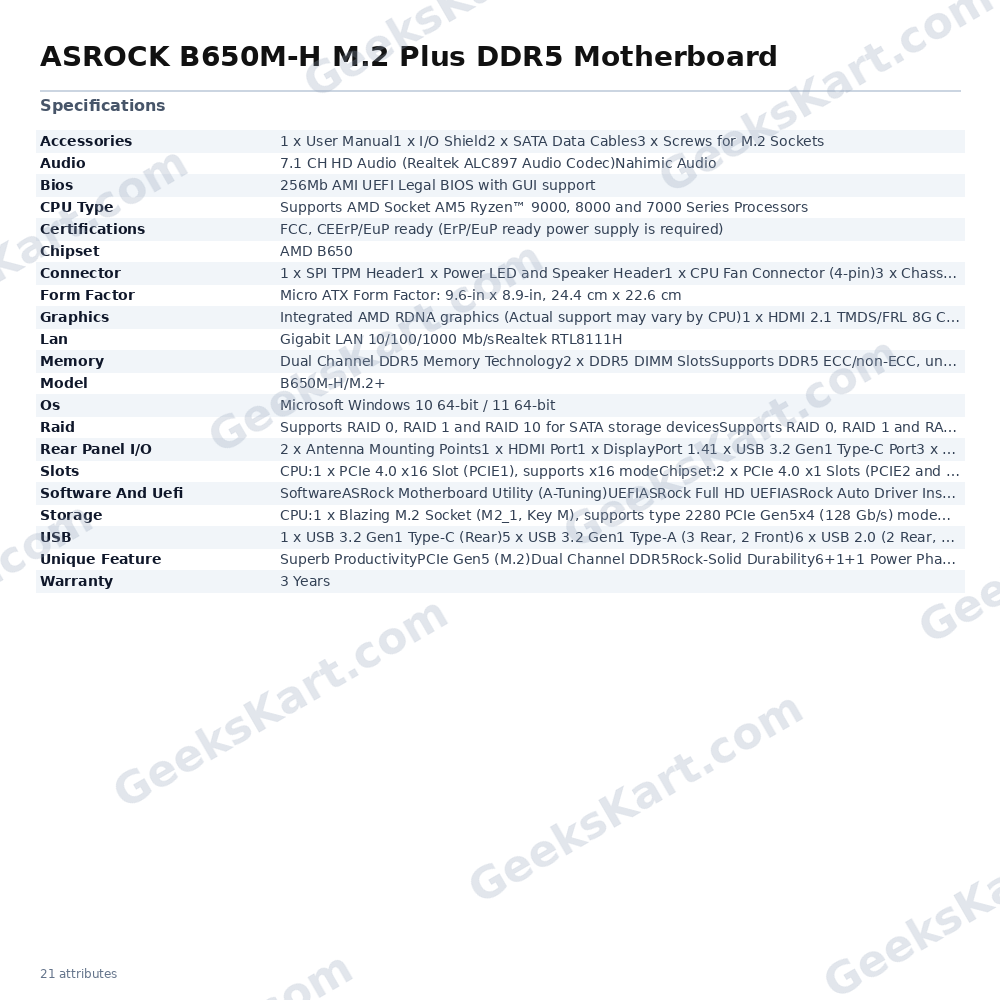

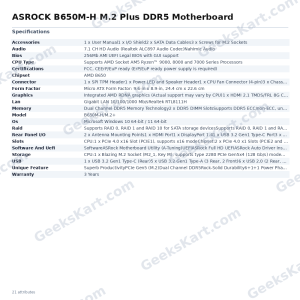

Specification of ASROCK B650M-H M.2 Plus DDR5 Motherboard
| Model | B650M-H/M.2+ |
| Unique Feature | Superb ProductivityPCIe Gen5 (M.2) Dual Channel DDR5 Rock-Solid Durability 6+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update BIOS Flashback Button ASRock Auto Driver Installer EZ Troubleshooter |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B650 |
| Memory | Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)* Max. capacity of system memory: 128GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| LAN | Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H |
| Slots | CPU:1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Storage | CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 4 x SATA3 6.0 Gb/s Connectors |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB | 1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) |
| Connector | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin) 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |

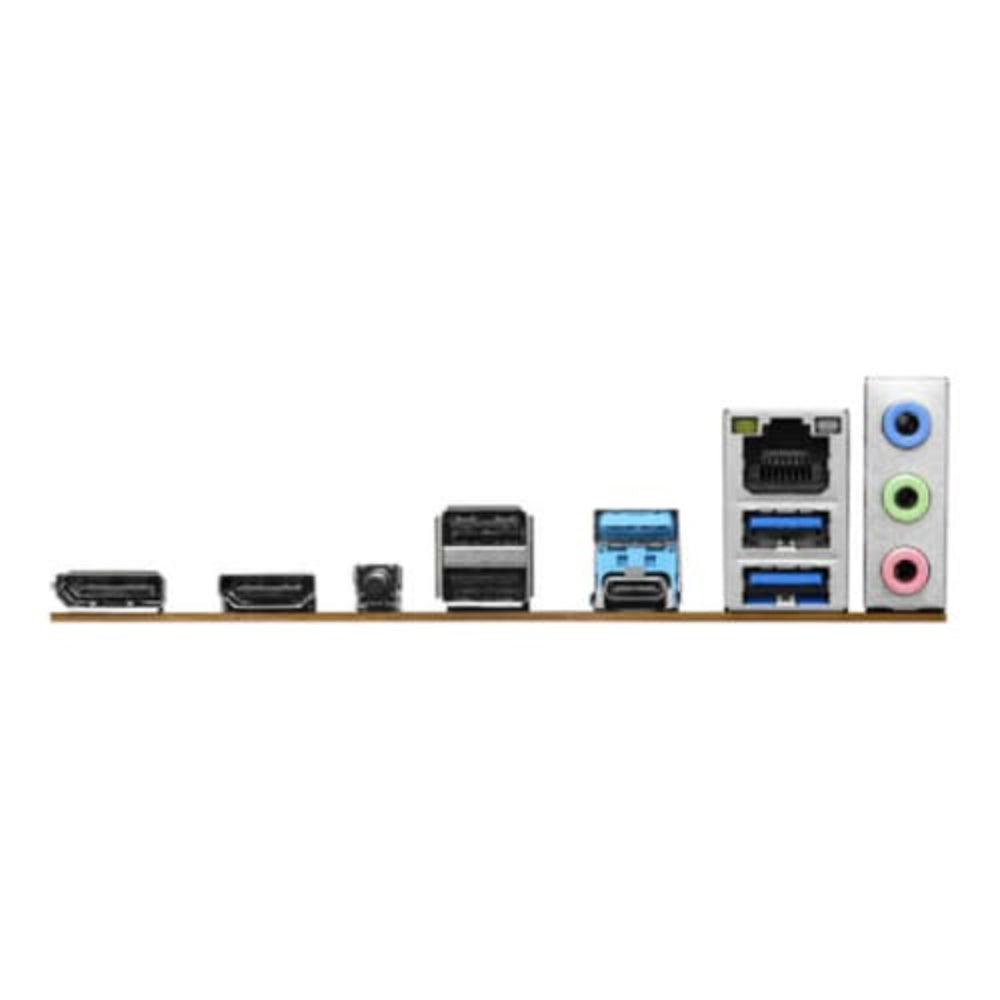

| Rear Panel I/O | 2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | SoftwareASRock Motherboard Utility (A-Tuning) UEFI ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash |
| Accessories | 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets |
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
