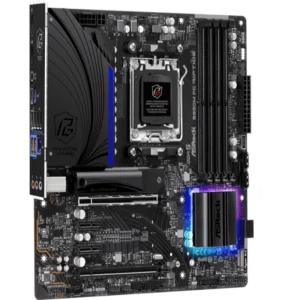

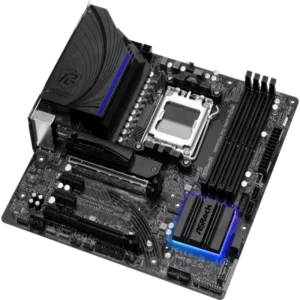

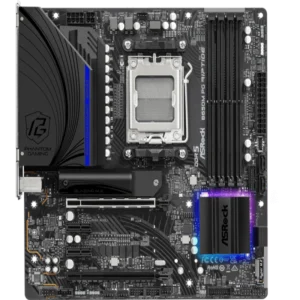

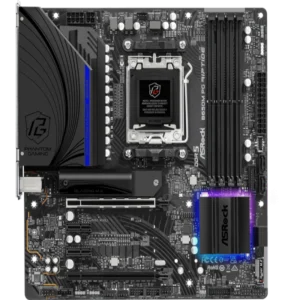

ASROCK B650M Phantom Gaming Riptide DDR5 AMD Motherboard

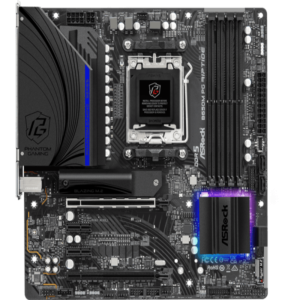

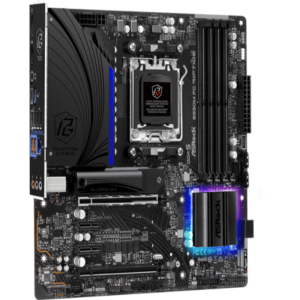

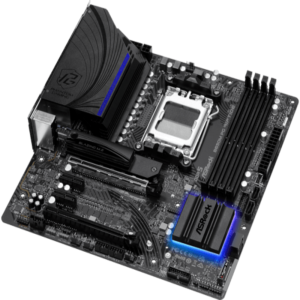

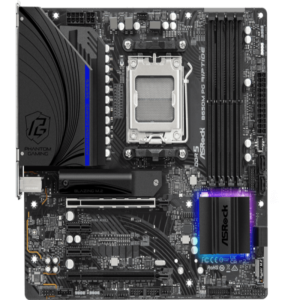

The ASRock B650M Phantom Gaming Riptide is a Micro-ATX form factor motherboard built on AMD's B650 chipset, designed to pair with AMD Socket AM5 Ryzen 7000 series processors. Its compact 9.6-inch by 9.6-inch footprint makes it a strong choice for space-conscious gaming and productivity builds that still demand next-generation connectivity and storage performance. At the heart of its power delivery is a 12+2+1 phase design using 50A Dr.MOS integrated power stages, complemented by an enlarged heatsink armor. This configuration provides robust and efficient power to the CPU, helping maintain stable operation during extended workloads. Memory support is handled through four DDR5 DIMM slots accommodating dual-channel, non-ECC unbuffered memory with a maximum capacity of 128GB and support for speeds up to DDR5-6200+ via overclocking profiles. Both AMD EXPO and Intel XMP memory profiles are supported, allowing enthusiast memory kits to run at rated speeds with minimal configuration effort. Storage options are a standout feature. The primary Blazing M.2 slot (M2_1) connects directly to the CPU and supports PCIe Gen5 x4 at up to 128 Gb/s, catering to the latest ultra-fast NVMe SSDs. A second Hyper M.2 slot (M2_2) via the chipset offers PCIe Gen4 x4 at up to 64 Gb/s. Four SATA3 6.0 Gb/s connectors complete the storage options, with RAID 0, 1, and 10 support across both SATA and M.2 NVMe devices. Expansion slots include one CPU-connected PCIe 4.0 x16 slot (running at x16 mode) for the primary graphics card, one chipset-connected PCIe 4.0 x16 slot (running at x4 mode), and two PCIe 3.0 x1 slots. AMD CrossFire multi-GPU support is present, and the primary VGA slot features 15μ gold contacts for improved durability. Networking is provided by a Realtek Dragon RTL8125BG 2.5 Gigabit LAN controller, supporting speeds of 10/100/1000/2500 Mb/s. The Phantom Gaming LAN software adds bandwidth management and per-application priority controls. Display output options include one HDMI 2.1 port (supporting up to 4K at 120Hz, HDR, and HDCP 2.3) and one DisplayPort 1.4 with DSC compression (also supporting up to 4K at 120Hz and HDCP 2.3), relying on integrated AMD RDNA 2 graphics available in compatible Ryzen 7000 series APUs. Audio is handled by the Realtek ALC897 codec delivering 7.1-channel HD audio, complemented by Nahimic Audio software for an enhanced listening experience across headphones, speakers, and digital outputs. The rear I/O panel includes one USB 3.2 Gen2 Type-C (10 Gb/s), one USB 3.2 Gen2 Type-A (10 Gb/s), two USB 3.2 Gen1 Type-A ports designated as Lightning Gaming Ports, four USB 2.0 ports, HDMI, DisplayPort, RJ-45, HD audio jacks, and a BIOS Flashback Button for CPU-free firmware updates. Internal headers add one USB 3.2 Gen1 Type-C front panel header, two USB 3.2 Gen1 headers (supporting four ports), and two USB 2.0 headers (supporting four ports). All USB ports include ESD protection. RGB and addressable LED control is available via one 12V RGB header and three 5V ARGB headers, all manageable through ASRock Polychrome SYNC software. Fan management covers one CPU fan connector, one CPU/water pump fan connector, and three chassis/water pump fan connectors, all 4-pin with smart fan speed control. The board ships with a 256Mb AMI UEFI BIOS with full HD GUI, ASRock Instant Flash, Auto Driver Installer, and Post Status Checker for easy troubleshooting. A Thunderbolt 4 AIC connector (5-pin) supports ASRock's optional Thunderbolt 4 expansion card. The PCB uses 2oz copper construction and the board carries FCC and CE certifications with ErP/EuP readiness. Verified Specifications: - Form Factor: Micro-ATX, 9.6 in x 9.6 in (24.4 cm x 24.4 cm) - Chipset: AMD B650 - CPU Socket: AM5 (AMD Ryzen 7000 Series) - Memory: 4x DDR5 DIMM, max 128GB, up to DDR5-6200+(OC), XMP & EXPO support - M.2 Slot 1 (CPU): PCIe Gen5 x4, up to 128 Gb/s - M.2 Slot 2 (Chipset): PCIe Gen4 x4, up to 64 Gb/s - SATA: 4x SATA3 6.0 Gb/s - PCIe Slots: 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4), 2x PCIe 3.0 x1 - LAN: Realtek Dragon RTL8125BG 2.5GbE - Audio: Realtek ALC897, 7.1CH HD, Nahimic Audio - Display: 1x HDMI 2.1 (4K/120Hz), 1x DisplayPort 1.4 (4K/120Hz) - USB Rear: 1x USB 3.2 Gen2 Type-C, 1x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1, 4x USB 2.0 - Power Design: 12+2+1 Phase, 50A Dr.MOS - OS Support: Windows 10 64-bit / Windows 11 64-bit - Certifications: FCC, CE, ErP/EuP ready
