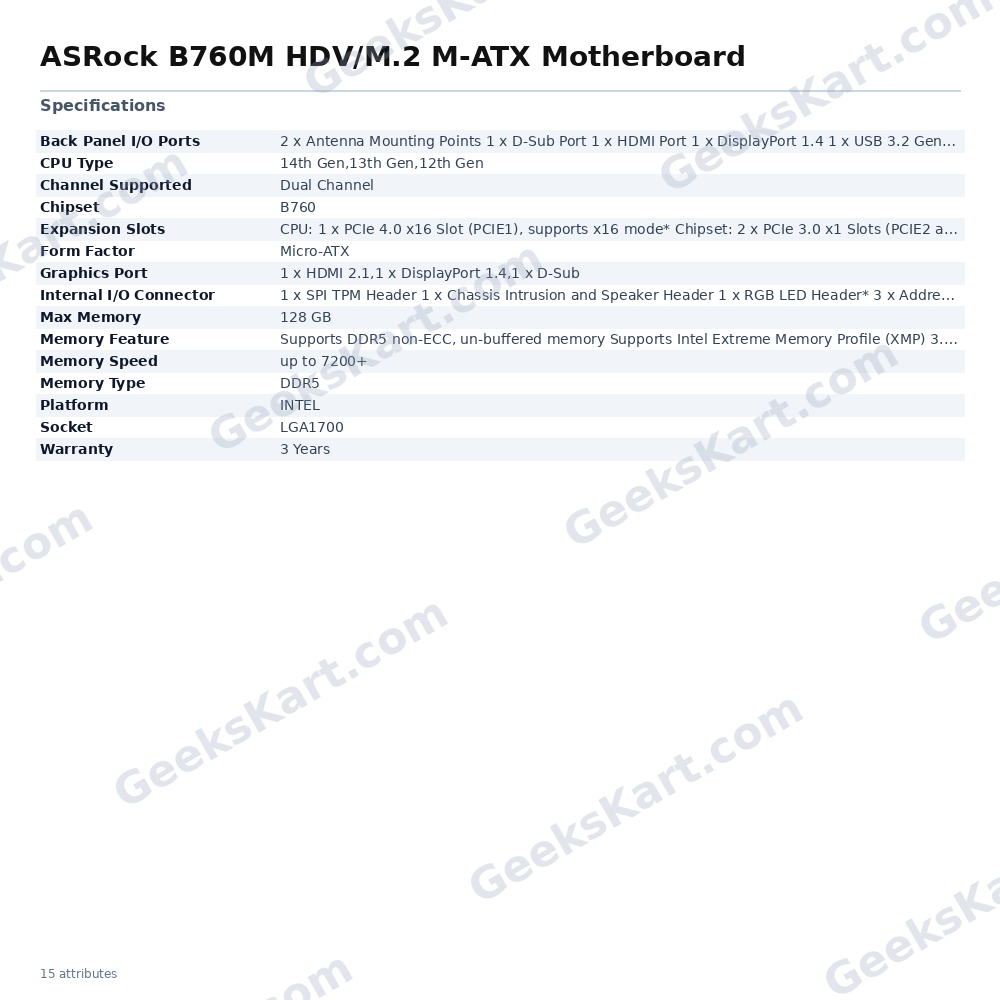

ASRock B760M HDV/M.2 M-ATX Motherboard

The ASRock B760M HDV/M.2 is a Micro-ATX motherboard built around Intel's B760 chipset, designed to support 12th, 13th, and 14th generation Intel Core processors via the LGA1700 socket. It offers a practical, feature-rich platform for home builds, content creation workstations, and everyday computing — delivered in a compact Micro-ATX form factor that fits standard mid-tower and mATX cases. At the heart of its memory subsystem are two DDR5 DIMM slots supporting dual-channel operation with a rated native frequency of up to 5600 MHz and overclocked speeds of up to 7200+ MHz via Intel XMP 3.0 and AMD EXPO profiles. Maximum supported memory capacity is 128 GB, making this board capable of handling memory-intensive tasks well into the future. Storage connectivity is covered by one Hyper M.2 slot running at PCIe Gen4 x4 for the fastest NVMe SSDs currently available, one Ultra M.2 slot operating at PCIe Gen3 x4, and four SATA3 ports for traditional drives. The primary PCIe slot runs at PCIe 4.0 x16, supplemented by two PCIe 3.0 x1 slots for expansion cards. Display output is versatile, with HDMI 2.1, DisplayPort 1.4, and a legacy D-Sub port available simultaneously from the rear panel — useful for multi-monitor setups or pairing with integrated graphics. Networking is handled by the Dragon 2.5 Gigabit LAN controller, delivering up to 2.5× the throughput of standard Gigabit Ethernet. An M.2 Key-E slot supports optional Wi-Fi and Bluetooth modules (sold separately). Audio is managed by the Realtek ALC897 codec with 7.1-channel HD audio support. USB connectivity includes one USB 3.2 Gen1 Type-C port on the rear panel, three USB 3.2 Gen1 Type-A ports on the rear, two USB 2.0 ports on the rear, with additional front-panel headers supporting two more USB 3.2 Gen1 and four USB 2.0 ports. RGB enthusiasts will find one standard RGB header (12V/3A, 36W max) and three addressable RGB headers (5V/3A, 15W max total) for Polychrome RGB Sync-compatible lighting control. The 7+1+1 power phase design provides stable CPU power delivery, and the board includes Smart Fan Speed Control across four fan/pump headers. A 3-year manufacturer warranty is included. — Verified Specifications — Socket: LGA1700 | Chipset: Intel B760 | Form Factor: Micro-ATX | CPU Support: Intel 12th / 13th / 14th Gen Core | Memory: 2× DDR5 DIMM, Dual Channel, max 128 GB, native 5600 MHz, OC 7200+ MHz (XMP 3.0) | Storage: 1× PCIe Gen4 x4 M.2 (Hyper), 1× PCIe Gen3 x4 M.2 (Ultra), 4× SATA3 | Expansion: 1× PCIe 4.0 x16, 2× PCIe 3.0 x1, 1× M.2 Key-E (WiFi/BT) | Display: HDMI 2.1, DisplayPort 1.4, D-Sub | LAN: 2.5 Gigabit Ethernet | Audio: Realtek ALC897, 7.1 CH HD | Rear USB: 1× USB 3.2 Gen1 Type-C, 3× USB 3.2 Gen1 Type-A, 2× USB 2.0 | RGB: 1× RGB header, 3× ARGB headers | Power: 7+1+1 phase | Warranty: 3 Years
