| Unique Feature |
Rock-Solid Durability |
|
– 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT |
|
– Pre-Installed I/O Shield |
|
– ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology |
|
Ultrafast Connectivity |
|
– 2.5G LAN, |
|
802.11ax Wi-Fi 6EModule |
|
EZ Update |
|
– ASRock Auto Driver Installer |
|
EZ Troubleshooter |
| CPU |
– Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) |
|
– Supports Intel® Hybrid Technology |
|
– Supports Intel® Turbo Boost Max 3.0 Technology |
|
– Supports Intel® Thermal Velocity Boost (TVB) |
|
– Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset |
– Intel® B760 |
| Memory |
– Dual Channel DDR4 Memory Technology |
|
– 4 x DDR4 DIMM Slots |
|
– Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* |
|
– Supports ECC UDIMM memory modules (operate in non-ECC mode) |
|
– Max. capacity of system memory: 128GB |
|
– Supports Intel® Extreme Memory Profile (XMP) 2.0 |
|
*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. |
|
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. |
|
2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. |
|
2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. |
| BIOS |
– 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics |
– Intel® Xe Graphics Architecture (Gen 12) |
|
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
|
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio |
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|
– Nahimic Audio |
| LAN |
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
|
– Dragon RTL8125BG |
|
– Supports Dragon 2.5G LAN Software |
|
– Smart Auto Adjust Bandwidth Control |
|
– Visual User Friendly UI |
|
– Visual Network Usage Statistics |
|
– Optimized Default Setting for Game, Browser, and Streaming Modes |
|
– User Customized Priority Control |
| Wireless LAN |
– 802.11ax Wi-Fi 6E Module |
|
– Supports IEEE 802.11a/b/g/n/ac/ax |
|
– Supports Dual-Band 2×2 with extended 6GHz band support* |
|
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology |
|
– Supports Bluetooth 5.3 + High speed class II |
|
– Supports MU-MIMO |
|
*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. |
|
A 6GHz compatible router is required for 6E functionality. |
| Slots |
CPU: |
|
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode |
|
* Chipset: |
|
– 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* |
|
– 1 x PCIe 4.0 x1 Slot (PCIE2)* |
|
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
|
* Supports NVMe SSD as boot disks |
|
– Supports AMD CrossFire™ |
| Storage |
CPU: |
|
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
|
Chipset: |
|
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* |
|
– 4 x SATA3 6.0 Gb/s Connectors |
|
*Supports Intel® Volume Management Device (VMD) |
|
Supports NVMe SSD as boot disks |
| RAID |
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
– 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) |
|
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) |
|
– 6 x USB 2.0 (2 Rear, 4 Front) |
|
* All USB ports support ESD Protection |
| Connector |
– 1 x SPI TPM Header |
|
– 1 x Chassis Intrusion and Speaker Header |
|
– 1 x RGB LED Header* |
|
– 3 x Addressable LED Headers** |
|
– 1 x CPU Fan Connector (4-pin)*** |
|
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
|
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
|
– 1 x 24 pin ATX Power Connector |
|
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
|
– 1 x Front Panel Audio Connector |
|
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) |
|
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
|
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
|
– 1 x Front Panel Type C USB 3.2 Gen1 Header |
|
*Supports in total up to 12V/3A, 36W LED Strip |
|
**Support in total up to 5V/3A, 15W LED Strip |
|
***CPU_FAN1 supports the fan power up to 1A (12W). |
|
****CPU_FAN2/WP supports the fan power up to 2A (24W). |
|
*****CHA_FAN1~4/WP support the fan power up to 2A (24W). |
|
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. |

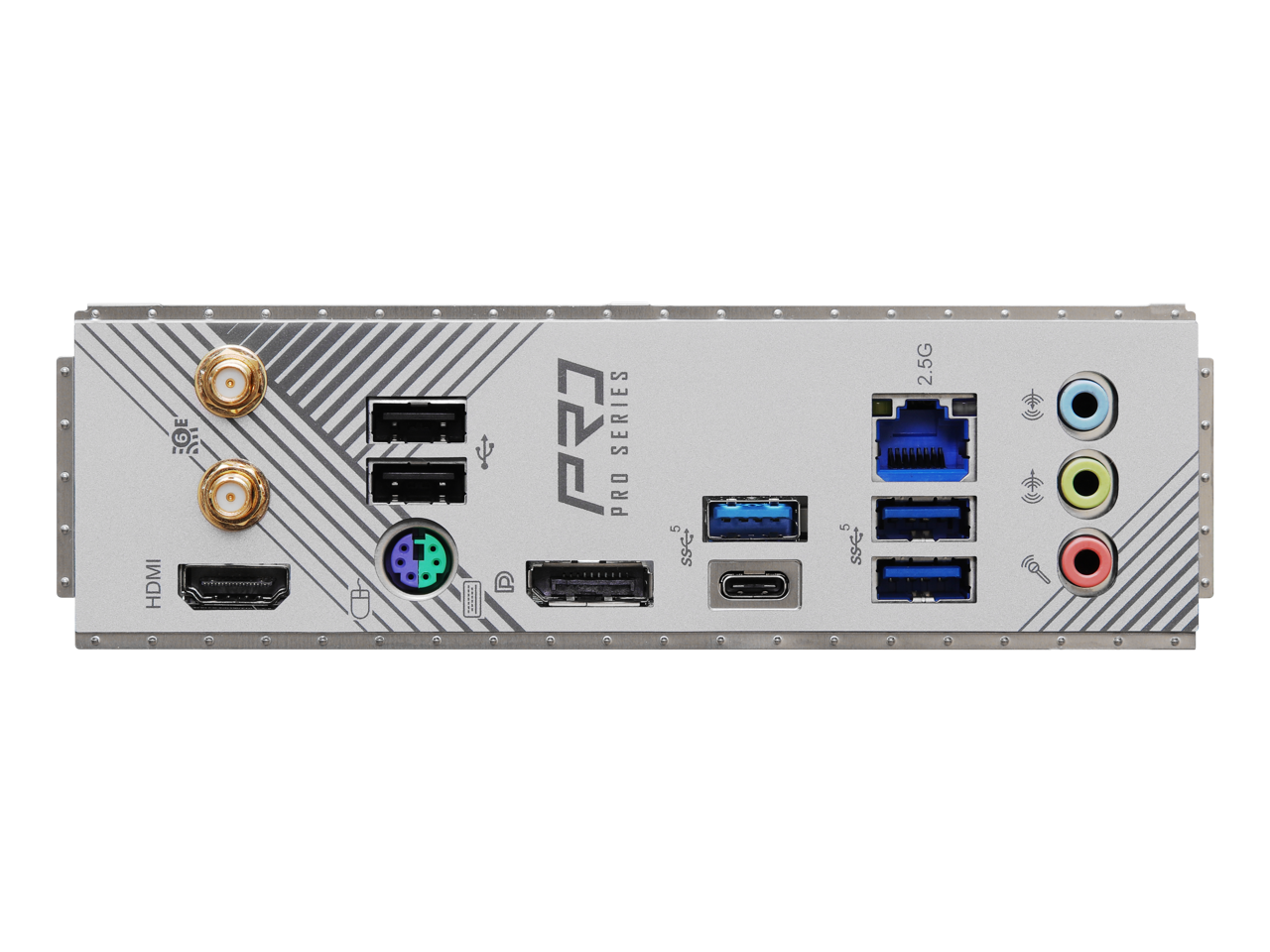

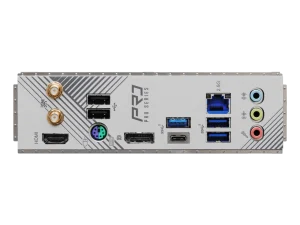

| Rear Panel I/O |
– 2 x Antenna Ports |
|
– 1 x PS/2 Mouse/Keyboard Port |
|
– 1 x HDMI Port |
|
– 1 x DisplayPort 1.4 |
|
– 1 x USB 3.2 Gen1 Type-C Port |
|
– 3 x USB 3.2 Gen1 Type-A Ports |
|
– 2 x USB 2.0 Ports |
|
– 1 x RJ-45 LAN Port |
|
– HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI |
Software |
|
– ASRock Motherboard Utility (A-Tuning) |
|
– ASRock Dragon 2.5G LAN Software |
|
– ASRock Polychrome SYNC* |
|
UEFI |
|
– ASRock EZ Mode |
|
– ASRock Full HD UEFI |
|
– ASRock My Favorites in UEFI |
|
– ASRock Auto Driver Installer |
|
– ASRock Instant Flash |
|
– ASRock Easy RAID Installer |
|
*These utilities can be downloaded from ASRock Live Update & APP Shop. |

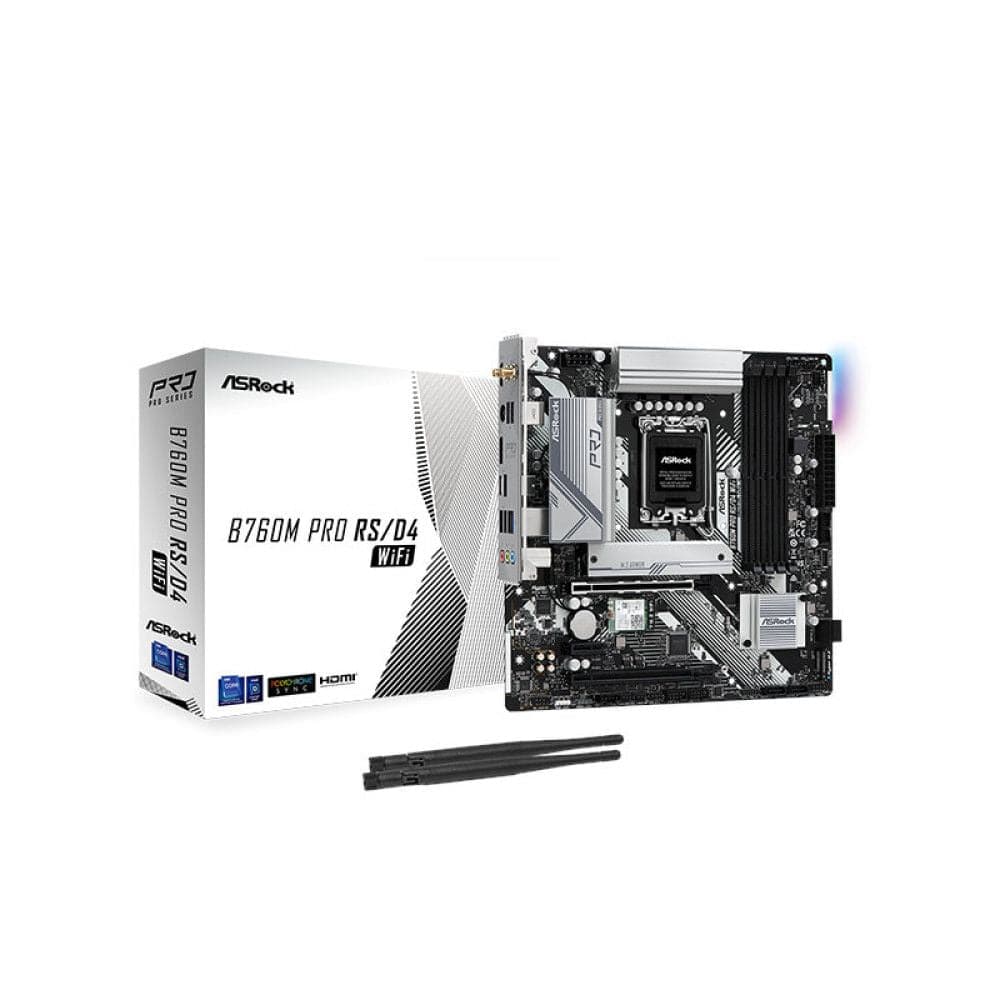

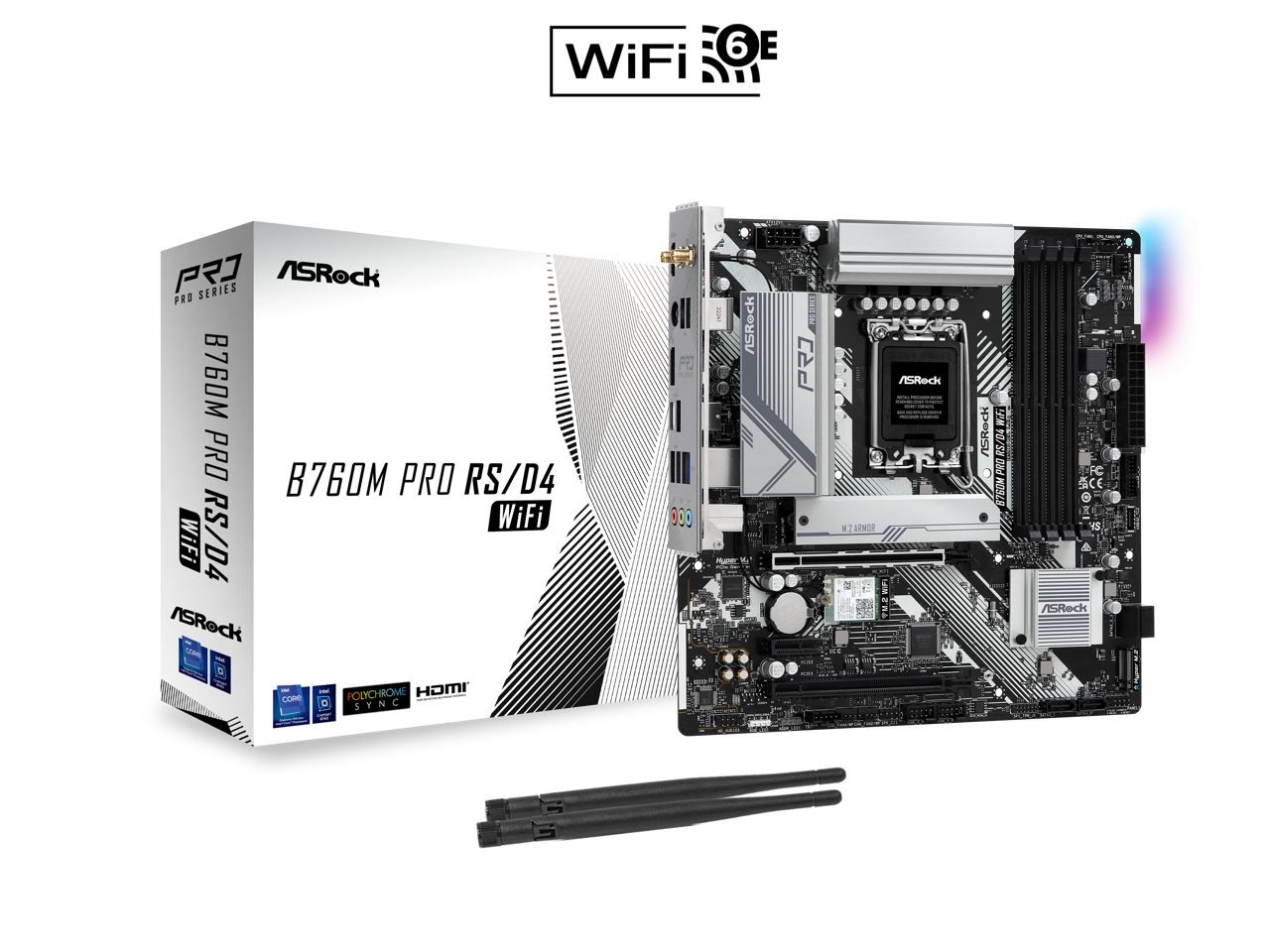

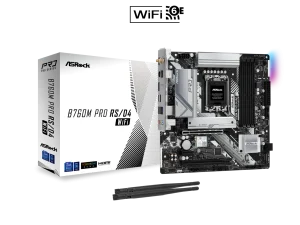

| Accessories |
– 1 x User Manual |
|
– 2 x SATA Data Cables |
|
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
|
– 2 x Screws for M.2 Sockets |
|
– 1 x Standoff for M.2 Socket |
| Form Factor |
– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| OS |
– Microsoft® Windows® 10 64-bit / 11 64-bit |
|
*Windows® 10 only supports version 21H2 or later |
| Certifications |
– FCC, CE |
|
– ErP/EuP ready (ErP/EuP ready power supply is required) |
