ASROCK FM2A68M-DG3 Plus DDR3 Intel Motherboard
MPN ASROCK-1066 · Brand ASROCK · mATX
The ASRock FM2A68M-DG3+ is a Micro ATX DDR3 motherboard for Socket FM2+/FM2 processors, supporting up to 32 GB of DDR3 RAM, four SATA3 ports, dual display output (D-Sub and DVI-D), and USB 3.1 Gen 1 connectivity
Inclusive of GST · GST invoice available
Overview

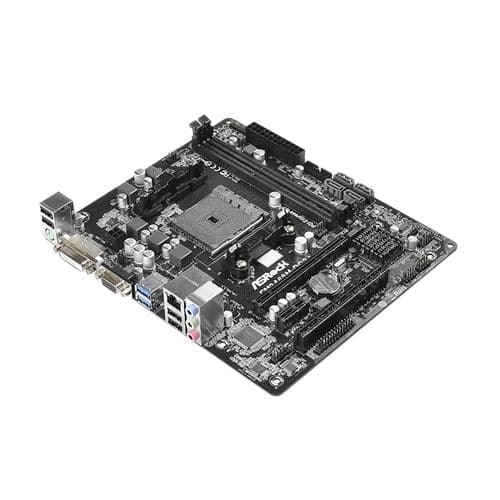

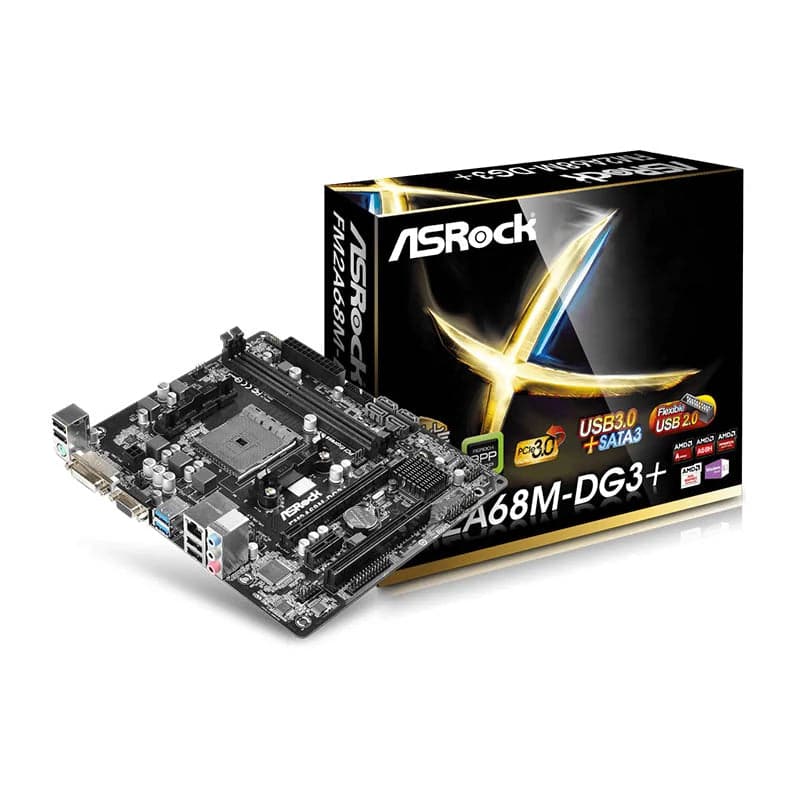

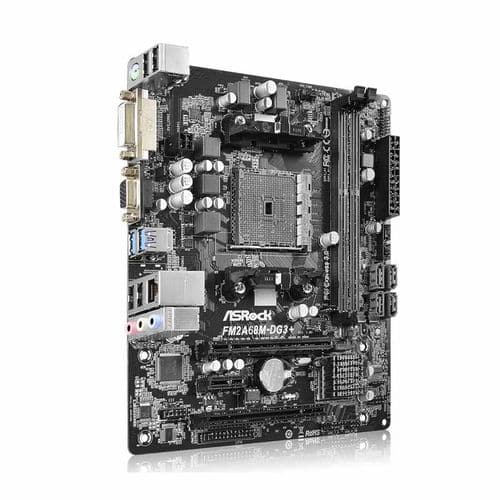

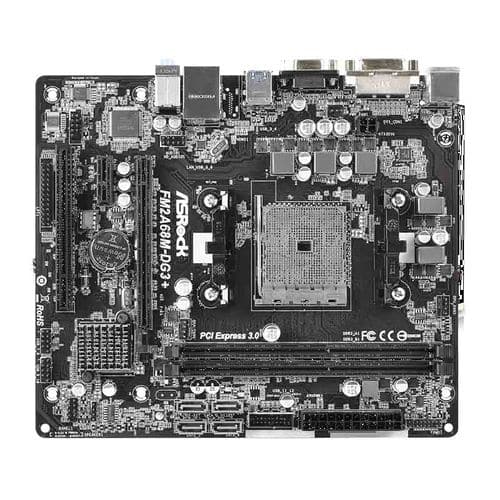

The ASRock FM2A68M-DG3+ is a Micro ATX motherboard designed for AMD Socket FM2+ and FM2 processors, built on the AMD A68 chipset. It is a compact yet capable platform suited for budget desktop builds, home-office systems, and small form-factor media PCs that benefit from integrated AMD Radeon graphics. The board supports Dual Channel DDR3/DDR3L memory in two DIMM slots, accommodating up to 32 GB of DDR3 SDRAM. Native memory clock speed is 1333 MHz, with overclocked support extending to DDR3-2400 and beyond under XMP profiles. This flexibility lets builders match the memory to their workload without needing a discrete graphics card for everyday computing. For expansion, the FM2A68M-DG3+ provides one PCIe 3.0 x16 slot for a dedicated graphics card, one PCIe 2.0 x1 slot, and one legacy PCI slot — useful for retaining older add-in cards. Storage connectivity comes via four SATA3 (6 Gb/s) ports. The USB stack includes two USB 3.1 Gen 1 ports and ten USB 2.0 ports spread across front-panel headers and the rear I/O panel. Display output is handled through the integrated AMD Radeon graphics present in compatible A-series APUs, with a D-Sub (VGA) and DVI-D port on the rear I/O, supporting a maximum resolution of 2560 × 1600 pixels. Audio is provided by a Realtek ALC662 codec delivering 5.1-channel HD audio. ASRock's All Solid Capacitor design and digital PWM power delivery are intended to improve voltage stability for the CPU Vcore rail. The board also carries ASRock's Full Spike Protection and supports the ASRock X-Boost and APP Shop software utilities. Key Specifications: • Form Factor: Micro ATX • CPU Socket: FM2+ (supports FM2+ 95W / FM2 100W processors) • Chipset: AMD A68 • Memory: 2× DDR3 DIMM slots, Dual Channel, max 32 GB, native 1333 MHz (OC to 2400+) • Expansion: 1× PCIe 3.0 x16, 1× PCIe 2.0 x1, 1× PCI • Storage: 4× SATA3 (6 Gb/s) • USB: 2× USB 3.1 Gen 1, 10× USB 2.0 (6 front, 4 rear) • Display Output: D-Sub (VGA), DVI-D; max resolution 2560 × 1600 • Audio: Realtek ALC662, 5.1 CH HD • Additional Headers: 1× Print Port header, 1× COM Port header • Dimensions: 33.02 × 26.67 × 7.62 cm • Weight: approx. 499 g • Country of Origin: China

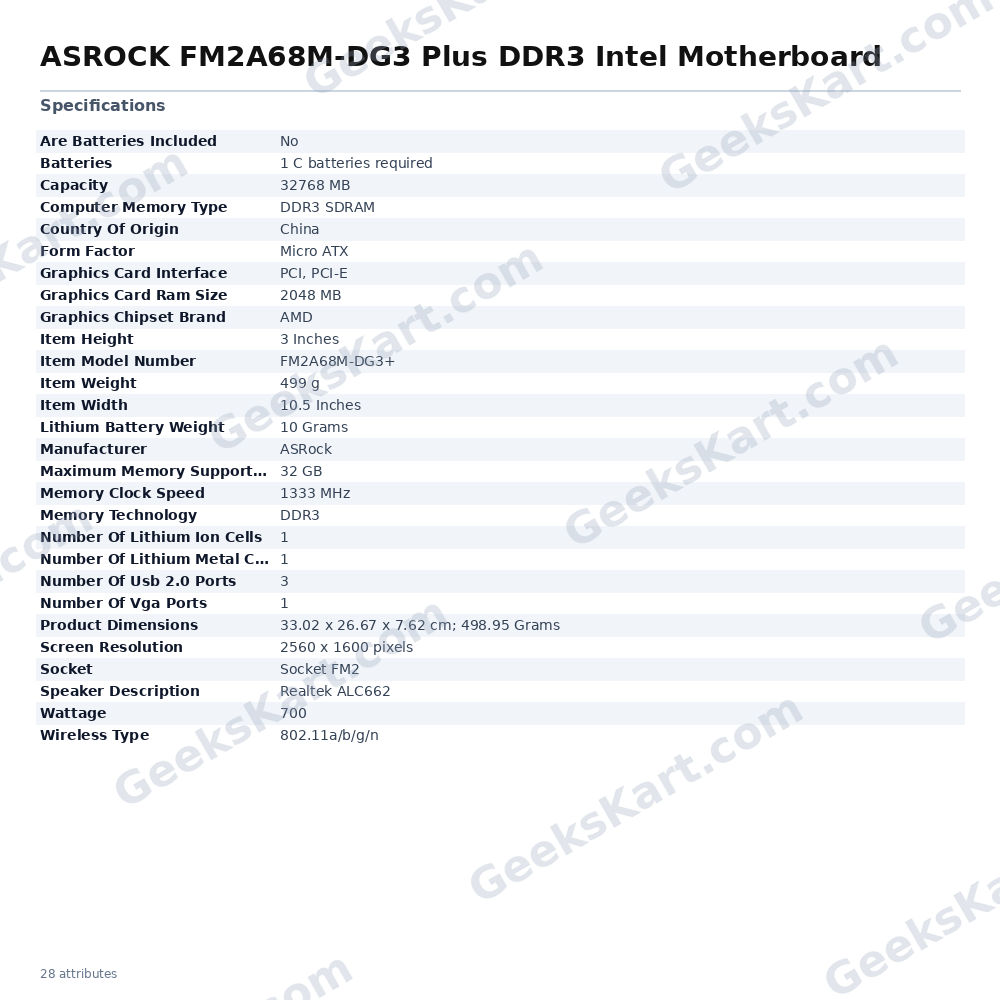

Datasheet
| Wattage | 700 |
|---|---|
| Batteries | 1 C batteries required |
| Item Width | 10.5 Inches |
| Item Height | 3 Inches |
| Item Weight | 499 g |
| Manufacturer | ASRock |
| Wireless Type | 802.11a/b/g/n |
| Country Of Origin | China |
| Item Model Number | FM2A68M-DG3+ |
| Memory Technology | DDR3 |
| Screen Resolution | 2560 x 1600 pixels |
| Memory Clock Speed | 1333 MHz |
| Product Dimensions | 33.02 x 26.67 x 7.62 cm; 498.95 Grams |
| Number Of Vga Ports | 1 |
| Speaker Description | Realtek ALC662 |
| Computer Memory Type | DDR3 SDRAM |
| Are Batteries Included | No |
| Graphics Card Ram Size | 2048 MB |
| Graphics Chipset Brand | AMD |
| Lithium Battery Weight | 10 Grams |
| Graphics Card Interface | PCI, PCI-E |
| Number Of Usb 2.0 Ports | 3 |
| Maximum Memory Supported | 32 GB |
| Number Of Lithium Ion Cells | 1 |
| Number Of Lithium Metal Cells | 1 |
| Capacity | 32768MB |
| Form Factor | mATX |
| Socket | FM2 |
