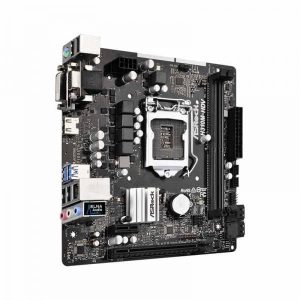

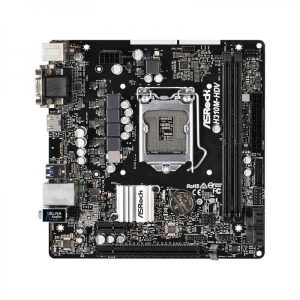

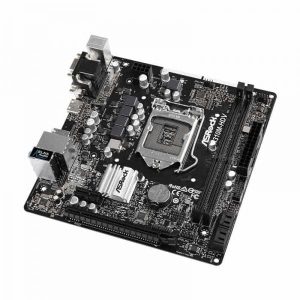

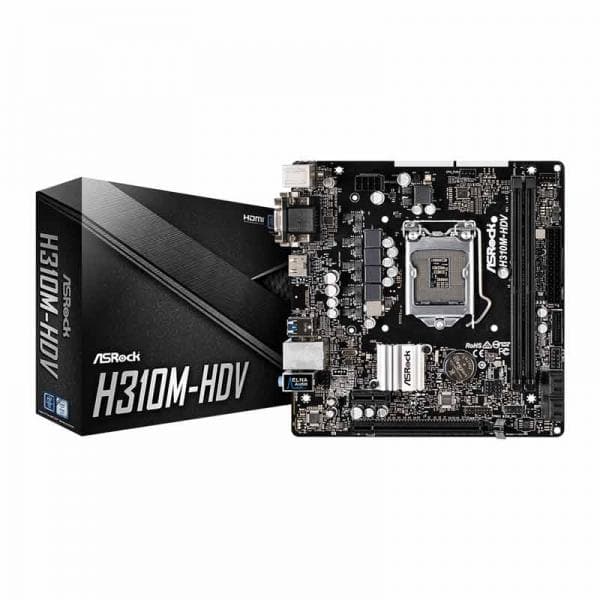

ASROCK H310M-HDV DDR4 Intel Motherboard
MPN ASROCK-H310M-HDV · Brand ASROCK · mATX
The ASRock H310M-HDV is a Micro ATX Intel H310 motherboard for 8th Gen Core processors (LGA 1151), featuring DDR4-2666 dual-channel memory support, triple display outputs (HDMI 4K, DVI-D, D-Sub), 7.1 CH HD Audio with ELNA capacitors, and ASRock Full Spike Protection
Inclusive of GST · GST invoice available
Overview
The ASRock H310M-HDV is a Micro ATX form-factor motherboard built on the Intel H310 chipset, designed for 8th Generation Intel Core processors using the LGA 1151 socket. It supports CPUs with a TDP of up to 95W and features a 5-phase power delivery design alongside Intel Turbo Boost 2.0 Technology for responsive everyday performance. Memory is handled by two DDR4 DIMM slots running in dual-channel configuration, supporting DDR4 speeds of 2133, 2400, and 2666 MHz (non-ECC, unbuffered) with a maximum capacity of 32 GB. Intel Extreme Memory Profile (XMP) 2.0 is also supported for compatible kits. For graphics, the H310M-HDV provides three simultaneous display outputs — a D-Sub port (up to 1920×1200 @ 60 Hz), a DVI-D port (up to 1920×1200 @ 60 Hz), and an HDMI port supporting up to 4K (4096×2160) at 30 Hz — making it an effective foundation for basic multi-monitor home or office setups. Note that integrated graphics require a CPU with an integrated GPU. Audio is managed by the Realtek ALC887 codec delivering 7.1-channel HD Audio, complemented by ELNA audio capacitors that reduce leakage current to help minimise background noise. Network connectivity is provided by a Realtek RTL8111H Gigabit LAN controller (10/100/1000 Mb/s) with Wake- LAN and Energy Efficient Ethernet 802.3az support. Expansion slots include one PCIe 3.0 x16 slot (supporting NVMe SSD boot drives) and one PCIe 2.0 x1 slot. Storage consists of four SATA3 6 Gb/s ports with NCQ, AHCI, and hot-plug support. The rear I/O panel features two USB 3.1 Gen1 ports, four USB 2.0 ports, a PS/2 mouse/keyboard combo port, and three HD audio jacks. Internal headers add a further two USB 3.1 Gen1 and two USB 2.0 ports. A Chassis/Water Pump Fan header supports pump loads up to 2A (24 W) with Smart Fan speed control. The board ships with ASRock Full Spike Protection across all USB, Audio, and LAN ports, a 128 Mb AMI UEFI BIOS with multilingual GUI, and ASRock's A-Tuning software for system monitoring and fan control. FCC and CE certifications are confirmed and the board carries a 3-year manufacturer warranty. Verified Specifications: - Form Factor: Micro ATX, 19.1 cm × 18.8 cm (7.5 in × 7.4 in) - Chipset: Intel H310 - Socket: LGA 1151 (8th Gen Intel Core, max 95W TDP) - Memory: 2× DDR4 DIMM, dual-channel, up to 32 GB, DDR4-2666/2400/2133, XMP 2.0 - PCIe: 1× PCIe 3.0 x16, 1× PCIe 2.0 x1 - Storage: 4× SATA3 6 Gb/s (NCQ, AHCI, Hot Plug) - Display Outputs: HDMI (4096×2160 @ 30 Hz), DVI-D (1920×1200 @ 60 Hz), D-Sub (1920×1200 @ 60 Hz) - Audio: Realtek ALC887, 7.1 CH HD, ELNA Audio Caps - LAN: Realtek RTL8111H Gigabit (10/100/1000 Mb/s) - USB (Rear): 2× USB 3.1 Gen1, 4× USB 2.0 - USB (Internal Headers): 2× USB 3.1 Gen1, 2× USB 2.0 - BIOS: 128 Mb AMI UEFI, ACPI 6.0, SMBIOS 2.7 - OS Support: Windows 10 64-bit - Certifications: FCC, CE, ErP/EuP ready - Warranty: 3 Years - In-Box: Quick Installation Guide, Support CD, I/O Shield, 2× SATA Data Cables

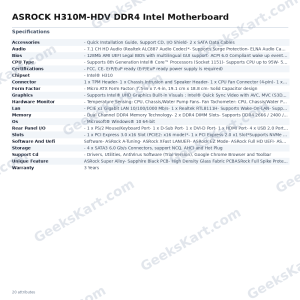

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | – Intel® H310 |
| CPU Type | – Supports 8th Generation Intel® CoreTM Processors (Socket 1151)- Supports CPU up to 95W- 5 Power Phase design- Supports Intel® Turbo Boost 2.0 Technology |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s- 1 x Realtek RTL8111H- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- DRAM, PCH 1.05V Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*- Supports Surge Protection- ELNA Audio Caps*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver |
| Slots | – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*- 1 x PCI Express 2.0 x1 Slot*Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory- Max. capacity of system memory: 32GB*- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Graphics | – Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics- DirectX 12- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)- Three graphics output options: D-Sub, DVI-D and HDMI**- Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)- Supports HDCP with DVI-D and HDMI Ports- Supports 4K Ultra HD (UHD) playback with HDMI Port*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**Supports up to 2 displays simultaneously |
| Connector | 1 x TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 4 x USB 2.0 Ports (Supports ESD Protection)- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super Alloy- Sapphire Black PCB- High Density Glass Fabric PCBASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, Chassis/Water Pump Fans- Fan Tachometer: CPU, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans- CASE OPEN detection- Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore |
| Software And Uefi | Software- ASRock A-Tuning- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash*These utilities can be downloaded from ASRock Live Update & APP Shop |
