ASROCK H370M-HDV DDR4 Intel Motherboard

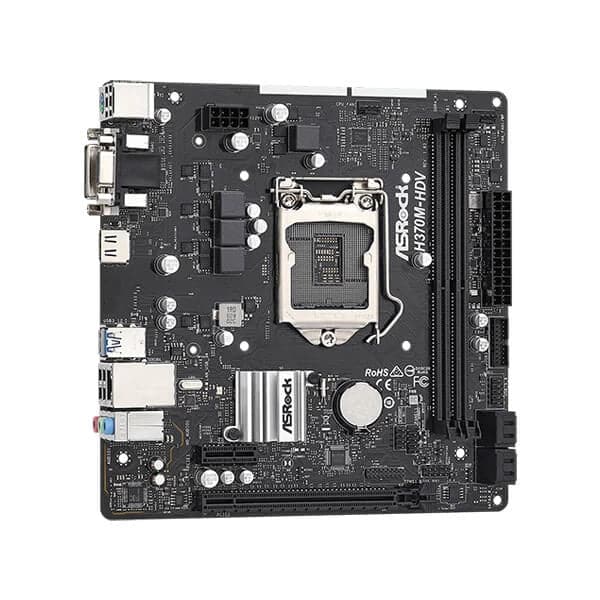

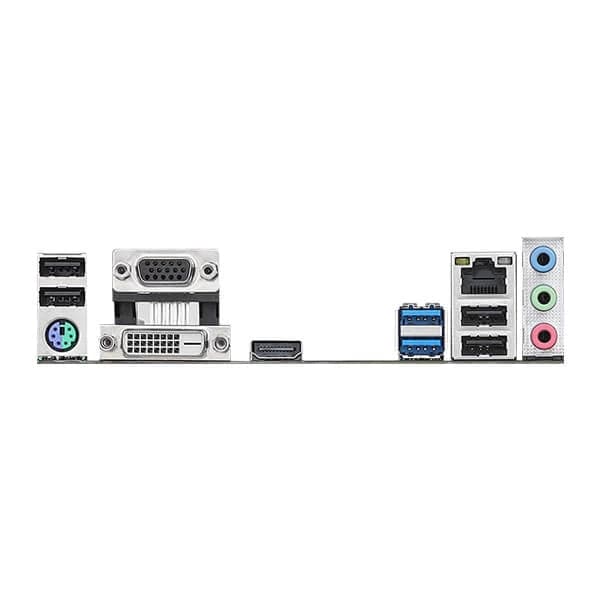

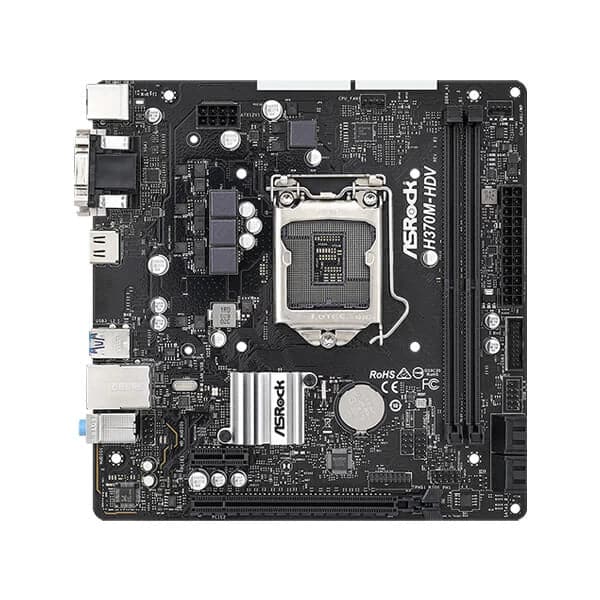

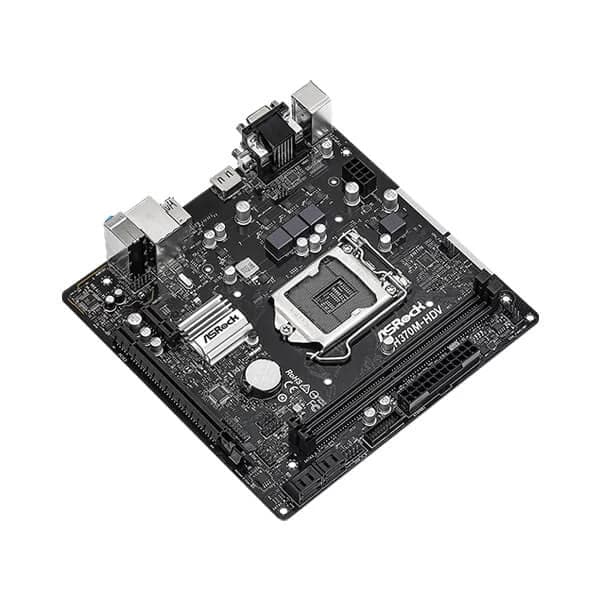

The ASRock H370M-HDV is a Micro ATX motherboard built on Intel's H370 chipset, designed for 8th and 9th Generation Intel Core processors using the LGA1151 socket. With a compact footprint of 7.5 x 7.4 inches (19.1 x 18.8 cm), it fits standard Micro ATX cases while delivering a capable feature set for office builds, home PCs, and budget workstations. The board supports dual-channel DDR4 memory across two DIMM slots, accepting speeds of DDR4 2133, 2400, and 2666 MHz in non-ECC, unbuffered configurations, with a maximum system memory capacity of 64GB. It also supports Intel Extreme Memory Profile (XMP) 2.0 for straightforward memory tuning. Storage connectivity includes four SATA3 6.0 Gb/s connectors with RAID 0, 1, 5, and 10 support via Intel Rapid Storage Technology 15, plus a single Ultra M.2 slot capable of PCIe Gen3 x4 (up to 32 Gb/s) or SATA3 6 Gb/s operation, accommodating fast NVMe and SATA M.2 drives. The H370M-HDV provides three integrated graphics output options — D-Sub, DVI-D, and HDMI 1.4 — enabling triple-monitor setups when using Intel UHD Graphics. The HDMI 1.4 port supports resolutions up to 4096x2160 at 30Hz, while D-Sub and DVI-D each support up to 1920x1200 at 60Hz. Connectivity is handled by a Realtek RTL8111H Gigabit LAN controller with Wake- LAN and Energy Efficient Ethernet (802.3az) support, and onboard 7.1-channel HD audio via the Realtek ALC897 codec with surge protection. USB ports total ten — four USB 3.2 Gen1 Type-A (two rear, two via front header) and six USB 2.0 (four rear, two via front header). Additional features include a 4-pin chassis/water pump fan header with Smart Fan Speed Control, a TPM header, chassis intrusion detection, ESD protection on USB ports, and a 128Mb AMI UEFI BIOS with Full HD interface. The Sapphire Black PCB uses High Density Glass Fabric construction to improve resistance to humidity-related electrical shorts. Verified Specifications: - Chipset: Intel H370 - Socket: LGA1151 (8th and 9th Gen Intel Core, up to 95W TDP) - Memory: 2x DDR4 DIMM, DDR4 2666/2400/2133, max 64GB, XMP 2.0 - Expansion: 1x PCIe 3.0 x16, 1x PCIe 3.0 x1 - Storage: 4x SATA3, 1x Ultra M.2 (PCIe Gen3 x4 & SATA3) - Display: D-Sub, DVI-D, HDMI 1.4 (4K@30Hz via HDMI) - USB: 4x USB 3.2 Gen1, 6x USB 2.0 - Audio: Realtek ALC897, 7.1 CH HD - LAN: Realtek RTL8111H, Gigabit - Form Factor: Micro ATX, 19.1 x 18.8 cm - OS: Windows 10 / 11 64-bit - Warranty: 3 Years
