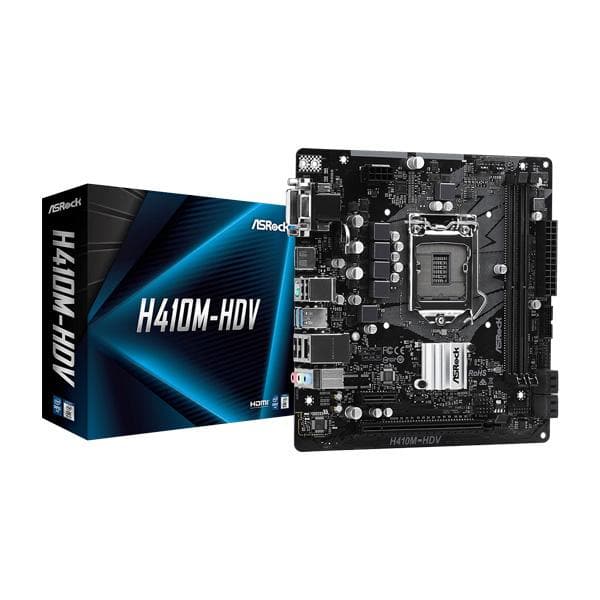

ASROCK H410M-HDV DDR4 Intel Motherboard
MPN ASROCK-H410M-HDV · Brand ASROCK · mATX
The ASRock H410M-HDV is a Micro ATX motherboard for 10th Gen Intel Core processors (LGA 1200), featuring dual-channel DDR4 up to 64 GB, triple display outputs (HDMI 1.4/DVI-D/D-Sub), four SATA3 ports, and Gigabit LAN
Inclusive of GST · GST invoice available
Overview

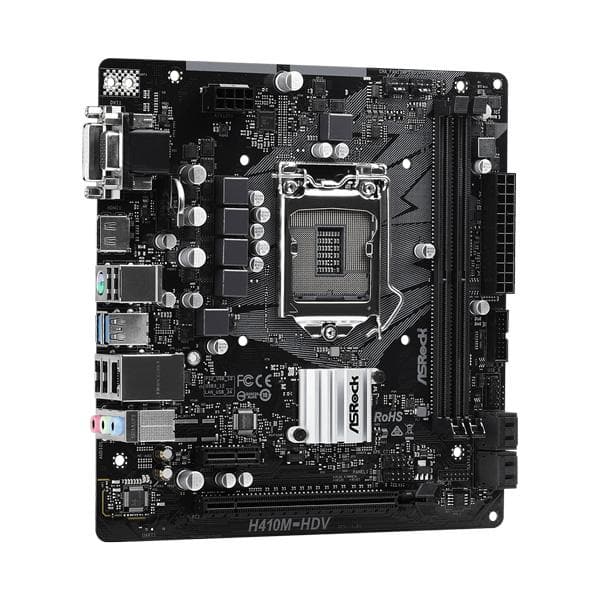

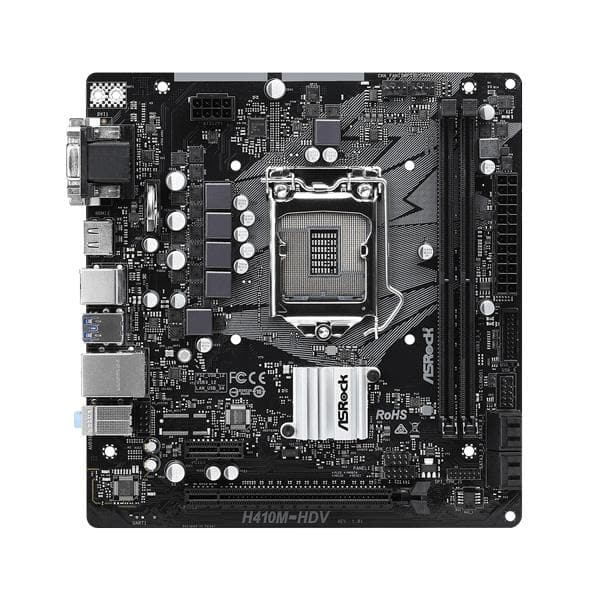

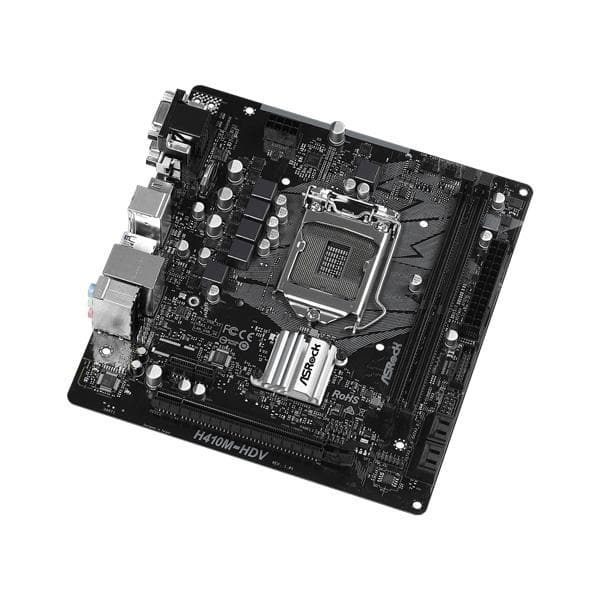

The ASRock H410M-HDV is a Micro ATX form-factor motherboard built on Intel's H410 chipset, designed to support 10th Generation Intel Core processors via the LGA 1200 (Socket 1200) interface. It is an ideal platform for budget-conscious builders and home-office system assemblers who need a reliable, feature-complete foundation without overclocking requirements. The board accepts up to 64 GB of dual-channel DDR4 memory across two DIMM slots, supporting speeds from DDR4 2133 up to DDR4 2933 MHz as well as Intel Extreme Memory Profile (XMP) 2.0 for easy memory tuning. A 5-phase digital power design paired with ASRock's Premium 50A Power Choke ensures stable and consistent power delivery to the processor. For display connectivity, three rear-panel outputs — D-Sub, DVI-D, and HDMI 1.4 — are provided, with the HDMI port supporting up to 4K (4096×2160) at 30 Hz and the DVI-D and D-Sub ports supporting up to 1920×1200 at 60 Hz. Up to two displays can be driven simultaneously. Storage is handled by four SATA3 6.0 Gb/s connectors with NCQ, AHCI, and hot-plug support. Expansion is via one PCIe 3.0 x16 slot and one PCIe 3.0 x1 slot, with NVMe SSD boot disk support available through the PCIe slot. Audio is delivered by a Realtek ALC887 codec offering 7.1-channel HD audio with surge protection. Networking is handled by a Realtek RTL8111H Gigabit LAN controller (10/100/1000 Mb/s) with Wake- LAN, Energy Efficient Ethernet (802.3az), PXE, and Lightning/ESD protection. USB connectivity includes four USB 2.0 ports and two USB 3.2 Gen1 ports on the rear panel, plus internal headers for an additional two USB 2.0 and two USB 3.2 Gen1 ports. Protection features include ASRock Full Spike Protection across USB, Audio, and LAN ports, and a High Density Glass Fabric PCB to guard against humidity-induced electrical shorts. A Chassis/Water Pump Fan header supports pump loads up to 2A (24W). Verified Specifications: - Form Factor: Micro ATX — 7.76 in × 7.4 in (19.7 cm × 18.8 cm) - Socket: LGA 1200 (Intel 10th Gen Core) - Chipset: Intel H410 - Memory: 2 × DDR4 DIMM, up to 64 GB, DDR4 2133–2933 MHz, dual-channel, XMP 2.0 - Storage: 4 × SATA3 6.0 Gb/s (NCQ, AHCI, Hot Plug) - Expansion: 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x1 - Display: D-Sub + DVI-D + HDMI 1.4 (max 2 simultaneous displays) - Audio: Realtek ALC887, 7.1 CH HD - LAN: Realtek RTL8111H, 1 GbE - Rear USB: 4 × USB 2.0, 2 × USB 3.2 Gen1 - BIOS: 128 Mb AMI UEFI, ACPI 6.0, SMBIOS 2.7 - Certifications: FCC, CE; ErP/EuP ready - Warranty: 3 Years

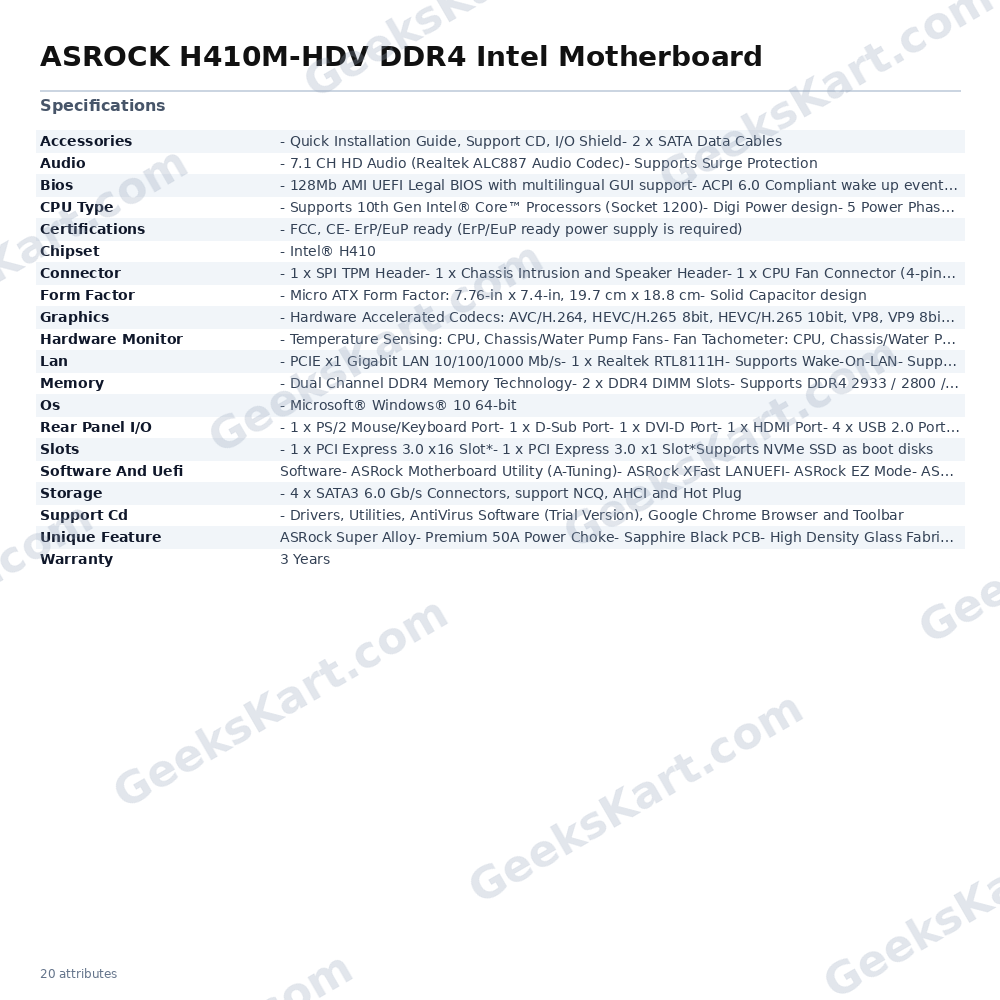

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | – Intel® H410 |
| CPU Type | – Supports 10th Gen Intel® CoreTM Processors (Socket 1200)- Digi Power design- 5 Power Phase design- Supports Intel® Turbo Boost Max 3.0 Technology |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s- 1 x Realtek RTL8111H- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)- Supports Surge Protection |
| Slots | – 1 x PCI Express 3.0 x16 Slot*- 1 x PCI Express 3.0 x1 Slot*Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB**- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Graphics | – Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc- Three graphics output options: D-Sub, DVI-D and HDMI***- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)- Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**VP9 10bit and VC-1 are for decode only.VP8 and VP9 encode are not supported by Windows® OS.***Supports up to 2 displays simultaneously |
| Connector | – 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)*- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |

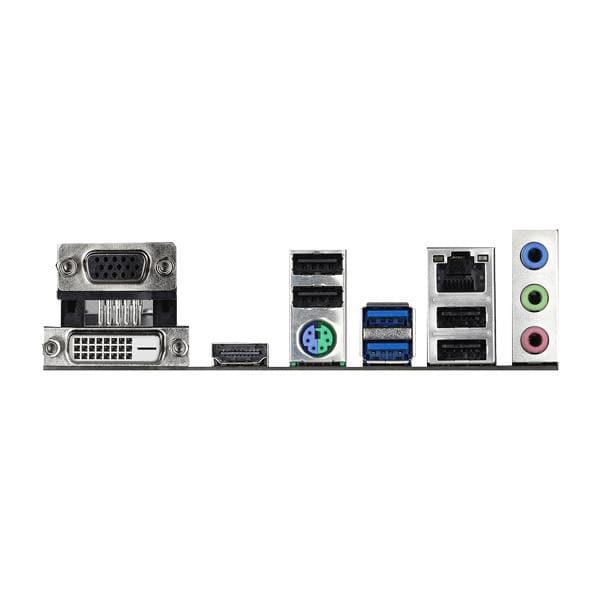

| Rear Panel I/O | – 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 4 x USB 2.0 Ports (Supports ESD Protection)- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super Alloy- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCBASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, Chassis/Water Pump Fans- Fan Tachometer: CPU, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans- CASE OPEN detection- CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash |
