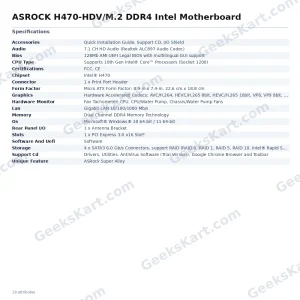

ASROCK H470-HDV/M.2 DDR4 Intel Motherboard

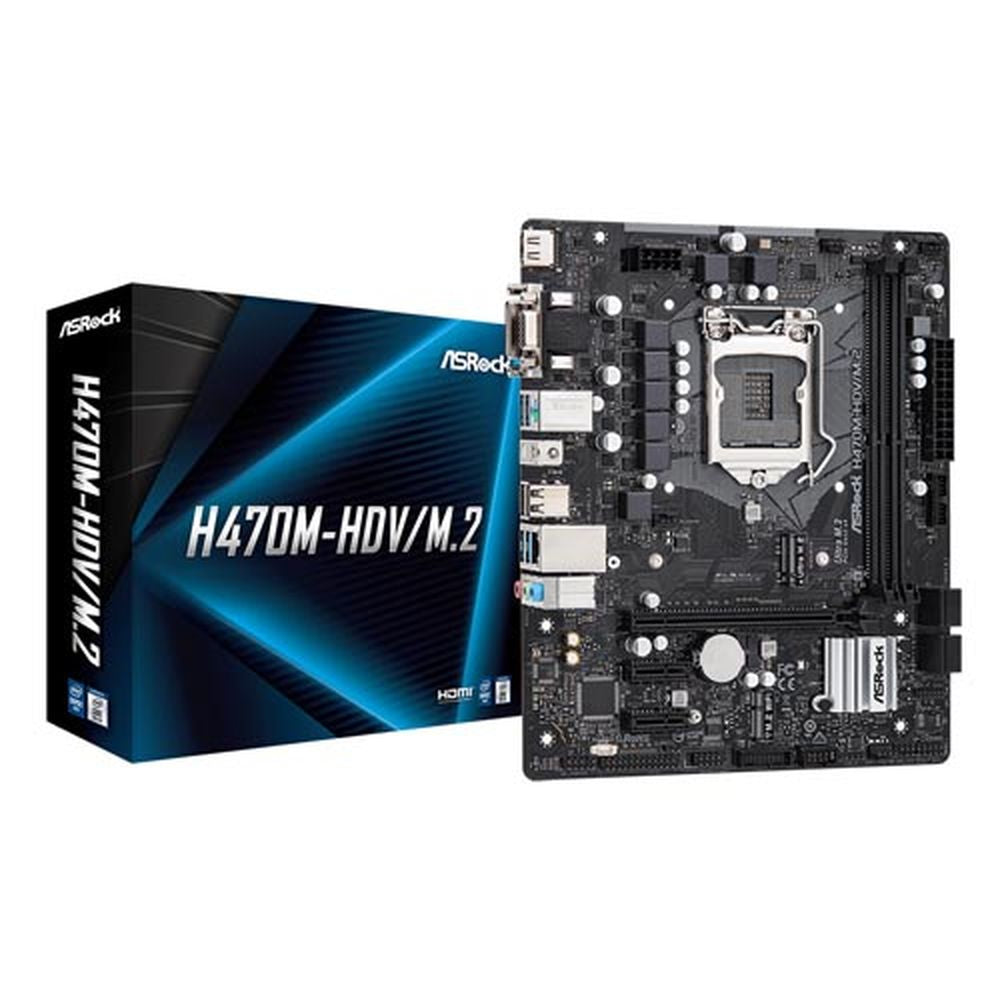

The ASRock H470M-HDV/M.2 is a Micro ATX motherboard built around the Intel H470 chipset, designed to support 10th Generation Intel Core processors using the LGA 1200 (Socket 1200) interface. Its 7-phase digital power delivery, combined with premium 50A power chokes and solid capacitors, provides stable Vcore voltage to the processor across sustained workloads. The board accommodates up to 64 GB of DDR4 memory across two DIMM slots, supporting speeds up to DDR4 2933 MHz for Core i9 and i7 processors, and up to DDR4 2666 MHz for Core i5, i3, Pentium, and Celeron variants. XMP 2.0 profiles are supported for straightforward memory tuning via the UEFI. Storage options are comprehensive: four SATA3 6 Gb/s ports support RAID 0, 1, 5, and 10 via Intel Rapid Storage Technology 17, while the Ultra M.2 slot (Key M, type 2260/2280) supports both SATA3 and PCIe Gen3 x4 (up to 32 Gb/s) NVMe modules. An additional M.2 Key E slot accepts a 2230 WiFi/Bluetooth PCIe module for optional wireless connectivity. Display output is handled through three independent rear-panel connectors: HDMI 1.4 (up to 4K×2K at 30 Hz), DVI-D (up to 1920×1200 at 60 Hz), and D-Sub (up to 1920×1200 at 60 Hz), with triple-monitor support when using a processor with integrated graphics. Connectivity at the rear panel includes four USB 3.2 Gen1 Type-A ports, two USB 2.0 ports, a Gigabit Ethernet port powered by the Intel I219V PHY, and a PS/2 keyboard/mouse combo port. An additional four USB 3.2 Gen1 and three USB 2.0 ports are available via internal headers. Audio is handled by a Realtek ALC897 codec delivering 7.1-channel HD audio with surge protection on all audio jacks. The board ships with a 128 Mb AMI UEFI BIOS featuring a Full HD graphical interface, ASRock EZ Mode, Instant Flash, Internet Flash, and Easy RAID Installer. Full Spike Protection covers all USB, audio, and LAN ports. A CPU/Water Pump fan header (max 2A/24W) is included alongside two Chassis/Water Pump fan headers for liquid-cooling setups. Verified Specifications: - Form Factor: Micro ATX, 226 mm × 188 mm (8.9 in × 7.4 in) - Chipset: Intel H470 - CPU Socket: LGA 1200 (10th Gen Intel Core) - Memory: 2× DDR4 DIMM, max 64 GB, DDR4-2933/2800/2666/2400/2133, non-ECC unbuffered; XMP 2.0 - Storage: 4× SATA3 6 Gb/s (RAID 0/1/5/10); 1× Ultra M.2 PCIe Gen3 x4 / SATA3 (Key M, 2260/2280) - Expansion: 1× PCIe 3.0 x16; 2× PCIe 3.0 x1; 1× M.2 Key E (WiFi/BT, type 2230) - Display: HDMI 1.4 (4K@30Hz), DVI-D (1920×1200@60Hz), D-Sub (1920×1200@60Hz) - Audio: Realtek ALC897, 7.1-channel HD - LAN: Intel I219V Gigabit Ethernet - USB Rear: 4× USB 3.2 Gen1, 2× USB 2.0 - OS: Windows 10 64-bit / Windows 11 64-bit - Certifications: FCC, CE, ErP/EuP ready
