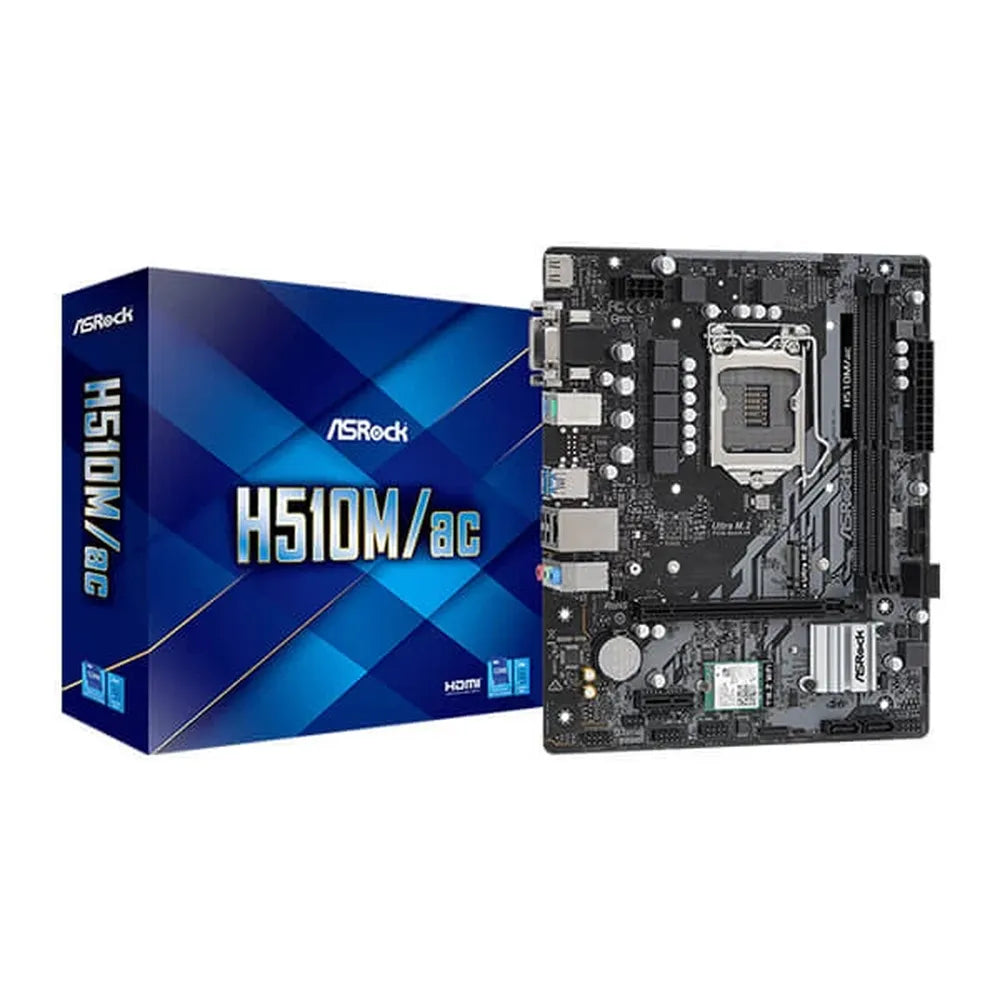

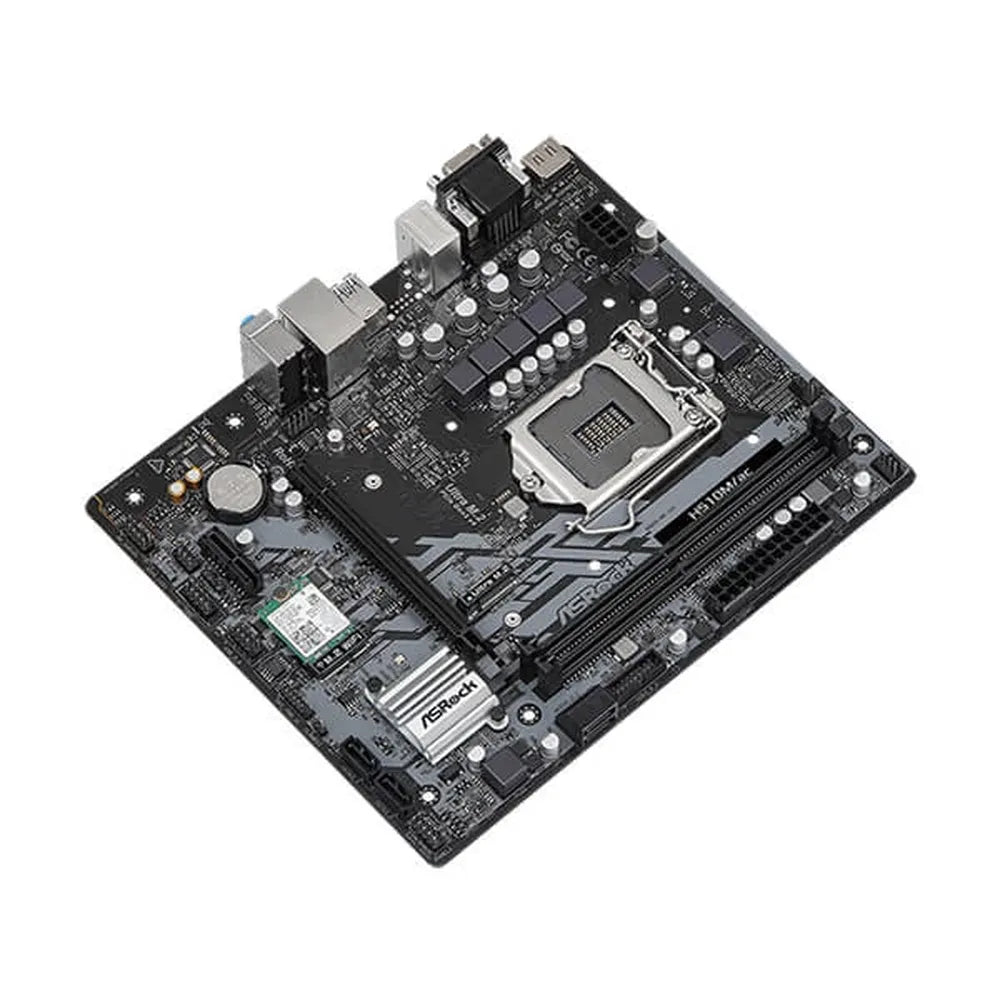

Features of ASROCK H510M-AC Wifi DDR4 Intel Motherboard
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- Supports DDR4 3200MHz (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front)
4 x USB 2.0 (2 x Rear, 2 x Front) - Intel® Gigabit LAN
- Intel® 802.11ac WiFi + BT 4.2

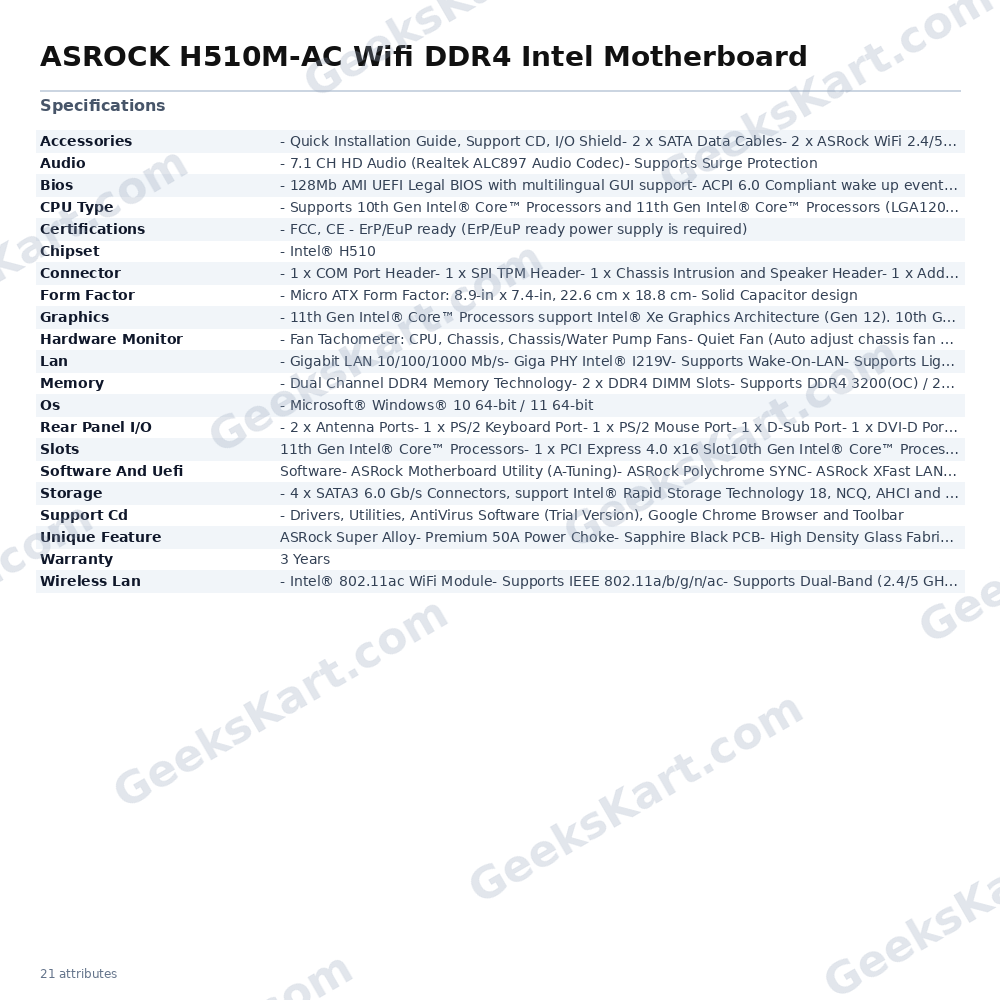

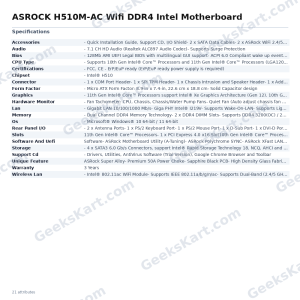

Specification of ASROCK H510M-AC Wifi DDR4 Intel Motherboard
| Unique Feature | ASRock Super Alloy – Premium 50A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB Intel® 802.11ac WiFi ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | – Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) – 5 Power Phase design – Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | – Intel® H510 |
| Memory | – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 64GB – Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment |
| Graphics | – 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics – Three graphics output options: D-Sub, DVI-D and HDMI – Supports Triple Monitor – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11th Gen Intel® Core™ Processors – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10th Gen Intel® Core™ Processors – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) – Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors) |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection |
| LAN | – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel® I219V – Supports Wake- LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Wireless LAN | – Intel® 802.11ac WiFi Module – Supports IEEE 802.11a/b/g/n/ac – Supports Dual-Band (2.4/5 GHz) – Supports high speed wireless connections up to 433Mbps – Supports Bluetooth 4.2 / 3.0 + High speed class II |
| Slots | 11th Gen Intel® Core™ Processors – 1 x PCI Express 4.0 x16 Slot 10th Gen Intel® Core™ Processors – 1 x PCI Express 3.0 x16 Slot – 1 x PCI Express 3.0 x1 Slot |
| Storage | – 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| Connector | – 1 x COM Port Header – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x Addressable LED Header – 1 x CPU Fan Connector (4-pin) – 1 x Chassis Fan Connector (4-pin) – 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |

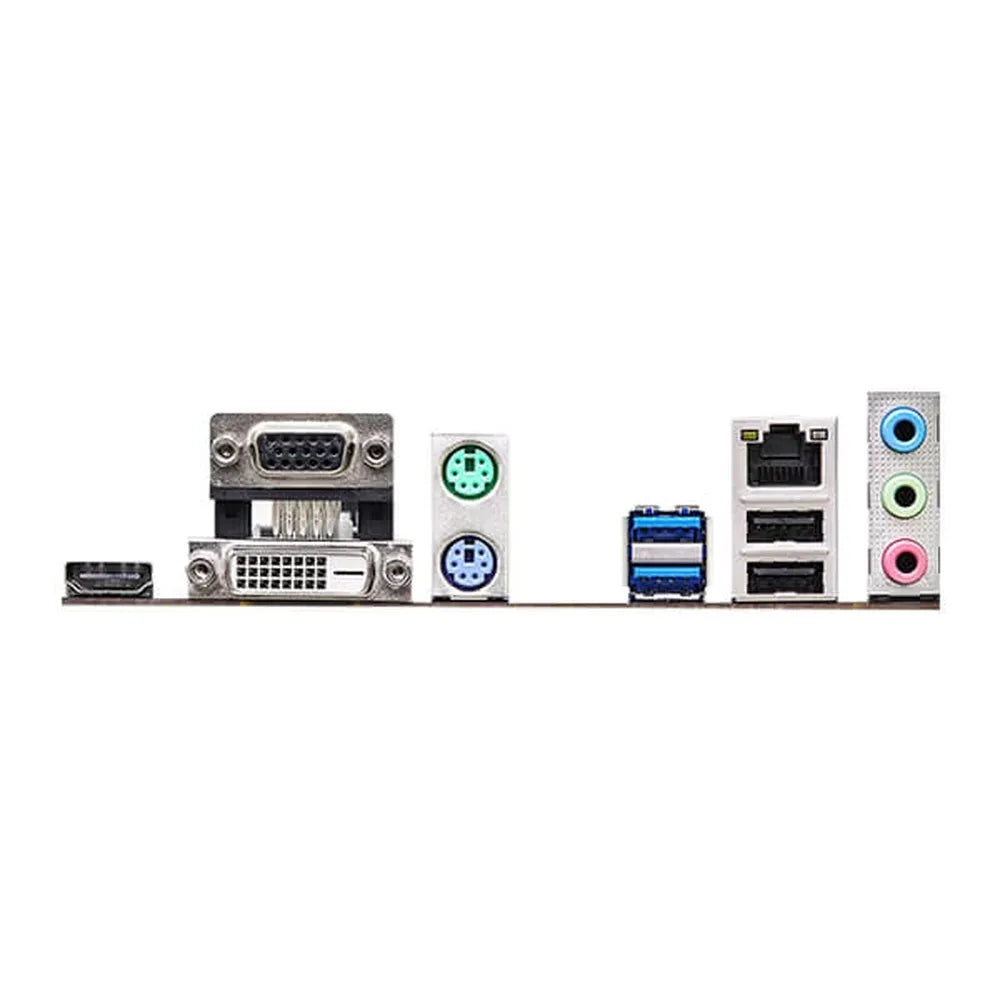

| Rear Panel I/O | – 2 x Antenna Ports – 1 x PS/2 Keyboard Port – 1 x PS/2 Mouse Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Polychrome SYNC – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash |
| Support CD | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5 GHz Antennas – 2 x SMA Wi-Fi Antenna Cables – 1 x Screw for M.2 Socket |
| Hardware Monitor | – Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans – CASE OPEN detection – Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V |
| Form Factor | – Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm – Solid Capacitor design |
| OS | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
