ASROCK H510M-HDV/M.2 SE DDR4 Intel Motherboard

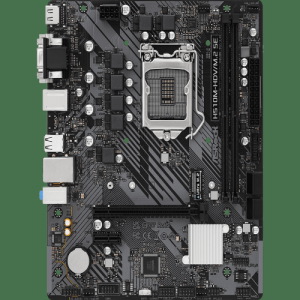

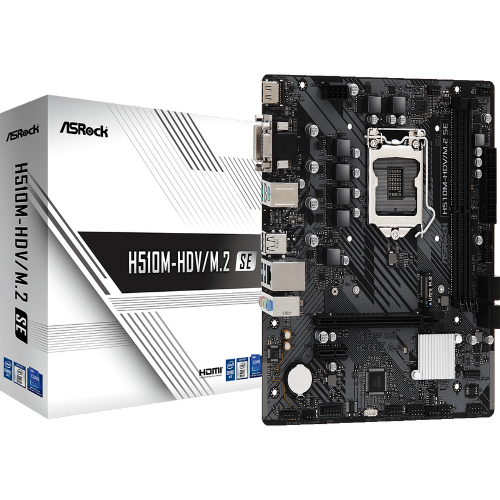

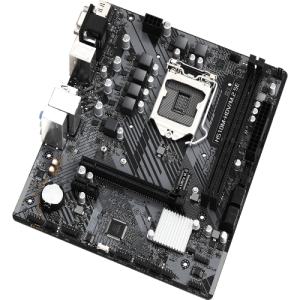

The ASRock H510M-HDV/M.2 SE is a Micro ATX motherboard built on the Intel H470 chipset and designed for Intel's LGA1200 socket, offering broad compatibility with both 10th Generation and 11th Generation Intel Core processors. At 23.1 cm x 19.8 cm (9.1 in x 7.8 in), it fits standard Micro ATX cases while delivering a well-rounded feature set for home, office, and entry-level workstation builds. Memory support spans two DDR4 DIMM slots in a dual-channel configuration, accepting speeds from DDR4 2133 up to DDR4 3200 MHz (XMP 2.0), with a maximum system capacity of 64 GB. The DIMM slots feature 15μ gold contacts for long-term reliability. Storage connectivity is equally versatile: one Ultra M.2 socket (Key M, types 2260/2280) supports both PCIe Gen3 x4 (up to 32 Gb/s) and SATA3 6.0 Gb/s M.2 modules, while four SATA3 6.0 Gb/s connectors handle traditional drives. RAID 0, 1, 5, and 10 are supported across SATA storage devices. The primary PCIe x16 slot (PCIE1) runs at PCIe 4.0 x16 with 11th Gen processors or PCIe 3.0 x1 with 10th Gen processors; a secondary PCIe 3.0 x1 slot is provided by the H470 chipset. Display output is handled by three integrated video connectors: one HDMI port (2.0 with 11th Gen CPUs delivering up to 4K 60Hz; 1.4 with 10th Gen CPUs delivering up to 4K 30Hz), one DVI-D port (up to 1920×1200 60Hz), and one D-Sub port (up to 1920×1200 60Hz). Audio is delivered by a Realtek ALC897 codec offering 7.1-channel HD audio, while networking is handled by a Realtek 8111H Gigabit LAN controller (10/100/1000 Mb/s). USB connectivity includes six USB 3.2 Gen1 ports (four rear, two front via header) and six USB 2.0 ports (two rear, four front via headers). The rear I/O panel also carries a PS/2 combo port and a full complement of HD audio jacks. The board ships with a 5-phase power design utilising ASRock's premium 50A power chokes, a CPU/Water Pump fan header supporting up to 2A, and a High Density Glass Fabric PCB intended to reduce moisture-related electrical shorts. The 128 Mb AMI UEFI BIOS includes ASRock EZ Mode, Full HD UEFI, Instant Flash, Internet Flash, and the Auto Driver Installer utility. Verified Specifications: - Socket: LGA1200 | Chipset: Intel H470 - Form Factor: Micro ATX, 23.1 cm x 19.8 cm - Memory: 2x DDR4 DIMM, up to 64 GB, DDR4-2133 to DDR4-3200, XMP 2.0 - Expansion: 1x PCIe 4.0/3.0 x16, 1x PCIe 3.0 x1 - Storage: 1x Ultra M.2 (PCIe Gen3 x4 / SATA3), 4x SATA3 6.0 Gb/s, RAID 0/1/5/10 - Display: 1x HDMI, 1x DVI-D, 1x D-Sub - Audio: Realtek ALC897, 7.1 CH HD - LAN: Realtek 8111H, Gigabit - USB: 6x USB 3.2 Gen1 + 6x USB 2.0 - BIOS: 128 Mb AMI UEFI - OS Support: Windows 10 / 11 (64-bit) - Certifications: FCC, CE, ErP/EuP ready - Warranty: 3 Years - In-Box: User Manual, I/O Shield, 2x SATA Data Cables, M.2 Screw
