The ASRock H610M-X D5 M-ATX Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: LGA 1700; Chipset: H610; Form Factor: Micro-ATX; Memory Type: DDR5; Memory Speed: up to 5600. Buyer-relevant takeaways: the listed capacity/speed gives buyers a concrete reference for compatibility. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹6549 subject to availability — confirm at checkout

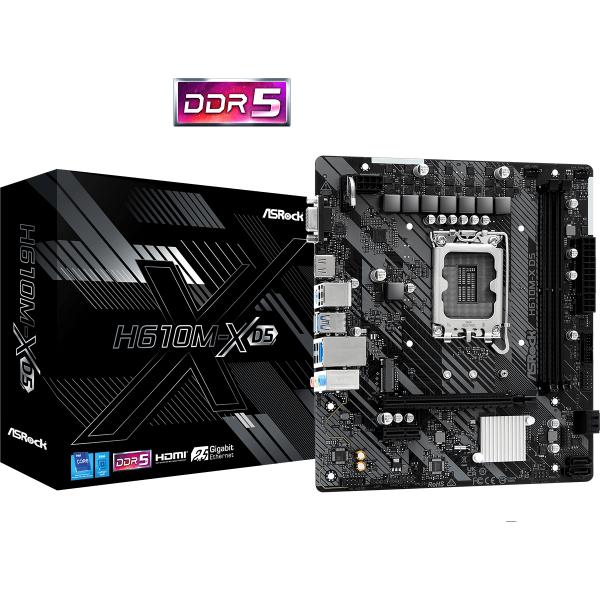

ASRock H610M-X D5 M-ATX Motherboard
₹6,970.00
ASRock H610M-X D5 M-ATX Motherboard. Highlights: up to 5600
100 in stock
This item is selling fast!
Additional information
| Platform | INTEL |
|---|---|
| Graphics Port | 2 |
| Memory Feature | 2 x DDR5 DIMM Slots 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800 |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 1 x PCIe 3.0 x1 Slot (PCIE2) * Supports NVMe SSD as boot disks |
| Channel Supported | Dual Channel |

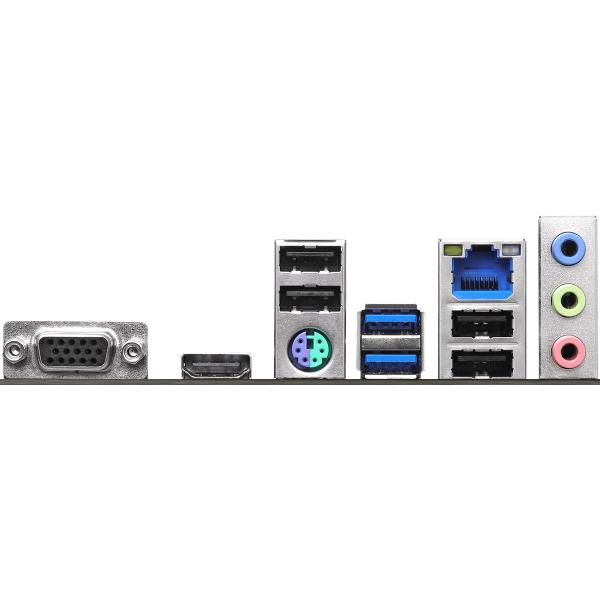

| Back Panel I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 2 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | mATX |
| color | Black |
| Chipset | H610 |
| Socket | LGA1700 |
| CPU Type | 14th Gen,13th Gen,12th Gen |
| Max Memory | 96 GB |
| Memory Speed | up to 5600 |
