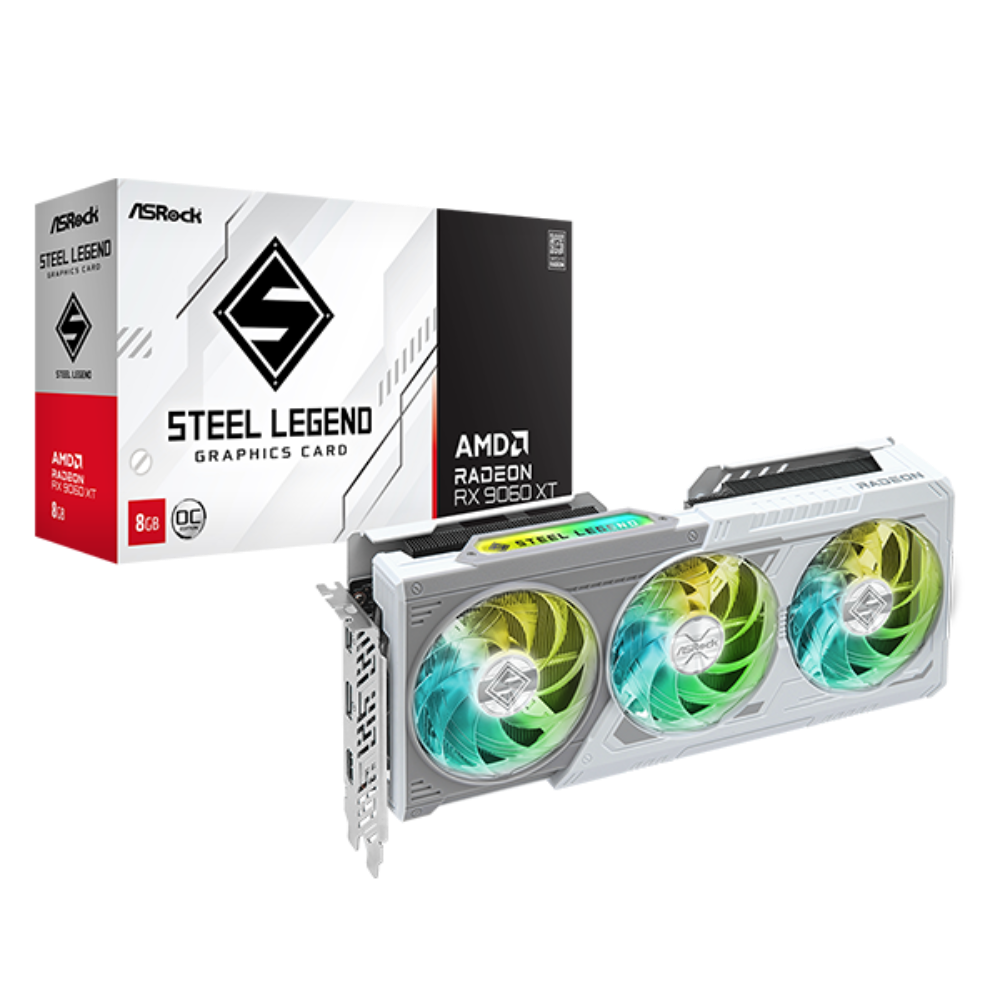

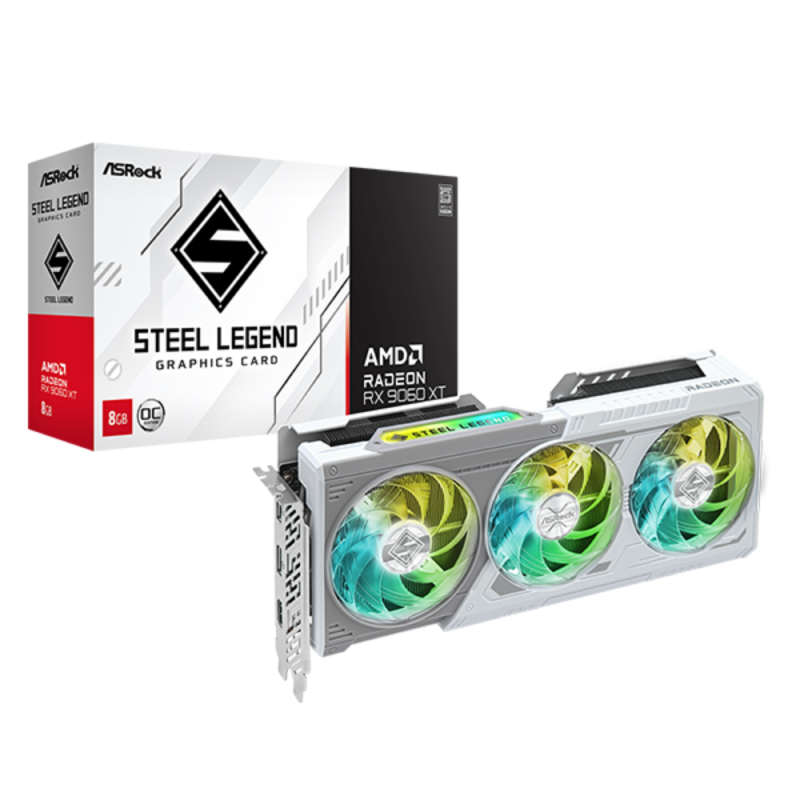

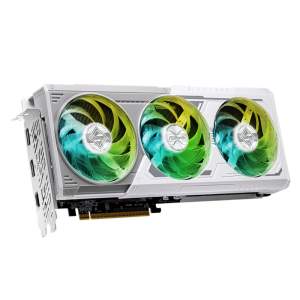

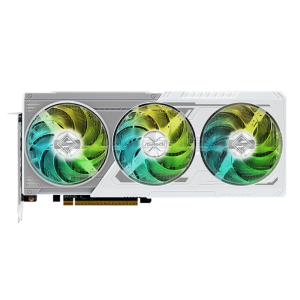

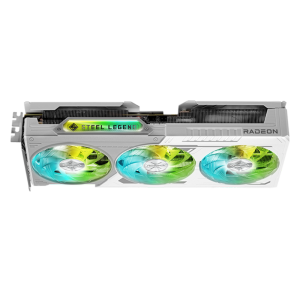

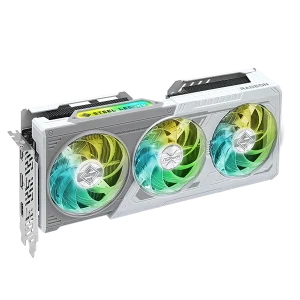

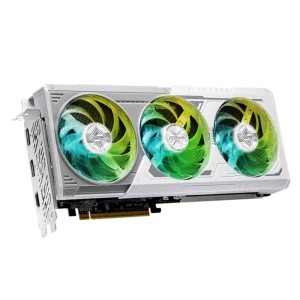

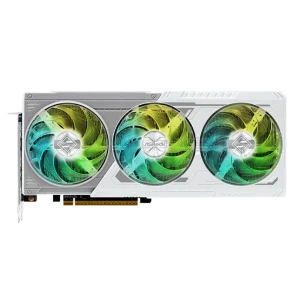

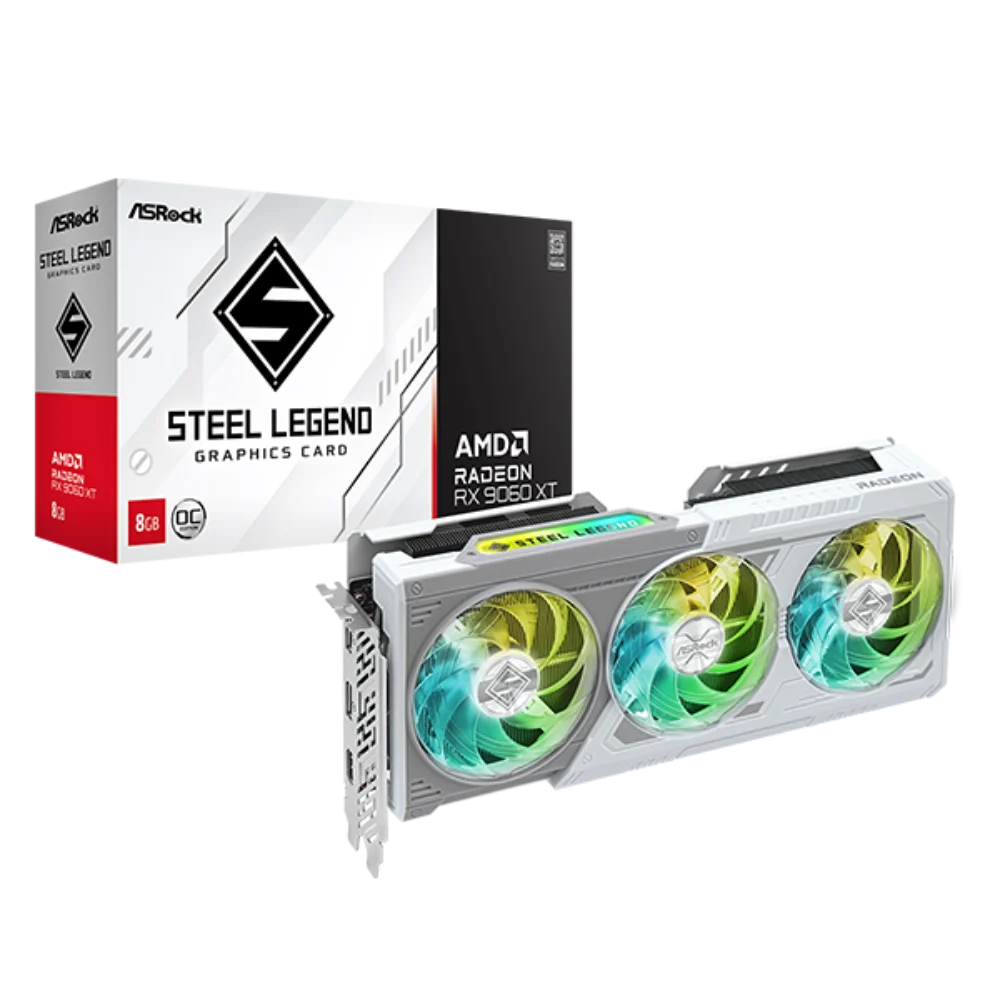

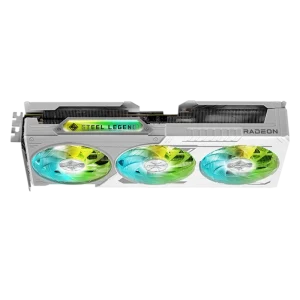

ASROCK Radeon RX 9060 XT Steel Legend OC 8GB AMD Graphic Card
MPN ASROCK-RX-9060-XT-STEEL-LEGEND-OC-8GB-WHITE · Brand ASROCK
The ASRock Radeon RX 9060 XT Steel Legend OC 8GB delivers AMD RDNA 4 performance for 1440p gaming, with 8 GB GDDR6, PCIe 5.0, triple-fan cooling, and Polychrome SYNC ARGB lighting
Inclusive of GST · GST invoice available
Overview

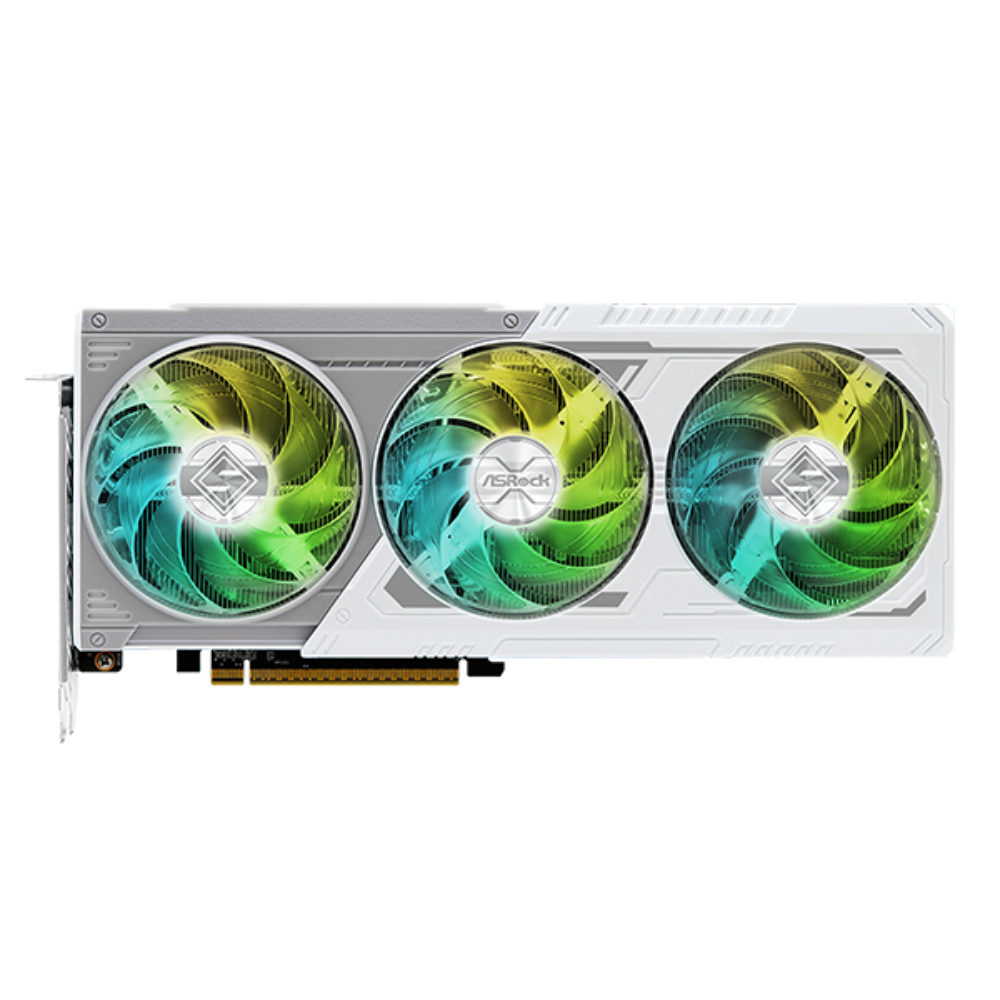

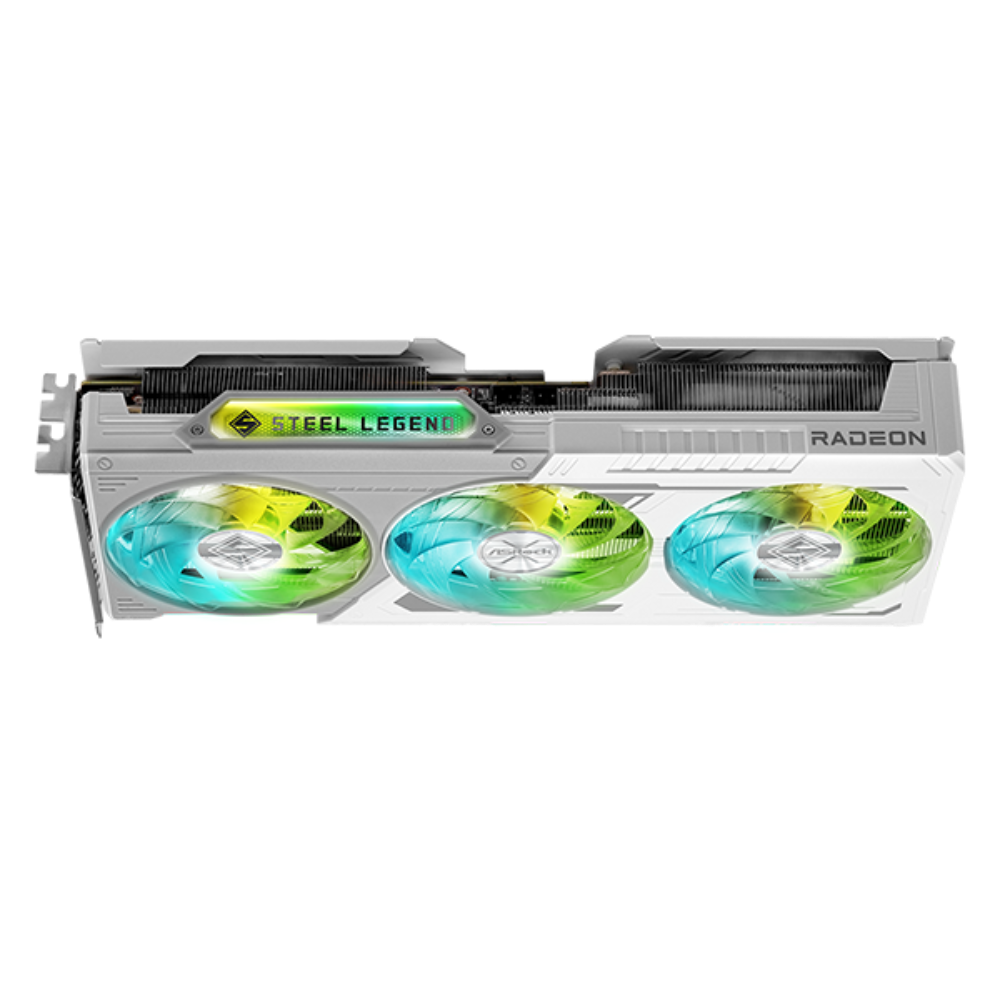

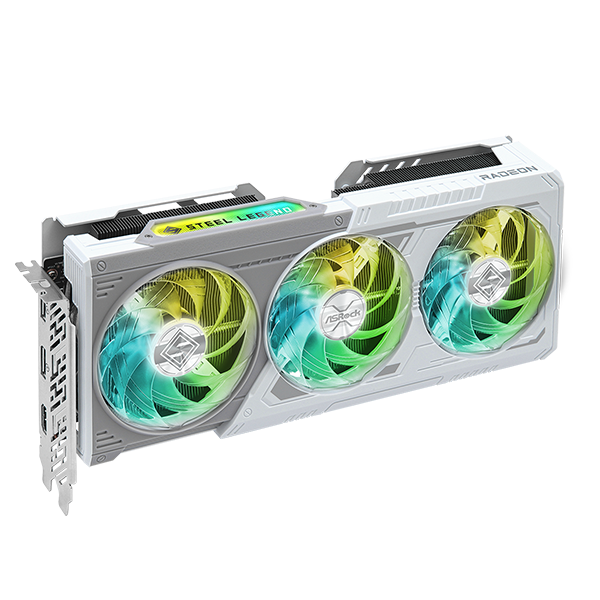

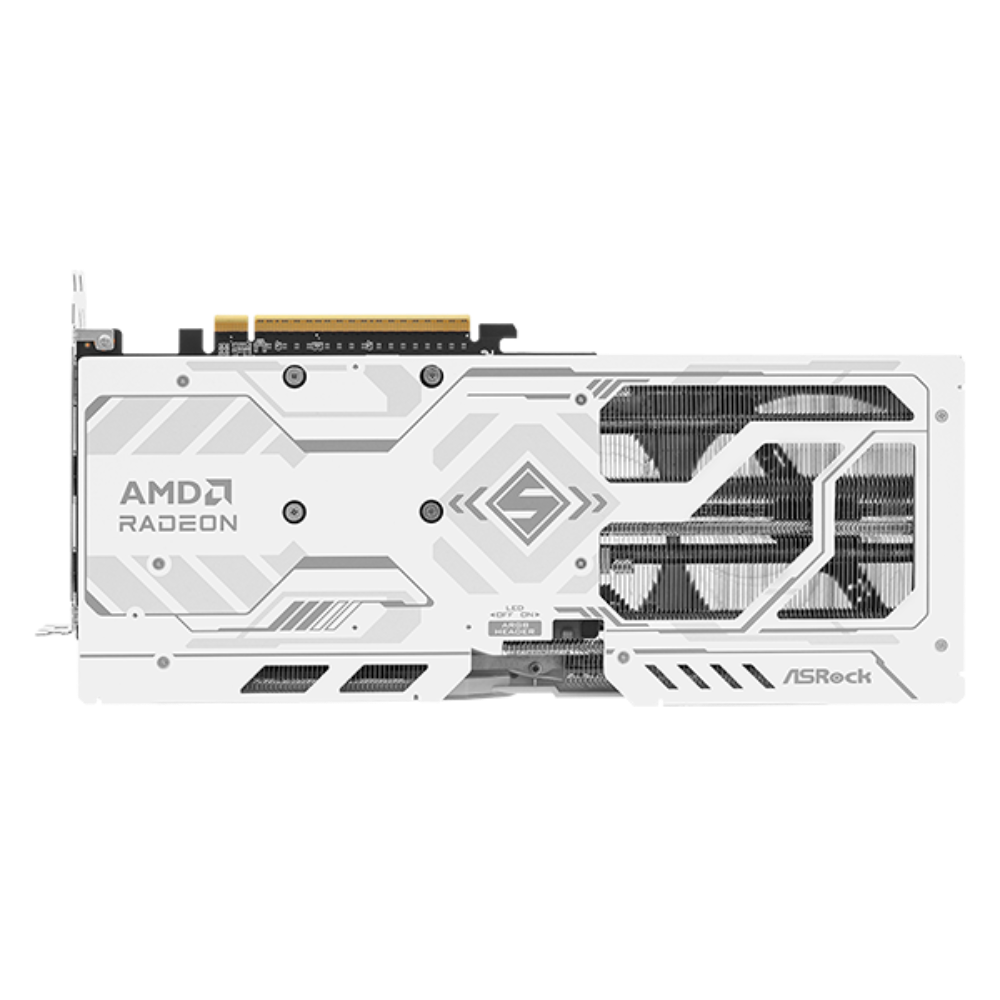

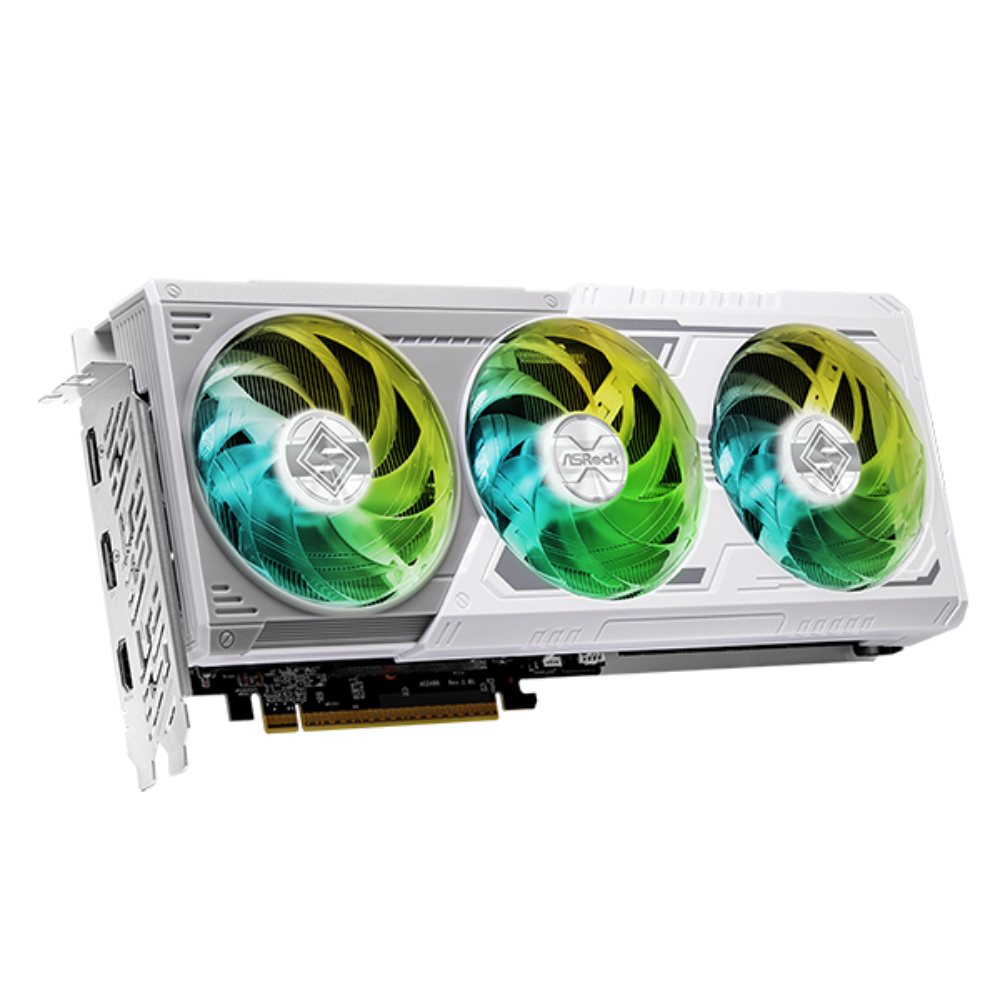

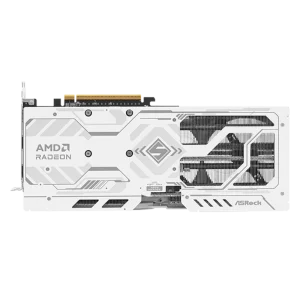

The ASRock Radeon RX 9060 XT Steel Legend OC 8GB is a mid-range graphics card built on AMD's RDNA 4 architecture, targeting smooth 1440p gaming with modern AI and ray-tracing workloads. It carries ASRock's Steel Legend aesthetic — a striking white-accented design with integrated ARGB LEDs that support Polychrome SYNC, letting you coordinate lighting with compatible ASRock motherboards. An onboard LED switch and ARGB header allow direct control of connected ARGB strips and devices without software. Cooling is handled by a triple-fan array featuring ASRock's Striped Ring Fan design, which increases lateral air intake across the heatsink array. V-shaped Air Deflecting Fins channel airflow more efficiently through the stack, while Ultra-fit Heatpipes are consolidated to maximise contact with both each other and the nickel-plated copper GPU baseplate, improving heat transfer. High-density metal welding seals gaps between pipes and fins to further reduce thermal resistance. When GPU temperatures drop under light loads, the 0 dB Silent Cooling mode halts the fans entirely for a quieter idle experience. A stylish metal backplate reinforces the PCB against sag and incorporates premium thermal pads for additional rear-side heat dissipation. The card leverages AMD FSR 4 ML-powered upscaling, AMD HYPR-RX for one-click performance optimisation, and an Enhanced Media Engine for improved streaming quality. DisplayPort 2.1a and HDMI 2.1b outputs support up to 8K (7680 × 4320) resolution and are ready for high-refresh ultra-high-resolution monitors. AMD Smart Access Memory and PCIe 5.0 x16 connectivity ensure the card extracts full bandwidth on AM5 platforms. Verified Specifications: • GPU: AMD Radeon RX 9060 XT (RDNA 4) • Stream Processors: 2048 • Memory: 8 GB GDDR6, 128-bit interface, 20 Gbps • Boost Clock: up to 3320 MHz | Game Clock: 2780 MHz • Bus: PCI Express 5.0 x16 • Display outputs: 2× DisplayPort 2.1a, 1× HDMI 2.1b • Max resolution: 7680 × 4320 • Multi-view support: 3 displays • DirectX: 12 Ultimate | OpenGL: 4.6 • Power connector: 1× 8-pin • Recommended PSU: 550 W • Dimensions: 298 × 131 × 51 mm, 2.55-slot • Net weight: 967 g • Model number: RX9060XT-SL-8GO
Datasheet
| Hdcp | – Yes |
|---|---|
| Memory | – 8GB GDDR6 |
| Opengl | -4.6 |
| Directx | – 12 Ultimate |
| Model | RX9060XT-SL-8GO |
| Dimensions | – 298 x 131 x 51 mm, 2.55-slot |
| Multi-View | -3 |
| Net Weight | – 967 g |
| Accessories | – 1x Quick Installation Guide |
| Bus Standard | – PCI® Express 5.0 x16 |
| Engine Clock | – Boost Clock*: Up to 3320 MHz – Game Clock**: 2780 MHz *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary |
| Graphics Engine | – AMD Radeon™ RX 9060 XT |
| Power Connector | – 1x 8-pin |
| Memory Interface | – 128-bit |
| Stream Processors | -2048 |
| Interface | – 2x DisplayPort 2.1a- 1x HDMI 2.1b |
| Memory Clock | – 20 Gbps |
| Recommended PSU | – 550W |
| Resolution | – Digital Max Resolution: 7680 x 4320 |
