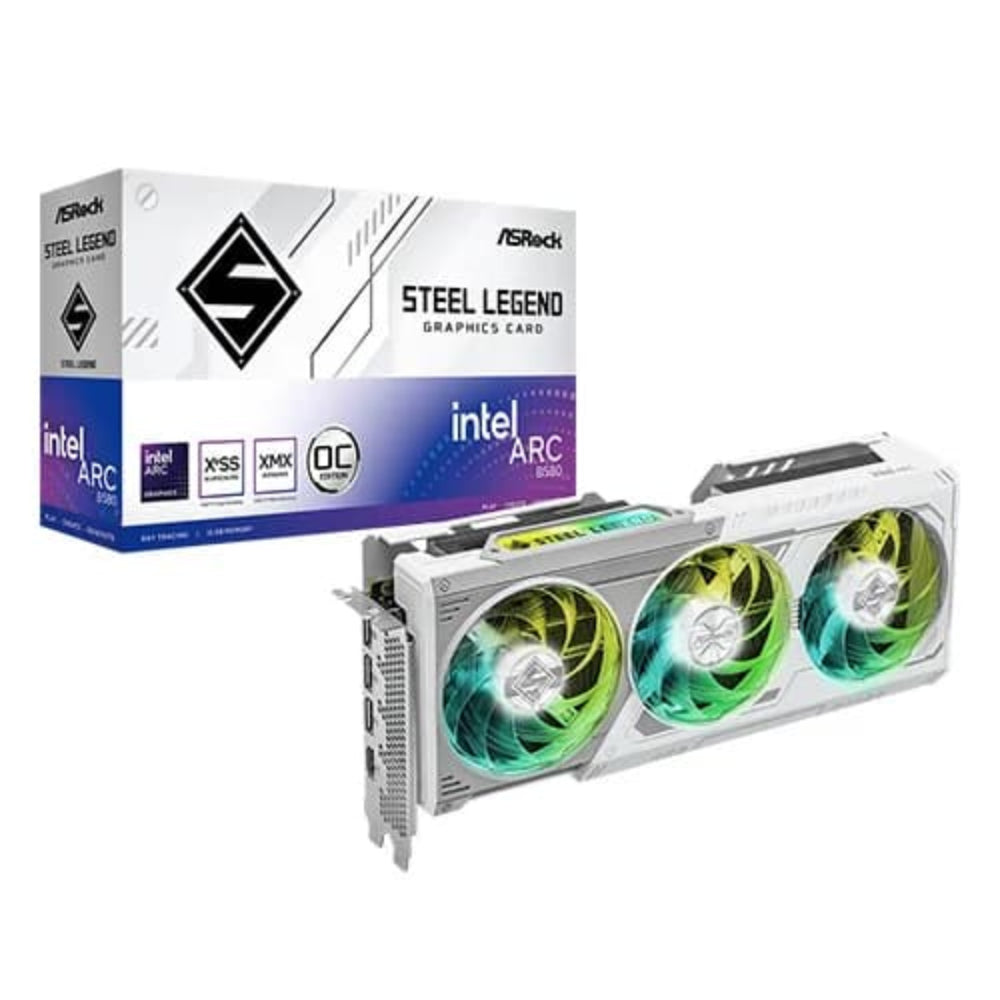

Features of ASROCK Steel Legend Arc B580 OC RGB White 12GB Intel Graphic Card
Clock
- GPU Clock: 2800 MHz
- Memory Clock: 19 Gbps
Key Specification
- Intel Arc B580 Graphics
- 12GB 192-bit GDDR6
- Intel Xe2-HPG Architecture
- Intel Xe Super Sampling 2 (Intel XeSS 2)
- Intel Xe Matrix eXtentions (Intel XMX)
- Microsoft DirectX 12 Ultimate
- 2x 8-pin Power Connectors
- 3x DisplayPort 2.1, 1x HDMI 2.1a
Key Features
- Polychrome SYNC
- Triple Fan Design
- Striped Ring Fan
- Stylish Metal Backplate
- Ultra-fit Heatpipe
- Air Deflecting Fin
- 0dB Silent Cooling
- Super Alloy Graphics Card
Polychrome SYNC
Create your own unique colorful light effects.With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED Switch
Switch on/off as you want. You can switch LED on or off depends on the scenarios or your need.
ARGB Header
More ARGB, More Fancy. With the ARGB header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.
Striped Ring Fan Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
0dB Silent Cooling Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

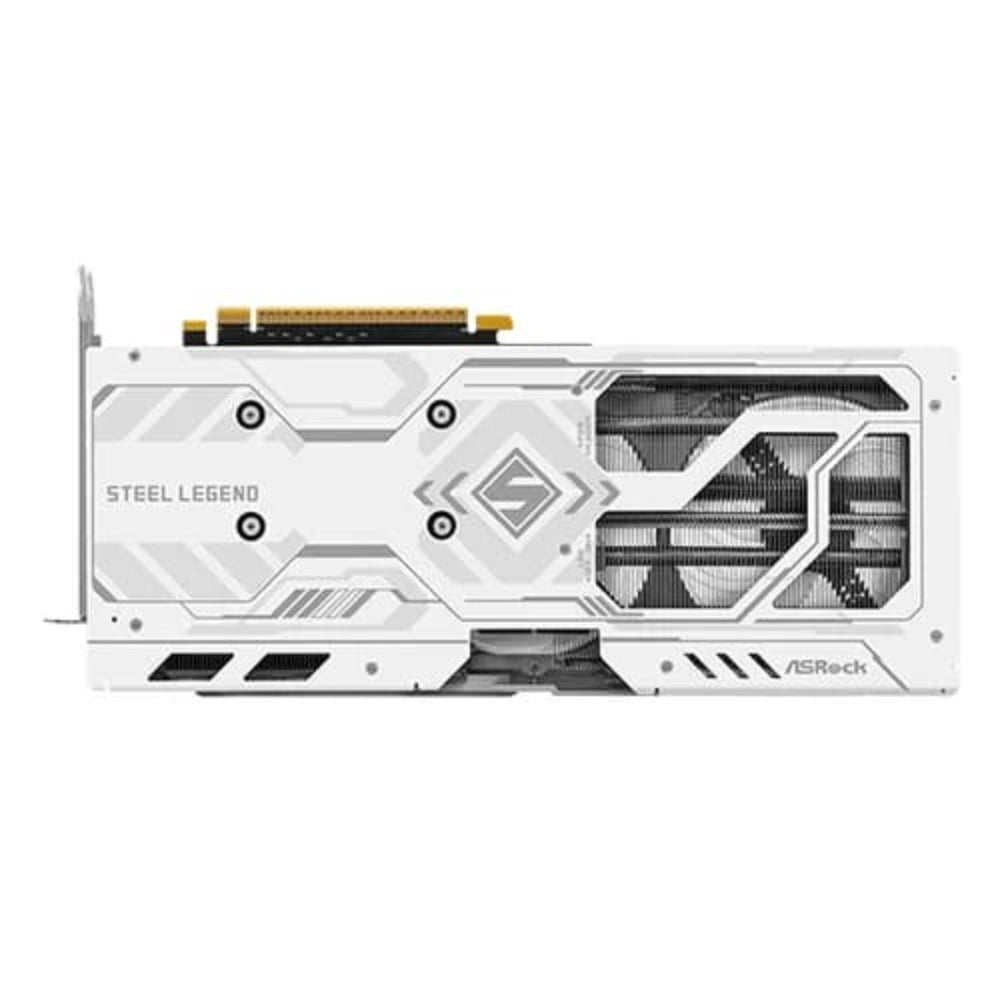

Stylish Metal Backplate Solid, Refined, Cool.
Designed to avoid PCB bending. The white-themed outlook makes the graphic card more simple and purified in visual.
Air Deflecting Fin Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

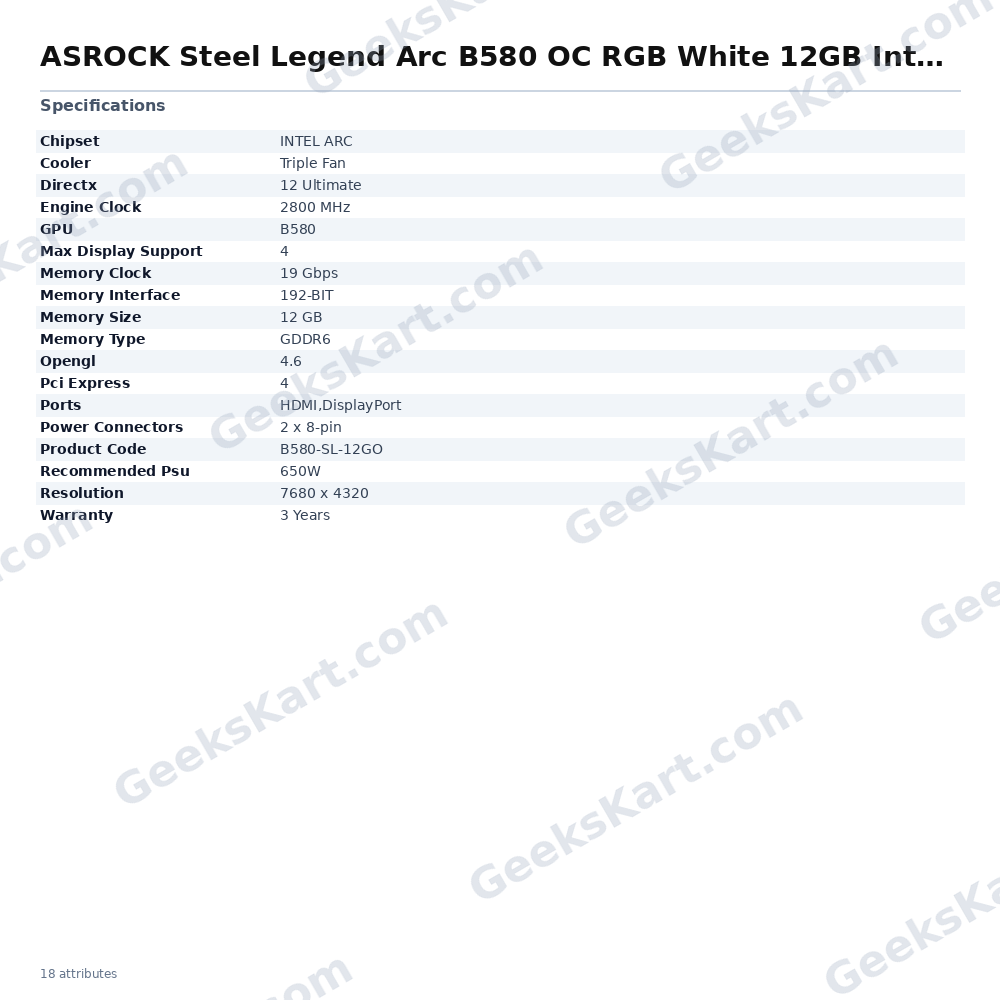

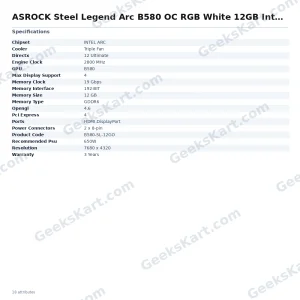

Specifications of ASROCK Steel Legend Arc B580 OC RGB White 12GB Intel Graphic Card
| Product Code | B580-SL-12GO |
| Chipset | INTEL ARC |
| GPU | B580 |
| Engine Clock | 2800 MHz |
| PCI EXPRESS | 4 |
| MEMORY CLOCK | 19 Gbps |
| MEMORY SIZE | 12 GB |
| MEMORY INTERFACE | 192-BIT |
| MEMORY TYPE | GDDR6 |
| OpenGL | 4.6 |
| PORTS | HDMI,DisplayPort |
| DirectX | 12 Ultimate |
| RESOLUTION | 7680 x 4320 |
| COOLER | Triple Fan |
| Max Display Support | 4 |
| Recommended PSU | 650W |
| POWER CONNECTORS | 2 x 8-pin |
| WARRANTY | 3 Years |
| NOTE** | ***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
