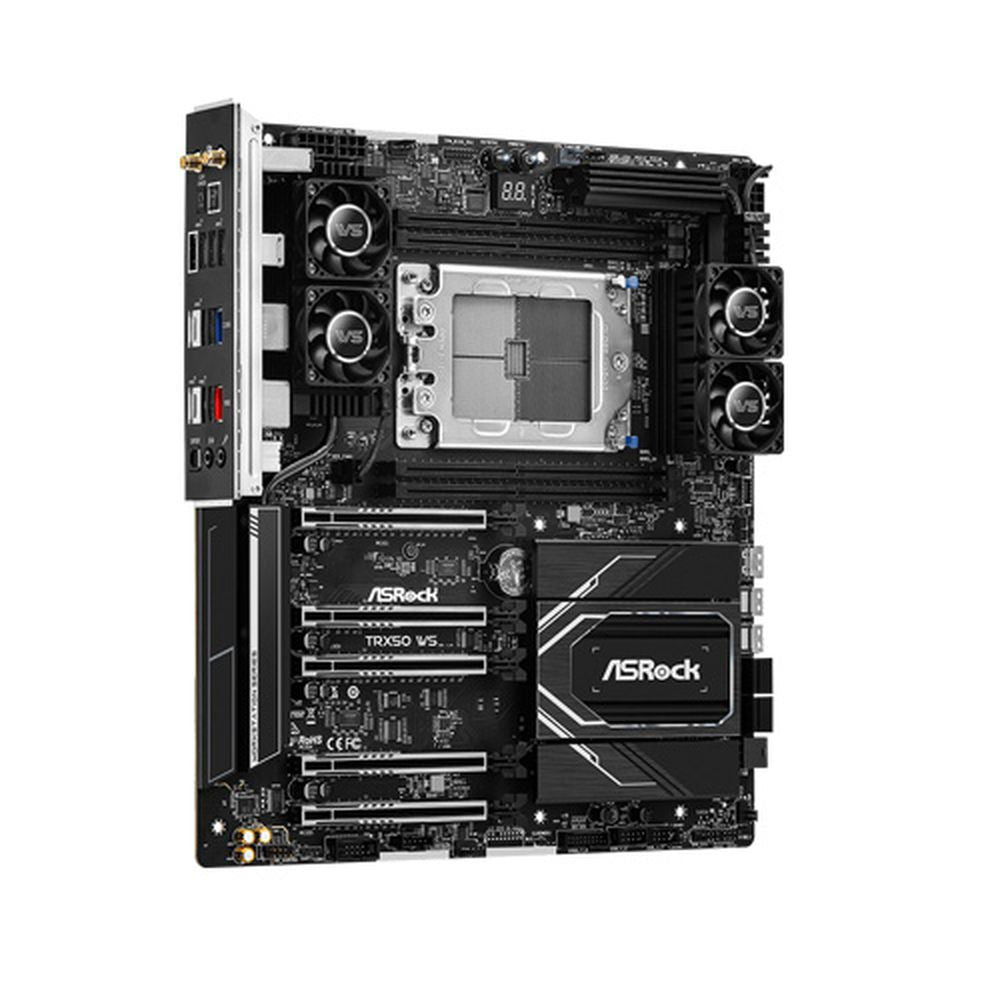

ASROCK TRX50 WS Amd Ryzen 7000 EATX DDR5 STR5 Threadripper Motherboard
MPN ASROCK-TRX50-WS-AMD-RYZEN-7000-DDR5 · Brand ASROCK · – EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm– 12 Layer PCB– 2oz Copper PCB
The ASRock TRX50 WS is an EATX workstation motherboard for AMD Ryzen Threadripper and Threadripper PRO 7000 Series processors, featuring quad-channel DDR5 ECC memory up to 1TB, three PCIe 5.0 x16 slots, 10 GbE + 2.5 GbE dual LAN, and Wi-Fi 6E on the AMD TRX50 chipset
Inclusive of GST · GST invoice available
Overview
The ASRock TRX50 WS is an EATX workstation motherboard built on the AMD TRX50 chipset, designed to support both AMD Ryzen Threadripper PRO 7000 and AMD Ryzen Threadripper 7000 Series processors via the AMD sTR5 socket. It is aimed at content creators, engineers, and professional workstation builders who need high core-count compute capacity combined with enterprise-grade memory reliability and broad I/O. The board features a 18+3+3 power phase design with 110A Smart Power Stages for the VCore, paired with a composite VRM heatsink incorporating active cooling fans, large aluminium heatsinks, and a heat pipe to manage thermals under sustained workloads. The PCB itself is constructed with 12 layers and 2oz copper inner layers, with a server-grade ultra low-loss PCB specification that supports PCIe 5.0 signalling for both graphics and M.2 storage. Memory support spans four DDR5 DIMM slots operating in quad-channel mode, accommodating DDR5 ECC Registered (RDIMM and RDIMM-3DS) modules up to a maximum system capacity of 1TB, with overclocking support up to DDR5-7600+ (OC). For expansion, the board provides three PCIe 5.0 x16 slots (PCIE1 and PCIE3 operating at x16; PCIE4 at x8) and two PCIe 4.0 x16 slots (PCIE2 at x4 mode; PCIE5 at x8 mode). Storage connectivity includes one Blazing M.2 socket (PCIe Gen5 x4), one MCIO PCIe Gen5 x4 connector, two SlimSAS SFF-8654 connectors (PCIe Gen4 x4 or 4x SATA3), one Hyper M.2 socket (PCIe Gen4 x4), and four SATA3 6.0 Gb/s ports. RAID 0, 1, and 10 are supported for both SATA and NVMe M.2 devices. Networking is handled by dual wired LAN controllers: a Marvell AQC113 providing 10 Gigabit Ethernet and a Realtek Dragon RTL8125BG delivering 2.5 Gigabit Ethernet. Wireless connectivity is provided by an 802.11ax Wi-Fi 6E module supporting 2.4 GHz, 5 GHz, and 6 GHz bands with 2×2 MU-MIMO and Bluetooth 5.2. The rear I/O panel includes one USB 3.2 Gen2x2 Type-C port at 20 Gb/s, four USB 3.2 Gen2 Type-A ports at 10 Gb/s, one USB 3.2 Gen2 Type-C port at 10 Gb/s, two USB 3.2 Gen1 Type-A ports, dual RJ-45 LAN ports, optical S/PDIF output, gold audio jacks, a Clear CMOS button, and a BIOS Flashback button. Front panel headers provide additional USB 3.2 Gen2 Type-C, Gen1 Type-A, and USB 2.0 connectivity. Audio is managed by the Realtek ALC1220 codec delivering 7.1-channel HD audio with Nahimic Audio software enhancement. Verified Specifications: - Form Factor: EATX, 12.0 in × 10.9 in (30.5 cm × 27.7 cm) - Chipset: AMD TRX50 - CPU Socket: AMD sTR5 - Memory: 4× DDR5 DIMM, Quad-Channel, ECC RDIMM/RDIMM-3DS, up to 1TB, DDR5-7600+(OC) - PCIe Slots: 3× PCIe 5.0 x16, 2× PCIe 4.0 x16 - M.2: 1× PCIe Gen5 x4 (Blazing), 1× PCIe Gen4 x4 (Hyper) - LAN: 10 GbE (Marvell AQC113) + 2.5 GbE (Realtek RTL8125BG) - Wi-Fi: 802.11ax Wi-Fi 6E + Bluetooth 5.2 - Audio: Realtek ALC1220, 7.1 CH HD - BIOS: 256Mb AMI UEFI - PCB: 12-layer, 2oz copper, ultra low-loss - Power: 18+3+3 phase, 110A SPS VCore - OS Support: Microsoft Windows 11 64-bit - Warranty: 3 Years - Certifications: FCC, CE, ErP/EuP ready

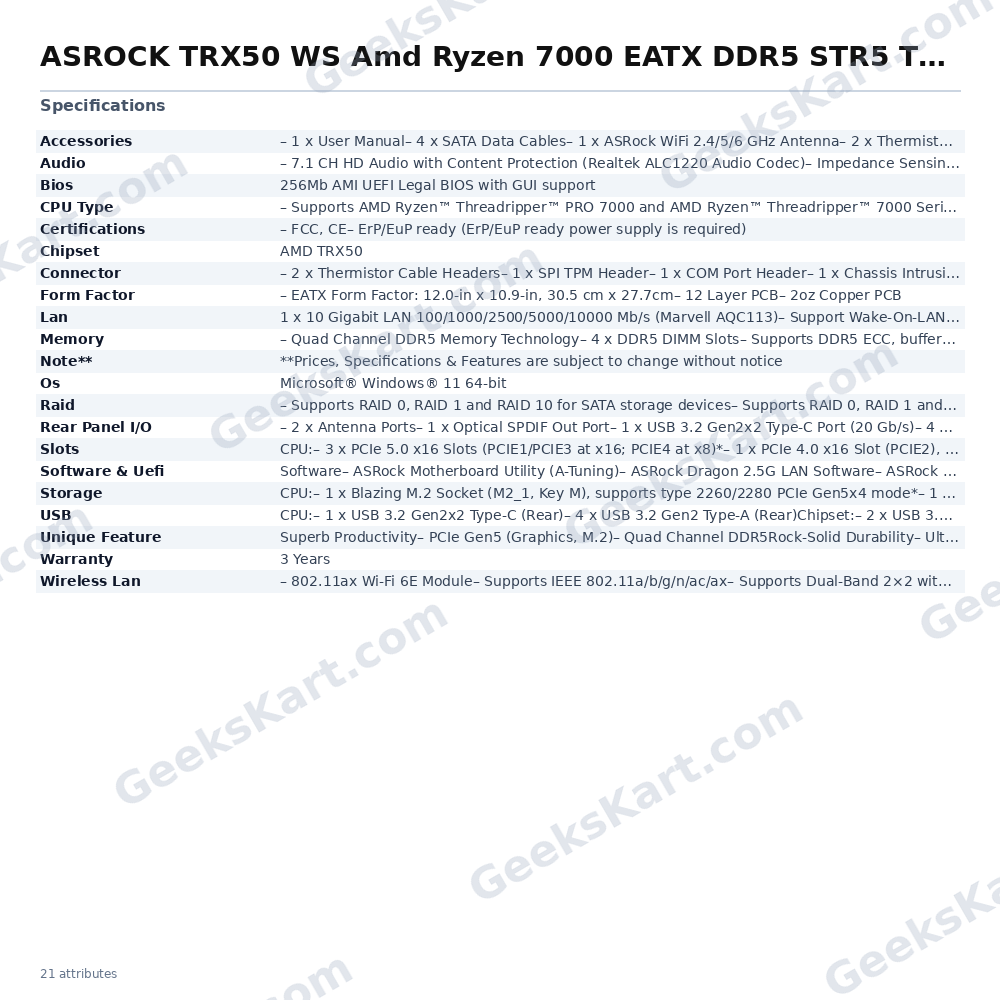

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | AMD TRX50 |
| CPU Type | – Supports AMD RyzenTM ThreadripperTM PRO 7000 and AMD RyzenTM ThreadripperTM 7000 Series Processors– Supports AMD Socket sTR5– Supports ASRock Hyper BCLK Engine |
| Os | Microsoft® Windows® 11 64-bit |
| Lan | 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113)– Support Wake-On-LAN– Support PXE1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)– Supports Dragon 2.5G LAN Software– Smart Auto Adjust Bandwidth Control– Visual User Friendly UI– Visual Network Usage Statistics– Optimized Default Setting for Game, Browser, and Streaming Modes– User Customized Priority Control |
| USB | CPU:– 1 x USB 3.2 Gen2x2 Type-C (Rear)– 4 x USB 3.2 Gen2 Type-A (Rear)Chipset:– 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)– 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)– 4 x USB 2.0 (Front) |
| Bios | 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)– Impedance Sensing on Rear Out port– Individual PCB Layers for R/L Audio Channel– Nahimic Audio |
| Slots | CPU:– 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE4 at x8)*– 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*– 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode*Chipset:– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module– 15μ Gold Contact in VGA PCIe Slots |
| Memory | – Quad Channel DDR5 Memory Technology– 4 x DDR5 DIMM Slots– Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC)– Max. capacity of system memory: 1TB |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Storage | CPU:– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode*– 1 x MCIO PCIe Gen5x4 Connector– 2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)Chipset:– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode*– 4 x SATA3 6.0 Gb/s Connectors |
| Connector | – 2 x Thermistor Cable Headers– 1 x SPI TPM Header– 1 x COM Port Header– 1 x Chassis Intrusion and Speaker Header– 2 x Addressable LED Headers*– 1 x CPU Fan Connector (4-pin)**– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)– 1 x 3 pin ATX Power Connector*****– 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)******– 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)******– 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) (for PCIe card)*******– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)– 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)– 1 x Dr. Debug with LED– 1 x Power Button with LED– 1 x Reset Button with LED |

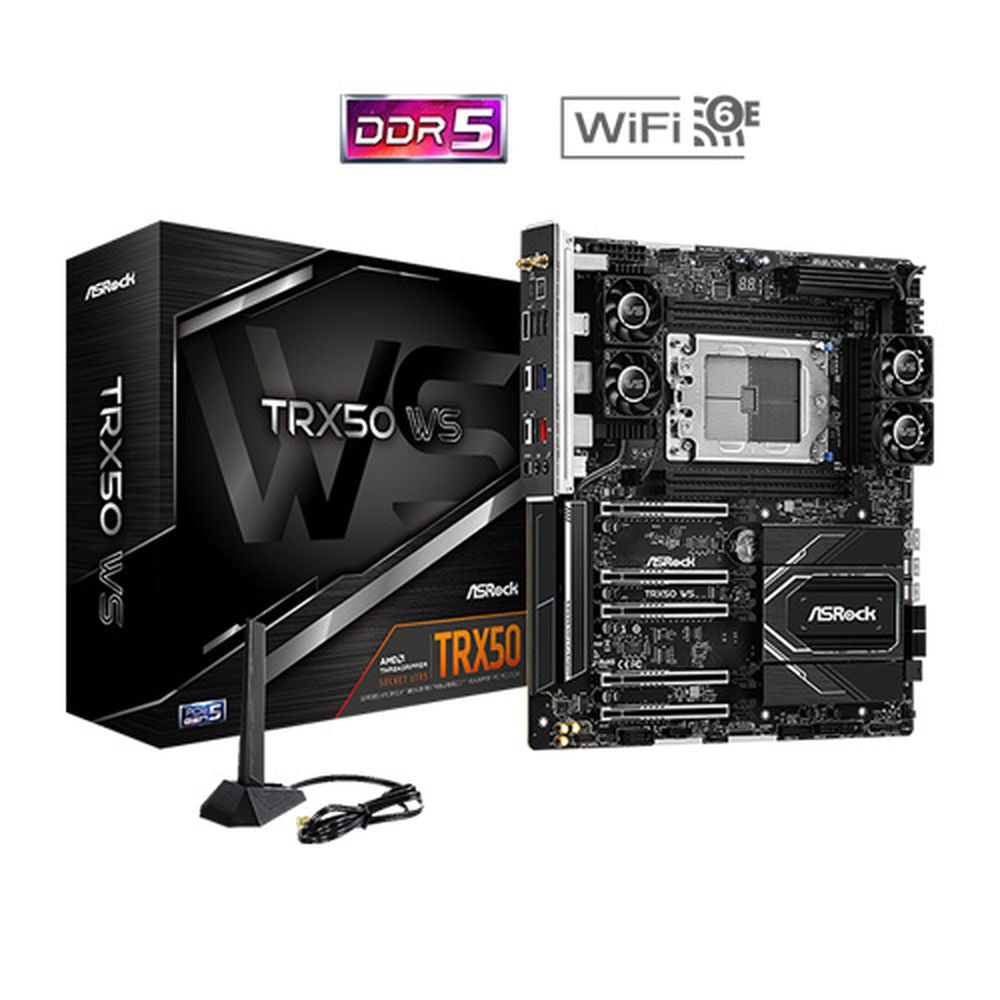

| Accessories | – 1 x User Manual– 4 x SATA Data Cables– 1 x ASRock WiFi 2.4/5/6 GHz Antenna– 2 x Thermistor Cables– 1 x Multi PSU Adaptor Cable– 2 x Screws for M.2 Sockets– 2 x Standoffs for M.2 Sockets |
| Wireless Lan | – 802.11ax Wi-Fi 6E Module– Supports IEEE 802.11a/b/g/n/ac/ax– Supports Dual-Band 2×2 with extended 6GHz band support*– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology– Supports Bluetooth 5.2 + High speed class II– Supports MU-MIMO |
| Certifications | – FCC, CE– ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 2 x Antenna Ports– 1 x Optical SPDIF Out Port– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)– 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)– 2 x USB 3.2 Gen1 Type-A Ports– 2 x RJ-45 LAN Ports– 1 x Clear CMOS Button– 1 x BIOS Flashback Button– 1 x Line Out Jack (Gold Audio Jack)– 1 x Microphone Input Jack (Gold Audio Jack) |
| Unique Feature | Superb Productivity– PCIe Gen5 (Graphics, M.2)– Quad Channel DDR5Rock-Solid Durability– Ultra Low-Loss PCB– 18+3+3 Power Phase, 110A SPS for VCore– Pre-Installed I/O Shield– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)Ultrafast Connectivity– 10G LAN, 2.5G LAN, 802.11ax Wi-Fi 6E ModuleEZ Update– BIOS Flashback Button– ASRock Auto Driver Installer |
| Software & Uefi | Software– ASRock Motherboard Utility (A-Tuning)– ASRock Dragon 2.5G LAN Software– ASRock Polychrome SYNC*UEFI– ASRock Full HD UEFI– ASRock Auto Driver Installer– ASRock Instant Flash |
| Form Factor | – EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm– 12 Layer PCB– 2oz Copper PCB |
