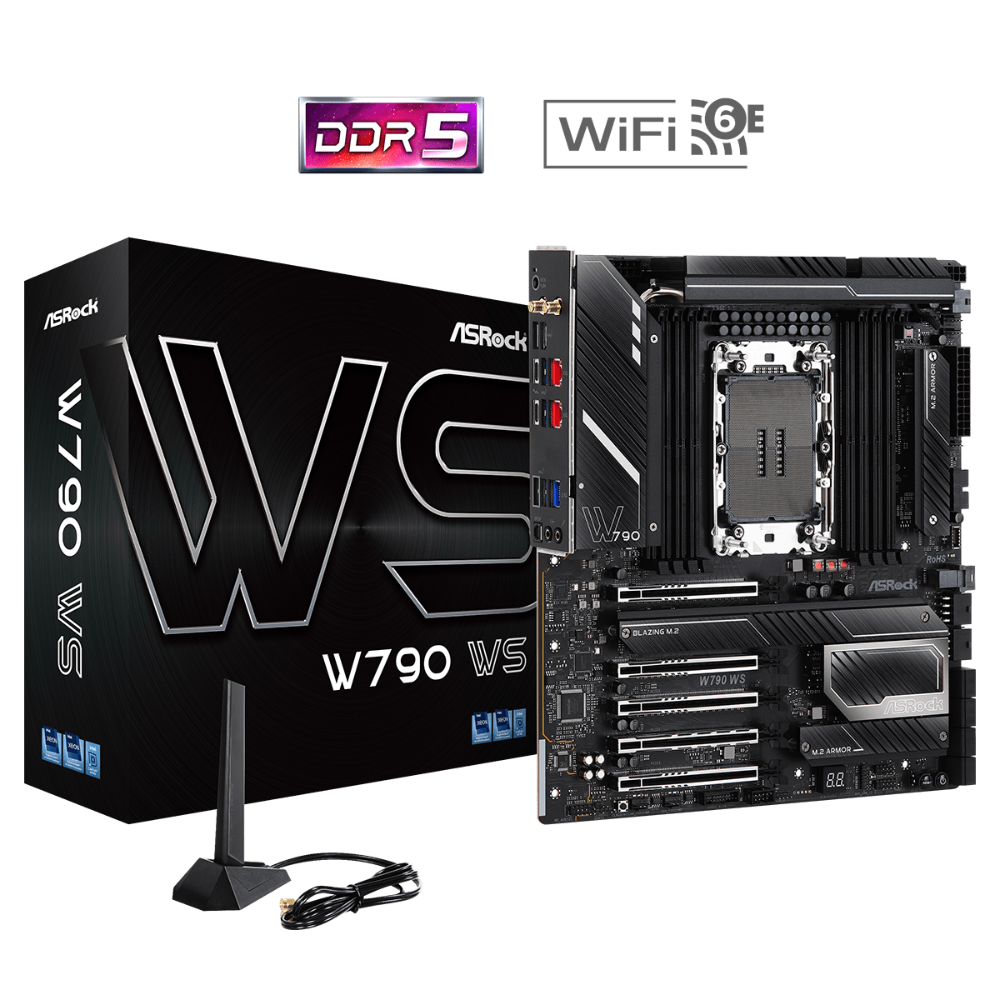

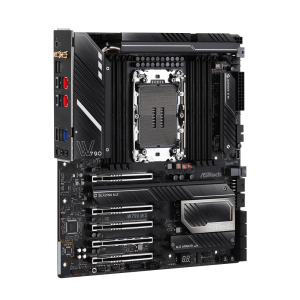

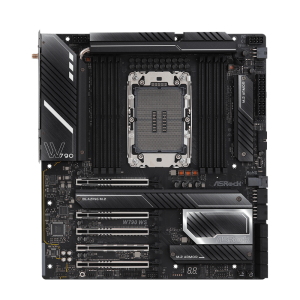

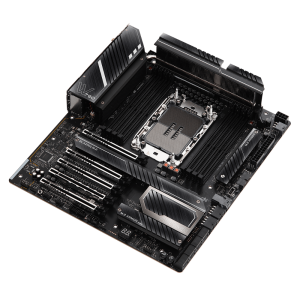

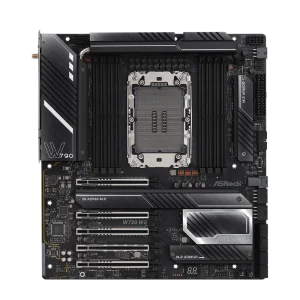

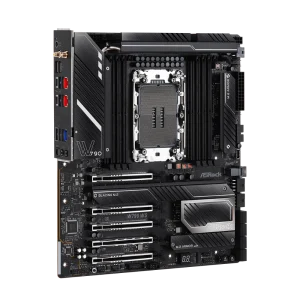

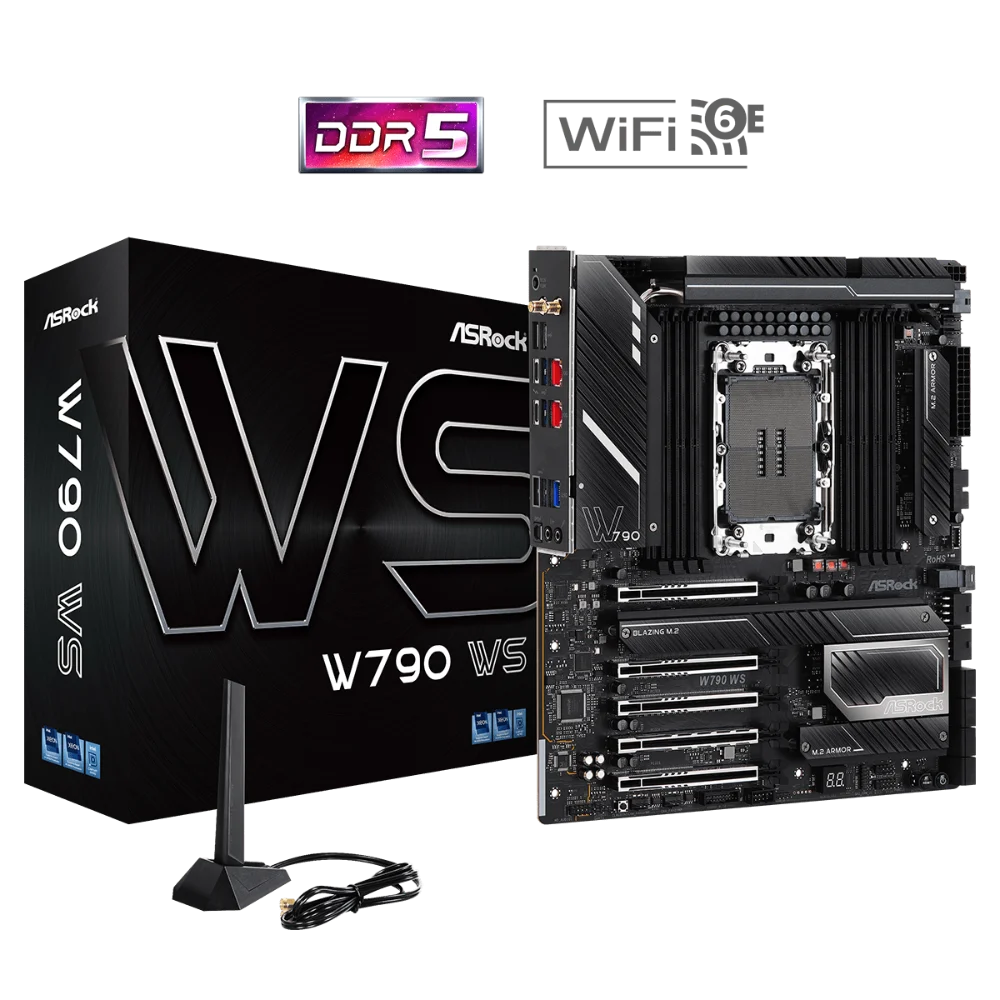

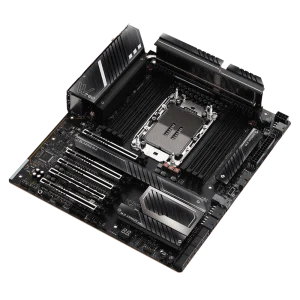

ASROCK W790 WS DDR5 Intel Motherboard
MPN ASROCK-W790-WS-INTEL · Brand ASROCK · E-ATX
ASRock W790 WS DDR5 is a professional EATX workstation motherboard for Intel Xeon W-3400/W-2400 (LGA4677) processors, featuring 8 DDR5 ECC slots up to 2TB, four PCIe 5.0 x16 slots, dual 10GbE LAN, Wi-Fi 6E, and dual Thunderbolt 4 Type-C ports
Inclusive of GST · GST invoice available
Overview
The ASRock W790 WS is a professional-grade EATX workstation motherboard built around the Intel W790 chipset and LGA4677 socket, designed to support 4th Generation Intel Xeon W-3400 and W-2400 series processors. With its 20+2 power phase design and 90A Smart Power Stage (SPS) Dr.MOS components, the board delivers clean, stable voltage to demanding multi-core Xeon processors, while a composite VRM heatsink — incorporating an XXL aluminum-alloy body, aluminum fin array, heat pipe, and triple EBR cooling fans — keeps the power delivery subsystem well within thermal limits under sustained workloads. Memory support is equally ambitious: eight DDR5 DIMM slots arranged in quad-channel configuration accept DDR5 ECC buffered memory (RDIMM, RDIMM-3DS, and RDIMM-9x4), with a maximum system capacity of 2TB and overclocking headroom up to DDR5-6800+. The 14-layer server-grade ultra-low-loss PCB reinforces signal integrity across the entire board, a prerequisite for reliable operation at PCIe 5.0 and high-frequency memory speeds. Four CPU-connected PCIe 5.0 x16 slots (PCIE1 and PCIE3 at full x16 electrical; PCIE2 and PCIE5 at x8) cater to multi-GPU and multi-accelerator configurations for deep learning, 3D rendering, and scientific simulation. Four board M.2 Key-M sockets — all CPU-direct and running PCIe Gen5 x4 at up to 128 Gb/s — support the fastest NVMe SSDs available. Additional storage options include eight SATA3 6 Gb/s connectors, a U.2 port at PCIe Gen4 x4 (64 Gb/s), and RAID 0/1/5/10 support for both SATA and NVMe arrays. Connectivity is a standout strength: two Marvell (Aquantia) AQC113CS controllers provide dual 10GbE LAN ports, while an Intel I225LM controller adds a 2.5GbE port with Intel vPro and Active Management Technology support. An 802.11ax Wi-Fi 6E module with Bluetooth 5.3 delivers wireless connectivity across 2.4 GHz, 5 GHz, and 6 GHz bands. Two rear Thunderbolt 4 / USB4 Type-C ports enable 40 Gb/s data transfers and connection of external displays or peripherals via a single cable. A front-panel USB 3.2 Gen2x2 Type-C header rounds out high-speed USB options. System management is addressed through BIOS Flashback (CPU-free firmware updates), ASRock's Auto Driver Installer (Ethernet driver pre-loaded in BIOS ROM), a Dr. Debug LED readout, and a 256Mb AMI UEFI GUI. The board carries FCC, CE, ErP/EuP, and CEC Tier II certifications. Key Verified Specifications: - Form Factor: EATX, 12.0 in x 10.9 in (30.5 cm x 27.7 cm), 14-layer PCB - Socket / Chipset: LGA4677 / Intel W790 - CPU Support: 4th Gen Intel Xeon W-3400 and W-2400 series - Memory: 8x DDR5 DIMM, Quad-Channel, DDR5 ECC RDIMM up to 6800+(OC), max 2TB - PCIe Slots: 4x PCIe 5.0 x16 (CPU); 1x PCIe 4.0 x16/x4 (Chipset) - M.2 Sockets: 4x PCIe Gen5 x4 (128 Gb/s) Key-M - SATA: 8x SATA3 6 Gb/s; 1x U.2 PCIe Gen4 x4 - LAN: 2x 10GbE (Marvell AQC113CS) + 1x 2.5GbE (Intel I225LM, vPro) - Wireless: Wi-Fi 6E 802.11ax, Bluetooth 5.3 - USB Rear: 2x Thunderbolt 4 Type-C, 2x USB 3.2 Gen2 Type-A, 4x USB 3.2 Gen1 - Audio: Realtek ALC897 7.1 CH HD Audio + Nahimic Audio - OS: Windows 10/11 64-bit, Linux

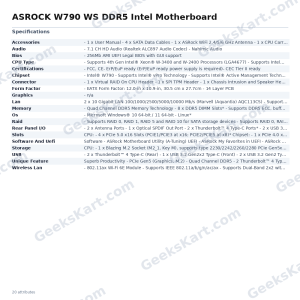

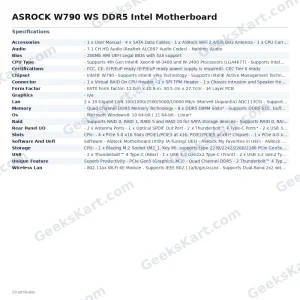

Datasheet
| Form Factor | E-ATX |
|---|---|
| Chipset | – Intel® W790 – Supports Intel® vPro Technology – Supports Intel® Active Management Technology |
| CPU Type | |
| Os | – Microsoft Windows® 10 64-bit / 11 64-bit – Linux* |
| Lan | 2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS) – Support Wake-On-LAN – Support PXE 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I225LM) – Support Wake-On-LAN – Support PXE – Supports Intel® vPro Technology |
| USB | – 2 x Thunderbolt™ 4 Type-C (Rear) – 1 x USB 3.2 Gen2x2 Type-C (Front) – 2 x USB 3.2 Gen2 Type-A (Rear) – 8 x USB 3.2 Gen1 (4 Rear, 4 Front) – 3 x USB 2.0 (Front) |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
| Slots | CPU: – 4 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE2/PCIE5 at x8)* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* – 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – 15μ Gold Contact in VGA PCIe Slots |
| Memory | – Quad Channel DDR5 Memory Technology – 8 x DDR5 DIMM Slots* – Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS/ RDIMM-9×4) up to 6800+(OC)** – Max. capacity of system memory: 2TB |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2230/2242/2260/2280 PCIe Gen5x4 (128 Gb/s) mode* – 2 x Blazing M.2 Sockets (M2_2 and M2_3, Key M), support type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: – 8 x SATA3 6.0 Gb/s Connectors – 1 x U.2 Connector, supports PCIe Gen4x4 (64 Gb/s) mode |
| Graphics | – n/a |
| Connector | – 1 x Virtual RAID On CPU Header – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for Motherboard) – 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)**** – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)***** – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – 1 x Clear CMOS Button – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button with LED |
| Accessories | – 1 x User Manual – 4 x SATA Data Cables – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 1 x CPU Carrier for LGA 4677 E1A – 1 x CPU Carrier for LGA 4677 E1B – 4 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets |
| Wireless Lan | – 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band support* – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.3 + High speed class II – Supports MU-MIMO |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)- CEC Tier II ready |

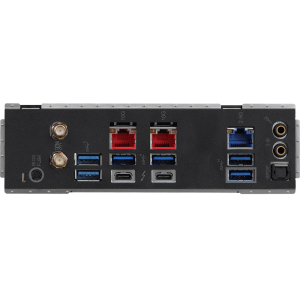

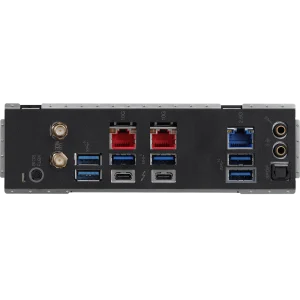

| Rear Panel I/O | – 2 x Antenna Ports – 1 x Optical SPDIF Out Port – 2 x Thunderbolt™ 4 Type-C Ports* – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) – 4 x USB 3.2 Gen1 Ports – 3 x RJ-45 LAN Ports – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Quad Channel DDR5 – 2 Thunderbolt™ 4 Type-C Rock-Solid Durability – Ultra Low-Loss PCB – 20+2 Power Phase, 90A SPS with Enlarged Heatsink Armor – Flexible Integrated I/O Shield – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity – Dual Marvell (Aquantia) 10GbE LAN – Intel® 2.5GbE LAN – Intel® vPro for Workstations with Intel® Advanced Management Technology – 802.11ax Wi-Fi 6E Module EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer |
| Software And Uefi | Software – ASRock Motherboard Utility (A-Tuning) UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer |
