Feature of ASRock X570 Aqua DDR4

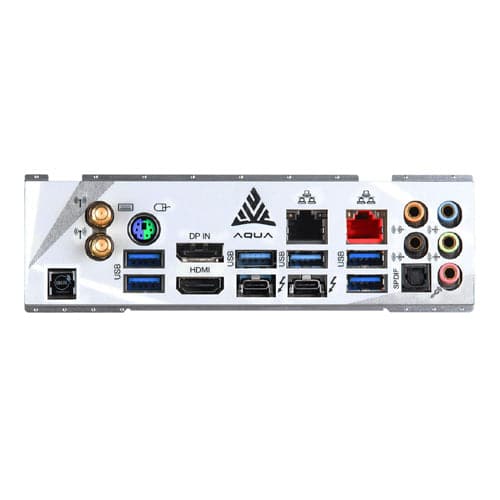

Not only visual satisfaction is necessary but also audio! Get the best hypnotic sounds with the Asrock X570 AQUA Motherboard of 7.1 CH HD Audio to feel like a pro! The Asrock X570 AQUA Motherboard has maximum memory support of 128Gb.On the rear panel port, Asrock X570 AQUA Motherboard has 1 keyboard and 1 mouse connector, along with 1 HDMI port and 1 audio port. The dimensions of Asrock X570 AQUA Motherboard are 12.0″ x 10.5″.The hardware monitors the temperature, Fan Tachometer, quiet fan control, voltage. Installation is super easy as the package includes a quick installation guide for user’s ease and 8 x SATA Data Cables along with 1 x Screw for M.2 Socket. Along with all this the amusing Asrock X570 AQUA Motherboard also comes with a complete warranty of three whole years!
- Supports AMD AM4 Socket Ryzen 2000 and 3000 Series processors
- Supports DDR4 5200+ (OC)
- Intel Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
- AQUANTIA® 10G LAN, Intel® Gigabit LAN
- 3 PCIe 4.0 x16, 3 PCIe 2.0 x1
- NVIDIA NVLink, Quad SLI™, AMD 3-Way CrossFireX
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- Supports Supports DTS Connect
- 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
- 1 Front USB 3.2 Gen2 Type-C, 10 USB 3.2 Gen1 (4 Front, 6 Rear)
- 2 Intel® Thunderbolt 3 Type-C
DEFY THE LIMITS
ASRock is a company that is always open for new challenges, seeking ways to defy the limits.
The X570 AQUA was created to be different, using the latest and greatest technology with revolutionary design philosophy.
LIMITED EDITION YOUR MASTERPIECE MOTHERBOARD

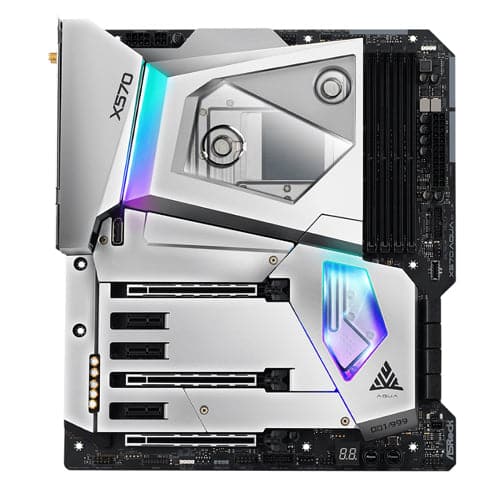

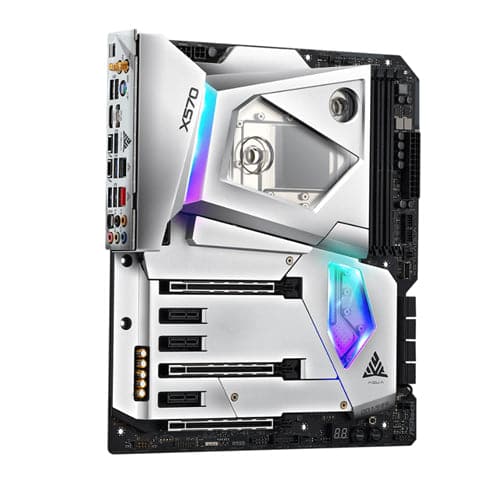

Unprecedentedly created to be the best without any compromise, the sophistically designed water block and aluminum cover that defines the gorgeous look of X570 AQUA. This is a premium motherboard using top luxury material, applying high class specification. It’s a rare and superior motherboard in the market! X570 AQUA is undoubtedly the center of everything with limited 999 made only.
DESIGNED BY ENTHUSIAST, MADE TO PERFECTION
ASROCK X570 Aqua is the only completely water-cooled X570 motherboard – its unique all-copper cooling block covers the CPU, VRM and X570 Chipset to provide unbelievable performance and stability, X570 AQUA is the ultimate selection for the water cooling fanatics.

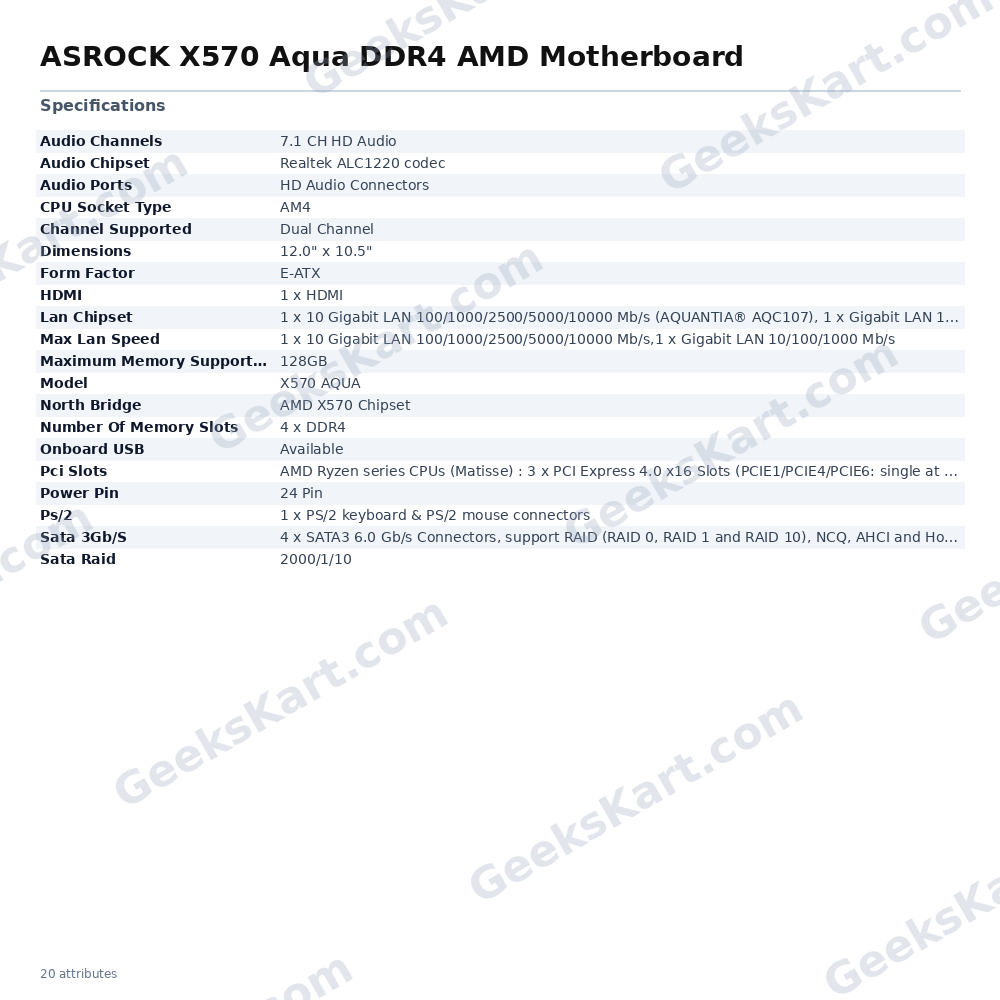

Specifications of ASRock X570 Aqua DDR4
| Brand | ASRock |
| Model | X570 AQUA |
| CPU Socket Type | AM4 |
| North Bridge | AMD X570 Chipset |
| Number of Memory Slots | 4 x DDR4 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Slots | AMD Ryzen series CPUs (Matisse): 3 x PCI Express 4.0 x16 Slots (PCIE1/PCIE4/PCIE6: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4); triple at x8 (PCIE1) / x8 (PCIE4) / x4 (PCIE6)), AMD Ryzen |
| SATA 3Gb/s | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, 4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug |
| SATA RAID | 2000/1/10 |
| Onboard Video Chipset | N/A |
| Audio Chipset | Realtek ALC1220 codec |
| Audio Channels | 7.1 CH HD Audio |
| Max LAN Speed | 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s,1 x Gigabit LAN 10/100/1000 Mb/s |
| LAN Chipset | 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (AQUANTIA® AQC107), 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I211AT) |
| PS/2 | 1 x PS/2 keyboard & PS/2 mouse connectors |
| HDMI | 1 x HDMI |
| Audio Ports | HD Audio Connectors |
| Onboard USB | Available |
| Onboard 1394 | N/A |
| Form Factor | E-ATX |
| Dimensions | 12.0″ x 10.5″ |
| Power Pin | 24 Pin |
