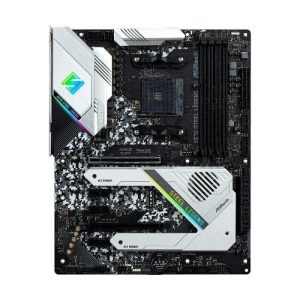

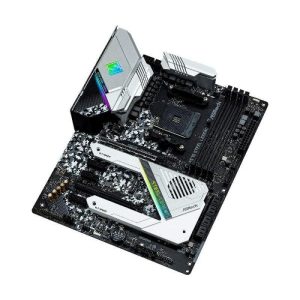

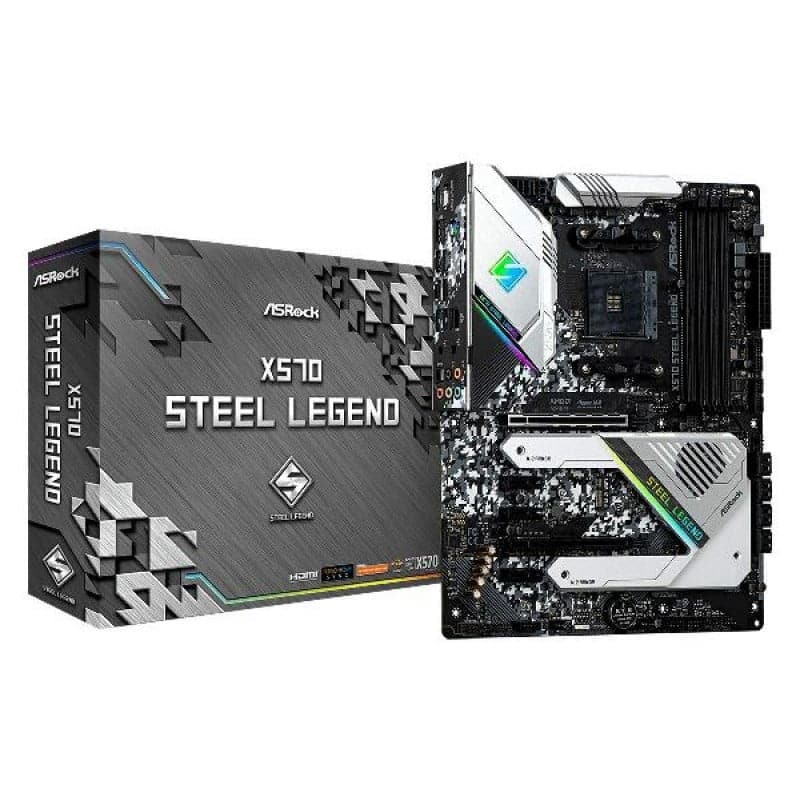

ASROCK X570 Steel Legend DDR4 AMD Motherboard
MPN ASROCK-X570-STEELLEGEND-MOTHERBOARD · Brand ASROCK · ATX
The ASRock X570 Steel Legend is an AMD AM4 ATX motherboard featuring the X570 chipset, PCIe 4.0 support, dual Hyper M.2 Gen4 slots, a 10-phase power design, and Polychrome SYNC RGB lighting — compatible with Ryzen 2000 and 3000 series processors
Inclusive of GST · GST invoice available
Overview
The ASRock X570 Steel Legend is a full-size ATX motherboard built on the AMD X570 chipset, designed for AMD AM4 socket processors including Ryzen 2000 and Ryzen 3000 series (Matisse, Pinnacle Ridge, and Picasso). Its ATX form factor measures 12.0 x 9.6 inches (30.5 x 24.4 cm), fitting standard mid-tower and full-tower cases with ease. At the heart of the board's power delivery is a 10-phase design using an Intersil Digital PWM controller, supported by 50A Dr.MOS components, a Premium 60A Power Choke, and Nichicon 12K Black Caps — all contributing to stable CPU power under sustained workloads. The Super Alloy construction includes a 2oz Copper PCB and High Density Glass Fabric PCB for enhanced signal integrity and longevity. For memory, the board offers four DDR4 DIMM slots in dual-channel configuration, supporting up to 128GB of capacity. With a Ryzen 3000 (Matisse) processor installed, DDR4 speeds up to 4666 MHz (OC) are achievable, while native speeds of 2133 to 3200 MHz are supported across all compatible CPU families. Expansion is handled by two PCIe x16 slots and three PCIe x1 slots. With a Matisse CPU, both x16 slots operate at PCIe 4.0, enabling full-bandwidth GPU and add-in card connectivity. AMD Quad CrossFireX multi-GPU configurations are supported. Storage options include eight SATA3 6.0 Gb/s connectors with RAID 0/1/10 support, one Hyper M.2 slot (M2_1) supporting PCIe Gen4 x4 up to 64 Gb/s with Matisse CPUs, and a second Hyper M.2 slot (M2_2) supporting both PCIe Gen4 x4 and SATA3 modules. Both M.2 slots are covered by ASRock's Full Coverage M.2 Heatsink to manage thermal output. Audio is delivered by a Realtek ALC1220 codec in a 7.1-channel HD configuration, augmented by Nichicon Fine Gold Series Audio Caps, an NE5532 headset amplifier supporting up to 600-ohm headsets, PCB channel isolation, and gold-plated audio jacks. Rear I/O includes one USB 3.2 Gen2 Type-A and one USB 3.2 Gen2 Type-C port (both at 10 Gb/s), six USB 3.2 Gen1 ports, HDMI 2.0 and DisplayPort 1.2 video outputs (for APU-based systems), an optical S/PDIF output, a PS/2 port, and an Intel I211AT Gigabit Ethernet port with Energy Efficient Ethernet 802.3az support. Two antenna ports on the I/O shield prepare the board for optional Wi-Fi module installation via the onboard Key-E M.2 slot. RGB lighting is managed through ASRock Polychrome SYNC, with one 12V RGB header and one 5V addressable LED header for connecting compatible strips and accessories. Verified Specifications: - Socket: AMD AM4 - Chipset: AMD X570 - Form Factor: ATX, 12.0 x 9.6 in (30.5 x 24.4 cm) - Memory: 4x DDR4 DIMM, dual-channel, max 128GB, up to DDR4-4666 (OC) with Matisse - PCIe Slots: 2x PCIe x16 (Gen4 with Matisse), 3x PCIe x1 (Gen4) - Storage: 8x SATA3 6Gb/s (RAID 0/1/10), 2x Hyper M.2 (PCIe Gen4 x4, up to 64 Gb/s) - Audio: Realtek ALC1220, 7.1 CH HD - LAN: Intel I211AT Gigabit (10/100/1000 Mb/s) - Rear USB: 1x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C, 6x USB 3.2 Gen1 - Power Phases: 10-phase with Intersil Digital PWM, 50A Dr.MOS - Warranty: 3 years

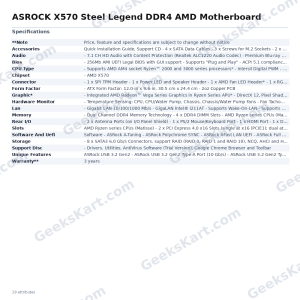

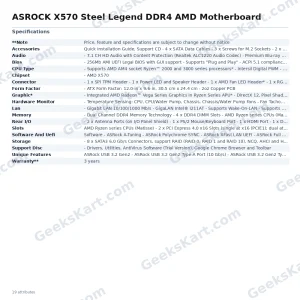

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | – AMD X570 |
| CPU Type | – Supports AMD AM4 socket RyzenTM 2000 and 3000 series processors* – Intersil Digital PWM – 10 Power Phase design |
| Lan | – Gigabit LAN 10/100/1000 Mb/s – GigaLAN Intel® I211AT – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support – Supports "Plug and Play" – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, 1.8V, VDDP Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – Supports Purity Sound™ 4 – Nichicon Fine Gold Series Audio Caps – NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) – Pure Power-In – Direct Drive Technology – PCB isolate shielding – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Gold Audio Jacks – 15μ Gold Audio Connector |
| Slots | AMD Ryzen series CPUs (Matisse) – 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* AMD Ryzen series CPUs (Pinnacle Ridge) – 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* AMD Ryzen series CPUs (Picasso) – 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))* – 3 x PCI Express 4.0 x1 Slots – Supports AMD Quad CrossFireX™ and CrossFireX™ – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module – 15μ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks |
| **Note | Price, feature and specifications are subject to change without notice |
| Memory | – Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Matisse) support DDR4 4666 (OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600 (OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Picasso) support DDR4 3466 (OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* – Max. capacity of system memory: 128GB** – 15μ Gold Contact in DIMM Slots *For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs. Please refer to below table for AMD non-XMP memory frequency support. Ryzen Series CPUs (Matisse): Ryzen Series CPUs (Pinnacle Ridge): Ryzen Series CPUs (Picasso): SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2 DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* – 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)* *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Support RAID 0/1/10 |
| Graphic* | – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB.** – Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) – Supports HDR (High Dynamic Range) with HDMI 2.0 – Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports – Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports – Supports Microsoft® PlayReady *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed |
| Rear I/O | – 2 x Antenna Ports (on I/O Panel Shield) – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.2 – 1 x Optical SPDIF Out Port – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) – 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB3_56 ports. ACPI wake-up function is not supported on USB3_56 ports |
| Connector | – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x AMD Fan LED Header* – 1 x RGB LED Header** – 1 x Addressable LED Header*** – 1 x CPU Fan Connector (4-pin)**** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 1 x AMD LED Fan USB Header – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) *The AMD Fan LED Header is compatible with a regular RGB LED stripe. The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. **Supports in total up to 12V/3A, 36W LED Strip ***Supports in total up to 5V/3A, 15W LED Strip ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use |
| Warranty** | 3 years |
| Accessories | Quick Installation Guide, Support CD – 4 x SATA Data Cables – 3 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets |
| Support Disc | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Unique Features | ASRock USB 3.2 Gen2 – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium 60A Power Choke – 50A Dr.MOS – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) – Combo Caps (Nichicon 12K Black Caps) – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – I/O Armor – Matte Black PCB – High Density Glass Fabric PCB – 2oz Copper PCB ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) ASRock Ultra USB Power ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans – Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans – Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, 1.8V, VDDP |
| Software And Uefi | Software – ASRock A-Tuning – ASRock Polychrome SYNC – ASRock XFast LAN UEFI – ASRock Full HD UEFI – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop |
