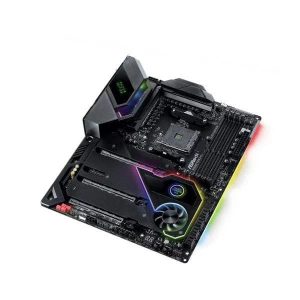

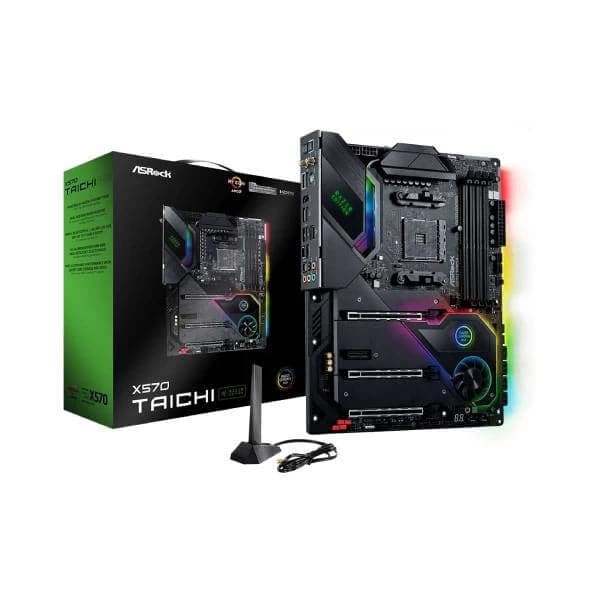

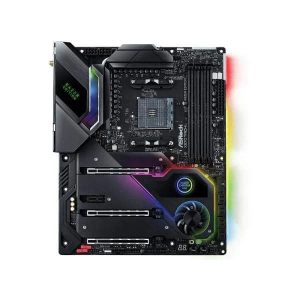

ASROCK X570 Taichi Razer Edition DDR4 AMD Motherboard
MPN ASROCK-X570-TAICHI-RAZER · Brand ASROCK · ATX
The ASRock X570 Taichi Razer Edition is an ATX AM4 motherboard featuring a 16-phase Dr.MOS VRM, three PCIe Gen4 M.2 slots, Killer 2.5 GbE and Wi-Fi 6, Realtek ALC1220 audio with ESS SABRE9218 DAC, and native Razer Chroma RGB integration via Razer Synapse 3
Inclusive of GST · GST invoice available
Overview
The ASRock X570 Taichi Razer Edition is a full-size ATX motherboard (12.0 in × 9.6 in / 30.5 cm × 24.4 cm) built on the AMD X570 chipset and designed around the AM4 socket. It supports AMD Ryzen 2000, 3000, 4000 G-Series, and 5000 Series desktop processors, making it a capable foundation for builds centred on Ryzen 5000 (Vermeer) or Ryzen 3000 (Matisse) chips. Power delivery is handled by a 16-phase digital VRM using Dr.MOS power stages rated at 50 A each, paired with a 60 A premium power choke and Nichicon 12K Black capacitors. An XXL aluminium alloy heatsink covers the VRM array to manage thermals under sustained workloads. The motherboard accepts up to four DDR4 DIMMs in dual-channel configuration, with a maximum installed capacity of 128 GB. Supported speeds range from DDR4-2133 up to DDR4-4666+ under XMP or manual overclocking, depending on the CPU installed. Storage connectivity comprises eight SATA3 6.0 Gb/s ports (supporting RAID 0, 1, and 10) and three Hyper M.2 slots. M2_1 and M2_3 accept both SATA3 and PCIe Gen4 ×4 NVMe drives (up to 64 Gb/s with Vermeer/Matisse); M2_2 is PCIe Gen4 ×4 NVMe only. All three M.2 slots include full-coverage heatsinks. Expansion slots consist of two CPU-connected PCIe 4.0 ×16 slots (running ×16/×8+×8 with Vermeer and Matisse), one chipset PCIe 4.0 ×16 slot operating at ×4, and one PCIe 4.0 ×1 slot. Multi-GPU via AMD CrossFireX and NVIDIA SLI is supported where applicable. Networking is handled by a Killer E3100G 2.5 Gigabit Ethernet controller (10/100/1000/2500 Mb/s) and a Killer AX1650x Wi-Fi 6 module supporting IEEE 802.11a/b/g/n/ax on dual-band 2.4/5 GHz with MU-MIMO, 2×2 antenna diversity, and Bluetooth 5.1. Killer DoubleShot Pro allows simultaneous use of wired and wireless interfaces, routing high-priority traffic over the faster link automatically. Audio is powered by a Realtek ALC1220 codec with an ESS SABRE9218 DAC on the front-panel output delivering a stated 130 dB SNR, WIMA audio capacitors, PCB isolation shielding between left and right channels, and Nahimic Audio software. The rear I/O includes full-size HD audio jacks with gold plating. The Razer Edition integration means the board natively connects to Razer Synapse 3, allowing unified lighting control across the onboard RGB headers (2× 12 V RGB, 2× 5 V ARGB) and any connected Razer Chroma peripherals or ARGB accessories. USB connectivity includes one USB 3.2 Gen2 Type-A and one Type-C on the rear (each at 10 Gb/s), four USB 3.2 Gen1 ports on the rear, a front-panel USB 3.2 Gen2 Type-C header, four USB 3.2 Gen1 front-panel ports (via two headers), four USB 2.0 ports (two rear, four via headers), and full ESD spike protection on all USB and LAN ports. The rear I/O panel also includes BIOS Flashback and Clear CMOS buttons for convenient firmware management. Verified Specifications: • Socket: AMD AM4 | Chipset: AMD X570 • CPU Support: Ryzen 2000 / 3000 / 4000 G-Series / 5000 Series • Memory: 4× DDR4 DIMM, dual-channel, max 128 GB, DDR4-2133 to DDR4-4666+(OC) • VRM: 16-phase, 50 A Dr.MOS, 60 A choke • Storage: 8× SATA3 + 3× Hyper M.2 (PCIe Gen4 ×4 / SATA3) • PCIe: 2× PCIe 4.0 ×16 (CPU) + 1× PCIe 4.0 ×16@×4 + 1× PCIe 4.0 ×1 (chipset) • LAN: Killer E3100G 2.5 GbE | Wi-Fi: Killer AX1650x Wi-Fi 6 + BT 5.1 • Audio: Realtek ALC1220 + ESS SABRE9218 DAC (130 dB SNR), Nahimic Audio • USB (rear): 1× Gen2 Type-A, 1× Gen2 Type-C, 4× Gen1, 2× USB 2.0 • Display: 1× HDMI 2.1 (4K@60 Hz, HDR, HDCP 2.3; APU required) • Form Factor: ATX, 30.5 cm × 24.4 cm | PCB: 2 oz copper, matte black • Warranty: 3 Years

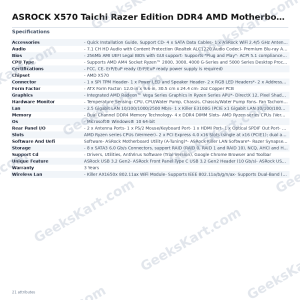

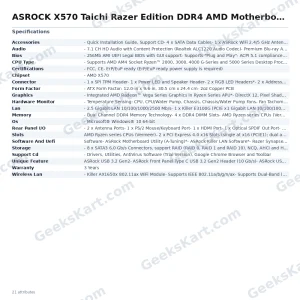

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – AMD X570 |
| CPU Type | – Supports AMD AM4 Socket RyzenTM 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors- Intersil Digital PWM- 16 Power Phase design |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)- Supports Killer LAN Software- Supports Killer DoubleShot™ Pro- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- WIMA Audio Capacitors (For Front Outputs)- ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)- Pure Power-In- Direct Drive Technology- PCB Isolate Shielding- Impedance Sensing on Rear Out port- Individual PCB Layers for R/L Audio Channel- Gold Audio Jacks- 15μ Gold Audio Connector- Nahimic Audio |
| Slots | AMD Ryzen series CPUs (Vermeer)- 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*AMD Ryzen series CPUs (Matisse)- 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*AMD Ryzen series APUs (Renoir)- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*AMD Ryzen series CPUs (Pinnacle Ridge)- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*AMD Ryzen series APUs (Picasso)- 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*AMD X570 Chipset- 1 x PCI Express 4.0 x16 Slot (x4 (PCIE4))*- 1 x PCI Express 4.0 x1 Slot- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™**- Supports NVIDIA® Quad SLI™ and SLI™***- Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards***- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)- 15μ Gold Contact in VGA PCIe Slot (PCIE1)*When Picasso is installed, this motherboard supports single graphics card on either PCIE1 or PCIE4 only.Supports NVMe SSD as boot disks**3-Way CrossFireX™ is only supported with Ryzen Series CPUs (Vermeer, Matisse, Renoir and Pinnacle Ridge).*** NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary.This feature is only supported with Ryzen Series CPUs (Vermeer, Matisse, Renoir and Pinnacle Ridge) |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory- Max. capacity of system memory: 128GB**- Supports Extreme Memory Profile (XMP) memory modules- 15μ Gold Contact in DIMM SlotsSR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module labelDR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer and Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)*- 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)*- 1 x Hyper M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)**If M2_3 is occupied, PCIE4 slot will be disabledSupports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)- Supports HDR (High Dynamic Range) with HDMI 2.1- Supports HDCP 2.3 with HDMI 2.1 Port***- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port- Supports Microsoft® PlayReady*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed.***Picasso supports HDCP 2.2 with HDMI 2.0 Port |
| Connector | – 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 2 x RGB LED Headers*- 2 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)- 1 x Dr. Debug with LED- 1 x Power Button with LED- 1 x Reset Button with LED- 1 x Clear CMOS Button*Support in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD- 4 x SATA Data Cables- 1 x ASRock WiFi 2.4/5 GHz Antenna- 1 x ASRock Screwdriver- 3 x Screws for M.2 Sockets- 2 x Standoffs for M.2 Sockets |
| Wireless Lan | – Killer AX1650x 802.11ax WiFi Module- Supports IEEE 802.11a/b/g/n/ax- Supports Dual-Band (2.4/5 GHz)- Supports Killer WiFi6 802.11ax (2.4Gbps)- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.1 + High speed class II- Supports MU-MIMO- Supports Killer LAN Software- Supports Killer DoubleShot™ Pro |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*- 2 x USB 2.0 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- 1 x Clear CMOS Button- 1 x BIOS Flashback Button- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)*Ultra USB Power is supported on USB_12 ports.ACPI wake-up function is not supported on USB_12 ports |
| Unique Feature | ASRock USB 3.2 Gen2- ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBKiller 2.5G LANKiller 802.11ax WiFiKiller DoubleShot™ ProASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4 & SATA3)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)*- ASRock Killer LAN Software*- Razer Synapse 3**UEFI- ASRock Full HD UEFI- ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop |
