ASROCK X670E Pro RS Wifi DDR5 AMD Motherboard

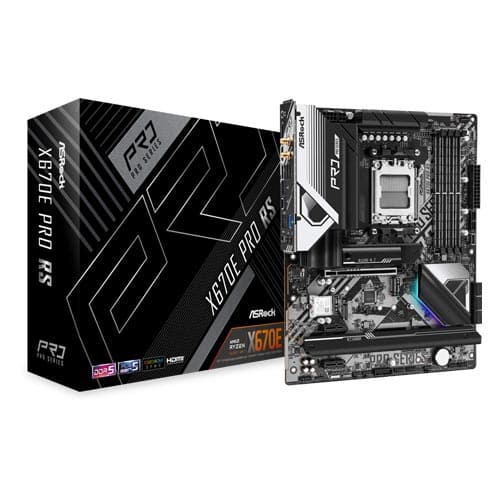

The ASRock X670E Pro RS WiFi is a full-size ATX motherboard built on the AMD X670E chipset for AMD's AM5 socket, making it compatible with AMD Ryzen 7000 series processors. At its core is a 14+2+1 power phase design using Smart Power Stage (SPS) Dr.MOS technology, which monitors the current and temperature of each power phase to deliver stable, consistent power to the CPU — a design suited to both stock operation and overclocking workloads. The board is built on an 8-layer PCB with 2oz copper inner layers and a server-grade low-loss substrate, a construction choice that improves signal integrity across the board's high-speed interfaces. This substrate enables support for PCIe 5.0 on both the primary graphics card slot and the primary M.2 slot. The primary M.2 slot (referred to as Blazing M.2) runs at PCIe Gen5 x4, offering up to 128 GB/s of theoretical bandwidth and covered by an oversized aluminum alloy heatsink for thermal management. An anti-drop screw design is included to simplify M.2 installation. For memory, the X670E Pro RS WiFi uses reinforced DDR5 DIMM slots with a built-in protection circuit designed to reduce the risk of damage during module installation or removal. The SMT-type PCIe 5.0 primary slot replaces a conventional through-hole design, improving signal flow at the high speeds the PCIe 5.0 standard demands. Networking is handled by Dragon 2.5 Gb/s LAN for wired connections — delivering up to 2.5× the bandwidth of standard gigabit Ethernet — alongside an integrated Wi-Fi 6E (802.11ax) module that extends into the 6 GHz spectrum band for reduced congestion and lower latency. The front panel includes a USB 3.2 Gen2x2 Type-C header delivering up to 20 Gbps transfer rates. Audio is powered by Nahimic Audio software, which includes static noise suppression, echo cancellation, lateral sound cancellation, and a voice stabilizer for communication clarity, alongside a 360° Sound Tracker for spatial gaming audio. ASRock's Blazing OC Tuner allows switching between manual overclocking and AMD Precision Boost Overdrive (PBO) modes dynamically from within the operating system without entering BIOS. Additional convenience features include BIOS Flashback (for updating firmware without a CPU or RAM installed), an Auto Driver Installer pre-loaded in the BIOS ROM, a flexible integrated I/O shield, and Polychrome RGB headers for addressable and standard RGB peripherals. Verified Specifications: - Chipset: AMD X670E - Socket: AM5 - Form Factor: ATX - Memory Type: DDR5 - PCIe Standard: PCIe 5.0 (graphics and primary M.2) - LAN: 2.5 Gb/s - Wireless: Wi-Fi 6E (802.11ax) - USB: Front USB 3.2 Gen2x2 Type-C (up to 20 Gbps) - PCB: 8-layer, 2oz copper, server-grade low-loss - VRM: 14+2+1 power phases with SPS Dr.MOS - Warranty: 3 Years
