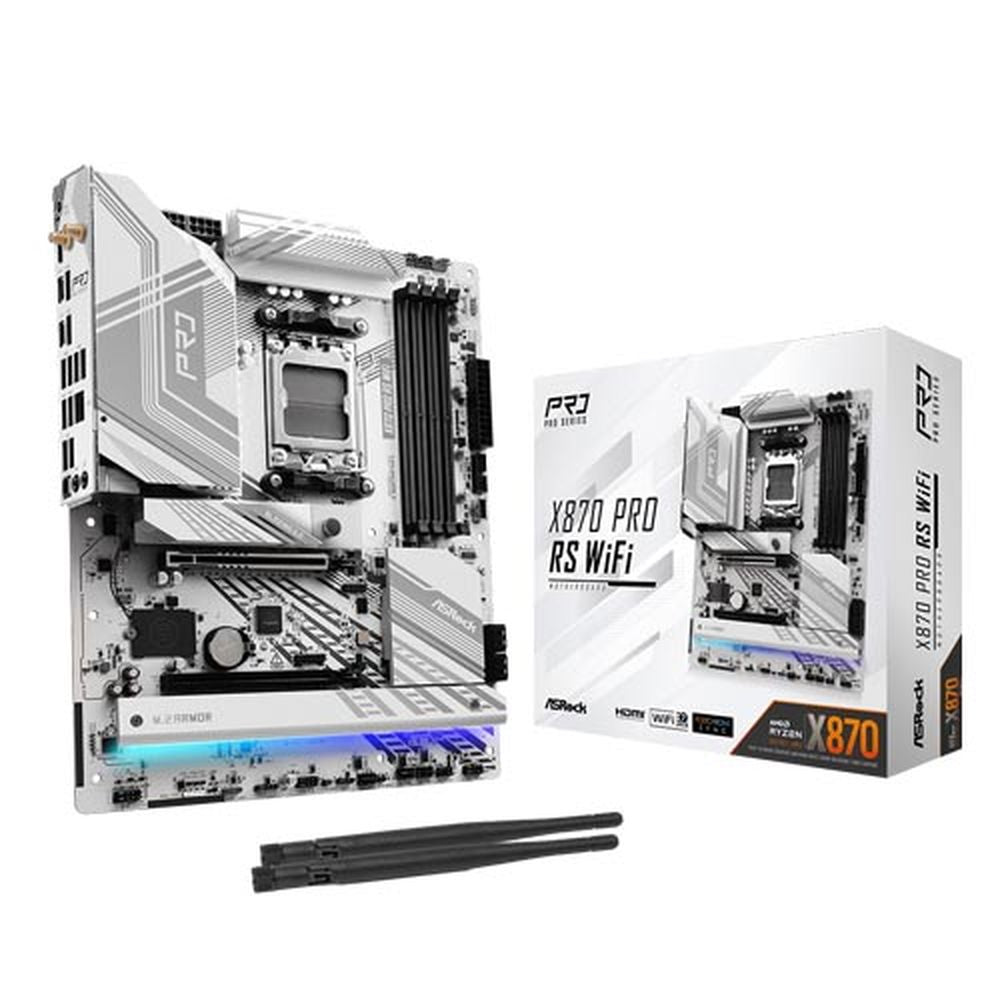

ASROCK X870 Pro RS WiFi DDR5 AMD Motherboard ( White )

The ASRock X870 Pro RS WiFi DDR5 motherboard in White is an ATX-form-factor platform built around the AMD X870 chipset and AMD Socket AM5, supporting Ryzen 9000, 8000, and 7000 series processors. Designed as the Race Sport (RS) evolution of ASRock’s popular PRO series, it pairs flagship connectivity with a robust power delivery architecture suited to enthusiast builders and content creators alike. At the heart of its power subsystem sits a 14+2+1 phase design using 80A Dr.MOS components for VCore, SOC, and miscellaneous rails, backed by an enlarged heatsink armour to keep thermals in check during sustained workloads. The 8-layer PCB construction improves signal integrity across power planes, contributing to stable operation under memory overclocking and heavy multi-threaded loads. Memory support extends across four DDR5 DIMM slots in dual-channel configuration, accepting ECC and non-ECC unbuffered modules up to a maximum capacity of 256 GB and speeds beyond DDR5-8000 via XMP and AMD EXPO profiles. For storage, the primary M.2 slot (M2_1) delivers PCIe Gen 5 x4 bandwidth at up to 128 Gb/s when paired with Ryzen 9000 or 7000 processors, while a second Gen 4 x4 slot and a third Gen 3 x4/SATA3 slot provide further flexibility. Four SATA3 6.0 Gb/s ports round out the storage options, with RAID 0 and RAID 1 support for SATA devices and RAID 0/1/10 for NVMe arrays. Connectivity is a standout: dual USB4 Type-C rear ports each operate at 40 Gb/s and support USB PD 3.0 charging, while an onboard 802.11be (Wi-Fi 7) 2×2 module covers 2.4 GHz, 5 GHz, and 6 GHz bands with Bluetooth 5.4. Wired networking is handled by the Dragon RTL8125BG 2.5 Gigabit LAN controller. A front-panel USB 3.2 Gen2×2 Type-C header adds 20 Gb/s internal connectivity for compatible cases. Audio is delivered through a Realtek ALC1220 codec providing 7.1-channel HD audio with individual PCB layers for left and right channels, impedance sensing on the rear output, and Nahimic Audio software. Display output options include an HDMI 2.1 port supporting up to 4K 120Hz, with USB4 ports capable of driving displays up to 8K 30Hz via integrated CPU graphics. Lighting customisation is supported through one RGB LED header and three addressable LED headers, managed via ASRock Polychrome SYNC. The BIOS Flashback button on the rear I/O enables CPU-less firmware updates, and the integrated I/O shield simplifies installation. Verified Specifications: – Form Factor: ATX, 12.0 in × 9.6 in (30.5 cm × 24.4 cm) – Socket: AMD AM5 – Chipset: AMD X870 – Compatible CPUs: AMD Ryzen 9000 / 8000 / 7000 series – Memory: 4× DDR5 DIMM, dual channel, up to 256 GB, DDR5-8000+ (OC), XMP & EXPO support – PCIe Slots: 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x16 running x4 (Chipset) – M.2 Slots: 1× PCIe Gen5 x4 (128 Gb/s), 1× PCIe Gen4 x4 (64 Gb/s), 1× PCIe Gen3 x4/SATA3 – SATA: 4× SATA3 6.0 Gb/s – USB (Rear): 2× USB4 40 Gb/s Type-C, 4× USB 3.2 Gen1 Type-A, 6× USB 2.0 – Wi-Fi: 802.11be (Wi-Fi 7), 2×2, 2.4/5/6 GHz, Bluetooth 5.4 – LAN: 2.5 Gigabit (Dragon RTL8125BG) – Audio: Realtek ALC1220, 7.1 CH HD – Power: 1× 24-pin ATX, 2× 8-pin 12V EPS – PCB Layers: 8 – OS Support: Windows 10 64-bit / Windows 11 64-bit – Certifications: FCC, CE, ErP/EuP
