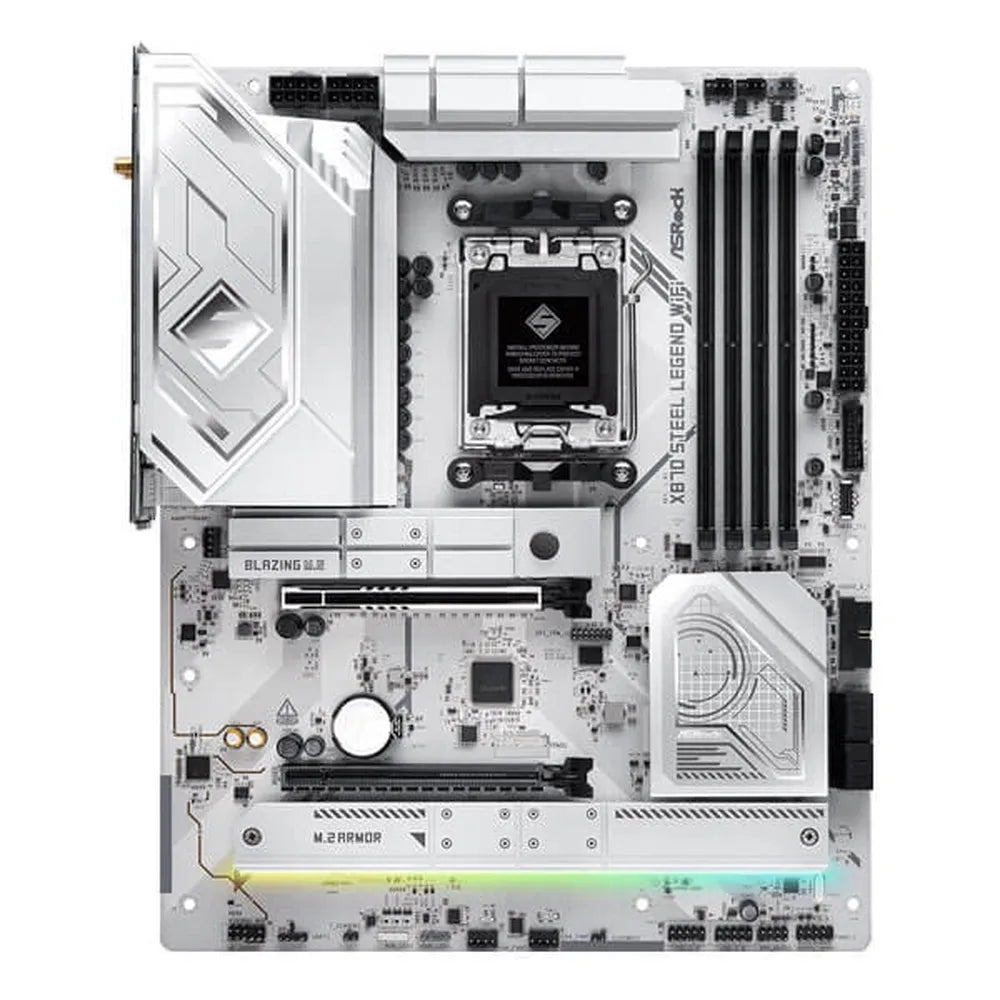

ASROCK X870 Steel Legend Wifi DDR5 AMD Motherboard ( White )
MPN ASROCK-X870-STEEL-LEGEND · Brand ASROCK · ATX
The ASRock X870 Steel Legend WiFi DDR5 ATX motherboard (White) supports AMD AM5 Ryzen 9000/8000/7000 CPUs with PCIe Gen5, Wi-Fi 7, dual USB4 40Gb/s ports, 4x DDR5 slots up to 256GB, and a robust 14+2+1 power phase design
Inclusive of GST · GST invoice available
Overview
The ASRock X870 Steel Legend WiFi is a full-size ATX motherboard engineered for AMD Socket AM5 processors, including Ryzen 9000, 8000, and 7000 series CPUs. Finished in a striking white aesthetic, it delivers a compelling blend of next-generation connectivity, robust power delivery, and enthusiast-grade expandability for daily users and performance-focused builders alike. At the heart of its power delivery is a 14+2+1 phase design using 80A Dr.MOS components for VCore and SOC, complemented by enlarged heatsink armor to keep temperatures in check during sustained workloads. Exclusive 20K Black capacitors rated at 1000uF provide higher charge storage, lower power ripple, and more stable output current compared to standard capacitors, contributing to consistent long-term system reliability. Memory support spans four DDR5 DIMM slots with dual-channel operation, accommodating up to 256GB of DDR5 ECC and non-ECC unbuffered memory at speeds up to DDR5-8000+ via overclocking. Both Intel XMP and AMD EXPO memory profiles are supported for straightforward performance tuning. Storage options are extensive: a CPU-direct Blazing M.2 slot (M2_1) delivers PCIe Gen5 x4 bandwidth at up to 128 Gb/s, while two additional Hyper M.2 slots (M2_2, M2_3) offer PCIe Gen4 x4 speeds at up to 64 Gb/s each. Four SATA3 6 Gb/s connectors via ASMedia ASM1061 round out legacy storage needs, and RAID 0, 1, and 10 are supported for NVMe M.2 devices. Connectivity is a standout feature: dual USB4 Type-C rear ports deliver 40 Gb/s throughput and support display output up to 8K 30Hz. A 2.5 Gigabit Ethernet port (Dragon RTL8125BG) handles wired networking, while the integrated 802.11be Wi-Fi 7 module supports 2.4 GHz, 5 GHz, and 6 GHz bands with 160 MHz channel bandwidth, MU-MIMO, and Bluetooth 5.4. Audio is handled by a Realtek ALC4082 codec delivering 7.1-channel HD audio with content protection, individual PCB layers for left/right channel separation, Nahimic Audio software enhancement, and Direct Drive Technology on the front headphone port supporting headsets up to 600 Ohms. The rear I/O panel is fully integrated and includes HDMI 2.1 (4K 120Hz), 2x USB4 Type-C (40 Gb/s), 2x USB 3.2 Gen2 Type-A, 3x USB 3.2 Gen1 Type-A (including Lightning Gaming Ports), 4x USB 2.0, optical S/PDIF out, gold-plated audio jacks, and a BIOS Flashback button for easy BIOS recovery without a CPU or memory installed. Verified Specifications: - Form Factor: ATX, 12.0 in x 9.6 in (30.5 cm x 24.4 cm), 8-layer PCB - Chipset: AMD X870 - CPU Socket: AM5 (Ryzen 9000 / 8000 / 7000 series) - Memory: 4x DDR5 DIMM, dual-channel, up to 256GB, DDR5-8000+(OC), XMP/EXPO - Primary M.2: PCIe Gen5 x4 (128 Gb/s), type 2280 - Secondary M.2 x2: PCIe Gen4 x4 (64 Gb/s) - SATA: 4x SATA3 6 Gb/s - PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode) - USB4: 2x rear Type-C (40 Gb/s) - LAN: 2.5 Gigabit (Dragon RTL8125BG) - Wireless: Wi-Fi 7 (802.11be), Bluetooth 5.4 - Audio: Realtek ALC4082, 7.1 CH HD, Nahimic - Power: 24-pin ATX + dual 8-pin 12V - ARGB: 3x addressable LED headers, 1x RGB LED header - Warranty: 3 years - OS: Windows 10 / 11 (64-bit) - Certifications: FCC, CE, ErP/EuP
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – AMD X870 |
| CPU Type | – Supports AMD Socket AM5 RyzenTM 9000, 8000 and 7000 Series Processors |
| Os | – Microsoft Windows® 10 64-bit / 11 64-bit |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control |
| USB | CPU:- 2 x USB4 Type-C (Rear)- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))Chipset:- 1 x USB 3.2 Gen2x2 Type-C (Front)- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4))- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front)- 8 x USB 2.0 (4 Rear, 4 Front) |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)- Individual PCB Layers for R/L Audio Channel- Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)- Nahimic Audio |
| Slots | CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*Chipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- Supports AMD CrossFire™- 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Memory | – Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*- Max. capacity of system memory: 256GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Storage | CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*ASMedia ASM1061:- 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
| Connector | – 1 x Thermistor Cable Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Model | Asrock X870 Steel Legend WiFi |

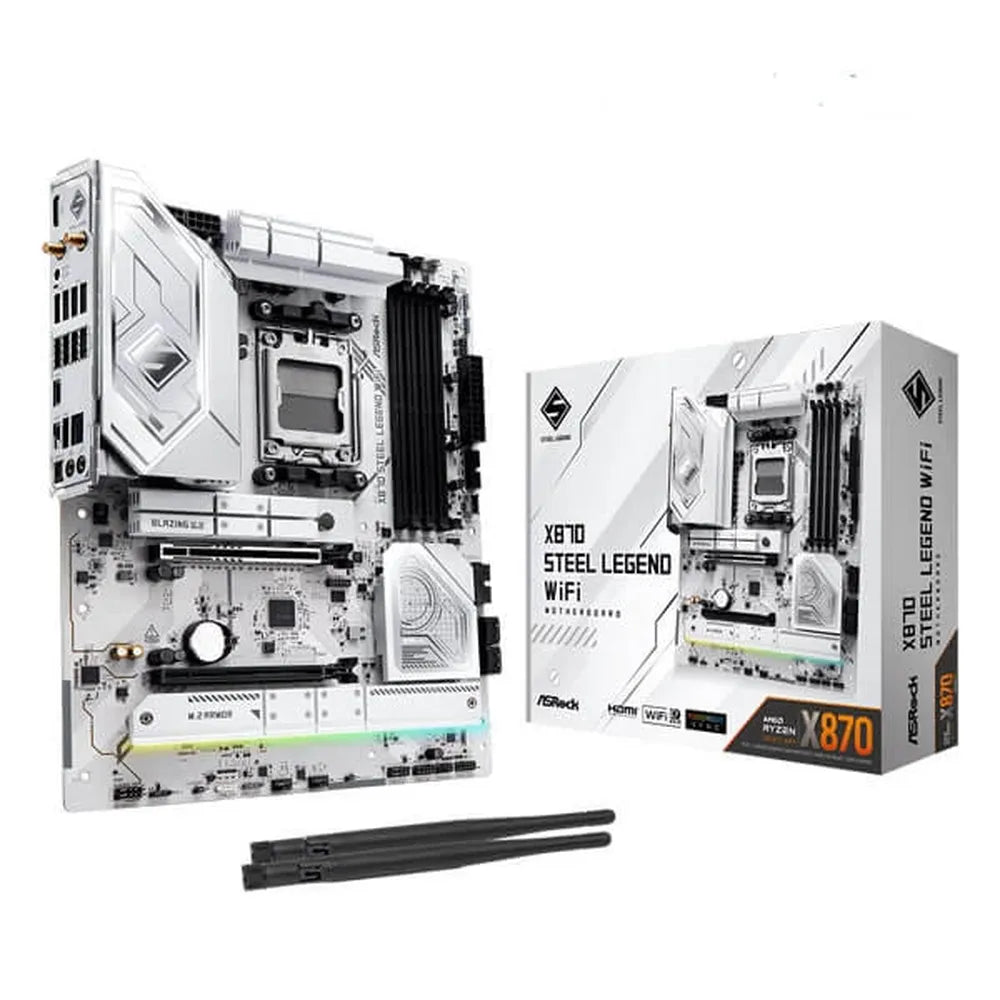

| Accessories | – 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 1 x Thermistor Cable |
| Wireless Lan | – 802.11be 2×2 Wi-Fi 7 Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be- Supports 2.4GHz/5GHz/6GHz* frequency band- Supports 160MHz channel bandwidth with 6GHz* frequency band- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.4- Supports MU-MIMO |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 2 x Antenna Ports- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 2 x USB4 Type-C Ports (40 Gb/s)*- 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.)- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.)- 4 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- 1 x Line Out Jack (Gold Audio Jack)- 1 x Microphone Input Jack (Gold Audio Jack) |
| Unique Feature | Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5- USB4 Type-C Ports (40 Gb/s)Rock-Solid Durability- 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor- Flexible Integrated I/O Shield- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)Ultrafast Connectivity- 2.5G LAN, 802.11be Wi-Fi 7 Module- ASRock Lightning Gaming PortsEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash |
