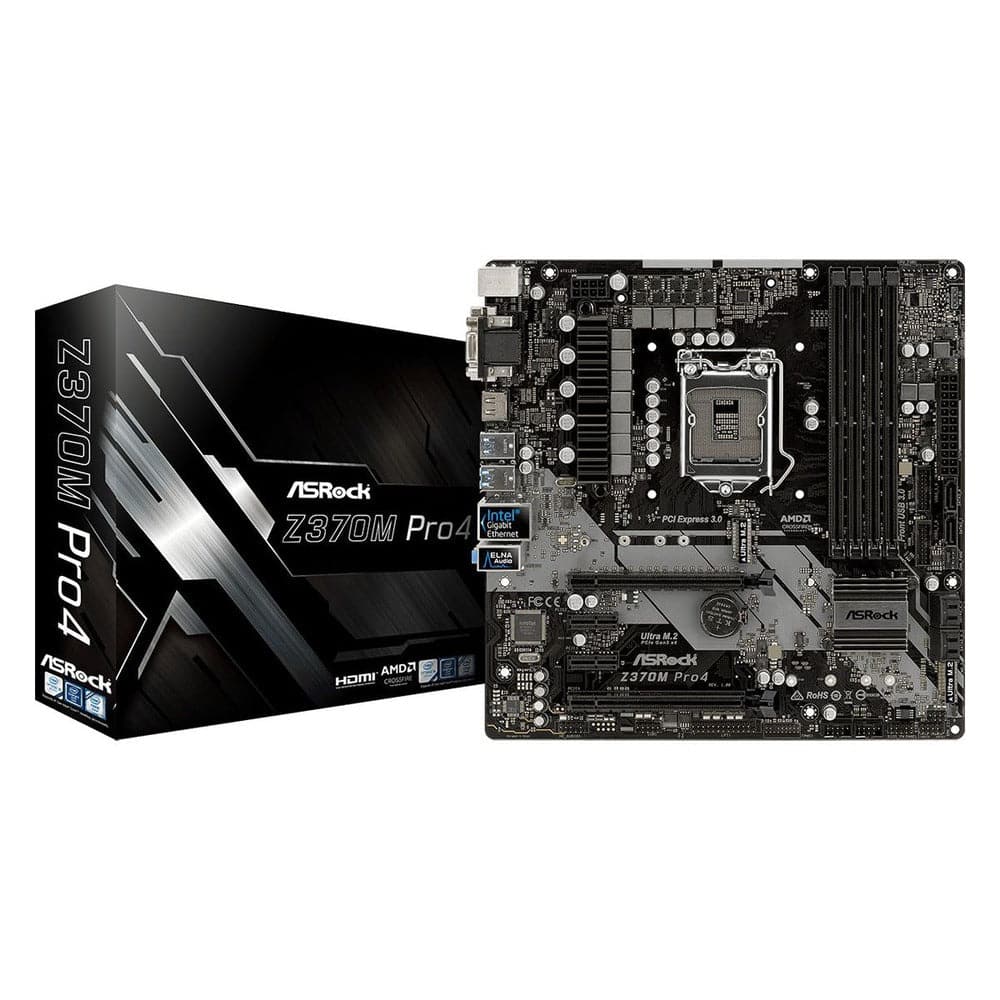

ASROCK Z370M Pro4 DDR4 Intel Motherboard
MPN ASROCK-Z370M-PRO4 · Brand ASROCK · mATX
The ASRock Z370M Pro4 is a Micro ATX motherboard for 8th Gen Intel Core CPUs (LGA 1151), featuring Intel Z370 chipset, dual Ultra M.2 slots, 64GB DDR4 support, Triple Monitor output, and Intel Gigabit LAN
Inclusive of GST · GST invoice available
Overview

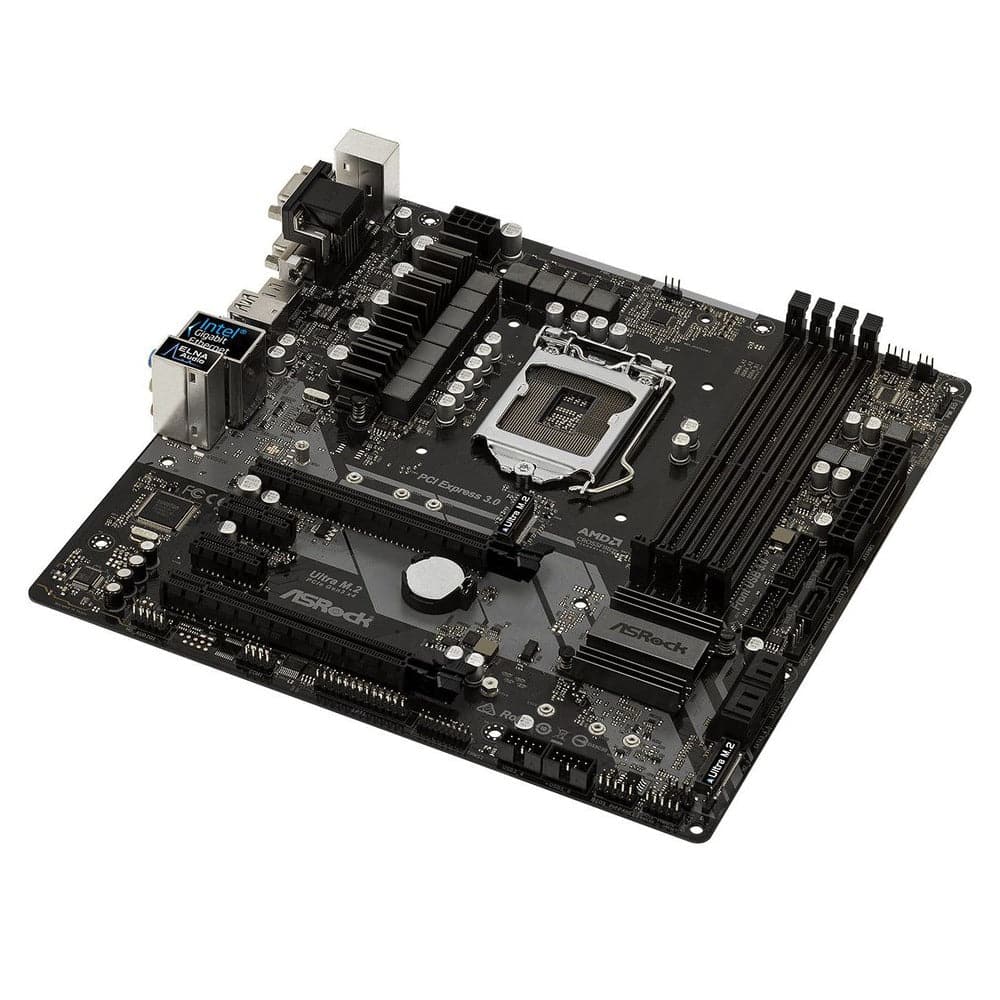

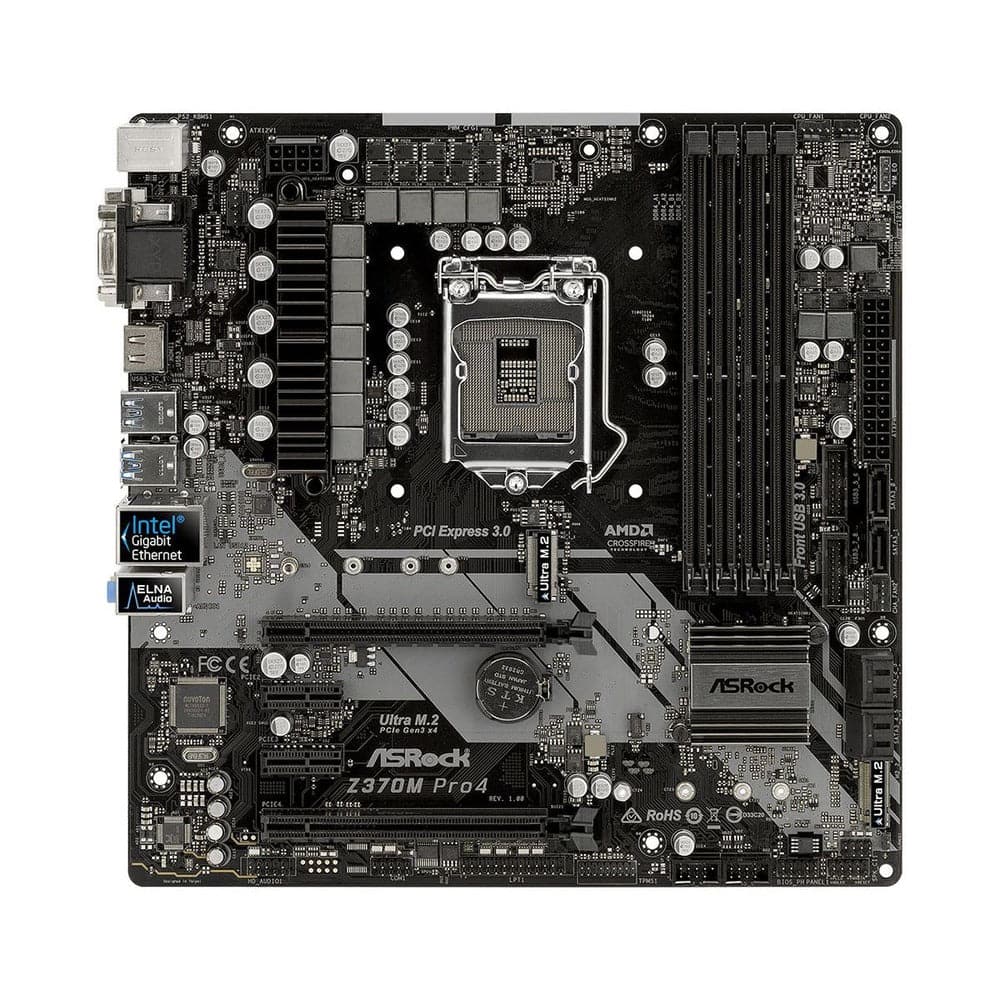

The ASRock Z370M Pro4 is a Micro ATX motherboard built on the Intel Z370 chipset, designed to support 8th Generation Intel Core processors via the LGA 1151 socket. It pairs a robust 10-phase Digi Power design with ASRock's Super Alloy components — including a 45A Premium Power Choke and Sapphire Black PCB with High Density Glass Fabric — to deliver stable power delivery for everyday computing and overclocking alike. Memory flexibility is a standout capability. Four DDR4 DIMM slots support up to 64GB of non-ECC unbuffered RAM in Dual Channel mode, with native speeds of DDR4 2133/2400/2666 and overclocked profiles reaching up to DDR4 4300 (OC) via XMP 2.0. Note that the 8th Gen Intel CPU itself caps native DDR4 support at 2666 MHz; speeds above that require overclocking. Storage options are extensive. Six SATA3 6.0 Gb/s connectors support RAID 0, 1, 5, and 10 configurations, while two Ultra M.2 sockets (both supporting PCIe Gen3 x4 at up to 32 Gb/s) cater to high-speed NVMe SSDs. M2_1 also supports SATA3 M.2 modules and Intel Optane Memory technology. Display connectivity covers D-Sub, DVI-D, and HDMI ports, enabling Triple Monitor support without a dedicated GPU (requires a processor with integrated graphics). HDMI output supports up to 4K (4096x2160) at 30Hz. Audio is handled by a Realtek ALC892 codec delivering 7.1-channel HD audio, complemented by ELNA audio capacitors for reduced noise. Networking is provided by Intel's I219V Gigabit LAN controller (10/100/1000 Mb/s) with Wake- LAN, ESD/Lightning protection, and 802.3az Energy Efficient Ethernet support. USB connectivity includes 9 USB 3.1 Gen1 ports total — 1 rear Type-C, 4 rear Type-A, and 4 front-panel — plus additional USB 2.0 headers. Verified Specifications: - Form Factor: Micro ATX, 9.6 x 9.6 in (24.4 x 24.4 cm) - Chipset: Intel Z370 - Socket: LGA 1151 (8th Gen Intel Core) - Memory: 4x DDR4 DIMM, max 64GB, DDR4 2133–4300(OC), XMP 2.0 - Expansion: 2x PCIe 3.0 x16 (x16/x4 modes), 2x PCIe 3.0 x1 - Storage: 6x SATA3 6.0 Gb/s, 2x Ultra M.2 (PCIe Gen3 x4) - Display: HDMI (4K@30Hz), DVI-D (1920x1200@60Hz), D-Sub (1920x1200@60Hz) - Audio: Realtek ALC892, 7.1 CH HD, ELNA Audio Caps - LAN: Intel I219V Gigabit - USB: 9x USB 3.1 Gen1 (1x Type-C rear, 4x Type-A rear, 4x front), 4x USB 2.0 via headers - BIOS: 128Mb AMI UEFI - Certifications: FCC, CE, ErP/EuP ready - Warranty: 3 Years
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | – Intel® Z370 |
| CPU Type | |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*- Premium Blu-ray Audio support- Supports Surge Protection- ELNA Audio Caps*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver |
| Slots | – 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)*- 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)- Supports AMD Quad CrossFireX™ and CrossFireX™*Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 4300 (OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB**- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots*8th Gen Intel® CPU supports DDR4 up to 2666.Please refer to Memory Support List on ASRock's website for more information.**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug*- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.**Supports Intel® Optane™ TechnologySupports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | – Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics- DirectX 12- HWA Encode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1- Max. shared memory 1024MB- Three graphics output options: D-Sub, DVI-D and HDMI- Supports Triple Monitor- Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)- Supports HDCP with DVI-D and HDMI Ports- Supports 4K Ultra HD (UHD) playback with HDMI Port*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**The size of maximum shared memory may vary from different operating systems |
| Connector | – 1 x Print Port Header- 1 x COM Port Header- 1 x TPM Header- 1 x Chassis Intrusion and Speaker Header- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)*- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)- 1 x Performance Mode / Easy OC Header*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x Screws for M.2 Sockets |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |

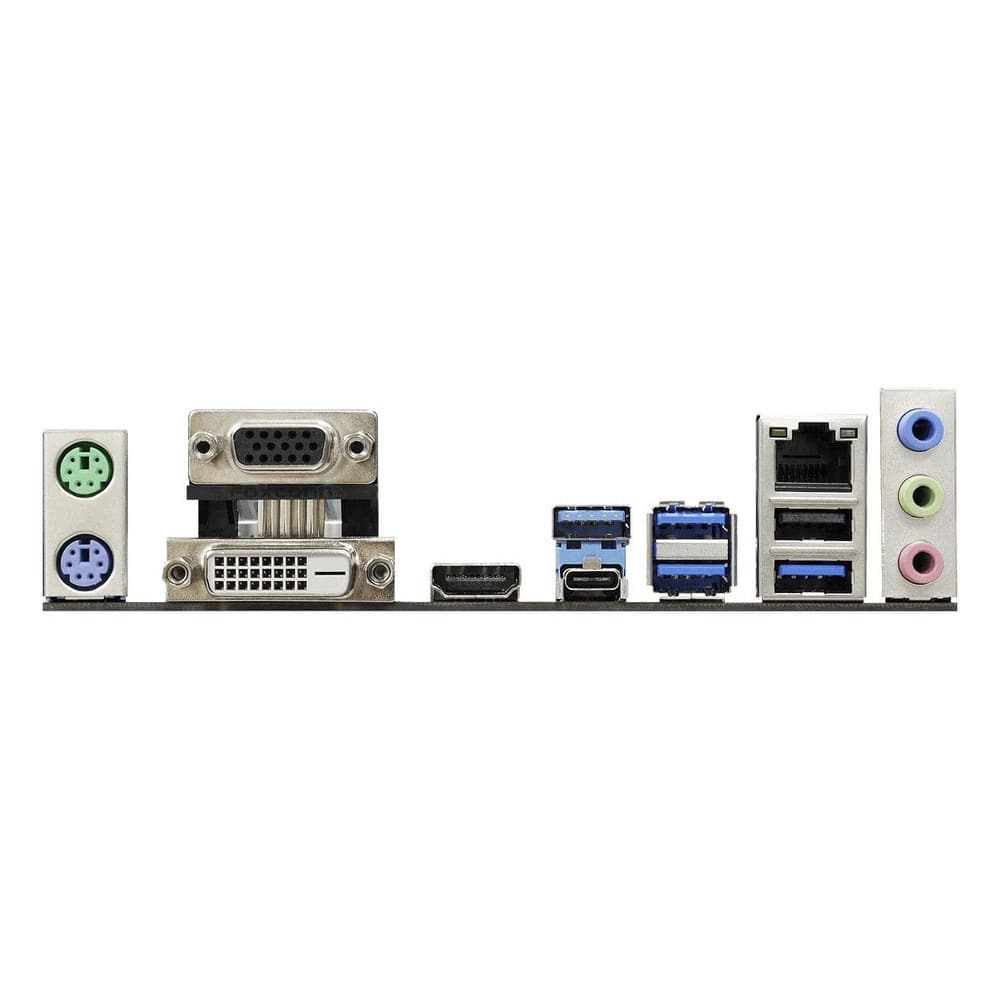

| Rear Panel I/O | – 1 x PS/2 Mouse Port- 1 x PS/2 Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 1 x USB 2.0 Port (Supports ESD Protection)- 4 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection)- 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super Alloy- Premium 45A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCBASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) TechnologyASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – CPU, Chassis temperature sensing- CPU, Chassis Fan Tachometer- CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)- CPU, Chassis Fan multi-speed control- CASE OPEN detection- Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, DRAM, PCH 1.0V |
| Software And Uefi | Software- ASRock A-Tuning- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop |
