ASROCK Z490 Phantom Gaming 4 DDR4 Intel Motherboard
MPN ASROCK-Z490-PHANTOM-GAMING4 · Brand ASROCK · ATX
The ASRock Z490 Phantom Gaming 4 DDR4 ATX motherboard supports 10th Gen Intel Core CPUs (LGA 1200), up to 128 GB DDR4 (XMP 2.0), 10-phase power delivery, USB 3.2 Gen2, Ultra M.2 PCIe Gen3 x4, and Intel Gigabit LAN
Inclusive of GST · GST invoice available
Overview

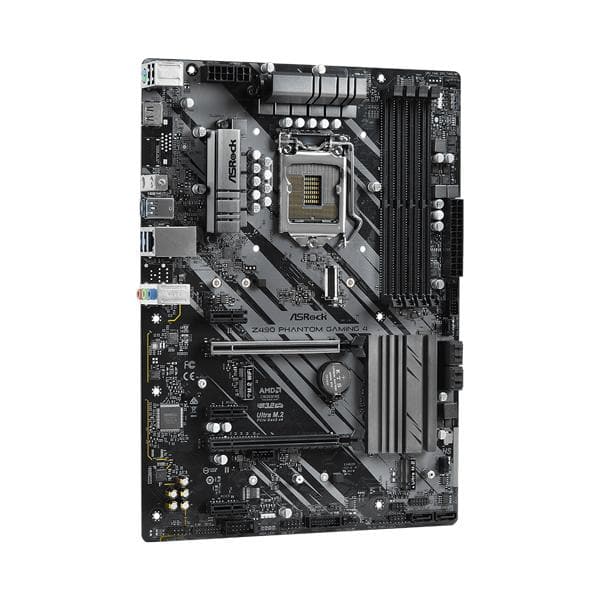

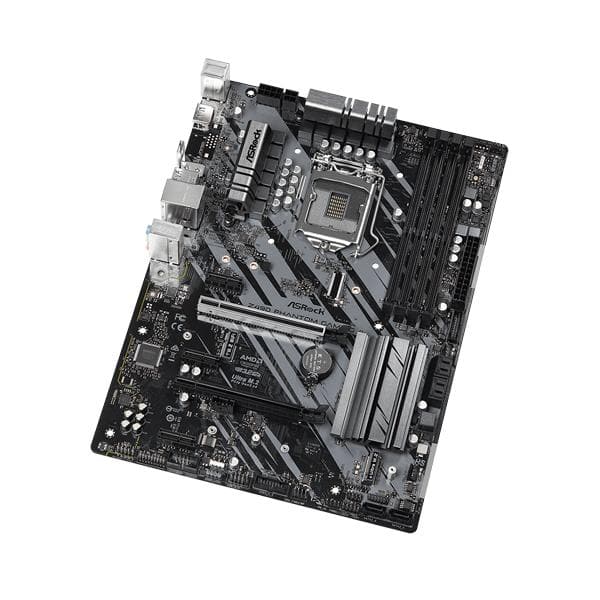

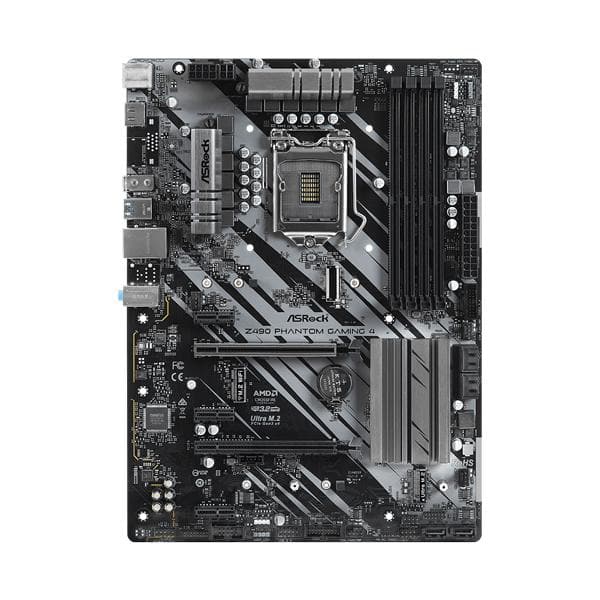

The ASRock Z490 Phantom Gaming 4 is an ATX-form-factor motherboard built on the Intel Z490 chipset and designed for 10th Generation Intel Core processors using the LGA 1200 socket. Whether you are assembling a high-performance gaming rig or a capable productivity workstation, this board provides a solid foundation with its 10-phase digital power delivery design, ensuring stable and consistent power to the CPU — including support for unlocked K-series processors and Intel Turbo Boost Max 3.0 Technology. Memory flexibility is a highlight: four DDR4 DIMM slots accommodate up to 128 GB of dual-channel DDR4 RAM, with native speeds up to 2933 MHz and overclocked profiles reaching DDR4 4400+ MHz (OC) via Intel XMP 2.0 support. The 15-micron gold contacts in the DIMM slots add long-term reliability to every memory swap. For storage, the board provides six SATA3 6.0 Gb/s ports with RAID 0/1/5/10 support via Intel Rapid Storage Technology 17, plus one Ultra M.2 socket (M2_2) capable of PCIe Gen3 x4 speeds up to 32 Gb/s alongside SATA3 module support — ideal for pairing a high-speed NVMe SSD with traditional drives. Connectivity is extensive: the rear panel delivers one USB 3.2 Gen2 Type-A and one USB 3.2 Gen2 Type-C port (both at 10 Gb/s with ReDriver), two USB 3.2 Gen1 ports, two USB 2.0 ports, a PS/2 port, HDMI 1.4 output (4K @ 30 Hz for iGPU-equipped CPUs), an RJ-45 Gigabit LAN port powered by the Intel I219V controller, and HD Audio jacks. Internally, two USB 3.2 Gen1 headers support up to four additional front-panel ports. Audio is handled by the Realtek ALC1200 codec delivering 7.1-channel HD audio with PCB isolate shielding and individual PCB layers for left and right channels, complemented by Nahimic Audio software for an enhanced listening experience across headphones and speakers. Expansion options include two PCIe 3.0 x16 slots, three PCIe 3.0 x1 slots, and one M.2 Key-E socket for a WiFi/BT module or Intel CNVi. AMD CrossFireX multi-GPU configurations are supported. RGB enthusiasts will appreciate two 12V RGB LED headers and two addressable (5V ARGB) LED headers, all manageable through ASRock Polychrome SYNC software. Verified Specifications: - Chipset: Intel Z490 - Socket: LGA 1200 (10th Gen Intel Core) - Form Factor: ATX, 12.0 in x 8.8 in (30.5 cm x 22.4 cm) - Memory: 4x DDR4 DIMM, max 128 GB, DDR4 4400+ (OC) / 2933 native, XMP 2.0 - Storage: 6x SATA3 6 Gb/s (RAID 0/1/5/10), 1x Ultra M.2 PCIe Gen3 x4 (32 Gb/s) + SATA3 - Display: HDMI 1.4 (up to 4096x2160 @ 30 Hz) - USB Rear: 1x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C, 2x USB 3.2 Gen1, 2x USB 2.0 - LAN: Intel I219V Gigabit (10/100/1000 Mb/s) - Audio: Realtek ALC1200, 7.1-CH HD, Nahimic Audio - Power Phases: 10 - BIOS: 128 Mb AMI UEFI, multilingual GUI, ACPI 6.0, SMBIOS 2.7 - Certifications: FCC, CE, ErP/EuP ready - Warranty: 3 Years

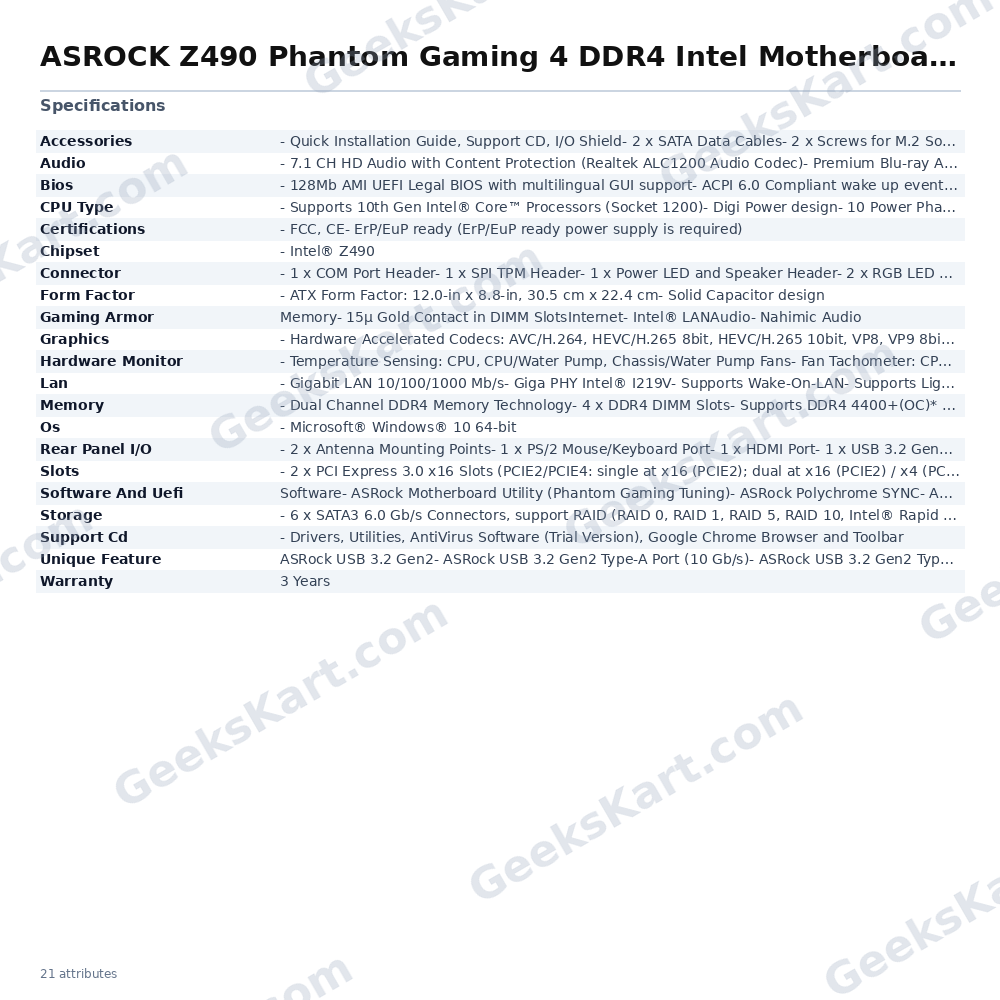

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – Intel® Z490 |
| CPU Type | – Supports 10th Gen Intel® CoreTM Processors (Socket 1200)- Digi Power design- 10 Power Phase design- Supports Intel® Turbo Boost Max 3.0 Technology- Supports Intel® K-Series unlocked CPUs- Supports ASRock BCLK Full-range Overclocking |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, GT, DRAM, PCH, VCCIO, VCCST, VCCSA Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- PCB Isolate Shielding- Individual PCB Layers for R/L Audio Channel- Nahimic Audio |
| Slots | – 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)*- 3 x PCI Express 3.0 x1 Slots- Supports AMD Quad CrossFireX™ and CrossFireX™- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)*Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 4400+(OC)* / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 128GB**- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots*Please refer to Memory Support List on ASRock's website for more information.Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.**Supports Intel® Optane™ TechnologySupports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | – Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1*- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)- Supports HDCP 2.3 with HDMI 1.4 Port- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**VP9 10bit and VC-1 are for decode only.VP8 and VP9 encode are not supported by Windows® OS |
| Connector | – 1 x COM Port Header- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 2 x RGB LED Headers*- 2 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x 4 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)*Support in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x Screws for M.2 Sockets |
| Gaming Armor | Memory- 15μ Gold Contact in DIMM SlotsInternet- Intel® LANAudio- Nahimic Audio |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 2 x Antenna Mounting Points- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 2 x USB 2.0 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCBASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) TechnologyASRock Steel SlotsASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIO |
| Software And Uefi | Software- ASRock Motherboard Utility (Phantom Gaming Tuning)- ASRock Polychrome SYNC- ASRock Key Master- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop |
