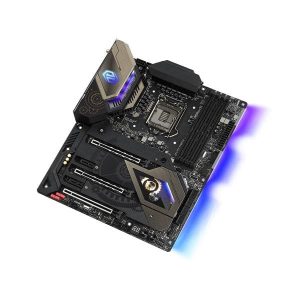

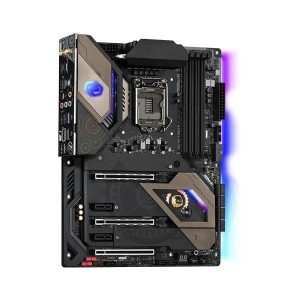

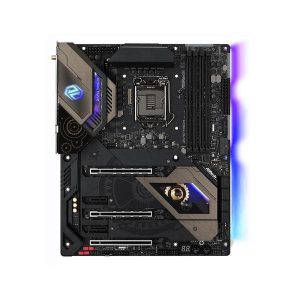

ASROCK Z490 Taichi Wifi DDR4 Intel Motherboard
MPN ASROCK-Z490-TAICHI-WI-FI · Brand ASROCK · ATX
The ASRock Z490 Taichi WiFi is a full-ATX motherboard for Intel 10th Gen LGA 1200 CPUs, featuring a 15-phase Dr.MOS power design, Intel Wi-Fi 6, dual LAN (2.5G + 1G), three M.2 slots, and USB 3.2 Gen2x2 Type-C connectivity
Inclusive of GST · GST invoice available
Overview
The ASRock Z490 Taichi WiFi is a full-size ATX motherboard (12.0 in x 9.6 in / 30.5 cm x 24.4 cm) built on the Intel Z490 chipset and designed for 10th Generation Intel Core processors using the LGA 1200 socket. Its 15-phase Dr.MOS power delivery, paired with a 50A integrated power stage and premium 60A power chokes, is engineered to sustain stable voltage to the processor during extended workloads and overclocking sessions. Memory support spans four DDR4 DIMM slots capable of holding up to 128 GB total, with native speeds up to DDR4 2933 and overclocked profiles reaching DDR4 4666+ (OC) via Intel XMP 2.0. Three Ultra M.2 slots (all PCIe Gen3 x4, two also SATA3-capable) sit beneath a full-coverage aluminium heatsink, complemented by eight SATA3 ports for conventional drives. Connectivity is a standout. Wireless is handled by an Intel Wi-Fi 6 (802.11ax) module supporting dual-band 2.4/5 GHz operation, MU-MIMO, and Bluetooth 5.1. Wired networking combines a Dragon 2.5 Gb/s port (Realtek RTL8125BG) with an Intel I219V Gigabit port. USB ports on the rear include one USB 3.2 Gen2x2 Type-C (20 Gb/s), two USB 3.2 Gen2 Type-A (10 Gb/s), and five USB 3.2 Gen1 ports. Display output relies on HDMI 1.4 (4K @ 30 Hz) and DisplayPort 1.4 (4K @ 60 Hz), available only when using a processor with integrated graphics. Audio is handled by a Realtek ALC1220 codec paired with an ESS SABRE9218 DAC for the front-panel header (rated at 130 dB SNR), WIMA audio capacitors on front outputs, and Nahimic Audio software. Expansion consists of three PCIe 3.0 x16 slots (supporting NVIDIA SLI and AMD 3-Way CrossFireX) and two PCIe 3.0 x1 slots. The board ships with two RGB LED headers, two addressable LED headers, and ASRock Polychrome SYNC for lighting control. Additional highlights include a BIOS Flashback button, onboard Dr. Debug LED indicator, Clear CMOS button, and a 2 oz copper PCB for improved thermal management. Key Verified Specifications: - Chipset: Intel Z490 - Socket: LGA 1200 (10th Gen Intel Core) - Form Factor: ATX, 12.0 in x 9.6 in (30.5 cm x 24.4 cm) - Memory: 4x DDR4 DIMM, up to 128 GB, DDR4 4666+ (OC), XMP 2.0 - Power Phases: 15-phase Dr.MOS (50A per phase) - Storage: 8x SATA3 + 3x Ultra M.2 (PCIe Gen3 x4) - Wireless: Intel Wi-Fi 6 802.11ax (up to 2.4 Gbps), Bluetooth 5.1 - LAN: 1x Dragon 2.5 Gb/s (RTL8125BG) + 1x Intel I219V 1 Gb/s - USB (Rear): 1x USB 3.2 Gen2x2 Type-C (20 Gb/s), 2x USB 3.2 Gen2 Type-A (10 Gb/s), 5x USB 3.2 Gen1 - Display: HDMI 1.4 (4K@30Hz), DisplayPort 1.4 (4K@60Hz) - Audio: Realtek ALC1220 + ESS SABRE9218 DAC (130 dB SNR front panel) - PCIe Slots: 3x PCIe 3.0 x16, 2x PCIe 3.0 x1 - BIOS: 128 Mb AMI UEFI - Warranty: 3 Years

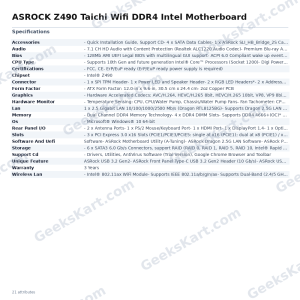

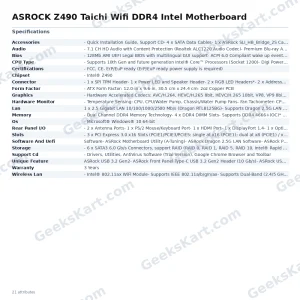

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – Intel® Z490 |
| CPU Type | |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, CPU GT, DRAM, VPPM, VCCSFR, VCCPLL, VCCSTG, VCCSTG_OUT, PCH Voltage, VCCIO, VCCST, VCCSA, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- WIMA Audio Capacitors (For Front Outputs)- ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)- Pure Power-In- Direct Drive Technology- PCB Isolate Shielding- Impedance Sensing on Rear Out port- Individual PCB Layers for R/L Audio Channel- Gold Audio Jacks- 15μ Gold Audio Connector- Nahimic Audio |
| Slots | – 3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3/PCIE5: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x8 (PCIE3) / x4 (PCIE5))*- 2 x PCI Express 3.0 x1 Slots- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™- Supports NVIDIA® and SLI™- Support NVIDIA® SLI™ with NVIDIA® Quadro graphics cards- Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards**- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)- 15μ Gold Contact in VGA PCIe Slot (PCIE1)*Supports NVMe SSD as boot disks**NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 4666+(OC)* / 4600 / 4500 / 4400 / 4333/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 128GB**- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***M2_2, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.M2_3, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.M2_3, SATA3_4, SATA3_5 and USB32_TC_1 share lanes. If either one of them is in use, USB32_TC_1 will downgrade to 16 Gb/s max.M2_3 and USB32_TC_1 share lanes. If either one of them is in use, M2_3 and USB32_TC_1 will downgrade to PCIe Gen3 x2 (16 Gb/s).**Supports Intel® Optane™ Technology (M2_1 and M2_2 only)Supports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | – Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)- Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.** VP9 10bit and VC-1 are for decode only.VP8 and VP9 encode are not supported by Windows® OS |
| Connector | – 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 2 x RGB LED Headers*- 2 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z490) (Supports ESD Protection)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.2 Gen2 Header (Intel® Z490) (Supports ESD Protection)- 1 x Clear CMOS Button- 1 x Dr. Debug with LED- 1 x Power Button with LED- 1 x Reset Button with LED*Support in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP, CHA_FAN5/WP and CHA_FAN6/WP can auto detect if 3-pin or 4-pin fan is in use.CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD- 4 x SATA Data Cables- 1 x ASRock SLI_HB_Bridge_2S Card- 1 x ASRock WiFi 2.4/5 GHz Antenna- 1 x ASRock Screwdriver- 3 x Screws for M.2 Sockets- 2 x Standoffs for M.2 Sockets |
| Wireless Lan | – Intel® 802.11ax WiFi Module- Supports IEEE 802.11a/b/g/n/ax- Supports Dual-Band (2.4/5 GHz)- Supports WiFi6 802.11ax (2.4Gbps)- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.1 + High speed class II- Supports MU-MIMO |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ASMedia ASM3242) (Supports ESD Protection)*- 5 x USB 3.2 Gen1 Ports (Supports ESD Protection)**- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)- 1 x BIOS Flashback Button- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)*M2_3, SATA3_4, SATA3_5 and USB32_TC_1 share lanes. If either one of them is in use, USB32_TC_1 will downgrade to 16 Gb/s max.**USB3_3 is from Intel® Z490; USB3_12 and USB3_4_5 are from ASMedia ASM1074 hub.Ultra USB Power is supported on USB3_4_5 ports.ACPI wake-up function is not supported on USB3_4_5 ports |
| Unique Feature | ASRock USB 3.2 Gen2- ASRock Front Panel Type-C USB 3.2 Gen2 Header (10 Gb/s)- ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s)- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Combo Caps (Nichicon 12K Black Caps)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 2oz Copper PCB 2.5G LANIntel® 802.11ax WiFiASRock Steel SlotsASRock Full Coverage M.2 HeatsinkASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIO, VCCFSR_OC, VCCSFR |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID Installer |
